VW JETTA 2007 – 2.0l petrol engine, BHP . Wiring diagrams, Pin Connector, Location

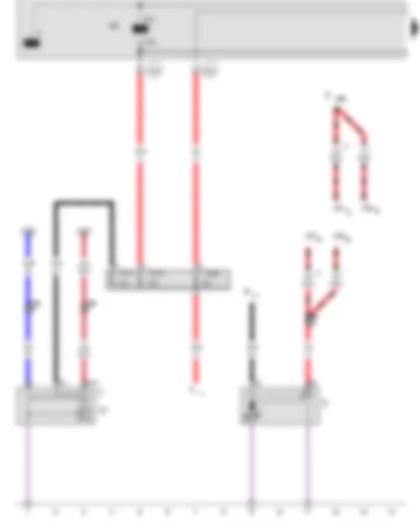

Wiring Diagram VW JETTA 2007 - Starter - Alternator

A	Battery
B	Starter
C	Alternator
C1	Voltage regulator
D	Ignition/starter switch
J59	X-contact relief relay
J207	Starter inhibitor relay
J226	Starter inhibitor and reversing light relay
S163	Fuse 2 (30), in battery fuse holder
S176	Fuse 4 (30), in battery fuse holder
S177	Fuse 5 (30), in battery fuse holder
T2e	2-pin connector
T4fb	4-pin connector
T6	6-pin connector
500	Threaded connection 1 (30), on relay plate
502	Threaded connection 1 (30a) on relay plate
*	Only models with automatic gearbox
*2	Only models with manual gearbox

Wiring Diagram VW JETTA 2007 - Main relay

Get access to all wiring diagrams of the car

D	Ignition/starter switch
J271	Main relay
S229	Fuse 29 in fuse holder
S237	Fuse 37 in fuse holder
T6	6-pin connector
T8	8-pin connector
501	Threaded connection 2 (30), on relay plate
A2	Positive connection (15), in dash panel wiring harness
A32	Positive connection (30), in dash panel wiring harness
A52	Positive connection 2 (30), in dash panel wiring harness
A98	Positive connection 4 (30), in dash panel wiring harness
A192	Positive connection 3 (15a) in dash panel wiring harness
D78	Positive connection 1 (30a), in engine compartment wiring harness
D104	Positive connection 2 (30a), in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Coolant temperature display sender - Coolant temperature sender - Motronic control unit - Ignition transformer - Spark plugs

Get access to all wiring diagrams of the car

G2	Coolant temperature display sender
G62	Coolant temperature sender
J220	Motronic control unit
N152	Ignition transformer
P	Spark plug connector
Q	Spark plugs
T2i	2-pin connector
T4k	4-pin connector
T10w	10-pin connector
T14a	14-pin connector
T80	80-pin connector
220	Earth connection (sender earth), in engine wiring harness
D78	Positive connection 1 (30a), in engine compartment wiring harness
D104	Positive connection 2 (30a), in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Engine speed sender - Hall sender - Throttle valve drive for electric throttle - Motronic control unit

Get access to all wiring diagrams of the car

G28	Engine speed sender
G40	Hall sender
G186	Throttle valve drive for electric throttle
G187	Throttle valve drive angle sender 1 for electric throttle
G188	Throttle valve drive angle sender 2 for electric throttle
J220	Motronic control unit
J338	Throttle valve module
T3f	3-pin connector
T6h	6-pin connector
T80	80-pin connector
220	Earth connection (sender earth), in engine wiring harness
D101	Connection 1 in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Intake air temperature sender - Knock sensor 1 - Knock sensor 2 - Intake manifold pressure sender - Motronic control unit

Get access to all wiring diagrams of the car

G42	Intake air temperature sender
G61	Knock sensor 1
G66	Knock sensor 2
G71	Intake manifold pressure sender
J220	Motronic control unit
T2i	2-pin connector
T80	80-pin connector
220	Earth connection (sender earth), in engine wiring harness
327	Earth connection (sender earth), in engine compartment wiring harness
D101	Connection 1 in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Motronic control unit

Get access to all wiring diagrams of the car

J104	ABS control unit
J217	Automatic gearbox control unit
J220	Motronic control unit
T10	10-pin connector
T10w	10-pin connector
T47a	47-pin connector
T68	68-pin connector
T80	80-pin connector
607	Earth point, on left in plenum chamber
A121	Connection (high bus), in dash panel wiring harness
A122	Connection (low bus), in dash panel wiring harness
*	Connection for radiator fan control unit
*2	Connection for air conditioning system
*3	Only models with automatic gearbox

Wiring Diagram VW JETTA 2007 - Motronic control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4

Get access to all wiring diagrams of the car

J220	Motronic control unit
N30	Injector, cylinder 1
N31	Injector, cylinder 2
N32	Injector, cylinder 3
N33	Injector, cylinder 4
S232	Fuse 32 in fuse holder
T14a	14-pin connector
T80	80-pin connector
A101	Connection 3 (87) in dash panel wiring harness
D95	Connection (injectors), in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Lambda probe - Accelerator position sender - Lambda probe after catalytic converter - Accelerator position sender 2 - Motronic control unit

Get access to all wiring diagrams of the car

G39	Lambda probe
G79	Accelerator position sender
G130	Lambda probe after catalytic converter
G185	Accelerator position sender 2
J220	Motronic control unit
T4d	4-pin connector
T4f	4-pin connector
T6j	6-pin connector
T10h	10-pin connector
T80	80-pin connector
E30	Connection (87a), in engine wiring harness

Wiring Diagram VW JETTA 2007 - Cruise control system switch - Cruise control system (CCS) SET button - Clutch pedal switch - Motronic control unit

Get access to all wiring diagrams of the car

E45	Cruise control system switch
E227	Cruise control system (CCS) SET button
F36	Clutch pedal switch
J220	Motronic control unit
T4q	4-pin connector
T10e	10-pin connector
T10s	10-pin connector
T10w	10-pin connector
T80	80-pin connector
A20	Positive connection (15a), in dash panel wiring harness
E30	Connection (87a), in engine wiring harness
*	Only models with manual gearbox
*2	Only models with cruise control system (CCS)

Wiring Diagram VW JETTA 2007 - Brake light switch - Brake pedal switch - Fuel pump relay - Motronic control unit - Activated charcoal filter solenoid valve 1

Get access to all wiring diagrams of the car

F	Brake light switch
F47	Brake pedal switch
J17	Fuel pump relay
J220	Motronic control unit
J234	Airbag control unit
J255	Climatronic control unit
N80	Activated charcoal filter solenoid valve 1
S13	Fuse 13 in fuse holder
T4y	4-pin connector
T6	6-pin connector
T10	10-pin connector
T10e	10-pin connector
T16b	16-pin connector
T17a	17-pin connector
T75	75-pin connector
T80	80-pin connector
A18	Connection (54), in dash panel wiring harness
A20	Positive connection (15a), in dash panel wiring harness
A27	Connection (speed signal), in dash panel wiring harness
A125	Connection (crash signal), in dash panel wiring harness
E30	Connection (87a), in engine wiring harness
*	Only models with Climatronic

Wiring Diagram VW JETTA 2007 - Fuel gauge sender - Fuel system pressurisation pump - Coolant shortage indicator sender

Get access to all wiring diagrams of the car

G	Fuel gauge sender
G6	Fuel system pressurisation pump
G32	Coolant shortage indicator sender
S228	Fuse 28 in fuse holder
S243	Fuse 43 in fuse holder
T6	6-pin connector
T14a	14-pin connector
42	Earth point, next to steering column
49	Earth point, near ..., near steering column
81	Earth connection 1, in dash panel wiring harness
269	Earth connection (sender earth) 1, in dash panel wiring harness
504	Threaded connection 1 (87), on relay plate
A27	Connection (speed signal), in dash panel wiring harness
A99	Connection 1 (87) in dash panel wiring harness
E30	Connection (87a), in engine wiring harness
*	Only models with multifunction display

Wiring Diagram VW JETTA 2007 - Oil pressure switch - Speedometer sender - Control unit in dash panel insert

Get access to all wiring diagrams of the car

F1	Oil pressure switch
F4	Reversing light switch
G22	Speedometer sender
J285	Control unit in dash panel insert
K3	Oil pressure warning lamp
K28	Coolant temperature and coolant shortage warning lamp
S5	Fuse 5 in fuse holder
S7	Fuse 7 in fuse holder
T14a	14-pin connector
T32	32-pin connector
85	Earth connection 1, in engine compartment wiring harness
608	Earth point, central in plenum chamber
A27	Connection (speed signal), in dash panel wiring harness
B163	Positive connection 1 (15), in interior wiring harness

Wiring Diagram VW JETTA 2007 - Fuel gauge - Coolant temperature gauge - Rev. counter - Speedometer - Buzzer and gong - Control unit in dash panel insert - Alternator warning lamp - Reserve fuel warning lamp

Get access to all wiring diagrams of the car

G1	Fuel gauge
G3	Coolant temperature gauge
G5	Rev. counter
G21	Speedometer
H3	Buzzer and gong
J285	Control unit in dash panel insert
K2	Alternator warning lamp
K105	Reserve fuel warning lamp
T32	32-pin connector
A13	Connection (door contact switch), in dash panel wiring harness
A27	Connection (speed signal), in dash panel wiring harness

Wiring Diagram VW JETTA 2007 - Multifunction display call-up button - Multifunction display memory switch - Ambient temperature sensor - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface

Get access to all wiring diagrams of the car

E86	Multifunction display call-up button
E109	Multifunction display memory switch
G17	Ambient temperature sensor
J119	Multifunction indicator
J255	Climatronic control unit
J285	Control unit in dash panel insert
J533	Data bus diagnostic interface
K31	Cruise control system warning lamp
K83	Exhaust emissions warning lamp
T6e	6-pin connector
T12d	12-pin connector
T16	16-pin connector
T20	20-pin connector
T32	32-pin connector
T32a	32-pin connector
A76	Connection (K-diagnosis wire), in dash panel wiring harness
*	Only models with no Climatronic
*2	Only models with multifunction display
*3	Only models with Climatronic
