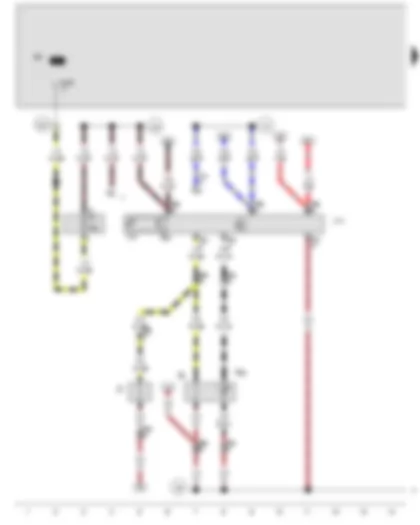

Wiring Diagram VW JETTA 2007 - Heated driver seat regulator - Driver seat temperature sensor - Heated driver seat control unit - Heated seat cushion for driver seat - Heated backrest for driver seat
| E20 | Switch and instrument illumination regulator |
| E94 | Heated driver seat regulator |
| G59 | Driver seat temperature sensor |
| J59 | X-contact relief relay |
| J131 | Heated driver seat control unit |
| L44 | Seat heating switch illumination bulb |
| S1 | Fuse 1 in fuse holder |
| T2k | 2-pin connector |
| T3c | 3-pin connector |
| T6s | 6-pin connector |
| T6u | 6-pin connector |
| W6 | Glove compartment light |
| Z6 | Heated seat cushion for driver seat |
| Z7 | Heated backrest for driver seat |
| 96 | Earth connection 1, in seat heating wiring harness |
| 503 | Threaded connection (75x), on relay plate |
| A4 | Positive connection (58b), in dash panel wiring harness |
| A34 | Connection (75x), in dash panel wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Front passenger seat temperature sensor - Heated front passenger seat control unit - Heated seat cushion for front passenger seat - Heated backrest for front passenger seat
| D | Ignition/starter switch |
| E95 | Heated front passenger seat regulator |
| G60 | Front passenger seat temperature sensor |
| J132 | Heated front passenger seat control unit |
| L44 | Seat heating switch illumination bulb |
| S244 | Fuse 44 in fuse holder |
| T6t | 6-pin connector |
| T6v | 6-pin connector |
| T8 | 8-pin connector |
| T21 | 21-pin connector |
| Z8 | Heated seat cushion for front passenger seat |
| Z9 | Heated backrest for front passenger seat |
| 42 | Earth point, next to steering column |
| 49 | Earth point, near ... |
| 81 | Earth connection 1, in dash panel wiring harness |
| 96 | Earth connection 1, in seat heating wiring harness |
| 501 | Threaded connection 2 (30), on relay plate |
| A32 | Positive connection (30), in dash panel wiring harness |
| A52 | Positive connection 2 (30), in dash panel wiring harness |
| A98 | Positive connection 4 (30), in dash panel wiring harness |
| * | From May 2007 |
