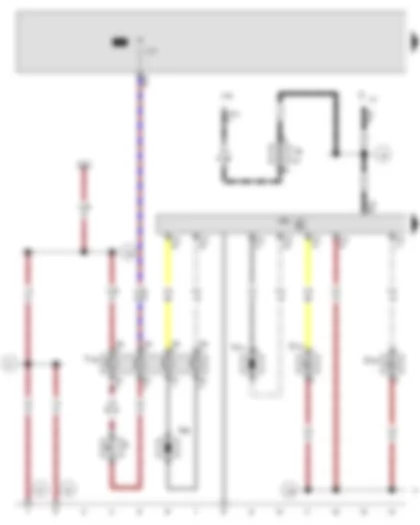

Wiring Diagram VW JETTA 2007 - Airbag coil connector and return ring with slip ring - Horn plate - Airbag control unit - Driver side airbag igniter - Front passenger side airbag igniter 1
| D | Ignition/starter switch |
| F138 | Airbag coil connector and return ring with slip ring |
| G179 | Side airbag crash sensor on driver side |
| G180 | Side airbag crash sensor on front passenger side |
| H | Horn plate |
| J4 | Dual tone horn relay |
| J104 | ABS control unit |
| J234 | Airbag control unit |
| N95 | Driver side airbag igniter |
| N131 | Front passenger side airbag igniter 1 |
| S9 | Fuse 9 in fuse holder |
| T5b | 5-pin connector |
| T5j | 5-pin connector |
| T8 | 8-pin connector |
| T47a | 47-pin connector |
| T75 | 75-pin connector |
| 42 | Earth point, next to steering column |
| 49 | Earth point, near ... |
| 81 | Earth connection 1, in dash panel wiring harness |
| 109 | Earth connection, in airbag wiring harness |
| 135 | Earth connection 2, in dash panel wiring harness |
| A2 | Positive connection (15), in dash panel wiring harness |
Wiring Diagram VW JETTA 2007 - Airbag control unit - Front passenger seat belt tensioner igniter 1 - Side airbag igniter on driver side - Side airbag igniter on front passenger side
| J17 | Fuel pump relay |
| J234 | Airbag control unit |
| N153 | Driver seat belt tensioner igniter 1 |
| N154 | Front passenger seat belt tensioner igniter 1 |
| N199 | Side airbag igniter on driver side |
| N200 | Side airbag igniter on front passenger side |
| T3i | 3-pin connector |
| T3j | 3-pin connector |
| T75 | 75-pin connector |
| 109 | Earth connection, in airbag wiring harness |
Wiring Diagram VW JETTA 2007 - Rear side airbag crash sensor on driver side - Rear side airbag crash sensor on front passenger side - Airbag control unit - Driver side curtain airbag igniter - Front passenger side curtain airbag igniter
| G256 | Rear side airbag crash sensor on driver side |
| G257 | Rear side airbag crash sensor on front passenger side |
| J234 | Airbag control unit |
| N251 | Driver side curtain airbag igniter |
| N252 | Front passenger side curtain airbag igniter |
| T3k | 3-pin connector |
| T3l | 3-pin connector |
| T75 | 75-pin connector |
| 109 | Earth connection, in airbag wiring harness |
| * | Only models with curtain/head airbag |
Wiring Diagram VW JETTA 2007 - Driver side belt switch - Front left belt switch - Front right belt switch - Buzzer and gong - Airbag control unit - Control unit in dash panel insert - Data bus diagnostic interface
| E24 | Driver side belt switch |
| F140 | Front left belt switch |
| F141 | Front right belt switch |
| H3 | Buzzer and gong |
| J104 | ABS control unit |
| J234 | Airbag control unit |
| J285 | Control unit in dash panel insert |
| J533 | Data bus diagnostic interface |
| K19 | Seat belt warning system warning lamp |
| K75 | Airbag warning lamp |
| T2m | 2-pin connector |
| T4l | 4-pin connector |
| T16 | 16-pin connector |
| T32 | 32-pin connector |
| T32a | 32-pin connector |
| T47a | 47-pin connector |
| T75 | 75-pin connector |
| 109 | Earth connection, in airbag wiring harness |
| A76 | Connection (K-diagnosis wire), in dash panel wiring harness |
| A121 | Connection (high bus), in dash panel wiring harness |
| A122 | Connection (low bus), in dash panel wiring harness |
