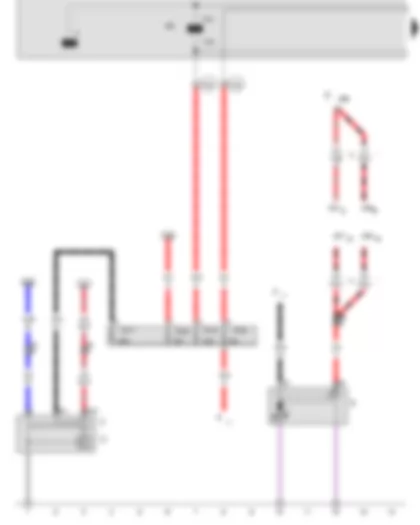

Wiring Diagram VW JETTA 2007 - Starter - Alternator
| A | Battery |
| B | Starter |
| C | Alternator |
| C1 | Voltage regulator |
| D | Ignition/starter switch |
| J59 | X-contact relief relay |
| J207 | Starter inhibitor relay |
| J226 | Starter inhibitor and reversing light relay |
| S162 | Fuse 1 (30), in battery fuse holder |
| S163 | Fuse 2 (30), in battery fuse holder |
| S176 | Fuse 4 (30), in battery fuse holder |
| S177 | Fuse 5 (30), in battery fuse holder |
| T4 | 4-pin connector |
| T6 | 6-pin connector |
| 500 | Threaded connection 1 (30), on relay plate |
| 502 | Threaded connection 1 (30a) on relay plate |
| * | Only models with automatic gearbox |
| *2 | Only models with manual gearbox |
Wiring Diagram VW JETTA 2007 - Main relay
| D | Ignition/starter switch |
| J271 | Main relay |
| S229 | Fuse 29 in fuse holder |
| S237 | Fuse 37 in fuse holder |
| T2i | 2-pin connector |
| T6 | 6-pin connector |
| T8 | 8-pin connector |
| 501 | Threaded connection 2 (30), on relay plate |
| A2 | Positive connection (15), in dash panel wiring harness |
| A32 | Positive connection (30), in dash panel wiring harness |
| A52 | Positive connection 2 (30), in dash panel wiring harness |
| A98 | Positive connection 4 (30), in dash panel wiring harness |
| A192 | Positive connection 3 (15a) in dash panel wiring harness |
| D78 | Positive connection 1 (30a), in engine compartment wiring harness |
| * | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Motronic control unit - Ignition coil 1 with output stage - Ignition coil 2 with output stage - Ignition coil 3 with output stage - Ignition coil 4 with output stage - Spark plug connector - Spark plugs
| J220 | Motronic control unit |
| N70 | Ignition coil 1 with output stage |
| N127 | Ignition coil 2 with output stage |
| N291 | Ignition coil 3 with output stage |
| N292 | Ignition coil 4 with output stage |
| P | Spark plug connector |
| Q | Spark plugs |
| T4g | 4-pin connector |
| T4h | 4-pin connector |
| T4i | 4-pin connector |
| T4j | 4-pin connector |
| T6 | 6-pin connector |
| T121 | 121-pin connector |
| 15 | Earth point, on cylinder head |
| 281 | Earth point 1, engine prewiring harness |
| 283 | Earth point 2, engine prewiring harness |
| A192 | Positive connection 3 (15a) in dash panel wiring harness |
| D78 | Positive connection 1 (30a), in engine compartment wiring harness |
| D173 | Connection (87), in engine prewiring harness |
Wiring Diagram VW JETTA 2007 - Motronic control unit
| J104 | ABS control unit |
| J217 | Automatic gearbox control unit |
| J220 | Motronic control unit |
| T10w | 10-pin connector |
| T14a | 14-pin connector |
| T47a | 47-pin connector |
| T68a | 68-pin connector |
| T121 | 121-pin connector |
| 283 | Earth point 2, engine prewiring harness |
| 608 | Earth point, central in plenum chamber |
| 609 | Earth point, on right in plenum chamber |
| A121 | Connection (high bus), in dash panel wiring harness |
| A122 | Connection (low bus), in dash panel wiring harness |
| * | Only models with automatic gearbox |
| *2 | Only models with manual gearbox |
Wiring Diagram VW JETTA 2007 - Charge pressure sender - Hall sender - Motronic control unit - Charge pressure control solenoid valve - Camshaft control valve 1 - Turbocharger air recirculation valve
| G31 | Charge pressure sender |
| G40 | Hall sender |
| J220 | Motronic control unit |
| N75 | Charge pressure control solenoid valve |
| N205 | Camshaft control valve 1 |
| N249 | Turbocharger air recirculation valve |
| T4k | 4-pin connector |
| T121 | 121-pin connector |
| 220 | Earth connection (sender earth), in engine wiring harness |
| D101 | Connection 1 in engine compartment wiring harness |
| D102 | Connection 2 in engine compartment wiring harness |
Wiring Diagram VW JETTA 2007 - Coolant temperature display sender - Intake air temperature sender - Coolant temperature sender - Throttle valve drive for electric throttle - Throttle valve drive angle sender 1 for electric throttle - Throttle valve drive angle sender 2 for electric throttle - Motronic control unit - Throttle valve module - Fuel system diagnostic pump
| G2 | Coolant temperature display sender |
| G42 | Intake air temperature sender |
| G62 | Coolant temperature sender |
| G186 | Throttle valve drive for electric throttle |
| G187 | Throttle valve drive angle sender 1 for electric throttle |
| G188 | Throttle valve drive angle sender 2 for electric throttle |
| J220 | Motronic control unit |
| J338 | Throttle valve module |
| T6h | 6-pin connector |
| T10h | 10-pin connector |
| T14d | 14-pin connector |
| T121 | 121-pin connector |
| V144 | Fuel system diagnostic pump |
| 220 | Earth connection (sender earth), in engine wiring harness |
| * | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Engine speed sender - Knock sensor 1 - Knock sensor 2 - Motronic control unit
| G28 | Engine speed sender |
| G61 | Knock sensor 1 |
| G66 | Knock sensor 2 |
| J217 | Automatic gearbox control unit |
| J220 | Motronic control unit |
| T3f | 3-pin connector |
| T10 | 10-pin connector |
| T68a | 68-pin connector |
| T121 | 121-pin connector |
| 139 | Earth connection (sender earth), in Motronic wiring harness |
| 220 | Earth connection (sender earth), in engine wiring harness |
| * | Connection for air conditioning system |
| *2 | Only models with automatic gearbox |
| *3 | Only models with manual gearbox |
Wiring Diagram VW JETTA 2007 - Power assisted steering pressure switch - Motronic control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4
| F88 | Power assisted steering pressure switch |
| J220 | Motronic control unit |
| N30 | Injector, cylinder 1 |
| N31 | Injector, cylinder 2 |
| N32 | Injector, cylinder 3 |
| N33 | Injector, cylinder 4 |
| S232 | Fuse 32 in fuse holder |
| T14a | 14-pin connector |
| T121 | 121-pin connector |
| 131 | Earth connection 2, in engine compartment wiring harness |
| 607 | Earth point, on left in plenum chamber |
| B351 | Positive connection 2 (87a) in main wiring harness |
| D95 | Connection (injectors), in engine compartment wiring harness |
Wiring Diagram VW JETTA 2007 - Lambda probe - Lambda probe after catalytic converter - Motronic control unit - Activated charcoal filter solenoid valve 1
| G39 | Lambda probe |
| G130 | Lambda probe after catalytic converter |
| J220 | Motronic control unit |
| N80 | Activated charcoal filter solenoid valve 1 |
| T4f | 4-pin connector |
| T6w | 6-pin connector |
| T121 | 121-pin connector |
| E30 | Connection (87a), in engine wiring harness |
Wiring Diagram VW JETTA 2007 - Motronic control unit - Vacuum pump for brakes
| J220 | Motronic control unit |
| S283 | Brake vacuum pump fuse |
| T6r | 6-pin connector |
| T10 | 10-pin connector |
| T121 | 121-pin connector |
| V192 | Vacuum pump for brakes |
| E30 | Connection (87a), in engine wiring harness |
| * | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Brake light switch - Motronic control unit - Secondary air pump relay - Secondary air inlet valve - Secondary air pump motor
| F | Brake light switch |
| F47 | Brake pedal switch |
| J220 | Motronic control unit |
| J299 | Secondary air pump relay |
| N112 | Secondary air inlet valve |
| S13 | Fuse 13 in fuse holder |
| T2j | 2-pin connector |
| T4y | 4-pin connector |
| T10e | 10-pin connector |
| T121 | 121-pin connector |
| V101 | Secondary air pump motor |
| A18 | Connection (54), in dash panel wiring harness |
| A20 | Positive connection (15a), in dash panel wiring harness |
| D103 | Connection 3 in engine compartment wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| * | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Clutch pedal switch - Air mass meter - Motronic control unit
| F36 | Clutch pedal switch |
| G70 | Air mass meter |
| J220 | Motronic control unit |
| T4q | 4-pin connector |
| T10w | 10-pin connector |
| T121 | 121-pin connector |
| A20 | Positive connection (15a), in dash panel wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| * | Only models with automatic gearbox |
| *2 | Only models with manual gearbox |
Wiring Diagram VW JETTA 2007 - Accelerator position sender - Accelerator position sender 2 - Motronic control unit - Climatronic control unit
| G79 | Accelerator position sender |
| G185 | Accelerator position sender 2 |
| J17 | Fuel pump relay |
| J217 | Automatic gearbox control unit |
| J220 | Motronic control unit |
| J234 | Airbag control unit |
| J255 | Climatronic control unit |
| T6 | 6-pin connector |
| T6b | 6-pin connector |
| T10 | 10-pin connector |
| T10h | 10-pin connector |
| T16b | 16-pin connector |
| T17a | 17-pin connector |
| T68a | 68-pin connector |
| T75 | 75-pin connector |
| T121 | 121-pin connector |
| A27 | Connection (speed signal), in dash panel wiring harness |
| A125 | Connection (crash signal), in dash panel wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| * | Only models with manual gearbox |
| *2 | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Fuel gauge sender - Fuel system pressurisation pump - Coolant shortage indicator sender
| G | Fuel gauge sender |
| G6 | Fuel system pressurisation pump |
| G32 | Coolant shortage indicator sender |
| S228 | Fuse 28 in fuse holder |
| S234 | Fuse 34 in fuse holder |
| S243 | Fuse 43 in fuse holder |
| T6 | 6-pin connector |
| T14a | 14-pin connector |
| 42 | Earth point, next to steering column |
| 49 | Earth point, near ... |
| 81 | Earth connection 1, in dash panel wiring harness |
| 269 | Earth connection (sender earth) 1, in dash panel wiring harness |
| 504 | Threaded connection 1 (87), on relay plate |
| A27 | Connection (speed signal), in dash panel wiring harness |
| A99 | Connection 1 (87) in dash panel wiring harness |
| A193 | Connection (87a), in dash panel wiring harness |
| B350 | Positive connection 1 (87a) in main wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| * | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Oil pressure switch - Speedometer sender - Control unit in dash panel insert - Oil pressure warning lamp
| F1 | Oil pressure switch |
| F4 | Reversing light switch |
| G22 | Speedometer sender |
| J217 | Automatic gearbox control unit |
| J285 | Control unit in dash panel insert |
| K3 | Oil pressure warning lamp |
| S5 | Fuse 5 in fuse holder |
| S7 | Fuse 7 in fuse holder |
| T10h | 10-pin connector |
| T14a | 14-pin connector |
| T14d | 14-pin connector |
| T32 | 32-pin connector |
| T68a | 68-pin connector |
| A27 | Connection (speed signal), in dash panel wiring harness |
| B163 | Positive connection 1 (15), in interior wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| * | Only models with manual gearbox |
| *2 | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Fuel gauge - Coolant temperature gauge - Rev. counter - Speedometer - Buzzer and gong - Control unit in dash panel insert
| G1 | Fuel gauge |
| G3 | Coolant temperature gauge |
| G5 | Rev. counter |
| G21 | Speedometer |
| H3 | Buzzer and gong |
| J285 | Control unit in dash panel insert |
| K2 | Alternator warning lamp |
| K28 | Coolant temperature and coolant shortage warning lamp |
| K105 | Reserve fuel warning lamp |
| T32 | 32-pin connector |
| A13 | Connection (door contact switch), in dash panel wiring harness |
| A27 | Connection (speed signal), in dash panel wiring harness |
Wiring Diagram VW JETTA 2007 - Multifunction display call-up button - Multifunction display memory switch - Ambient temperature sensor - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface - Cruise control system warning lamp - Exhaust emissions warning lamp - Electronic power control fault lamp
| E86 | Multifunction display call-up button |
| E109 | Multifunction display memory switch |
| G17 | Ambient temperature sensor |
| J104 | ABS control unit |
| J119 | Multifunction indicator |
| J285 | Control unit in dash panel insert |
| J533 | Data bus diagnostic interface |
| K31 | Cruise control system warning lamp |
| K83 | Exhaust emissions warning lamp |
| K132 | Electronic power control fault lamp |
| T6e | 6-pin connector |
| T16 | 16-pin connector |
| T32 | 32-pin connector |
| T32a | 32-pin connector |
| T47c | 47-pin connector |
| A76 | Connection (K-diagnosis wire), in dash panel wiring harness |
| * | Only models with multifunction display |
VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007
