VW JETTA 2007 – 1.9l diesel engine, AXR . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW JETTA
  4. >VW JETTA 2007
  5. >VW JETTA 2007 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

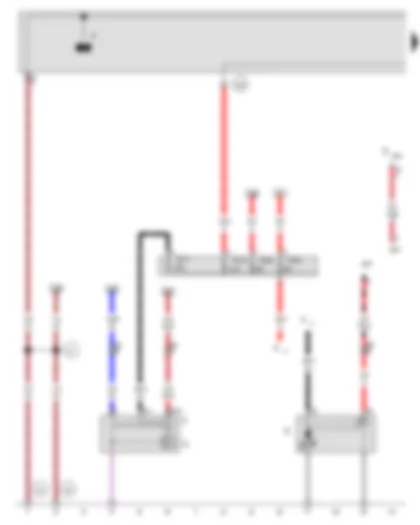

Wiring Diagram VW JETTA 2007 - Starter - Alternator



Wiring Diagram VW JETTA 2007 - Starter - Alternator https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
A Battery
B Starter
C Alternator
C1 Voltage regulator
D Ignition/starter switch
J207 Starter inhibitor relay
S162 Fuse 1 (30), in battery fuse holder
S163 Fuse 2 (30), in battery fuse holder
S176 Fuse 4 (30), in battery fuse holder
S177 Fuse 5 (30), in battery fuse holder
T4 4-pin connector
T6 6-pin connector
T8 8-pin connector
  42 Earth point, next to steering column
  49 Earth point, near ...
  81 Earth connection 1, in dash panel wiring harness
  500 Threaded connection 1 (30), on relay plate

Wiring Diagram VW JETTA 2007 - Engine glow plug



Wiring Diagram VW JETTA 2007 - Engine glow plug https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
D Ignition/starter switch
J4 Dual tone horn relay
J59 X-contact relief relay
Q6 Engine glow plug
S229 Fuse 29 in fuse holder
S237 Fuse 37 in fuse holder
T2g 2-pin connector
T8 8-pin connector
T14a 14-pin connector
  501 Threaded connection 2 (30), on relay plate
  A2 Positive connection (15), in dash panel wiring harness
  A32 Positive connection (30), in dash panel wiring harness
  A80 Connection 1 (X), in dash panel wiring harness
  A98 Positive connection 4 (30), in dash panel wiring harness
  A192 Positive connection 3 (15a) in dash panel wiring harness

Wiring Diagram VW JETTA 2007 - Air mass meter - Fuel temperature sender - Fuel pump relay - Diesel direct injection system control unit - Terminal 30 voltage supply relay



Wiring Diagram VW JETTA 2007 - Air mass meter - Fuel temperature sender - Fuel pump relay - Diesel direct injection system control unit - Terminal 30 voltage supply relay https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G70 Air mass meter
G81 Fuel temperature sender
J17 Fuel pump relay
J52 Glow plug relay
J248 Diesel direct injection system control unit
J317 Terminal 30 voltage supply relay
S228 Fuse 28 in fuse holder
T5m 5-pin connector
T6 6-pin connector
T10 10-pin connector
T10h 10-pin connector
T121 121-pin connector
  502 Threaded connection 1 (30a) on relay plate
  504 Threaded connection 1 (87), on relay plate
  A98 Positive connection 4 (30), in dash panel wiring harness
  A192 Positive connection 3 (15a) in dash panel wiring harness

Wiring Diagram VW JETTA 2007 - Coolant temperature display sender - Coolant temperature sender - Intake manifold pressure sender - Intake manifold temperature sender



Wiring Diagram VW JETTA 2007 - Coolant temperature display sender - Coolant temperature sender - Intake manifold pressure sender - Intake manifold temperature sender https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G2 Coolant temperature display sender
G62 Coolant temperature sender
G71 Intake manifold pressure sender
G72 Intake manifold temperature sender
T14a 14-pin connector
T121 121-pin connector
  131 Earth connection 2, in engine compartment wiring harness
  607 Earth point, on left in plenum chamber

Wiring Diagram VW JETTA 2007 - Diesel direct injection system control unit



Wiring Diagram VW JETTA 2007 - Diesel direct injection system control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J104 ABS control unit
J248 Diesel direct injection system control unit
T6 6-pin connector
T10 10-pin connector
T10w 10-pin connector
T47a 47-pin connector
T121 121-pin connector
  A121 Connection (high bus), in dash panel wiring harness
  A122 Connection (low bus), in dash panel wiring harness
  D74 Connection (86), in engine compartment wiring harness
*Connection for air conditioning system

Wiring Diagram VW JETTA 2007 - Kickdown switch - Idling speed switch - Engine speed sender - Accelerator position sender - Diesel direct injection system control unit



Wiring Diagram VW JETTA 2007 - Kickdown switch - Idling speed switch - Engine speed sender - Accelerator position sender - Diesel direct injection system control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F8 Kickdown switch
F60 Idling speed switch
G28 Engine speed sender
G79 Accelerator position sender
J248 Diesel direct injection system control unit
T3f 3-pin connector
T6j 6-pin connector
T10h 10-pin connector
T121 121-pin connector
  200 Earth connection (screening), in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Hall sender - Diesel direct injection system control unit - Unit injector valve - No. 1 cyl. - Unit injector valve - No. 2 cyl. - Unit injector valve - No. 3 cyl. - Unit injector valve - No. 4 cyl.



Wiring Diagram VW JETTA 2007 - Hall sender - Diesel direct injection system control unit - Unit injector valve - No. 1 cyl. - Unit injector valve - No. 2 cyl. - Unit injector valve - No. 3 cyl. - Unit injector valve - No. 4 cyl. https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G40 Hall sender
J248 Diesel direct injection system control unit
N240 Unit injector valve, No. 1 cyl.
N241 Unit injector valve, No. 2 cyl.
N242 Unit injector valve, No. 3 cyl.
N243 Unit injector valve, No. 4 cyl.
T3g 3-pin connector
T8i 8-pin connector
T121 121-pin connector
  250 Earth connection, in diesel engine prewiring harness

Wiring Diagram VW JETTA 2007 - Diesel direct injection system control unit - Exhaust gas recirculation valve - Charge pressure control solenoid valve - Exhaust gas recirculation valve 2



Wiring Diagram VW JETTA 2007 - Diesel direct injection system control unit - Exhaust gas recirculation valve - Charge pressure control solenoid valve - Exhaust gas recirculation valve 2 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J248 Diesel direct injection system control unit, central in plenum chamber
N18 Exhaust gas recirculation valve
N75 Charge pressure control solenoid valve
N213 Exhaust gas recirculation valve 2
T10f 10-pin connector
T121 121-pin connector
V157 Intake manifold flap motor
  E29 Connection, in engine wiring harness

Wiring Diagram VW JETTA 2007 - Clutch pedal switch - Diesel direct injection system control unit



Wiring Diagram VW JETTA 2007 - Clutch pedal switch - Diesel direct injection system control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
E45 Cruise control system switch
E227 Cruise control system (CCS) SET button
F36 Clutch pedal switch
J248 Diesel direct injection system control unit
T4q 4-pin connector
T10e 10-pin connector
T10s 10-pin connector
T10w 10-pin connector
T121 121-pin connector
  B350 Positive connection 1 (87a) in main wiring harness
*Only models with cruise control system (CCS)

Wiring Diagram VW JETTA 2007 - Brake light switch - Brake pedal switch - Diesel direct injection system control unit - Low heat output relay - High heat output relay - Coolant heating element



Wiring Diagram VW JETTA 2007 - Brake light switch - Brake pedal switch - Diesel direct injection system control unit - Low heat output relay - High heat output relay - Coolant heating element https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F Brake light switch
F47 Brake pedal switch
J248 Diesel direct injection system control unit
J359 Low heat output relay
J360 High heat output relay
Q7 Coolant heating element
S13 Fuse 13 in fuse holder
T4y 4-pin connector
T6 6-pin connector
T10 10-pin connector
T10e 10-pin connector
T121 121-pin connector
  A18 Connection (54), in dash panel wiring harness
  B350 Positive connection 1 (87a) in main wiring harness
  D50 Positive connection (30), in engine compartment wiring harness
  D98 Connection (glow plugs), in engine compartment wiring harness

Wiring Diagram VW JETTA 2007 - Fuse 32 in fuse holder - Fuse 34 in fuse holder - Fuse 43 in fuse holder



Wiring Diagram VW JETTA 2007 - Fuse 32 in fuse holder - Fuse 34 in fuse holder - Fuse 43 in fuse holder https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G Fuel gauge sender
G6 Fuel system pressurisation pump
G32 Coolant shortage indicator sender
S232 Fuse 32 in fuse holder
S234 Fuse 34 in fuse holder
S243 Fuse 43 in fuse holder
T6 6-pin connector
T14a 14-pin connector
  269 Earth connection (sender earth) 1, in dash panel wiring harness
  A100 Connection 2 (87) in dash panel wiring harness
  A193 Connection (87a), in dash panel wiring harness
  B351 Positive connection 2 (87a) in main wiring harness

Wiring Diagram VW JETTA 2007 - Oil pressure switch - Speedometer sender - Buzzer and gong - Control unit in dash panel insert - Alternator warning lamp - Oil pressure warning lamp



Wiring Diagram VW JETTA 2007 - Oil pressure switch - Speedometer sender - Buzzer and gong - Control unit in dash panel insert - Alternator warning lamp - Oil pressure warning lamp https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F1 Oil pressure switch
G22 Speedometer sender
H3 Buzzer and gong
J285 Control unit in dash panel insert
K2 Alternator warning lamp
K3 Oil pressure warning lamp
S5 Fuse 5 in fuse holder
S7 Fuse 7 in fuse holder
T14a 14-pin connector
T32 32-pin connector
T32a 32-pin connector
  608 Earth point, central in plenum chamber
  A20 Positive connection (15a), in dash panel wiring harness
  B163 Positive connection 1 (15), in interior wiring harness

Wiring Diagram VW JETTA 2007 - Fuel gauge - Coolant temperature gauge - Rev. counter - Speedometer - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface



Wiring Diagram VW JETTA 2007 - Fuel gauge - Coolant temperature gauge - Rev. counter - Speedometer - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G1 Fuel gauge
G3 Coolant temperature gauge
G5 Rev. counter
G21 Speedometer
J104 ABS control unit
J119 Multifunction indicator
J285 Control unit in dash panel insert
J533 Data bus diagnostic interface
K28 Coolant temperature and coolant shortage warning lamp
K29 Glow period warning lamp
K83 Exhaust emissions warning lamp
K105 Reserve fuel warning lamp
T16 16-pin connector
T32 32-pin connector
T32a 32-pin connector
T47 47-pin connector
  A27 Connection (speed signal), in dash panel wiring harness
  A76 Connection (K-diagnosis wire), in dash panel wiring harness
