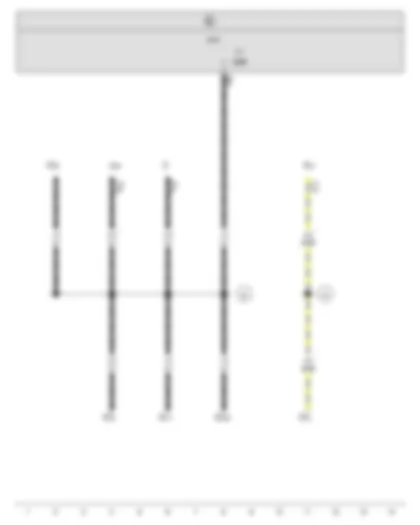

Wiring Diagram VW JETTA 2007 - Positive connection (15) - in dash panel wiring harness - Positive connection (58) - in dash panel wiring harness
| D | Ignition/starter switch |
| E18 | Rear fog light switch |
| J17 | Fuel pump relay |
| J234 | Airbag control unit |
| J519 | Onboard supply control unit |
| SC3 | Fuse 3 on fuse holder C |
| SC5 | Fuse 5 on fuse holder C |
| SC9 | Fuse 9 on fuse holder C |
| SC11 | Fuse 11 on fuse holder C |
| SC29 | Fuse 29 on fuse holder C |
| T8 | 8-pin connector |
| T17 | 17-pin connector |
| T75 | 75-pin connector |
| A2 | Positive connection (15), in dash panel wiring harness |
| A3 | Positive connection (58), in dash panel wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection (58b) - in dash panel wiring harness
| E20 | Switch and instrument illumination regulator |
| E256 | TCS and ESP button |
| J285 | Control unit in dash panel insert |
| L16 | Fresh air regulator illumination bulb |
| L39 | Heated rear window switch illumination bulb |
| L53 | Window regulator switch illumination bulb |
| L67 | Dash panel left vent illumination bulb |
| L68 | Dash panel central vent illumination |
| L69 | Dash panel right vent illumination bulb |
| T3c | 3-pin connector |
| T4e | 4-pin connector |
| T5f | 5-pin connector |
| T5g | 5-pin connector |
| T6f | 6-pin connector |
| T6q | 6-pin connector |
| T8b | 8-pin connector |
| T10j | 10-pin connector |
| T10l | 10-pin connector |
| T10t | 10-pin connector |
| T10u | 10-pin connector |
| T32 | 32-pin connector |
| A4 | Positive connection (58b), in dash panel wiring harness |
| * | Up to April 2007 |
| *2 | From May 2007 |
| *3 | Only models with electric window regulators |
Wiring Diagram VW JETTA 2007 - Positive connection (58b) - in dash panel wiring harness
| E1 | Light switch |
| E3 | Hazard warning light switch |
| E198 | Front passenger side interior locking switch |
| E204 | Tank filler flap remote release switch |
| J255 | Climatronic control unit |
| J393 | Convenience system central control unit |
| L28 | Cigarette lighter illumination bulb |
| R | Radio |
| T4b | 4-pin connector |
| T5l | 5-pin connector |
| T5q | 5-pin connector |
| T8a | 8-pin connector |
| T8d | 8-pin connector |
| T10k | 10-pin connector |
| T10l | 10-pin connector |
| T12e | 12-pin connector |
| T17 | 17-pin connector |
| T17a | 17-pin connector |
| T23 | 23-pin connector |
| A4 | Positive connection (58b), in dash panel wiring harness |
| * | From May 2007 |
| *2 | From April 2009 |
| *3 | Only models with electric window regulators |
| *4 | Up to April 2007 |
| *5 | Up to March 2009 |
Wiring Diagram VW JETTA 2007 - Positive connection (right turn signal) - in dash panel wiring harness
| E2 | Turn signal switch |
| E3 | Hazard warning light switch |
| J1 | Turn signal relay |
| J285 | Control unit in dash panel insert |
| J393 | Convenience system central control unit |
| M7 | Front right turn signal bulb |
| M8 | Rear right turn signal bulb |
| M19 | Right turn signal repeater bulb |
| T4n | 4-pin connector |
| T5i | 5-pin connector |
| T6b | 6-pin connector |
| T8d | 8-pin connector |
| T10c | 10-pin connector |
| T12 | 12-pin connector |
| T15 | 15-pin connector |
| T32 | 32-pin connector |
| A5 | Positive connection (right turn signal), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
| *3 | Only models with anti-theft alarm system (DWA) and anti-theft alarm system horn |
Wiring Diagram VW JETTA 2007 - Positive connection (left turn signal) - in dash panel wiring harness
| E2 | Turn signal switch |
| E3 | Hazard warning light switch |
| J1 | Turn signal relay |
| J285 | Control unit in dash panel insert |
| J393 | Convenience system central control unit |
| M5 | Front left turn signal bulb |
| M6 | Rear left turn signal bulb |
| M8 | Rear right turn signal bulb |
| M18 | Left turn signal repeater bulb |
| T4m | 4-pin connector |
| T5h | 5-pin connector |
| T6a | 6-pin connector |
| T8d | 8-pin connector |
| T10b | 10-pin connector |
| T12 | 12-pin connector |
| T15 | 15-pin connector |
| T32 | 32-pin connector |
| A6 | Positive connection (left turn signal), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
| *3 | Only models with anti-theft alarm system (DWA) and anti-theft alarm system horn |
Wiring Diagram VW JETTA 2007 - Connection (door contact switch) - in dash panel wiring harness - Connection (54) - in dash panel wiring harness
| F47 | Brake pedal switch |
| F220 | Driver side central locking lock unit |
| J17 | Fuel pump relay |
| J104 | ABS control unit |
| J220 | Motronic control unit |
| J248 | Diesel direct injection system control unit |
| J285 | Control unit in dash panel insert |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| J623 | Engine control unit |
| T4y | 4-pin connector |
| T5i | 5-pin connector |
| T8g | 8-pin connector |
| T10k | 10-pin connector |
| T23 | 23-pin connector |
| T24 | 24-pin connector |
| T32 | 32-pin connector |
| T47a | 47-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| A13 | Connection (door contact switch), in dash panel wiring harness |
| A18 | Connection (54), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection (15a) - in dash panel wiring harness
| E45 | Cruise control system switch |
| E159 | Fresh air and air recirculation flap switch |
| F36 | Clutch pedal switch |
| F47 | Brake pedal switch |
| G65 | High-pressure sender |
| J89 | Daytime running lights changeover relay |
| J255 | Climatronic control unit |
| J293 | Radiator fan control unit |
| R | Radio |
| SC5 | Fuse 5 on fuse holder C |
| T3e | 3-pin connector |
| T4e | 4-pin connector |
| T4q | 4-pin connector |
| T4y | 4-pin connector |
| T8a | 8-pin connector |
| T8b | 8-pin connector |
| T10j | 10-pin connector |
| T10s | 10-pin connector |
| T14 | 14-pin connector |
| T16 | 16-pin connector |
| T16c | 16-pin connector |
| T17a | 17-pin connector |
| A20 | Positive connection (15a), in dash panel wiring harness |
| * | From July 2008 |
| *2 | Up to April 2007 |
| *3 | Only models with front heater |
| *4 | Only models with air conditioning system |
| *5 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection (86s) - in dash panel wiring harness - Connection (30al) - in dash panel wiring harness
| J285 | Control unit in dash panel insert |
| R | Radio |
| SC10 | Fuse 10 on fuse holder C |
| SC42 | Fuse 42 on fuse holder C |
| T8a | 8-pin connector |
| T32 | 32-pin connector |
| A21 | Connection (86s), in dash panel wiring harness |
| A23 | Connection (30al), in dash panel wiring harness |
Wiring Diagram VW JETTA 2007 - Connection (speed signal) - in dash panel wiring harness
| J31 | Automatic intermittent wash and wipe relay |
| J217 | Automatic gearbox control unit |
| J220 | Motronic control unit |
| J245 | Sliding sunroof adjustment control unit |
| J248 | Diesel direct injection system control unit |
| J255 | Climatronic control unit |
| J285 | Control unit in dash panel insert |
| J623 | Engine control unit |
| T6k | 6-pin connector |
| T6l | 6-pin connector |
| T10 | 10-pin connector |
| T12d | 12-pin connector |
| T16b | 16-pin connector |
| T18a | 18-pin connector |
| T32 | 32-pin connector |
| T68a | 68-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| A27 | Connection (speed signal), in dash panel wiring harness |
| * | Up to April 2007 |
| *2 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection (interior light) - in dash panel wiring harness - Positive connection (30) - in dash panel wiring harness
| D | Ignition/starter switch |
| E1 | Light switch |
| E4 | Headlight dipper and flasher switch |
| J393 | Convenience system central control unit |
| T5 | 5-pin connector |
| T8 | 8-pin connector |
| T8f | 8-pin connector |
| T12 | 12-pin connector |
| T17 | 17-pin connector |
| T23 | 23-pin connector |
| W3 | Luggage compartment light |
| 501 | Threaded connection 2 (30), on relay plate |
| A29 | Connection (interior light), in dash panel wiring harness |
| A32 | Positive connection (30), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (58a) - in dash panel wiring harness - Positive connection 2 (15a) in dash panel wiring harness - Connection (57L) - in dash panel wiring harness - Connection (57r) - in dash panel wiring harness
| E1 | Light switch |
| E4 | Headlight dipper and flasher switch |
| E20 | Switch and instrument illumination regulator |
| E256 | TCS and ESP button |
| G85 | Steering angle sender |
| J104 | ABS control unit |
| SC3 | Fuse 3 on fuse holder C |
| SC9 | Fuse 9 on fuse holder C |
| SC22 | Fuse 22 on fuse holder C |
| SC23 | Fuse 23 on fuse holder C |
| T3c | 3-pin connector |
| T6p | 6-pin connector |
| T6q | 6-pin connector |
| T12 | 12-pin connector |
| T17 | 17-pin connector |
| T47a | 47-pin connector |
| A37 | Connection (58a), in dash panel wiring harness |
| A38 | Positive connection 2 (15a) in dash panel wiring harness |
| A43 | Connection (57L), in dash panel wiring harness |
| A44 | Connection (57r), in dash panel wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection (56) - in dash panel wiring harness - Positive connection 2 (30) - in dash panel wiring harness
| J285 | Control unit in dash panel insert |
| J317 | Terminal 30 voltage supply relay |
| L2 | Right headlight twin filament bulb |
| M32 | Right headlight main beam bulb |
| SC16 | Fuse 16 on fuse holder C |
| SC18 | Fuse 18 on fuse holder C |
| SC28 | Fuse 28 on fuse holder C |
| SC37 | Fuse 37 on fuse holder C |
| S144 | Anti-theft alarm system central locking fuse |
| S283 | Brake vacuum pump fuse |
| T10c | 10-pin connector |
| T32 | 32-pin connector |
| A51 | Connection (56), in dash panel wiring harness |
| A52 | Positive connection 2 (30), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection 2 (30) - in dash panel wiring harness
| G92 | Potentiometer for temperature flap control motor |
| G112 | Potentiometer for centre flap servomotor |
| G113 | Potentiometer for air flow flap control motor |
| G114 | Potentiometer for footwell/defroster flap control motor |
| J255 | Climatronic control unit |
| SC30 | Fuse 30 on fuse holder C |
| S37 | Window regulator single fuse |
| S111 | Anti-theft alarm system and immobilizer fuse |
| T5n | 5-pin connector |
| T6x | 6-pin connector |
| T6y | 6-pin connector |
| T6z | 6-pin connector |
| T16b | 16-pin connector |
| 501 | Threaded connection 2 (30), on relay plate |
| A52 | Positive connection 2 (30), in dash panel wiring harness |
| A58 | Connection (5 volt), in dash panel wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection (30 - air conditioning system) - in dash panel wiring harness - Connection (K-diagnosis wire) - in dash panel wiring harness
| J104 | ABS control unit |
| J207 | Starter inhibitor relay |
| J255 | Climatronic control unit |
| J285 | Control unit in dash panel insert |
| J293 | Radiator fan control unit |
| J393 | Convenience system central control unit |
| J623 | Engine control unit |
| R | Radio |
| SC16 | Fuse 16 on fuse holder C |
| T8a | 8-pin connector |
| T12d | 12-pin connector |
| T12e | 12-pin connector |
| T14 | 14-pin connector |
| T16 | 16-pin connector |
| T16c | 16-pin connector |
| T17a | 17-pin connector |
| T23 | 23-pin connector |
| T32 | 32-pin connector |
| T32a | 32-pin connector |
| T47a | 47-pin connector |
| T80 | 80-pin connector |
| A68 | Connection (30, air conditioning system), in dash panel wiring harness |
| A76 | Connection (K-diagnosis wire), in dash panel wiring harness |
| * | Up to April 2007 |
| *2 | Up to June 2009 |
Wiring Diagram VW JETTA 2007 - Connection 1 (X) - in dash panel wiring harness - Connection (58L) - in dash panel wiring harness
| D | Ignition/starter switch |
| E1 | Light switch |
| J59 | X-contact relief relay |
| J285 | Control unit in dash panel insert |
| J519 | Onboard supply control unit |
| M1 | Left side light bulb |
| M4 | Left tail light bulb |
| M11 | Front side marker light bulb |
| M33 | Front left side marker bulb |
| SC23 | Fuse 23 on fuse holder C |
| SC36 | Fuse 36 on fuse holder C |
| SC37 | Fuse 37 on fuse holder C |
| T5h | 5-pin connector |
| T6a | 6-pin connector |
| T8 | 8-pin connector |
| T10b | 10-pin connector |
| T17 | 17-pin connector |
| T32 | 32-pin connector |
| A80 | Connection 1 (X), in dash panel wiring harness |
| A84 | Connection (58L), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
| *3 | Up to June 2009 |
Wiring Diagram VW JETTA 2007 - Connection (58R) - in dash panel wiring harness
| J285 | Control unit in dash panel insert |
| M2 | Right tail light bulb |
| M3 | Right side light bulb |
| M11 | Front side marker light bulb |
| M22 | Right brake and tail light bulb |
| M34 | Front right side marker bulb |
| M38 | Rear right side marker bulb |
| SC22 | Fuse 22 on fuse holder C |
| T4n | 4-pin connector |
| T5i | 5-pin connector |
| T6b | 6-pin connector |
| T10c | 10-pin connector |
| T32 | 32-pin connector |
| A85 | Connection (58R), in dash panel wiring harness |
| * | From July 2008 |
| *2 | From May 2007 |
| *3 | Up to April 2007 |
| *4 | Up to June 2008 |
Wiring Diagram VW JETTA 2007 - Connection (RL) - in dash panel wiring harness - Connection (dual tone horn) - in dash panel wiring harness
| F4 | Reversing light switch |
| H1 | Horn or dual tone horn |
| J4 | Dual tone horn relay |
| J217 | Automatic gearbox control unit |
| J226 | Starter inhibitor and reversing light relay |
| J519 | Onboard supply control unit |
| S2 | Fuse 2 in fuse holder |
| T5h | 5-pin connector |
| T10 | 10-pin connector |
| T52 | 52-pin connector |
| A87 | Connection (RL), in dash panel wiring harness |
| A90 | Connection (dual tone horn), in dash panel wiring harness |
| * | Up to April 2007 |
| *2 | From May 2007 |
| *3 | Only models with automatic gearbox |
Wiring Diagram VW JETTA 2007 - Connection (53a) - in dash panel wiring harness - Connection (53) - in dash panel wiring harness
| E22 | Intermittent wiper switch |
| J31 | Automatic intermittent wash and wipe relay |
| SC24 | Fuse 24 on fuse holder C |
| T8a | 8-pin connector |
| T8c | 8-pin connector |
| T18a | 18-pin connector |
| V59 | Windscreen and rear window washer pump |
| A96 | Connection (53a), in dash panel wiring harness |
| A97 | Connection (53), in dash panel wiring harness |
Wiring Diagram VW JETTA 2007 - Positive connection 4 (30) - in dash panel wiring harness - Connection 1 (87) in dash panel wiring harness
| J317 | Terminal 30 voltage supply relay |
| SC28 | Fuse 28 on fuse holder C |
| SC30 | Fuse 30 on fuse holder C |
| SC32 | Fuse 32 on fuse holder C |
| SC34 | Fuse 34 on fuse holder C |
| SC43 | Fuse 43 on fuse holder C |
| S111 | Anti-theft alarm system and immobilizer fuse |
| S144 | Anti-theft alarm system central locking fuse |
| 504 | Threaded connection 1 (87), on relay plate |
| A98 | Positive connection 4 (30), in dash panel wiring harness |
| A99 | Connection 1 (87) in dash panel wiring harness |
| * | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection 2 (87) in dash panel wiring harness - Connection (windscreen wiper) - in dash panel wiring harness
| E22 | Intermittent wiper switch |
| J17 | Fuel pump relay |
| J248 | Diesel direct injection system control unit |
| J317 | Terminal 30 voltage supply relay |
| S3 | Fuse 3 in fuse holder |
| SC32 | Fuse 32 on fuse holder C |
| SC34 | Fuse 34 on fuse holder C |
| SC43 | Fuse 43 on fuse holder C |
| T8c | 8-pin connector |
| T121 | 121-pin connector |
| V59 | Windscreen and rear window washer pump |
| A100 | Connection 2 (87) in dash panel wiring harness |
| A102 | Connection (windscreen wiper), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to June 2009 |
Wiring Diagram VW JETTA 2007 - Connection (high bus) - in dash panel wiring harness
| G85 | Steering angle sender |
| J104 | ABS control unit |
| J207 | Starter inhibitor relay |
| J217 | Automatic gearbox control unit |
| J220 | Motronic control unit |
| J234 | Airbag control unit |
| J248 | Diesel direct injection system control unit |
| J285 | Control unit in dash panel insert |
| J623 | Engine control unit |
| T6p | 6-pin connector |
| T10w | 10-pin connector |
| T16 | 16-pin connector |
| T32a | 32-pin connector |
| T47a | 47-pin connector |
| T52 | 52-pin connector |
| T68 | 68-pin connector |
| T68a | 68-pin connector |
| T75 | 75-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| A121 | Connection (high bus), in dash panel wiring harness |
| * | Only models with 6-speed automatic gearbox and Tiptronic |
| *2 | Only models with electronic stabilisation program (ESP) and traction control system (TCS) |
| *3 | From May 2007 |
| *4 | Up to April 2007 |
| *5 | Only models with 5-speed automatic gearbox |
Wiring Diagram VW JETTA 2007 - Connection (low bus) - in dash panel wiring harness
| G85 | Steering angle sender |
| J104 | ABS control unit |
| J207 | Starter inhibitor relay |
| J217 | Automatic gearbox control unit |
| J220 | Motronic control unit |
| J234 | Airbag control unit |
| J248 | Diesel direct injection system control unit |
| J285 | Control unit in dash panel insert |
| J623 | Engine control unit |
| T6p | 6-pin connector |
| T10w | 10-pin connector |
| T16 | 16-pin connector |
| T32a | 32-pin connector |
| T47a | 47-pin connector |
| T52 | 52-pin connector |
| T68a | 68-pin connector |
| T75 | 75-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| A122 | Connection (low bus), in dash panel wiring harness |
| * | From May 2007 |
| *2 | Only models with 6-speed automatic gearbox and Tiptronic |
| *3 | Only models with electronic stabilisation program (ESP) and traction control system (TCS) |
| *4 | Up to April 2007 |
| *5 | Only models with 5-speed automatic gearbox |
Wiring Diagram VW JETTA 2007 - Connection (crash signal) - in dash panel wiring harness - Connection (rear lid contact switch) - in dash panel wiring harness - Connection (TCS/ESP) - in dash panel wiring harness
| E256 | TCS and ESP button |
| J17 | Fuel pump relay |
| J104 | ABS control unit |
| J234 | Airbag control unit |
| J285 | Control unit in dash panel insert |
| J393 | Convenience system central control unit |
| J519 | Onboard supply control unit |
| T5 | 5-pin connector |
| T6q | 6-pin connector |
| T23 | 23-pin connector |
| T24 | 24-pin connector |
| T32 | 32-pin connector |
| T47a | 47-pin connector |
| T75 | 75-pin connector |
| A125 | Connection (crash signal), in dash panel wiring harness |
| A126 | Connection (rear lid contact switch), in dash panel wiring harness |
| A132 | Connection (TCS/ESP), in dash panel wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection 3 (30a) in dash panel wiring harness - Positive connection 3 (15a) in dash panel wiring harness
| G65 | High-pressure sender |
| G70 | Air mass meter |
| J220 | Motronic control unit |
| J248 | Diesel direct injection system control unit |
| J285 | Control unit in dash panel insert |
| J623 | Engine control unit |
| SC15 | Fuse 15 on fuse holder C |
| SC29 | Fuse 29 on fuse holder C |
| T5m | 5-pin connector |
| T6 | 6-pin connector |
| T6p | 6-pin connector |
| T32 | 32-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| A167 | Positive connection 3 (30a) in dash panel wiring harness |
| A192 | Positive connection 3 (15a) in dash panel wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
| *3 | From December 2008 |
| *4 | Up to June 2009 |
Wiring Diagram VW JETTA 2007 - Connection (87a) - in dash panel wiring harness - Connection (30 - window regulators) - in interior wiring harness
| G40 | Hall sender |
| J386 | Driver door control unit |
| J387 | Front passenger door control unit |
| J388 | Rear left door control unit |
| J389 | Rear right door control unit |
| N79 | Heater element for crankcase breather |
| SC34 | Fuse 34 on fuse holder C |
| S37 | Window regulator single fuse |
| T3g | 3-pin connector |
| T6 | 6-pin connector |
| T10k | 10-pin connector |
| T10l | 10-pin connector |
| T10t | 10-pin connector |
| T10u | 10-pin connector |
| T14a | 14-pin connector |
| T18b | 18-pin connector |
| T18c | 18-pin connector |
| T18d | 18-pin connector |
| T18e | 18-pin connector |
| T29 | 29-pin connector |
| T29a | 29-pin connector |
| A193 | Connection (87a), in dash panel wiring harness |
| B110 | Connection (30, window regulators), in interior wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (interior light - 31l) - in interior wiring harness - Connection (number plate lights) - in interior wiring harness
| J393 | Convenience system central control unit |
| SC4 | Fuse 4 on fuse holder C |
| T8f | 8-pin connector |
| T23 | 23-pin connector |
| W1 | Front interior light |
| W11 | Rear left reading light |
| W12 | Rear right reading light |
| X | Number plate light |
| B129 | Connection (interior light, 31l), in interior wiring harness |
| B132 | Connection (number plate lights), in interior wiring harness |
| * | Up to April 2007 |
| *2 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection (30a) - in interior wiring harness
| E204 | Tank filler flap remote release switch |
| J386 | Driver door control unit |
| J387 | Front passenger door control unit |
| J388 | Rear left door control unit |
| J389 | Rear right door control unit |
| J393 | Convenience system central control unit |
| S37 | Window regulator single fuse |
| SC38 | Fuse 38 on fuse holder C |
| T4b | 4-pin connector |
| T10k | 10-pin connector |
| T10l | 10-pin connector |
| T10t | 10-pin connector |
| T10u | 10-pin connector |
| T18b | 18-pin connector |
| T18c | 18-pin connector |
| T18d | 18-pin connector |
| T18e | 18-pin connector |
| T23 | 23-pin connector |
| T29a | 29-pin connector |
| B156 | Positive connection (30a), in interior wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (ATA) - in interior wiring harness - Positive connection 1 (15) - in interior wiring harness
| F4 | Reversing light switch |
| F120 | Anti-theft alarm and vermin repellent system contact switch |
| G22 | Speedometer sender |
| J393 | Convenience system central control unit |
| R | Radio |
| SC7 | Fuse 7 on fuse holder C |
| T2a | 2-pin connector |
| T8a | 8-pin connector |
| T10 | 10-pin connector |
| T14a | 14-pin connector |
| T15 | 15-pin connector |
| B161 | Connection (ATA), in interior wiring harness |
| B163 | Positive connection 1 (15), in interior wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
| *3 | Only models with anti-theft alarm system (DWA) and anti-theft alarm system horn |
Wiring Diagram VW JETTA 2007 - Positive connection 2 (15) - in interior wiring harness - Connection (56a) - in interior wiring harness - Connection (56b) - in interior wiring harness
| E1 | Light switch |
| E4 | Headlight dipper and flasher switch |
| J89 | Daytime running lights changeover relay |
| J285 | Control unit in dash panel insert |
| N110 | Selector lever lock solenoid |
| SC11 | Fuse 11 on fuse holder C |
| SC18 | Fuse 18 on fuse holder C |
| SC19 | Fuse 19 on fuse holder C |
| SC20 | Fuse 20 on fuse holder C |
| SC21 | Fuse 21 on fuse holder C |
| T12 | 12-pin connector |
| T17 | 17-pin connector |
| T32 | 32-pin connector |
| B165 | Positive connection 2 (15), in interior wiring harness |
| B166 | Connection (56a), in interior wiring harness |
| B167 | Connection (56b), in interior wiring harness |
| * | From May 2007 |
| *2 | Only models with automatic gearbox |
| *3 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (RL) - in interior wiring harness - Connection (high bus) - in interior wiring harness
| J285 | Control unit in dash panel insert |
| J386 | Driver door control unit |
| J387 | Front passenger door control unit |
| J388 | Rear left door control unit |
| J389 | Rear right door control unit |
| J393 | Convenience system central control unit |
| M16 | Left reversing light bulb |
| M17 | Right reversing light bulb |
| T6a | 6-pin connector |
| T6b | 6-pin connector |
| T10k | 10-pin connector |
| T10l | 10-pin connector |
| T10t | 10-pin connector |
| T10u | 10-pin connector |
| T18b | 18-pin connector |
| T18c | 18-pin connector |
| T23 | 23-pin connector |
| T29 | 29-pin connector |
| T29a | 29-pin connector |
| T32a | 32-pin connector |
| B182 | Connection (RL), in interior wiring harness |
| B229 | Connection (high bus), in interior wiring harness |
| * | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (low bus) - in interior wiring harness - Positive connection 5 (30a) - in interior wiring harness
| J285 | Control unit in dash panel insert |
| J386 | Driver door control unit |
| J387 | Front passenger door control unit |
| J388 | Rear left door control unit |
| J389 | Rear right door control unit |
| J393 | Convenience system central control unit |
| SC12 | Fuse 12 on fuse holder C |
| T10k | 10-pin connector |
| T10l | 10-pin connector |
| T10t | 10-pin connector |
| T10u | 10-pin connector |
| T16 | 16-pin connector |
| T18b | 18-pin connector |
| T18c | 18-pin connector |
| T23 | 23-pin connector |
| T29 | 29-pin connector |
| T29a | 29-pin connector |
| T32a | 32-pin connector |
| B230 | Connection (low bus), in interior wiring harness |
| B231 | Positive connection 5 (30a), in interior wiring harness |
| * | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection 1 (75a) - in main wiring harness - Positive connection 1 (87a) in main wiring harness - Positive connection 2 (87a) in main wiring harness
| J248 | Diesel direct injection system control unit |
| J359 | Low heat output relay |
| SC27 | Fuse 27 on fuse holder C |
| SC32 | Fuse 32 on fuse holder C |
| SC43 | Fuse 43 on fuse holder C |
| T6 | 6-pin connector |
| T14a | 14-pin connector |
| T121 | 121-pin connector |
| U1 | Cigarette lighter |
| V144 | Fuel system diagnostic pump |
| B348 | Connection 1 (75a), in main wiring harness |
| B350 | Positive connection 1 (87a) in main wiring harness |
| B351 | Positive connection 2 (87a) in main wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection 1 (LIN bus) in main wiring harness - Connection in radiator fan wiring harness - Positive connection (30) - in engine compartment wiring harness
| J293 | Radiator fan control unit |
| J359 | Low heat output relay |
| J360 | High heat output relay |
| J386 | Driver door control unit |
| J387 | Front passenger door control unit |
| J388 | Rear left door control unit |
| J389 | Rear right door control unit |
| S162 | Fuse 1 (30), in battery fuse holder |
| T3a | 3-pin connector |
| T3b | 3-pin connector |
| T4a | 4-pin connector |
| T10m | 10-pin connector |
| T10n | 10-pin connector |
| T10t | 10-pin connector |
| T10u | 10-pin connector |
| T18b | 18-pin connector |
| T18c | 18-pin connector |
| T18d | 18-pin connector |
| T18e | 18-pin connector |
| V7 | Radiator fan |
| V35 | Radiator fan on right of radiator |
| B528 | Connection 1 (LIN bus) in main wiring harness |
| C11 | Connection in radiator fan wiring harness |
| D50 | Positive connection (30), in engine compartment wiring harness |
| * | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection (15a) - in engine compartment wiring harness - Connection (air conditioning system) - in engine compartment wiring harness
| E45 | Cruise control system switch |
| E227 | Cruise control system (CCS) SET button |
| G65 | High-pressure sender |
| J220 | Motronic control unit |
| J248 | Diesel direct injection system control unit |
| J293 | Radiator fan control unit |
| J623 | Engine control unit |
| T10s | 10-pin connector |
| T13e | 13-pin connector |
| T14 | 14-pin connector |
| T14a | 14-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| D52 | Positive connection (15a), in engine compartment wiring harness |
| D61 | Connection (air conditioning system), in engine compartment wiring harness |
| * | From July 2009 |
| *2 | Only models with cruise control system (CCS) |
| *3 | Up to June 2009 |
Wiring Diagram VW JETTA 2007 - Connection (86) - in engine compartment wiring harness - Positive connection 1 (30a) - in engine compartment wiring harness
| J220 | Motronic control unit |
| J248 | Diesel direct injection system control unit |
| J271 | Main relay |
| J623 | Engine control unit |
| SC37 | Fuse 37 on fuse holder C |
| T6 | 6-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| D74 | Connection (86), in engine compartment wiring harness |
| D78 | Positive connection 1 (30a), in engine compartment wiring harness |
| * | Up to April 2007 |
| *2 | From May 2007 |
| *3 | Up to June 2009 |
Wiring Diagram VW JETTA 2007 - Connection (RPM signal) - in engine compartment wiring harness - Connection (injectors) - in engine compartment wiring harness
| J217 | Automatic gearbox control unit |
| J285 | Control unit in dash panel insert |
| N30 | Injector, cylinder 1 |
| N31 | Injector, cylinder 2 |
| N32 | Injector, cylinder 3 |
| N33 | Injector, cylinder 4 |
| SC32 | Fuse 32 on fuse holder C |
| T14a | 14-pin connector |
| T32 | 32-pin connector |
| T68a | 68-pin connector |
| D90 | Connection (RPM signal), in engine compartment wiring harness |
| D95 | Connection (injectors), in engine compartment wiring harness |
| * | From May 2007 |
| *2 | According to equipment |
| *3 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (glow plugs) - in engine compartment wiring harness - Connection 1 in engine compartment wiring harness
| G31 | Charge pressure sender |
| G40 | Hall sender |
| G71 | Intake manifold pressure sender |
| J220 | Motronic control unit |
| J360 | High heat output relay |
| J623 | Engine control unit |
| Q7 | Coolant heating element |
| T4k | 4-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| D98 | Connection (glow plugs), in engine compartment wiring harness |
| D101 | Connection 1 in engine compartment wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection 2 in engine compartment wiring harness - Connection 3 in engine compartment wiring harness
| J220 | Motronic control unit |
| J299 | Secondary air pump relay |
| N75 | Charge pressure control solenoid valve |
| N205 | Camshaft control valve 1 |
| N249 | Turbocharger air recirculation valve |
| T121 | 121-pin connector |
| D102 | Connection 2 in engine compartment wiring harness |
| D103 | Connection 3 in engine compartment wiring harness |
| * | Only models with automatic gearbox |
| *2 | From May 2007 |
| *3 | Up to April 2007 |
| *4 | From April 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection 2 (30a) - in engine compartment wiring harness - Connection (rear left speed sensor +) - in engine compartment wiring harness
| G46 | Rear left speed sensor |
| J104 | ABS control unit |
| J220 | Motronic control unit |
| J271 | Main relay |
| J623 | Engine control unit |
| N70 | Ignition coil 1 with output stage |
| N152 | Ignition transformer |
| T2i | 2-pin connector |
| T4k | 4-pin connector |
| T6g | 6-pin connector |
| T47a | 47-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| D104 | Positive connection 2 (30a), in engine compartment wiring harness |
| D146 | Connection (rear left speed sensor +), in engine compartment wiring harness |
| * | From May 2007 |
| *2 | Only models with electronic stabilisation program (ESP) and traction control system (TCS) |
| *3 | Up to April 2007 |
| *4 | Up to June 2009 |
| *5 | From July 2009 |
Wiring Diagram VW JETTA 2007 - Connection (rear left speed sensor -) - in engine compartment wiring harness - Connection (rear right speed sensor +) - in engine compartment wiring harness
| G44 | Rear right speed sensor |
| G46 | Rear left speed sensor |
| J104 | ABS control unit |
| T47a | 47-pin connector |
| D147 | Connection (rear left speed sensor -), in engine compartment wiring harness |
| D148 | Connection (rear right speed sensor +), in engine compartment wiring harness |
| * | Up to April 2007 |
| *2 | Only models with electronic stabilisation program (ESP) and traction control system (TCS) |
| *3 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection 15 in engine compartment wiring harness - Connection (rear right speed sensor -) - in engine compartment wiring harness
| G44 | Rear right speed sensor |
| J104 | ABS control unit |
| J220 | Motronic control unit |
| J271 | Main relay |
| N70 | Ignition coil 1 with output stage |
| N127 | Ignition coil 2 with output stage |
| N291 | Ignition coil 3 with output stage |
| N292 | Ignition coil 4 with output stage |
| T2i | 2-pin connector |
| T4g | 4-pin connector |
| T4h | 4-pin connector |
| T4i | 4-pin connector |
| T4j | 4-pin connector |
| T47a | 47-pin connector |
| T121 | 121-pin connector |
| D117 | Connection 15 in engine compartment wiring harness |
| D149 | Connection (rear right speed sensor -), in engine compartment wiring harness |
| * | Up to April 2007 |
| *2 | Only models with electronic stabilisation program (ESP) and traction control system (TCS) |
| *3 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection (87a) - in Motronic wiring harness - Connection - in engine wiring harness
| G39 | Lambda probe |
| G70 | Air mass meter |
| G130 | Lambda probe after catalytic converter |
| N18 | Exhaust gas recirculation valve |
| N75 | Charge pressure control solenoid valve |
| N80 | Activated charcoal filter solenoid valve 1 |
| N213 | Exhaust gas recirculation valve 2 |
| SC34 | Fuse 34 on fuse holder C |
| T4f | 4-pin connector |
| T5m | 5-pin connector |
| T6w | 6-pin connector |
| T10f | 10-pin connector |
| V157 | Intake manifold flap motor |
| E7 | Connection (87a), in Motronic wiring harness |
| E29 | Connection, in engine wiring harness |
| * | Up to April 2007 |
| *2 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection - in engine wiring harness - Connection (87a) - in engine wiring harness
| G39 | Lambda probe |
| G40 | Hall sender |
| G130 | Lambda probe after catalytic converter |
| J299 | Secondary air pump relay |
| N18 | Exhaust gas recirculation valve |
| N80 | Activated charcoal filter solenoid valve 1 |
| T3g | 3-pin connector |
| T4f | 4-pin connector |
| T6w | 6-pin connector |
| T10f | 10-pin connector |
| T14a | 14-pin connector |
| E29 | Connection, in engine wiring harness |
| E30 | Connection (87a), in engine wiring harness |
| * | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Connection (87a) - in engine wiring harness
| F47 | Brake pedal switch |
| G39 | Lambda probe |
| G70 | Air mass meter |
| J359 | Low heat output relay |
| J360 | High heat output relay |
| N112 | Secondary air inlet valve |
| SC34 | Fuse 34 on fuse holder C |
| T2j | 2-pin connector |
| T4d | 4-pin connector |
| T4y | 4-pin connector |
| T6w | 6-pin connector |
| V144 | Fuel system diagnostic pump |
| E30 | Connection (87a), in engine wiring harness |
| * | Up to April 2007 |
| *2 | Only models with automatic gearbox |
| *3 | From May 2007 |
| *4 | Only models with fuel system diagnostic pump |
Wiring Diagram VW JETTA 2007 - Positive connection 1 (30) - in radiator fan wiring harness - Connection 1 - in radiator fan wiring harness
| F18 | Radiator fan thermal switch |
| J293 | Radiator fan control unit |
| S180 | Fuse 8 (30), in battery fuse holder |
| T3 | 3-pin connector |
| T3a | 3-pin connector |
| T3b | 3-pin connector |
| T4a | 4-pin connector |
| V7 | Radiator fan |
| V35 | Radiator fan on right of radiator |
| K20 | Positive connection 1 (30), in radiator fan wiring harness |
| K21 | Connection 1, in radiator fan wiring harness |
Wiring Diagram VW JETTA 2007 - Connection 1 - in air conditioning system wiring harness - Connection - in air conditioning system operating unit wiring harness
| E9 | Fresh air blower switch |
| E35 | Selector lever for retarder brake |
| J220 | Motronic control unit |
| J248 | Diesel direct injection system control unit |
| J293 | Radiator fan control unit |
| J623 | Engine control unit |
| N24 | Fresh air blower series resistor with overheating fuse |
| T4c | 4-pin connector |
| T6d | 6-pin connector |
| T8b | 8-pin connector |
| T10 | 10-pin connector |
| T10j | 10-pin connector |
| T14 | 14-pin connector |
| T80 | 80-pin connector |
| T121 | 121-pin connector |
| L9 | Connection 1, in air conditioning system wiring harness |
| L45 | Connection, in air conditioning system operating unit wiring harness |
| * | From May 2007 |
Wiring Diagram VW JETTA 2007 - Connection - in heater blower wiring harness - Positive connection (75x) in Climatronic wiring harness - Connection (mirror heating) - in window regulator wiring harness
| E9 | Fresh air blower switch |
| E231 | Exterior mirror heater button |
| J255 | Climatronic control unit |
| N24 | Fresh air blower series resistor with overheating fuse |
| SC25 | Fuse 25 on fuse holder C |
| T4c | 4-pin connector |
| T6d | 6-pin connector |
| T10g | 10-pin connector |
| T10p | 10-pin connector |
| T10v | 10-pin connector |
| T12b | 12-pin connector |
| T12c | 12-pin connector |
| T16b | 16-pin connector |
| T17a | 17-pin connector |
| V2 | Fresh air blower |
| Z4 | Heated exterior mirror on driver side |
| Z5 | Heated exterior mirror on front passenger side |
| L66 | Connection, in heater blower wiring harness |
| L67 | Positive connection (75x) in Climatronic wiring harness |
| Q19 | Connection (mirror heating), in window regulator wiring harness |
Wiring Diagram VW JETTA 2007 - Connection 1 - in rear lid wiring harness - Positive connection 1 - in interior light wiring harness - Positive connection 1 (30) - in driver door wiring harness
| F5 | Luggage compartment light switch |
| J386 | Driver door control unit |
| T10k | 10-pin connector |
| T29 | 29-pin connector |
| W3 | Luggage compartment light |
| W11 | Rear left reading light |
| W12 | Rear right reading light |
| W19 | Driver side reading light |
| Q22 | Connection 1, in rear lid wiring harness |
| R6 | Positive connection 1, in interior light wiring harness |
| R10 | Positive connection 1 (30), in driver door wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection 4 (15) - in driver door wiring harness - Connection (mirror adjustment) - in driver door wiring harness - Connection (58b) - in driver side door wiring harness
| E43 | Mirror adjustment switch |
| E204 | Tank filler flap remote release switch |
| J386 | Driver door control unit |
| L76 | Button illumination bulb |
| L78 | Mirror adjustment switch illumination bulb |
| T5r | 5-pin connector |
| T10p | 10-pin connector |
| T10q | 10-pin connector |
| T10v | 10-pin connector |
| T12b | 12-pin connector |
| T12c | 12-pin connector |
| T16a | 16-pin connector |
| T18d | 18-pin connector |
| V149 | Driver side mirror adjustment motor |
| V150 | Front passenger side mirror adjustment motor |
| R13 | Positive connection 4 (15), in driver door wiring harness |
| R27 | Connection (mirror adjustment), in driver door wiring harness |
| R51 | Connection (58b), in driver side door wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection (58) - in front passenger door wiring harness - Connection (open) - in central locking wiring harness - Connection (closed) - in central locking wiring harness
| E150 | Driver side interior locking switch |
| E198 | Front passenger side interior locking switch |
| J393 | Convenience system central control unit |
| L53 | Window regulator switch illumination bulb |
| L99 | Interior lock switch illumination bulb |
| T5e | 5-pin connector |
| T5k | 5-pin connector |
| T5l | 5-pin connector |
| T10m | 10-pin connector |
| T10n | 10-pin connector |
| T16a | 16-pin connector |
| T23 | 23-pin connector |
| R67 | Positive connection (58), in front passenger door wiring harness |
| S14 | Connection (open), in central locking wiring harness |
| S15 | Connection (closed), in central locking wiring harness |
| * | Only models with electric window regulators |
| *2 | From May 2007 |
Wiring Diagram VW JETTA 2007 - Positive connection 1 (54) - in rear wiring harness - Connection (58) - in rear lid wiring harness - Connection (58L) - in rear wiring harness
| M4 | Left tail light bulb |
| M9 | Left brake light bulb |
| M10 | Right brake light bulb |
| M21 | Left brake and tail light bulb |
| M22 | Right brake and tail light bulb |
| M25 | Additional brake light bulb |
| M37 | Rear left side marker bulb |
| SC4 | Fuse 4 on fuse holder C |
| T4m | 4-pin connector |
| T4n | 4-pin connector |
| T5 | 5-pin connector |
| T6a | 6-pin connector |
| T6b | 6-pin connector |
| X | Number plate light |
| W1 | Positive connection 1 (54), in rear wiring harness |
| W11 | Connection (58), in rear lid wiring harness |
| W13 | Connection (58L), in rear wiring harness |
| * | From May 2007 |
| *2 | Up to April 2007 |
| *3 | From April 2009 |
Wiring Diagram VW JETTA 2007 - Connection (58R) - in rear wiring harness - Connection (reversing light) - in rear lid wiring harness
| M2 | Right tail light bulb |
| M16 | Left reversing light bulb |
| M17 | Right reversing light bulb |
| M22 | Right brake and tail light bulb |
| M38 | Rear right side marker bulb |
| T4n | 4-pin connector |
| W14 | Connection (58R), in rear wiring harness |
| W33 | Connection (reversing light), in rear lid wiring harness |
| * | From April 2009 |
| *2 | Up to June 2008 |
| *3 | Up to March 2009 |
VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007VW JETTA 2007
