VW TRANSPORTER 1999 – Automatic gearbox, 2.5 litre/75 kW turbo-diesel engine, engine codes ACV . Wiring diagrams, Pin Connector, Location

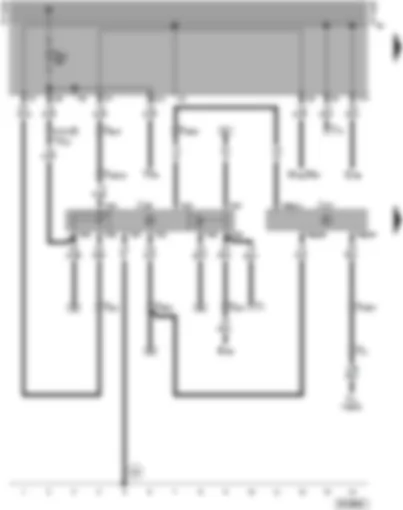

Wiring Diagram VW TRANSPORTER 1999 - Automatic gearbox control unit - starter inhibitor and reversing light relay

B	Starter
D	Ignition/starter switch
J217	Automatic gearbox, on lower part of left A-pillar
J226	Starter inhibitor and reversing light relay, behind dash panel, centre
M16	Reversing light bulb, left
M17	Reversing light bulb, right
T1	Single connector, behind relay plate
T1i	Single connector, behind relay plate
T1n	Single connector, behind relay plate
T2j	2-pin connector, behind relay plate
T6c	6-pin connector, behind relay plate
T9	9-pin connector
T10b	10-pin connector, behind relay plate
T32a	32-pin connector, green, on dash panel insert
T68a	68-pin connector
TV5	Terminal 15a junction box, green, 4-pin and 8-pin
Y5	Selector lever position display, in dash panel insert
44	Earth point, lower part of left A-pillar

Wiring Diagram VW TRANSPORTER 1999 - Automatic gearbox control unit - solenoid valves - vehicle speed sender

A	Battery
G68	Vehicle speed sender
G93	Gearbox oil temperature sender
J52	Glow plug relay
J217	Automatic gearbox, on lower part of left A-pillar
J248	Diesel direct injection system control unit, in engine compartment, left
K29	Glow period warning lamp
N88	Solenoid valve 1
N89	Solenoid valve 2
N90	Solenoid valve 3
N91	Solenoid valve 4
N92	Solenoid valve 5
N93	Solenoid valve 6
N94	Solenoid valve 7
Q6	Glow plugs - engine
SA1	Fuse -1- in battery fuse box
T10b	10-pin connector, behind relay plate
T12a	12-pin connector
T32	32-pin connector, blue, on dash panel insert
T68	68-pin connector, on diesel direct injection system control unit
T68a	68-pin connector
TV2	Terminal 30 junction box, red, both have 6-pin
44	Earth point, lower part of left A-pillar
A32	Positive (+) connection (30), in dash panel wiring harness

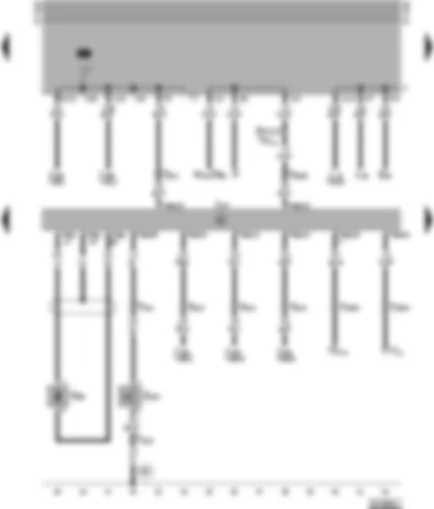

Wiring Diagram VW TRANSPORTER 1999 - Automatic gearbox control unit - gearbox speed sender

E20	Switches and instruments, lighting control
F	Brake light switch
G38	Gearbox speed sender
G201	Brake pressure sender
J217	Automatic gearbox, on lower part of left A-pillar
J248	Diesel direct injection system control unit, in engine compartment, left
J285	Control unit with display in dash panel insert
L39	Heated rear window switch bulb
L75	Digital display illumination
M21	Brake and tail light bulb, left
M22	Brake and tail light bulb, right
T1z	Single connector, behind relay plate (connection for CCS)
T2a	2-pin connector
T6c	6-pin connector, behind relay plate
T10b	10-pin connector, behind relay plate
T32	32-pin connector, blue, on dash panel insert
T68	68-pin connector, on diesel direct injection system control unit
T68a	68-pin connector
TV11	Terminal 54 junction box, orange
TV14	Terminal for self-diagnosis, white
150	Earth connection, in automatic gearbox wiring harness

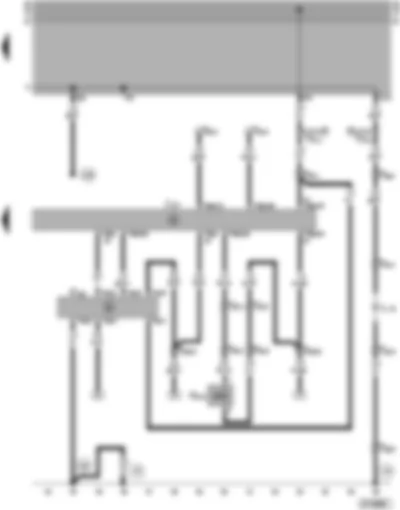

Wiring Diagram VW TRANSPORTER 1999 - Automatic gearbox control unit - multi-function switch - selector lever lock solenoid

F125	Multi-function switch
J217	Automatic gearbox, on lower part of left A-pillar
L79	Selector lever illumination
N110	Selector lever lock solenoid
T2e	2-pin connector, near selector lever
T2f	2-pin connector, behind relay plate
T2g	2-pin connector, behind relay plate
T2k	2-pin connector, near selector lever
T3h	3-pin connector, behind relay plate
T8e	8-pin connector
T10b	10-pin connector, behind relay plate
T68a	68-pin connector
TV4	Terminal 15 junction box, black
TV8	Terminal 58b junction box, grey
44	Earth point, lower part of left A-pillar
150	Earth connection, in automatic gearbox wiring harness
A53	Connection (58b), in dash panel wiring harness
