Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Isuzu Axiom 2003

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

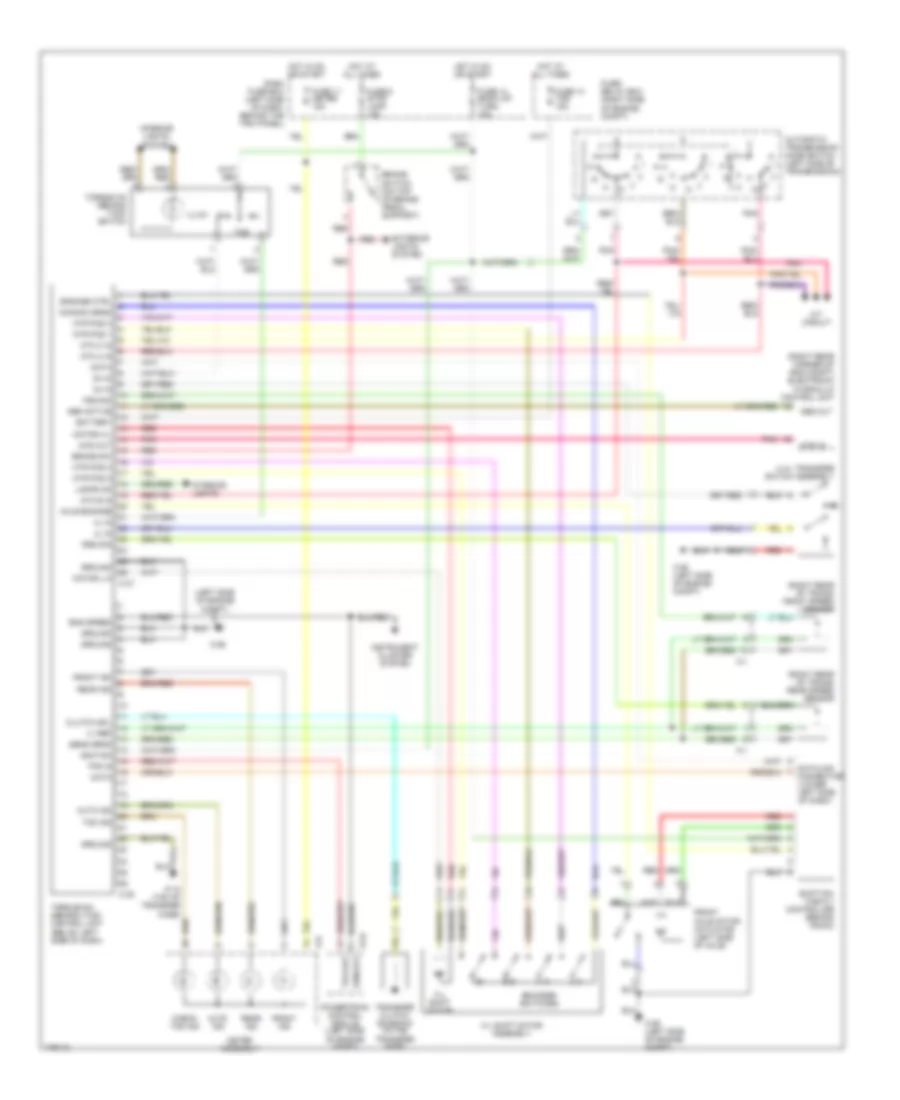

Электросхема Полного привода 4WD для Isuzu Axiom 2003

Электросхема Полного привода 4WD для Isuzu Axiom 2003 - Список элементов:

• (left side of engine compt)
• (right rear corner of eng compt) electronic hydraulic control unit
• (right rear of trans) front speed sensor
• (right rear of trans) rear speed sensor
• +v ref
• 2h in
• 4 h/l transfer switch assembly
• 4h in
• 4l in
• 4wd in
• 4wd out
• A-1
• A/t circuit
• Abs active
• Abs out
• Atm a in
• Atm b in
• Atm c in
• Auto ind
• Automatic transmission mode switch (left side of transmission)
• Axle engage
• Battery
• Brake sw
• Brake switch (on top of brake pedal support)
• C-26
• C-26 (left side of engine compt)
• C-37
• C-38
• Check tod ind
• Clutch sol
• Dash fuse box (left side of dash, behind the trim panel)
• Data
• Datalink connector (lower left side of dash)
• E-34
• Encoder switches
• Eng speed
• Engage ctrl
• Exterior lights system
• Front axle motor actuator (left side of axle)
• Front ind
• Fss sig
• Fuse 11 meter 15a
• Fuse 14 back up/ turn 15a
• Fuse 14 tod 15a
• Fuse 6 stop lamp 15a
• Fuse/ relay box (right side of engine compt)
• Ground
• H-l shift motor
• H-l shift motor assembly
• Hot at all times
• Hot in on or start
• I-24
• Ignition
• Illum
• Instrument cluster system
• Interior lights
• Interior lights system
• Lamps on
• Meter assembly
• Motor h-l
• Motor l-h
• Mtr pos 1
• Mtr pos 2
• Mtr pos 3
• Mtr pos 4
• P-15 (top of transfer case)
• Pnk
• Powertrain control module (left side of engine compt)
• Rear ind
• Red
• Rpm out
• Rss sig
• Shift-on- the-fly controller (behind radio)
• Tod
• Tod ind
• Torque on demand (tod) switch
• Torque-on- demand (tod) control unit (below left side of dash)
• Tps in
• Tps out
• Transfer clutch solenoid (in the transfer case)

Электросхема автоматической коробки передач АКПП для Isuzu Axiom 2003

Электросхема автоматической коробки передач АКПП для Isuzu Axiom 2003 - Список элементов:

• (left side of engine) e-21
• (left side of transmission) automatic transmission mode switch
• 4wd circuit
• A/t oil temp ind
• A/t oil temperature sensor
• Automatic transmission
• B-9 (under center console)
• Battery
• Braided
• Brake
• Brake switch (on top of brake pedal support)
• Brake/tcc
• Brk band
• C-26 (left side of engine compt)
• Check trans ind
• Dash fuse box (left side of dash)
• Data
• Data link connector (below left side of dash)
• E-21 (left side of engine)
• E-23 (right side of engine)
• E-34
• E-35
• E-40
• E-42
• Ect in
• Engine controls system
• Engine coolant temperature sensor (right front of engine)
• Etc grd
• Exterior lights system
• Fuse 11 meter 15a
• Fuse 12 engine 15a
• Fuse 13 pcm b/u 10a
• Fuse 14 back up/ turn light 15a
• Fuse 15 pcm 30a
• Fuse 6 stoplamp 15a
• Fuse/ relay box (right side of engine compt)
• Ground
• Hot at all times
• Hot in on or start
• I-22
• I-24
• Ignition
• Interior lights system
• Meter assembly
• Multi-plexed indicator control unit (under rear of center console)
• Pcm main relay
• Pnk
• Power
• Power drive ind
• Power/ winter switch (part of switch unit)
• Powertrain control module (left side of engine compt)
• Pressure control solenoid
• Psc+
• Psc-
• Pwr sw
• Red
• Ref volt
• Shift solenoid a
• Shift solenoid b
• Sol v+
• Ssa
• Ssb
• Tcc +
• Tcc -
• Tft +
• Tft -
• Throttle position sensor 1
• Throttle position sensor 2
• Throttle valve assembly (on throttle body assembly)
• Torque converter clutch solenoid
• Tps1 grd
• Tps1 sig
• Tps2 grd
• Tps2 sig
• Trans pos
• Transmission speed sensor (on top of transmission)
• Tss +
• Tss -
• Winter
• Winter drive ind
• Winter sw
