Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Isuzu Rodeo LSE 2001

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

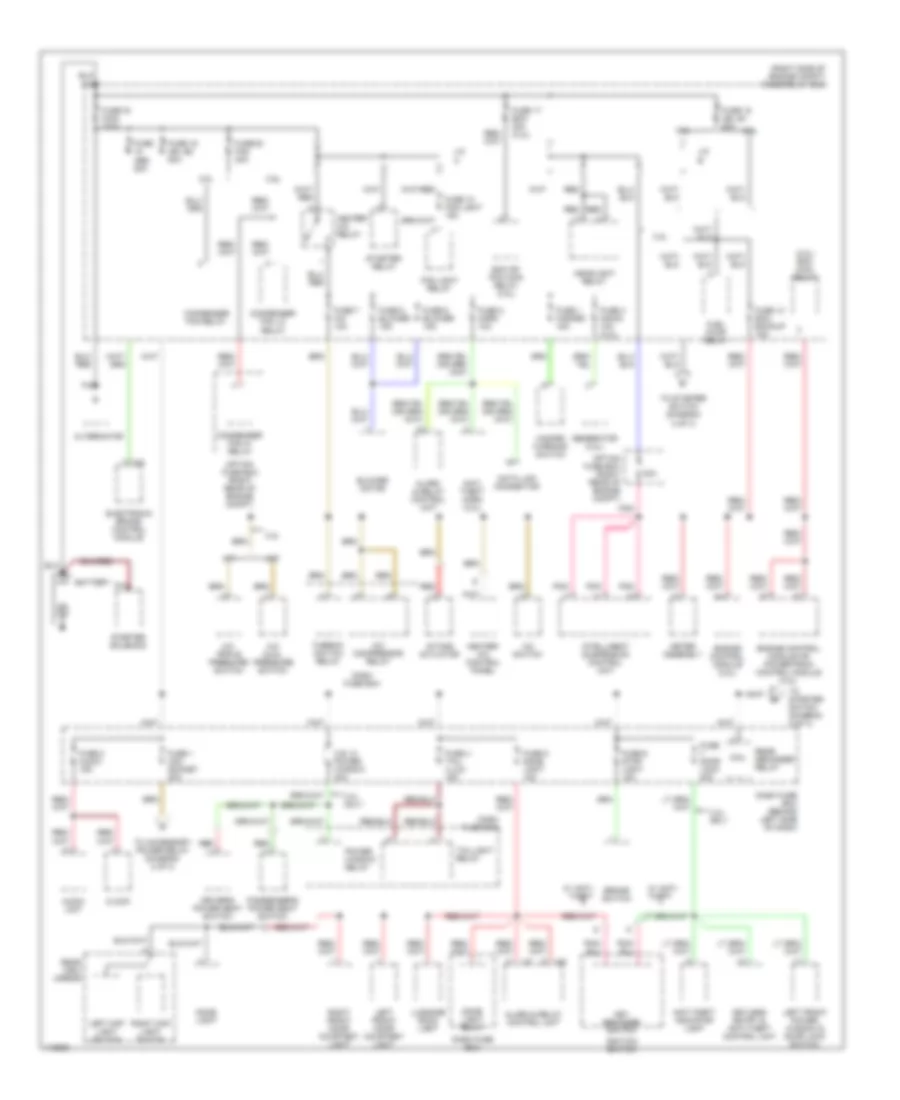

Электросхема блока предохранителей и реле (1 из 3) для Isuzu Rodeo LSE 2001

Электросхема блока предохранителей и реле (1 из 3) для Isuzu Rodeo LSE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема блока предохранителей и реле (1 из 3) для Isuzu Rodeo LSE 2001 - Список элементов:

  • (2.2l) ecm main relay
  • (right side of engine compt) fuse/relay box
  • 2.2l
  • 3.2l
  • 3.2l only
  • 30a
  • A/c compressor relay
  • A/c dual pressure switch
  • A/c switch
  • A/c triple pressure switch
  • A/t
  • Alarm & relay control unit
  • Alternator
  • Anti- theft horn (3.2l)
  • Anti-theft indicator light
  • Audio unit
  • Battery
  • Blower motor
  • Brake switch
  • C-5
  • C.b. 21 power window 30a
  • Clock
  • Coil
  • Condenser fan hi relay
  • Condenser fan lo relay
  • Condenser fan relay
  • Dash fuse box
  • Dash fuse box (behind left side of dash)
  • Data link connector
  • Dome light
  • Dome light relay
  • Driver's power seat switch
  • Ecm or pcm main relay (3.2l)
  • Electronic brake control module
  • Engine control module (2.2l)
  • Engine control module or powertrain control module (3.2l)
  • Fog light relay
  • Fuel pump relay
  • Fuse 1 acc socket 20a
  • Fuse 1 hazard 15a
  • Fuse 10 fog light 15a
  • Fuse 13 ecm, backup 15a
  • Fuse 15 ign, b1 60a
  • Fuse 16 main 100a
  • Fuse 17 ecm 30a (3.2l)
  • Fuse 19 ign. b2 50a
  • Fuse 2 audio 15a
  • Fuse 2 horn 10a
  • Fuse 20 fan 30a
  • Fuse 3 acg-s 10a (3.2l)
  • Fuse 4 tail/ illum 15a
  • Fuse 5 blower 15a
  • Fuse 5 dome light 10a
  • Fuse 6 blower 15a
  • Fuse 6 stop light 15a
  • Fuse 7 a/c 10a
  • Fuse abs 50a
  • Fuse door lock 20a
  • Generator (3.2l)
  • Hazard warning switch
  • Headlight relay
  • Heater- a/c control panel
  • Heater- a/c relay
  • I-41
  • I-42
  • Ignition switch
  • Intake actuator
  • Intelligent suspension control unit
  • J/c a
  • J/c b
  • Key reminder switch
  • Keyless entry & anti-theft control unit
  • Left front door courtesy light
  • Left front power window & door lock switch
  • Left map light switch
  • Luggage room light
  • M/t
  • Meter assembly
  • Option fuse box (right rear of engine compt)
  • P-2
  • P-4
  • P-9
  • Passenger's power seat switch
  • Pnk
  • Power window relay
  • Rear defogger relay
  • Rear view mirror
  • Red
  • Right front door courtesy light
  • Right map light switch
  • Starter relay
  • Starter solenoid
  • Taillight relay
  • Thermo- switch relay
  • To accessory power relay (diagram 2 of 3)
  • To starter switch (diagram 2 of 3)
  • W/ anti- theft

Электросхема блока предохранителей и реле (2 из 3) для Isuzu Rodeo LSE 2001

Электросхема блока предохранителей и реле (2 из 3) для Isuzu Rodeo LSE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема блока предохранителей и реле (2 из 3) для Isuzu Rodeo LSE 2001 - Список элементов:

  • A/t
  • Acc
  • Accessory socket relay
  • Alarm & relay control unit
  • Automatic transmission mode switch
  • Cigarette lighter
  • Clutch start switch
  • Dash fuse box
  • Dash fuse box (behind left side of dash)
  • From fuse 1 (diagram 1 of 3)
  • From fuse 15 (diagram 1 of 3)
  • From fuse 19 (diagram 1 of 3)
  • Front accessory socket
  • Fuse 15 elec ign 15a
  • Fuse 16 rear wiper 10a
  • Fuse 18 acc. audio 10a
  • Fuse 19 cigar lighter 15a
  • Fuse 20 anti- theft 10a
  • Fuse 3 starter 10a
  • Fuse/ relay box
  • G302 (under center console)
  • Hazard warning switch
  • Heater a/c relay
  • I-41
  • Intelligent suspension control unit (3.2l)
  • Keyless entry & anti-theft control module
  • Lock
  • M/t
  • Mirror control switch
  • Off
  • Power window relay
  • Radio
  • Rear accessory socket
  • Rear window defogger relay
  • Rear wiper motor (rodeo sport)
  • Rear wiper switch
  • Shift-on- the-fly controller (4wd)
  • Start
  • Starter switch
  • To dash fuse box (diagram 3 of 3)

Электросхема блока предохранителей и реле (3 из 3) для Isuzu Rodeo LSE 2001

Электросхема блока предохранителей и реле (3 из 3) для Isuzu Rodeo LSE 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема блока предохранителей и реле (3 из 3) для Isuzu Rodeo LSE 2001 - Список элементов:

  • 2.2l
  • 3.2l
  • 3.2l a/t
  • 3.2l m/t
  • 4wd control unit
  • 4wd switch
  • A/t
  • A1 c4
  • Alarm & relay control unit
  • Automatic transmission mode switch
  • B-26
  • Back-up light switch
  • Brake switch
  • Camshaft position (cmp) sensor
  • Clutch switch
  • Combination light switch
  • Condenser
  • Cruise control main switch
  • Cruise control switch
  • Dash fuse box (behind left side of dash)
  • E5 c3
  • Ecm or pcm main relay
  • Electronic brake control module
  • Engine control module (ecm)
  • Evap canister purge valve
  • Evap vent canister cut valve
  • Exhaust gas recirculation (egr) solenoid valve
  • From ignition switch (diagram 2 of 3)
  • Fuse 11 meter 15a
  • Fuse 12 engine ign 15a
  • Fuse 13 ign coil 15a
  • Fuse 14 backup/ turn 15a
  • Fuse 17 front wiper 20a
  • Fuse 22 srs 10a
  • Fuse/ relay box
  • I-1
  • I-31
  • I-9
  • Ignition coil
  • Ignition control module (icm)
  • Ion sensing module
  • M/t
  • Map lamp timer
  • Mass air flow (maf) sensor
  • Meter assembly
  • Multiplex control unit
  • Red
  • Sensing & diagnostic module
  • Shift lock relay
  • Shift-on- the-fly controller
  • Variable air induction vacuum switching valve
  • Vehicle speed sensor (2.2l)
  • Windshield wiper motor
  • Windshield wiper/washer switch
