Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Isuzu Rodeo S 2001

ПРИБОРНАЯ ПАНЕЛЬ

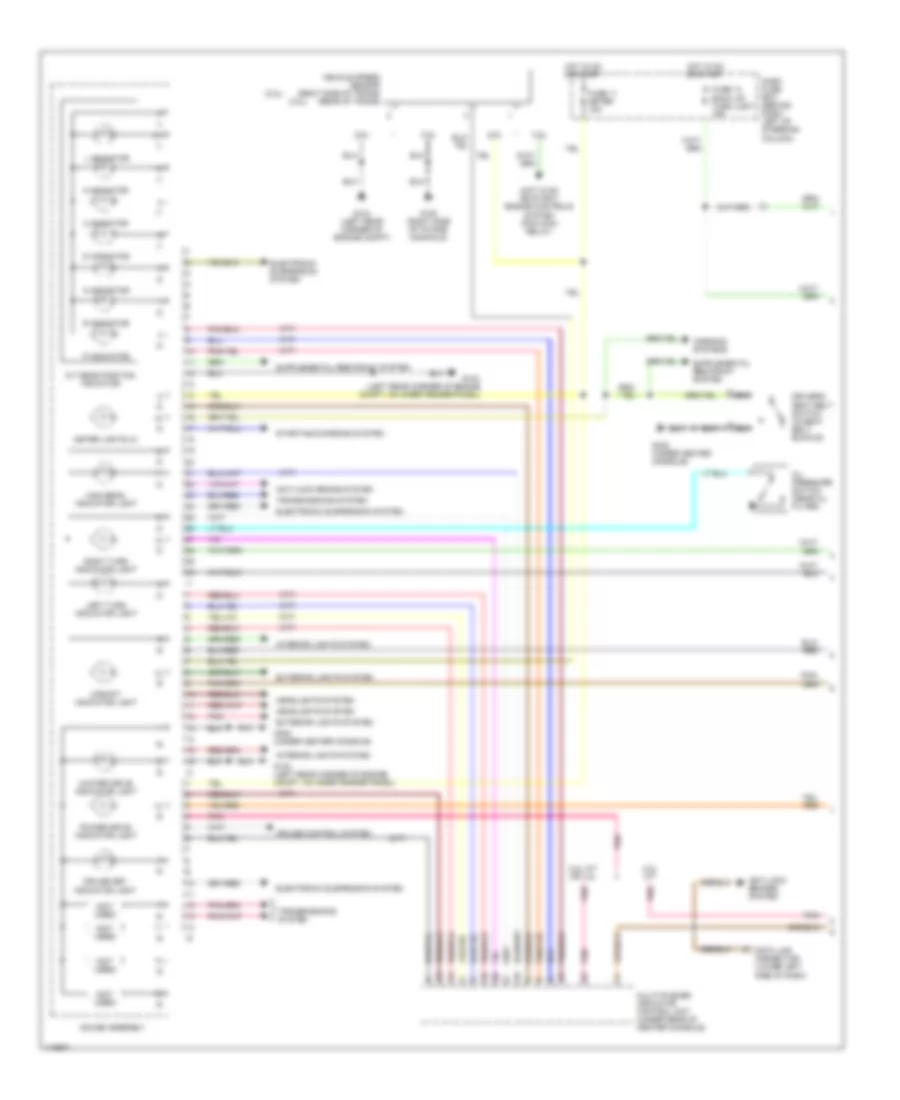

Электросхема панели приборов (1 из 2) для Isuzu Rodeo S 2001

Электросхема панели приборов (1 из 2) для Isuzu Rodeo S 2001 - Список элементов:

• (2.2l)
• (3.2l)
• (a/t)
• (hot in on or start) engine controls system (pcm main relay)
• (m/t)
• (not used)
• 2 indicator
• 2.2l
• 2.2l a/t or 3.2l
• 2.2l m/t
• 3 indicator
• 3.2l
• A/t gear position indicator
• Anti-lock brake system
• Anti-lock brakes system
• Cruise control system
• Cruise set indicator light
• D indicator
• Dash fuse box (behind dash, left of steering column)
• Data link connector (lower left side of dash)
• Driver's seat belt switch (in seat belt buckle)
• Electronic suspension system
• Exterior lights system
• Fuse 11 meter 15a
• Fuse 14 back up/ turn light 15a
• G104 (left rear corner of engine compt)
• G104 (left rear corner of engine compt, on inner fender panel)
• G120 (right side of intake manifold)
• G302 (under center console)
• Gauge assembly
• Headlights system
• High beam indicator light
• Hot in on or start
• Interior lights system
• L indicator
• Left turn indicator light
• Meter lights (4)
• Muliti-plexed indicator control unit (under rear of center console)
• N indicator
• Oil pressure switch (near oil filter)
• P indicator
• Pnk
• Power drive indicator light
• R indicator
• Right turn indicator light
• Starting/charging system
• Transmissions system
• Upshift indicator light
• Vehicle speed sensor (right side of trans) (rear of trans)
• Warning systems
• Winter drive indicator light

Электросхема панели приборов (2 из 2) для Isuzu Rodeo S 2001

Электросхема панели приборов (2 из 2) для Isuzu Rodeo S 2001 - Список элементов:

• (2.2l)
• (2.2l) c2
• (2.2l: on rear of engine, in coolant mainfold)
• (3.2l)
• (3.2l) e22
• (not used)
• (on parking brake lever)
• 10.1 ohms
• 4wd indicator light
• A/t fluid indicator light
• A11
• A12
• Abs indicator light
• Air bag readiness indicator light
• Automatic trans mode switch (beneath center of vehicle, on left side of transmission)
• B13
• Brake fluid level switch (in reservoir)
• Brake system warning light
• C11
• Charging system warning light
• Check trans indicator light
• Clutch switch (on clutch pedal support)
• Diode box b
• E21
• E22
• Ect sensor (3.2l: on right front of engine)
• Electronic brake control module (right rear corner of engine compt)
• Electronic suspension system
• Engine controls system
• Engine coolant temperature gauge
• Engine or powertrain control module (below center of dash) (left rear of engine compt)
• F15
• Fuel gauge
• Fuel tank sender
• Fuel tank unit (beneath rear of vehicle, in top of fuel tank)
• Fuse/ relay box (on right side of engine compt)
• G104 (left rear corner of engine compt, on inner fender panel)
• Gauge assembly
• Intelligent suspension system warning light
• Low fuel warning light
• Malfunction indicator light
• Oil pressure indicator light
• Park brake switch
• Pnk
• Powertrain control module (left rear of engine compt) (below center of dash)
• Reduced power indicator light
• Seat belt reminder light
• Speedometer/ odometer/ trip meter
• Tachometer
