Электросхема стеклоочистителя, дворников и омывателя С 2 скоростями для Isuzu Amigo XS 1994
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO Электросхема стеклоочистителя, дворников и омывателя С 2 скоростями для Isuzu Amigo XS 1994 - Список элементов:
- (not used)
- (rear of left fender)
- (right front fender)
- 15a
- Fuse 6
- G101
- G104
- Hot in on or start
- Interior lights system
- Mist
- Off
- Park
- Run
- Wash
- Washer button illumi- nation
- Wind- shield wiper/ washer switch
- Windshield washer motor (in washer fluid reservoir)
- Windshield wiper motor
- Windshield wiper relay connector plug (fuse/relay box)
- Wiper switch illumi- nation

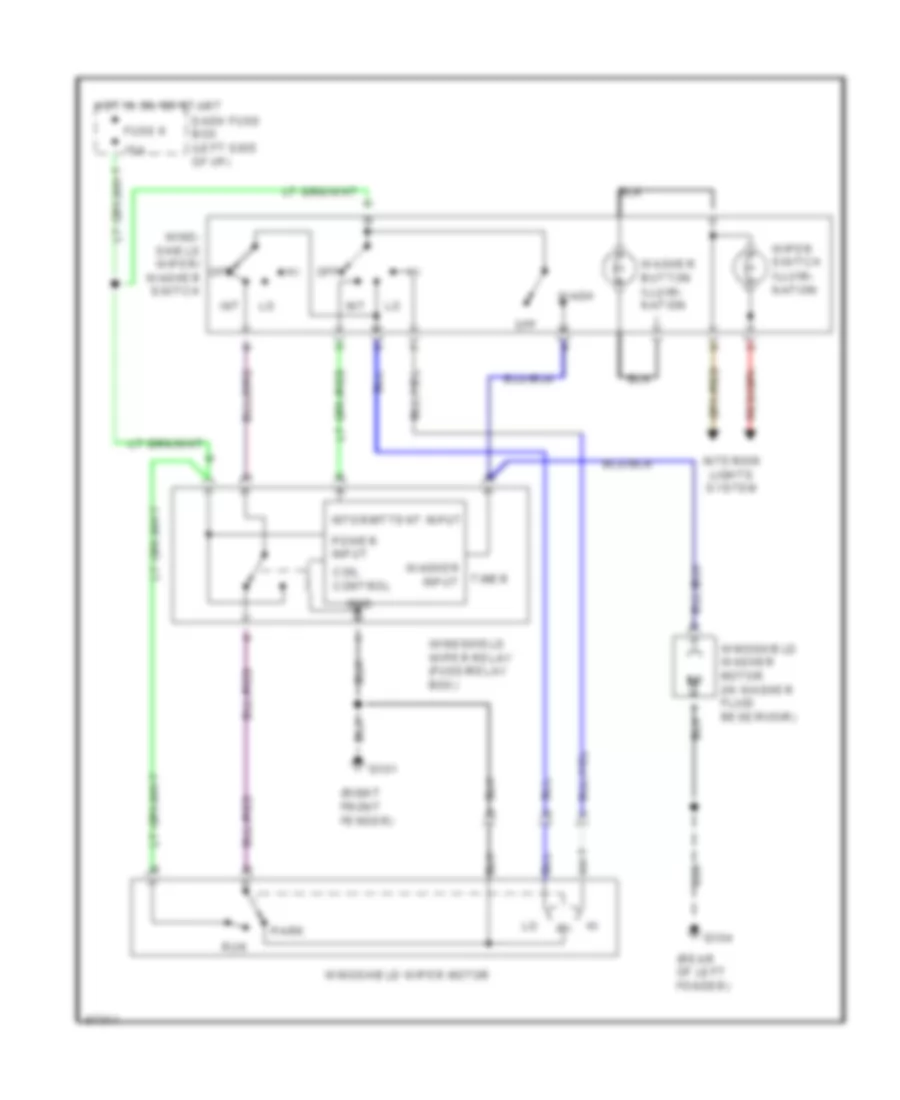

Электросхема стеклоочистителя, дворников и омывателя Интервала для Isuzu Amigo XS 1994
Электросхема стеклоочистителя, дворников и омывателя Интервала для Isuzu Amigo XS 1994 - Список элементов:
- (rear of left fender)
- (right front fender)
- 15a
- Coil control
- Dash fuse box (left side of i/p)
- Fuse 6
- G101
- G104
- Gnd
- Hot in on or start
- Int
- Interior lights system
- Intermittent input
- Off
- Park
- Power input
- Run
- Timer
- Wash
- Washer button illumi- nation
- Washer input
- Wind- shield wiper/ washer switch
- Windshield washer motor (in washer fluid reservoir)
- Windshield wiper motor
- Windshield wiper relay (fuse/relay box)
- Wiper switch illumi- nation
