Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Isuzu Axiom XS 2003

Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Isuzu Axiom XS 2003 - Список элементов:

• Alarm & relay control unit (on right side of dash)
• B9 (under center console)
• C10 (at rear of battery tray)
• Combination switch
• Dash fuse box (on left of dash behind trim panel)
• Ft wiper fuse 17 20a
• Gnd
• Hot in on or start
• I-41
• I-42
• Ignition
• Int
• Int input
• Off
• Off input
• P10 (at right side of engine compt)
• Park
• Ref
• Run
• Run/park in
• Var int input
• Variable intermittent
• Wash
• Wash input
• Windshield washer motor (on right front of engine compartment, in washer fluid reservoir)
• Windshield wiper motor (on right rear corner of engine compartment, on firewall)
• Windshield wiper/washer switch

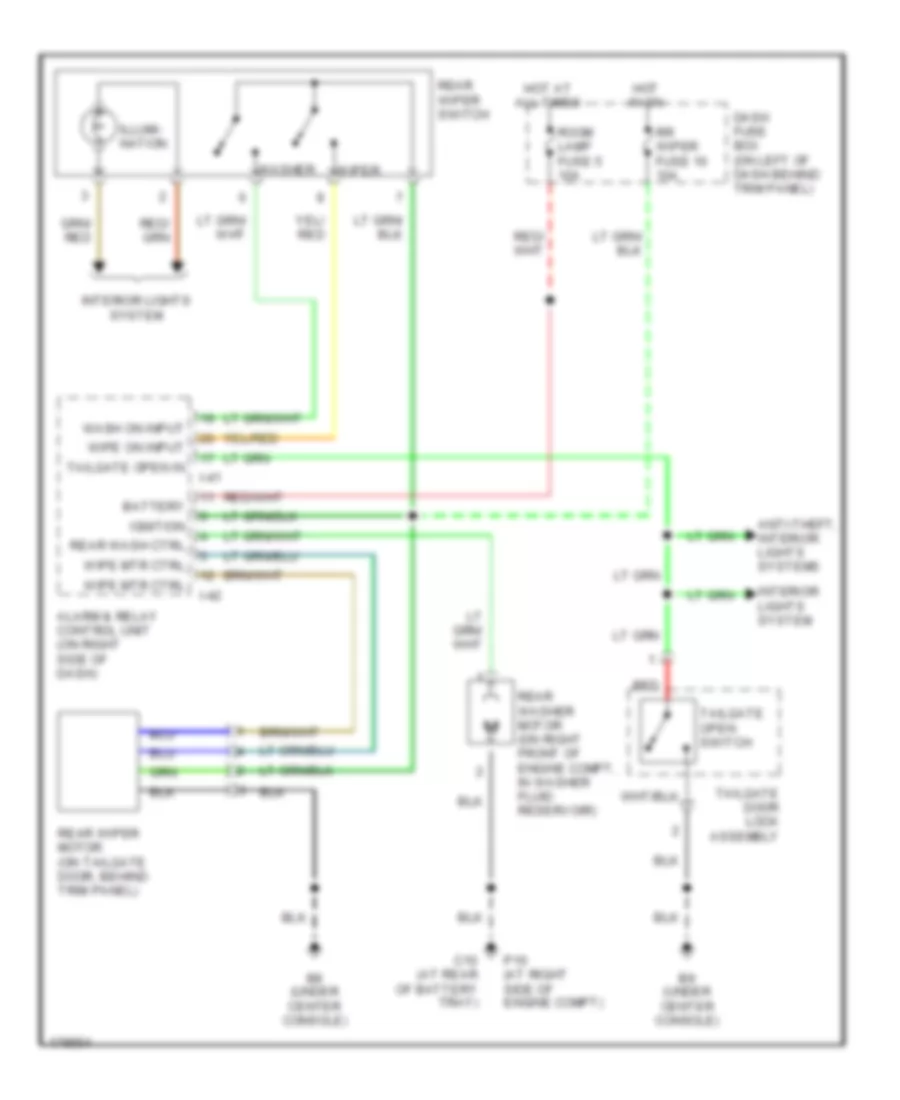

Электросхема заднего стеклоочистителя дворника и омывателя для Isuzu Axiom XS 2003

Электросхема заднего стеклоочистителя дворника и омывателя для Isuzu Axiom XS 2003 - Список элементов:

• Alarm & relay control unit (on right side of dash)
• Anti-theft, interior lights systems
• B9 (under center console)
• Battery
• C10 (at rear of battery tray)
• Dash fuse box (on left of dash behind trim panel)
• Hot at all times
• Hot in on
• I-41
• I-42
• Ignition
• Illumi- nation
• Interior lights system
• P10 (at right side of engine compt)
• Rear wash ctrl
• Rear washer motor (on right front of engine compt, in washer fluid reservoir)
• Rear wiper motor (on tailgate door, behind trim panel)
• Rear wiper switch
• Red
• Room lamp fuse 5 10a
• Rr wiper fuse 16 10a
• Tailgate door lock assembly
• Tailgate open in
• Tailgate open switch
• Wash on input
• Washer
• Wipe mtr ctrl
• Wipe on input
• Wiper
