Электросхемы Стартер Генератор Dodge Ram Van B150 1990

Стартер Генератор

Электросхема Генератора для Dodge Ram Van B150 1990

Электросхема Генератора для Dodge Ram Van B150 1990 - Список элементов:

• 1990-91 & 1992 5.9l
• 1993 & 1992 3.9, 5.2l
• Acc
• Auto shutdown relay (on dash panel below bulkhead connector)
• Battery
• G110 (left front of engine)
• G116 (left yolk, front of battery)
• G133 (on engine)
• Generator
• Hot at all times
• Ignition switch
• K20
• Nca
• Off
• Power distribution system
• Powertrain control module (center of dash panel)
• Run
• Start

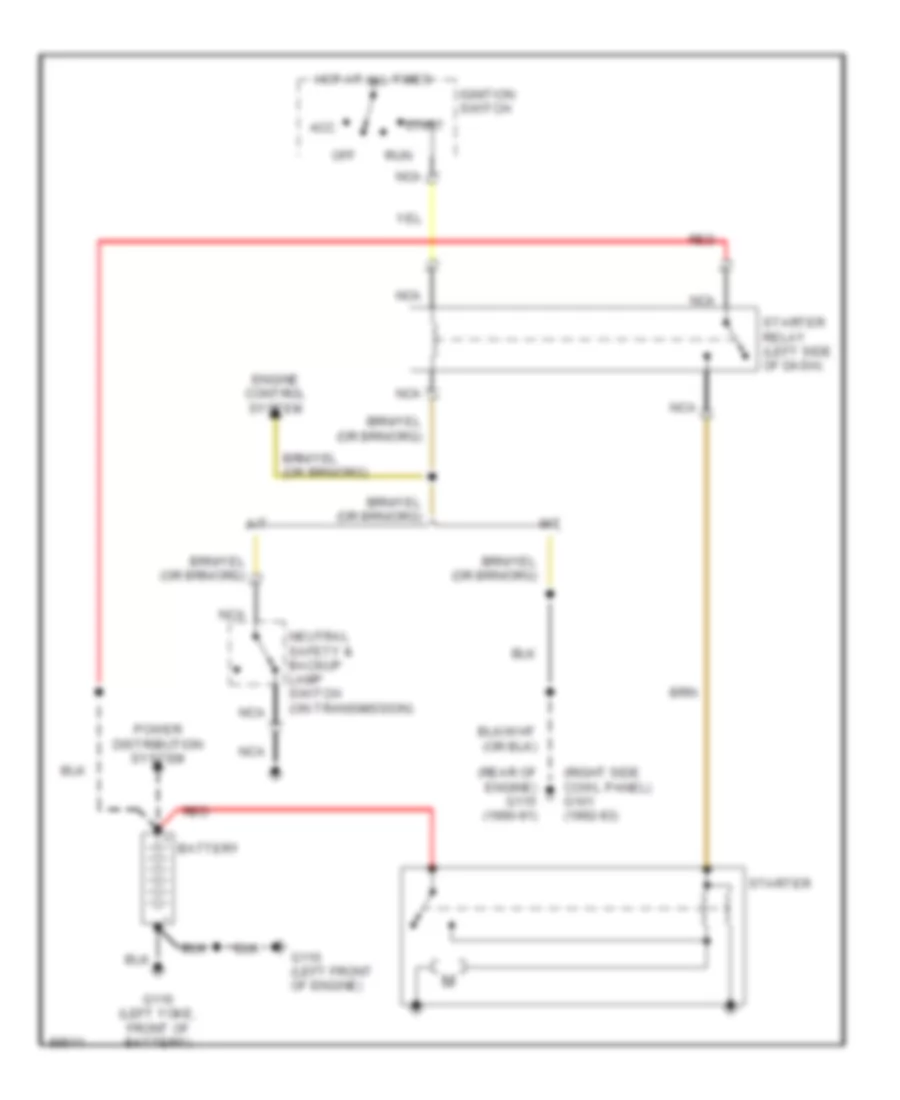

Электросхема стартера для Dodge Ram Van B150 1990

Электросхема стартера для Dodge Ram Van B150 1990 - Список элементов:

• (rear of engine) g115 (1990-91)
• (right side cowl panel) g101 (1992-93)
• A/t
• Acc
• Battery
• Engine control system
• G110 (left front of engine)
• G116 (left yoke, front of battery)
• Hot at all times
• Ignition switch
• M/t
• Nca
• Neutral safety & backup lamp switch (on transmission)
• Off
• Power distribution system
• Red
• Run
• Start
• Starter
• Starter relay (left side of dash)
