Электросхемы Стартер Генератор Dodge Stratus ES 1999

Стартер Генератор

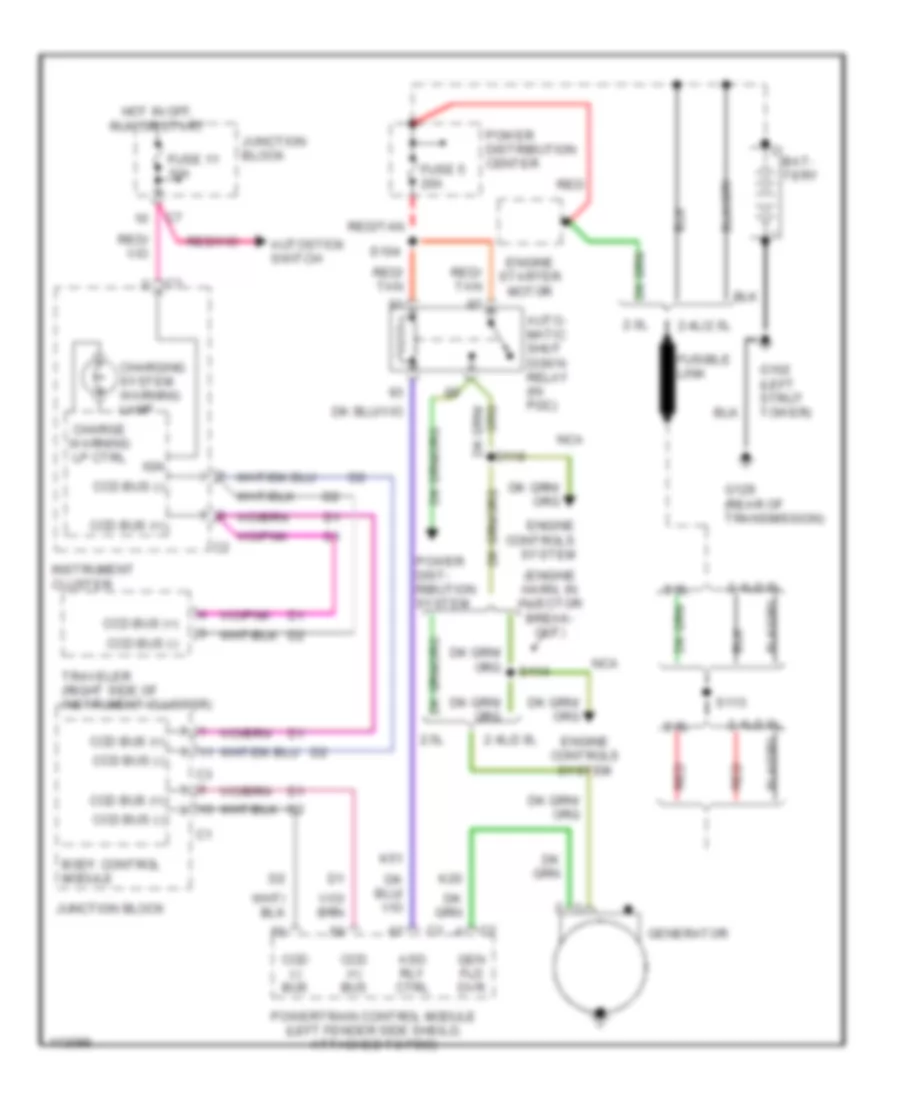

Электросхема Генератора для Dodge Stratus ES 1999

Электросхема Генератора для Dodge Stratus ES 1999 - Список элементов:

• (engine harn, in injector break- out)
• 2.0l
• 2.4l/2.0l
• 2.4l/2.5l
• 2.5l
• Asd rly ctrl
• Auto- matic shut down relay (in pdc)
• Autostick switch
• Bat- tery
• Body control module
• Ccd (+) bus
• Ccd (-) bus
• Ccd bus (+)
• Ccd bus (-)
• Charge warning lp ctrl
• Charging system warning lamp
• Engine controls system
• Engine starter motor
• Fuse 11 10a
• Fuse 5 20a
• Fusible link
• G102 (left strut tower)
• G129 (rear of transmission)
• Gen fld dvr
• Generator
• Hot in off, run or start
• Ign
• Instrument cluster
• Junction block
• K20
• K51
• Nca
• Power dist- ribution system
• Power distribution center
• Powertrain control module (left fender side sheild, attached to pdc)
• Red
• Red/ tan
• Red/tan
• S104
• S113
• S114
• S118
• Traveler (right side of instrument cluster)

Электросхема стартера для Dodge Stratus ES 1999

Электросхема стартера для Dodge Stratus ES 1999 - Список элементов:

• 2.0l only
• A/t
• A/t only
• Acc
• Battery
• Clutch pedal position switch (top of clutch pedal)
• Engine starter motor
• Engine starter motor relay (in pdc)
• Fuse 8 20a
• Fusible link
• G102 (left front strut tower)
• G102 (left strut tower)
• G129 (rear of transmission)
• Hd in
• Ign (st)
• Ignition switch
• Lock
• M/t
• Nca
• Off
• Pl in
• Pn sw sense
• Power distribution center
• Powertrain control module (left fender side sheild, attached to power distribution center)
• Red
• Red s102
• Run
• S109
• Start
• Starting/ charging system (generator)
• Transaxle range sensor (on front of transmission)
• Transmission control module (left fender side shield, attached to pdc)
