Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Stratus ES 1999

ВНЕШНЕЕ ОСВЕЩЕНИЕ

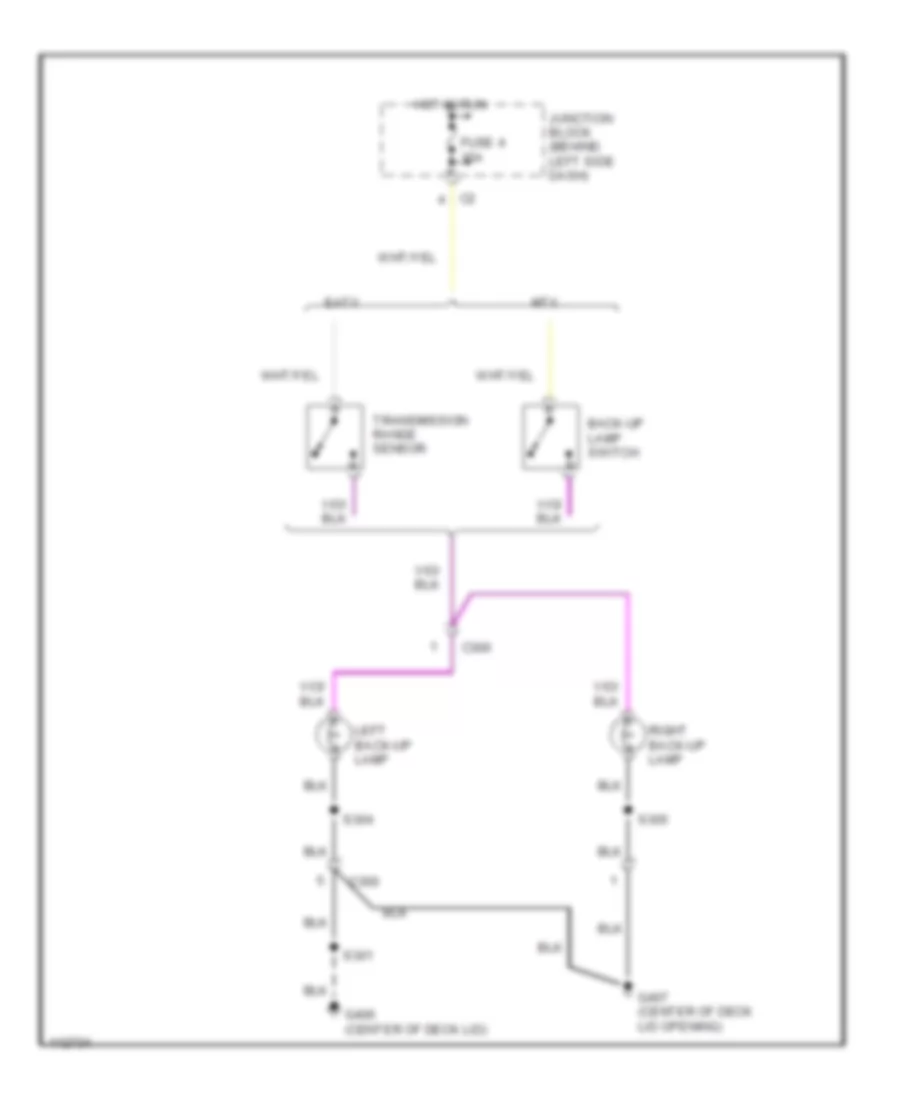

Электросхема заднего хода для Dodge Stratus ES 1999

Электросхема заднего хода для Dodge Stratus ES 1999 - Список элементов:

• Back-up lamp switch
• C300
• Eatx
• Fuse 4 15a
• G406 (center of deck lid)
• G407 (center of deck lid opening)
• Hot in run
• Junction block (behind left side dash)
• Left back-up lamp
• Mtx
• Right back-up lamp
• S301
• S304
• S305
• Transmission range sensor

Электросхема внешнего освещения для Dodge Stratus ES 1999

Электросхема внешнего освещения для Dodge Stratus ES 1999 - Список элементов:

• (top of brake pedal) stop lamp switch
• Acc
• Anti- lock brake controller
• Body control module
• C300
• C301
• Center high mounted stop lamp
• Combination flasher
• Deck lid)
• Fuse 14 40a
• Fuse 15 10a
• Fuse 4 20a
• Fuse 6 20a
• Fuse 7 20a
• Fuse 8 20a
• G102 (left front strut tower)
• G103 (right front strut tower)
• G200 (left kick panel)
• G406 (center of
• G406 (center of deck lid)
• G407 (center rear of trunk)
• Gnd
• Ground
• Head
• Headlamp switch
• Hot at all times
• Ignition switch
• Instrument cluster
• Junction block
• Left park/ turn signal lamp
• Left side multi-function switch
• Left tail/ stop lamp
• Left turn signal indicator
• License plate lamp
• Lock
• Off
• Park
• Pk lp sw out
• Pnk
• Power distribution center
• Red
• Right park/ turn signal lamp
• Right tail/ stop lamp
• Right turn signal indicator
• Run
• S102
• S109
• S111
• S300 (left c pillar)
• S301 (near trunk latch)
• S304
• S305
• Start
• Tan
• Turn signal/ hazard warning switch
