Электросхемы БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Audi allroad Prestige 2013

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА

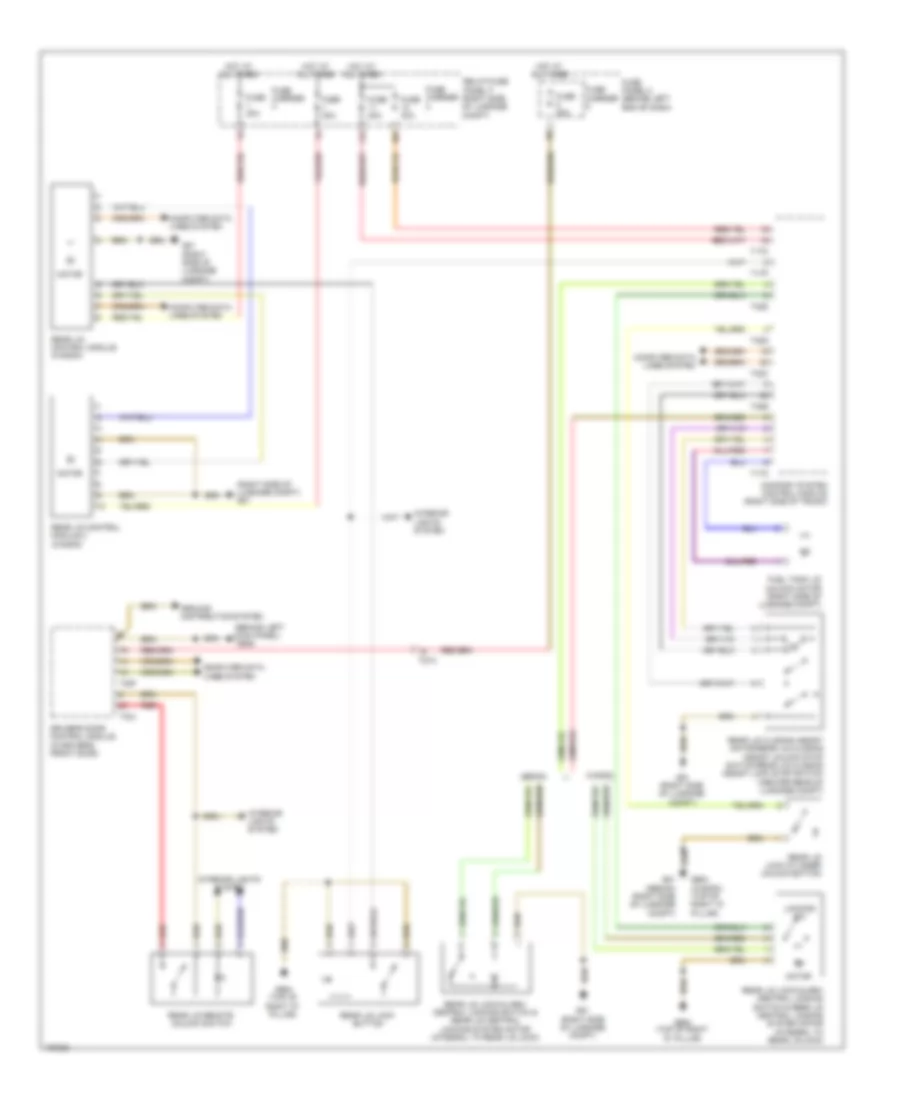

Электросхема багажника и лючка топливного бака для Audi allroad Prestige 2013

Электросхема багажника и лючка топливного бака для Audi allroad Prestige 2013 - Список элементов:

• (behind left kick panel) g639
• (right side of luggage compt) g51
• 10a
• 11a
• Comfort system control module (right side of trunk)
• Computer data lines system
• Driver's door control module (in driver's front door)
• Fuel tank lid unlock motor (right side of luggage compt)
• Fuse 20a
• Fuse 30a
• Fuse carrier
• Fuse panel c (behind left end of dash)
• G51 (right side of luggage compt)
• G51 (sedan) (right side of luggage compt)
• G654 (top of right "d" pillar)
• G654 (wagon) (top of right "d" pillar)
• Ground distribution system
• Hot at all times
• Interior lights system
• Locking sw
• Motor
• Rear lid closing assist motor/rear lid closing assist unlock stop switch/rear lid closing assist lock stop switch (center rear of luggage compt)
• Rear lid control module (wagon)
• Rear lid control module 2 (wagon)
• Rear lid lock button
• Rear lid lock cylinder unlock button
• Rear lid lock/alarm/ central locking switch & rear lid central locking system motor (integral to rear lid lock)
• Rear lid remote unlock switch
• Red
• Relay/fuse panel f (right side of luggage compt)
• Sedan
• T17o
• T17p
• T20f
• T27a
• T32c
• T32d
• T32e
• T32j
• Wagon
