Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Audi allroad Prestige 2013

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi allroad Prestige 2013

Электросхема подушек безопасности SRS AirBag (1 из 3) для Audi allroad Prestige 2013 - Список элементов:

• 13a
• Air bag control module (below center console)
• Air bag spiral spring/return spring w/ slip ring
• Battery interrupt igniter
• Computer data lines system
• Driver air bag igniter & igniter 2 (in steering wheel)
• Driver's front air bag crash sensor (on left headlamp housing bracket)
• Driver's side air bag crash sensor (in driver's front door)
• Front passenger's air bag disabled indicator lamp
• Front passenger's front air bag crash sensor (on right headlamp housing bracket)
• Front passenger's side air bag crash sensor (in passenger's front door)
• Fuse 5a
• Fuse carrier
• Fuse panel a (on battery, in luggage compt)
• Fuse panel c (behind left end of dash)
• G50 (left side of luggage compt)
• G730 (base of right "c" pillar)
• Hot at all times
• Igniter
• Igniter 2
• Nca
• Power distribution system
• Rear passenger's side thorax air bag igniter (driver's side)
• Rear passenger's side thorax air bag igniter (front passenger's side)
• Rear side air bag crash sensor (driver's side) (in left "c" pillar)
• Rear side air bag crash sensor (front passenger's side) (in right "c" pillar)
• Red
• Solid state
• T10n
• T17f
• T17x
• T27a
• T27c

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi allroad Prestige 2013

Электросхема подушек безопасности SRS AirBag (2 из 3) для Audi allroad Prestige 2013 - Список элементов:

• 46-pin connector
• Air bag ind lamp
• Computer data lines system
• Data bus on board diagnostic interface (behind right center of dash)
• Driver's seat belt tensioner & driver's belt force limiter (base of left "b" pillar)
• Driver's thorax air bag igniter
• Force limiter
• Front passenger's safety belt switch & passenger occupant detection system seat belt force sensor (special equipment)
• Front passenger's seat belt tensioner & front passenger's belt force limiter (base of right "b" pillar)
• Front passenger's thorax air bag igniter
• Fuse 5a
• Fuse carrier
• Fuse panel d (behind right end of dash)
• G638 (behind right kick panel)
• G639 (behind left kick panel)
• G687 (left side of center tunnel)
• Hot at all times
• Igniter
• Instrument cluster
• Instrument cluster control module
• Nca
• Passenger occupant detection system control module (special equipment)
• Passenger occupant detection system pressure sensor (special equipment)
• Red
• Solid state
• T10n
• T20d
• T2ai
• T2ca
• T2cd
• T2ce

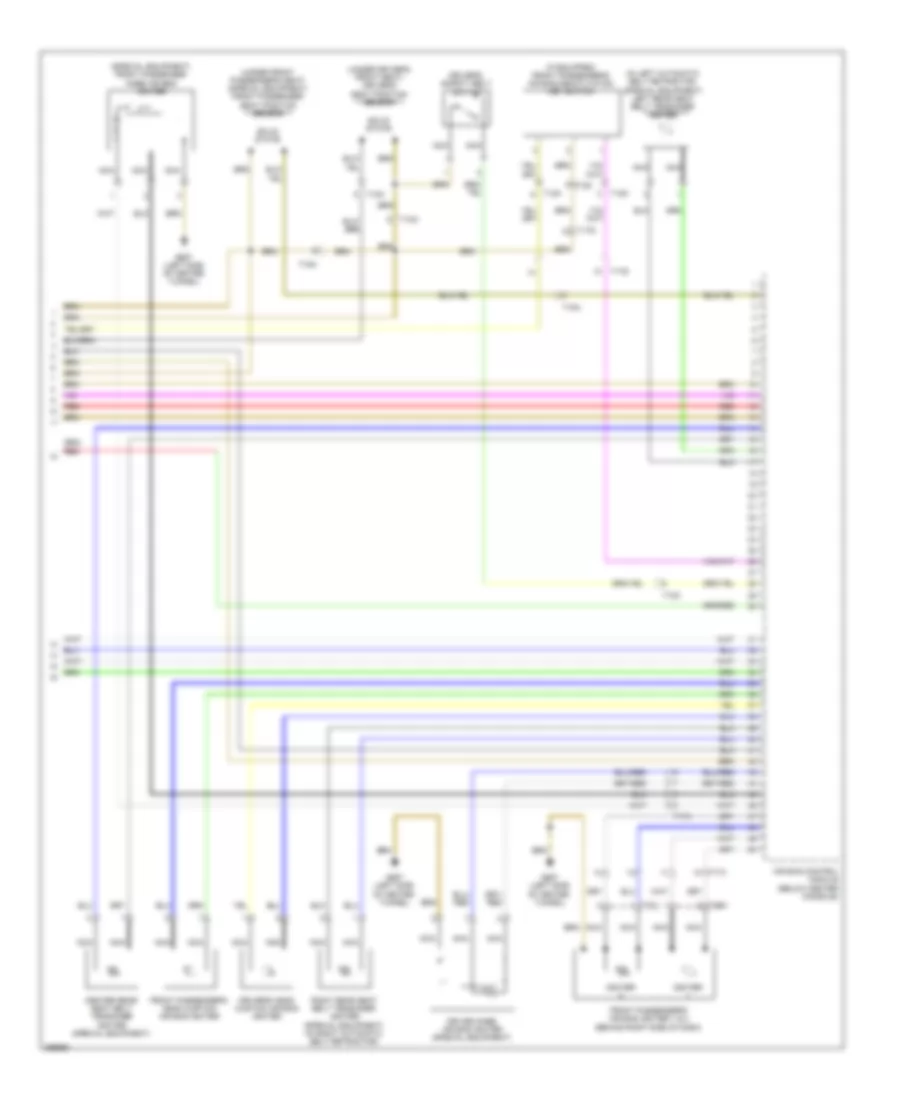

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi allroad Prestige 2013

Электросхема подушек безопасности SRS AirBag (3 из 3) для Audi allroad Prestige 2013 - Список элементов:

• (if equipped) front passenger's air bag deactivation key switch
• (in left automatic belt retractor) (special equipment) left rear seat belt tensioner igniter
• (special equipment) front passenger knee air bag igniter
• (under driver's front seat) driver's seat position sensor
• (under front passenger's seat) (special equipment) front passenger seat position sensor
• Air bag control module (below center console)
• Center rear seat belt tensioner igniter (special equipment)
• Driver knee air bag igniter (special equipment)
• Driver's head curtain air bag igniter
• Driver's safety belt switch
• Front passenger's air bag igniter 1 & 2 (behind right side of dash)
• Front passenger's head curtain air bag igniter
• G687 (left side of center tunnel)
• Igniter
• Nca
• Red
• Right rear seat belt tensioner igniter (special equipment) (in right automatic belt retractor)
• Solid state
• T10n
• T10o
• T12k
• T17g
• T17x
• T2bh
• T2cl
