ВНЕШНЕЕ ОСВЕЩЕНИЕ
Электросхема заднего хода, Avant (Максимальная комплектация) для Audi A4 Quattro 2004
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
Электросхема заднего хода, Avant (Максимальная комплектация) для Audi A4 Quattro 2004 - Список элементов:
- 31a
- A/t
- Back-up
- Back-up light switch
- Comfort system central control module (near base of left front seat, in electronics box)
- Fuse 15a
- Fuse holder (left end of dash)
- G50 (left side of luggage compt)
- G78 (at base of right "b" pillar)
- Hot in run or start
- Left taillamp assembly
- M/t
- Multi- function transmission range (tr) switch
- Right taillamp assembly
- T23
- T32b
- Vehicle electrical system control module (behind left side of dash)

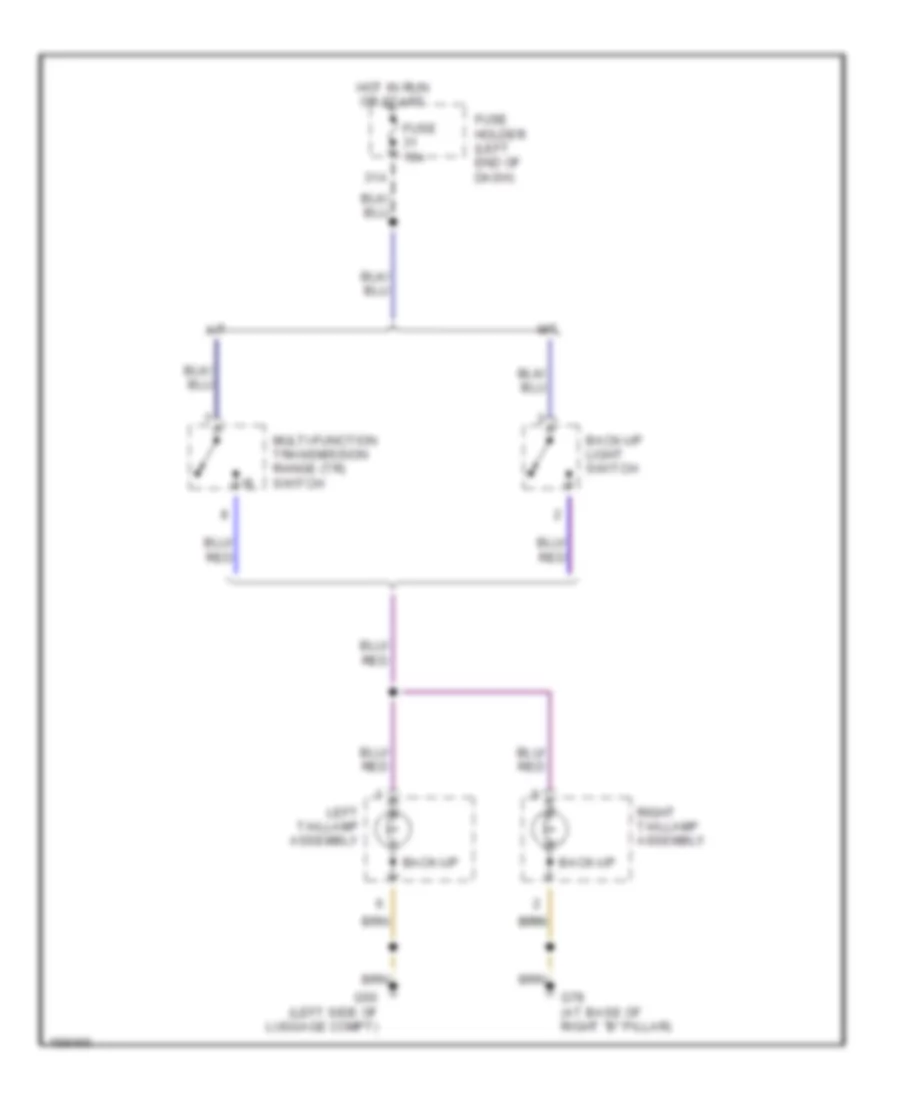

Электросхема заднего хода, Avant (Минимальная комплектация) для Audi A4 Quattro 2004
Электросхема заднего хода, Avant (Минимальная комплектация) для Audi A4 Quattro 2004 - Список элементов:
- 31a
- A/t
- Back-up
- Back-up light switch
- Fuse 15a
- Fuse holder (left end of dash)
- G50 (left side of luggage compt)
- G78 (at base of right "b" pillar)
- Hot in run or start
- Left taillamp assembly
- M/t
- Multi-function transmission range (tr) switch
- Right taillamp assembly
Электросхема заднего хода, Кабриолет with для Audi A4 Quattro 2004
Электросхема заднего хода, Кабриолет with для Audi A4 Quattro 2004 - Список элементов:
- 31a
- Back-up
- Comfort system central control module (near base of left front seat, in electronics box)
- Fuse 15a
- Fuse holder (left end of dash)
- Hot in run or start
- Left taillamp assembly
- Park/neutral position (pnp) relay (relay carrier e-box)
- Right taillamp assembly
- T23
- T32b
- Transmission control module (tcm) (in plenum chamber e-box, at left rear of eng compt)
- Vehicle electrical system control module (behind left side of dash)
Электросхема заднего хода, Кабриолет without, Седан для Audi A4 Quattro 2004
Электросхема заднего хода, Кабриолет without, Седан для Audi A4 Quattro 2004 - Список элементов:
- 31a
- A/t w/ cvt
- A/t w/o cvt
- Back-up
- Back-up light switch
- Comfort system central control module (near base of left front seat, in electronics box)
- Fuse 15a
- Fuse holder (left end of dash)
- G50 (left side of luggage compt)
- G78 (at base of right "b" pillar)
- Hot in run or start
- Left taillamp assembly
- M/t
- Multi- function transmission range (tr) switch
- Park/neutral position (pnp) relay (relay carrier e-box)
- Right taillamp assembly
- T23
- T32b
- Transmission control module (tcm) (in plenum chamber e-box, at left rear of eng compt)
- Vehicle electrical system control module (behind left side of dash)
Электросхема внешнего освещения, Avant (Максимальная комплектация) для Audi A4 Quattro 2004
Электросхема внешнего освещения, Avant (Максимальная комплектация) для Audi A4 Quattro 2004 - Список элементов:
- (behind right side of dash) g33
- 13a
- 14a
- Acc
- Acc run
- Brake light switch (above brake pedal, on bracket)
- Computer data lines system
- Emergency flasher switch
- Filament bulb
- Fuse 10a
- Fuse 150a
- Fuse holder (left end of dash)
- Fuse strip (main fuse)
- G12 (on left center of firewall, near coolant reservoir)
- G33 (behind right side of dash)
- G43 (lower right "a" pillar)
- G50 (left side of luggage compt)
- G52 (left rear trunk lid)
- G78 (at base of right "b" pillar)
- Headlights system
- High- mount brake light
- Hot at all times
- Ignition/ starter switch
- Left headlight assembly
- Left side turn signal light
- Left taillamp assembly
- License plate lights
- Light switch
- Nca
- Off
- Park
- Red
- Right headlight assembly
- Right side turn signal light
- Right taillamp assembly
- Run
- Start
- Steering column electronic systems control module (top of steering column)
- Stop
- T10b
- T16a
- T23
- T32b
- Tail
- Turn
- Turn signal switch
- Vehicle electrical system control module (behind left side of dash, below 9 pin relay carrier)
- W/ 1 filament bulb
- W/ 2
- W/ high intensity headlights
Электросхема внешнего освещения, Avant (Минимальная комплектация) для Audi A4 Quattro 2004
Электросхема внешнего освещения, Avant (Минимальная комплектация) для Audi A4 Quattro 2004 - Список элементов:
- (behind right side of dash) g33
- 13a
- 14a
- Acc
- Acc run
- Brake light switch (above brake pedal, on bracket)
- Computer data lines system
- Emergency flasher switch
- Fuse 10a
- Fuse 150a
- Fuse holder (left end of dash)
- Fuse strip (main fuse)
- G12 (on left center of firewall, near coolant reservoir)
- G33 (behind right side of dash)
- G43 (lower right "a" pillar)
- G50 (left side of luggage compt)
- G52 (left rear trunk lid)
- G78 (at base of right "b" pillar)
- Headlights system
- High- mount brake light
- Hot at all times
- Ignition/ starter switch
- Left headlight assembly
- Left side turn signal light
- Left taillamp assembly
- License plate lights
- Light switch
- Nca
- Off
- Park
- Red
- Right headlight assembly
- Right side turn signal light
- Right taillamp assembly
- Run
- Start
- Steering column electronic systems control module (top of steering column)
- Stop
- T10b
- T16a
- T23
- T32b
- Tail
- Turn
- Turn signal switch
- Vehicle electrical system control module (behind left side of dash, below 9 pin relay carrier)
- W/ high intensity headlights
Электросхема внешнего освещения, Кабриолет with для Audi A4 Quattro 2004
Электросхема внешнего освещения, Кабриолет with для Audi A4 Quattro 2004 - Список элементов:
- (behind left side of dash) g49
- 13a
- 14a
- Acc
- Acc run
- Brake light switch (above brake pedal, on bracket)
- Computer data lines system
- Emergency flasher switch
- Fuse 10a
- Fuse 150a
- Fuse holder (left end of dash)
- Fuse strip (main fuse)
- G12 (on left center of firewall, near coolant reservoir)
- G33 (behind right side of dash)
- G43 (behind right kick panel)
- G44 (behind left kick panel)
- G661 (on convertible top housing)
- G662 (left rear side of vehicle)
- G663 (right rear side of vehicle)
- High- mount brake light
- Hot at all times
- Ignition/ starter switch
- Left headlight assembly
- Left side turn signal light
- Left taillamp assembly
- License plate lights
- Light switch
- Nca
- Off
- Park
- Red
- Right headlight assembly
- Right side turn signal light
- Right taillamp assembly
- Run
- Start
- Steering column electronic systems control module (top of steering column)
- Stop
- T10b
- T16a
- T23
- T32b
- Tail
- Turn
- Turn signal switch
- Vehicle electrical system control module (behind left side of dash, below 9 pin relay carrier)
Электросхема внешнего освещения, Кабриолет without, Седан для Audi A4 Quattro 2004
Электросхема внешнего освещения, Кабриолет without, Седан для Audi A4 Quattro 2004 - Список элементов:
- (behind right side of dash) g33
- 13a
- 14a
- Acc
- Acc run
- Brake light switch (above brake pedal, on bracket)
- Computer data lines system
- Emergency flasher switch
- Fuse 10a
- Fuse 150a
- Fuse holder (left end of dash)
- Fuse strip (main fuse)
- G12 (on left center of firewall, near coolant reservoir)
- G33 (behind right side of dash)
- G43 (lower right "a" pillar)
- G50 (left side of luggage compt)
- G78 (at base of right "b" pillar)
- Headlight assembly
- Headlights system
- High- mount brake light
- Hot at all times
- Ignition/ starter switch
- Left headlight assembly
- Left side turn signal light
- Left taillamp assembly
- License plate lights
- Light switch
- Nca
- Off
- Park
- Red
- Right
- Right side turn signal light
- Right taillamp assembly
- Run
- Start
- Steering column electronic systems control module (top of steering column)
- Stop
- T10b
- T16a
- T23
- T32b
- Tail
- Turn
- Turn signal switch
- Vehicle electrical system control module (behind left side of dash, below 9 pin relay carrier)
- W/ high intensity headlights
