Электросхемы СИСТЕМА КОНДИЦИОНЕРА Land Rover Discovery Series II SE 2002

СИСТЕМА КОНДИЦИОНЕРА

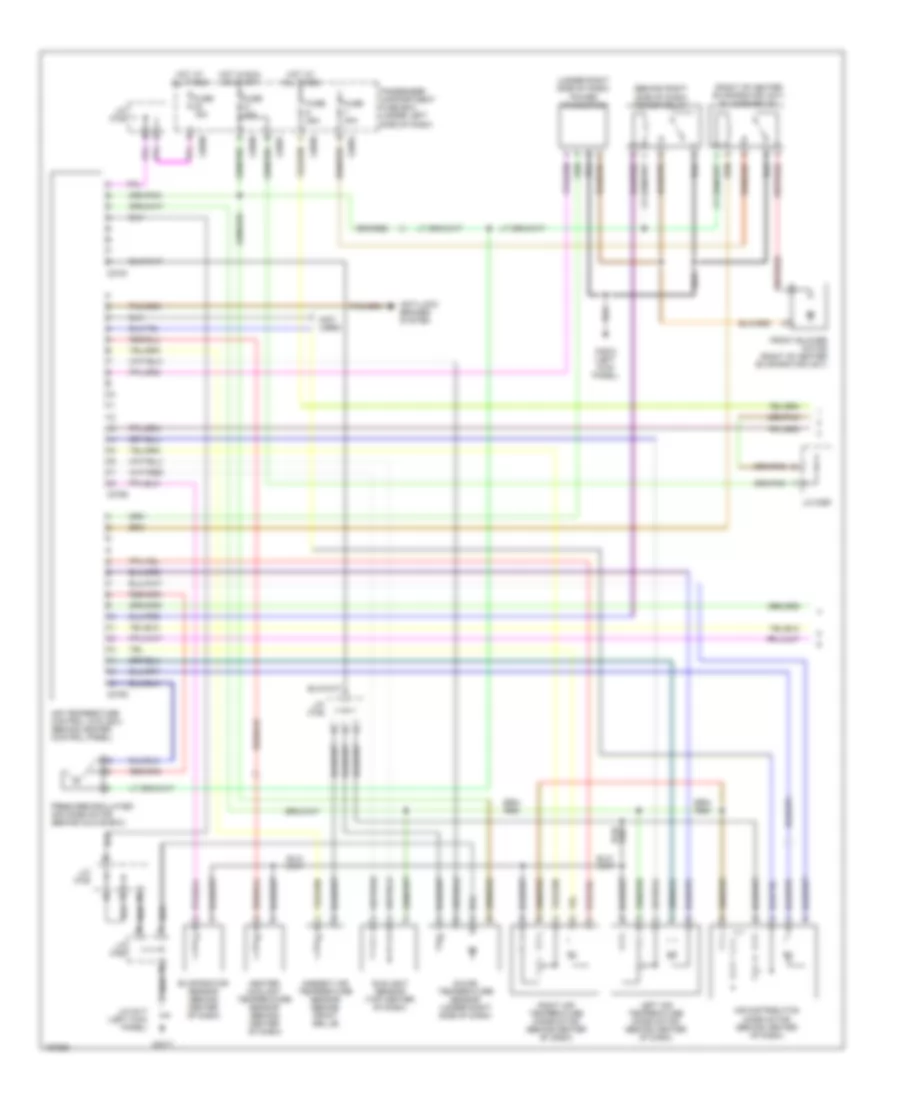

Электросхема кондиционера (1 из 2) для Land Rover Discovery Series II SE 2002

Электросхема кондиционера (1 из 2) для Land Rover Discovery Series II SE 2002 - Список элементов:

• (behind right side of dash) power relay
• (not used)
• (right of heater evaporator unit) blower relay
• (under right side of dash) power transistor
• Air distribuiton mode motor (behind center of dash)
• Air temperature control (atc) ecu (behind heater control panel)
• Ambient air temperature sensor (behind front grille)
• Anti-lock brakes system
• C0017
• C0584
• C0585
• C0587
• C0590
• C0791
• C0792
• C0793
• C0910 (left kick panel)
• Evaporator sensor (behind center of dash)
• Fresh/recirculated air mode motor (behind glove box)
• Front blower motor (right of heater evaporator unit)
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 30a
• Heater coolant temperature sensor (behind center of dash)
• Hot at all times
• Hot in run or start
• In-car temperature sensor (under right side of dash)
• J/c
• J/c 0017 (left kick panel)
• J/c 0290
• Left air temperature mode motor (behind center of dash)
• Passenger compartment fuse box (under left side of dash)
• Right air temperature mode motor (behind center of dash)
• Sunlight sensor (top center of dash)

Электросхема кондиционера (2 из 2) для Land Rover Discovery Series II SE 2002

Электросхема кондиционера (2 из 2) для Land Rover Discovery Series II SE 2002 - Список элементов:

• 0.32 ohms
• 0.85 ohms
• 1.71 ohms
• Air conditioning compressor clutch
• Blower relay (at left side of luggage compartment, behind trim panel)
• C0018
• C0570
• C0573
• C0574
• C0577
• C0605
• C0635
• C0636
• C0637
• C0707
• C0807 (right rear of engine compartment)
• Compressor clutch relay
• Cooling fan motor
• Cooling fan relay
• Diode
• Dual pressure switch (on receiver- drier)
• Engine compartment fuse box (right front of engine compartment)
• Engine control module (ecm) (under right side of dash)
• Fuse 10a
• Fuse 40a
• High
• Hot at all times
• Illumi- nation
• Inertia switch (on left side of firewall)
• J/c 0018 (right kick panel)
• J/c 0290
• J/c 0707 (behind left tail light assembly)
• Low
• Main relay
• Rear air conditioning switch
• Rear blower
• Rear blower motor (left side of luggage compartment, behind trim panel)
• Resistor pack (under left side of dash)
• Switch
