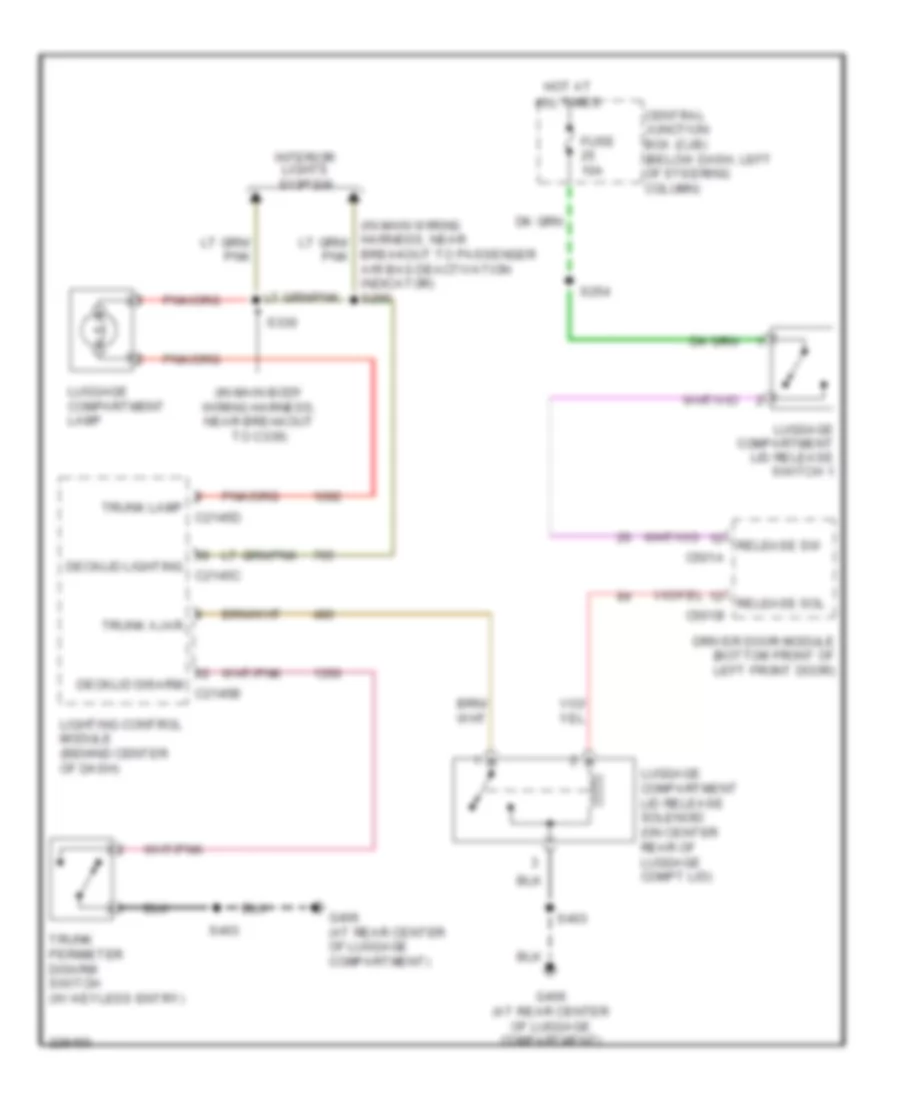

Электросхема открывания багажника для Ford Crown Victoria LX Sport 2006
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO Электросхема открывания багажника для Ford Crown Victoria LX Sport 2006 - Список элементов:
- (in main body wiring harness, near breakout to c339)
- Breakout to passenger air bag deactivation indicator) s290
- C501a
- C501b
- Central junction box (cjb) (below dash, left of steering column)
- Decklid disarm c2145b
- Decklid lighting c2145c
- Driver door module (bottom front of left front door)
- Fuse 10a
- G406 (at rear center of luggage compartment)
- Hot at all times
- Interior lights system
- Lighting control module (behind center of dash)
- Luggage compartment lamp
- Luggage compartment lid release solenoid (on center rear of luggage compt lid)
- Luggage compartment lid release switch 1
- Release sol
- Release sw
- S254
- S330
- S403
- Trunk ajar
- Trunk lamp c2145d
- Trunk perimeter disarm switch (w/ keyless entry)
Электросхема открывания багажника, полицейский выбор для Ford Crown Victoria LX Sport 2006
Электросхема открывания багажника, полицейский выбор для Ford Crown Victoria LX Sport 2006 - Список элементов:
- Accessory relay
- Battery junction box (bjb) (in right front of engine compartment, behind battery)
- C2203
- C2204
- Circuit breaker 20a
- Emergency flasher relay block (in left rear of luggage compartment)
- G406 (at rear center of luggage compartment)
- Hot at all times
- Lighting control module (behind center of dash)
- Luggage compartment lid release solenoid (on center rear of luggage compt lid)
- Luggage compartment lid release switch 1
- Luggage compartment lid release switch 2
- Rear flasher relay
- S242
- S266 (in main wiring harness, near breakout to c211)
- S403
- S502
- Trunk ajar c2145b
