Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Mercury Mountaineer 1998

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

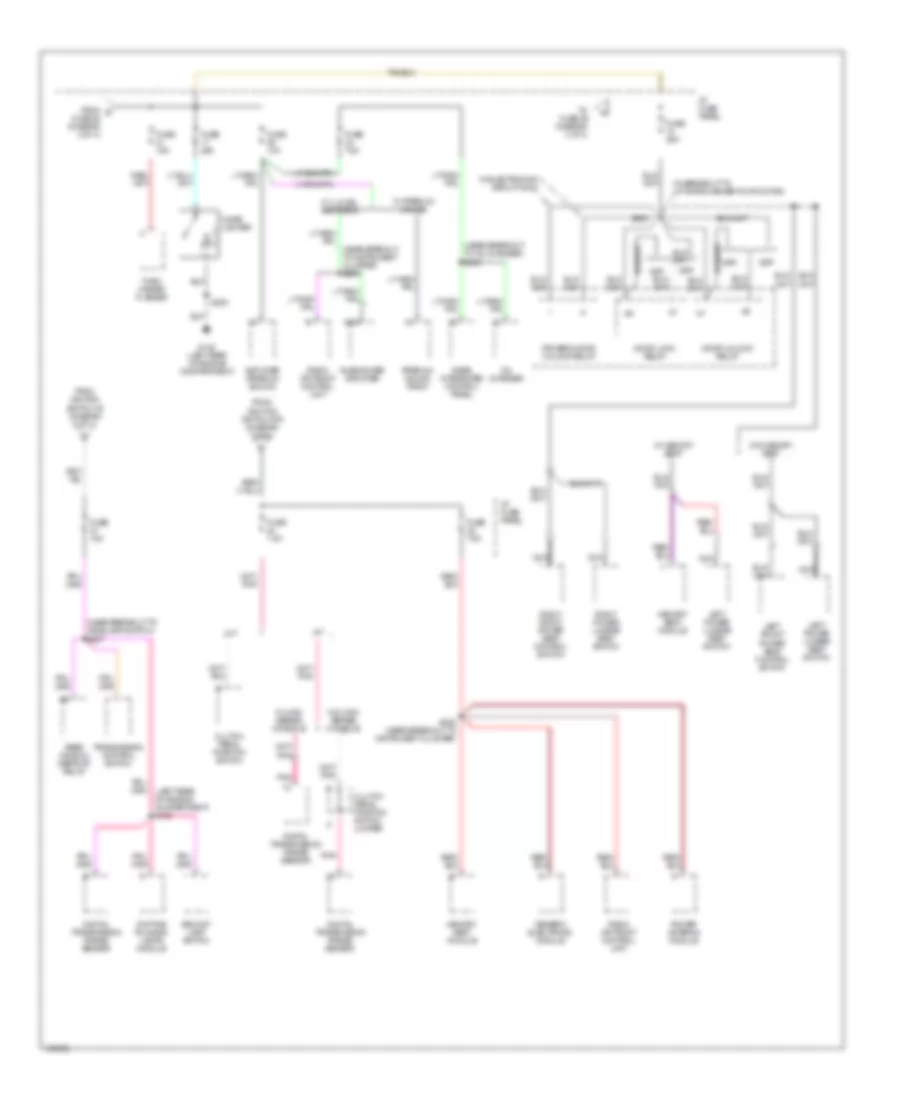

Электросхема блока предохранителей и реле (1 из 4) для Mercury Mountaineer 1998

Электросхема блока предохранителей и реле (1 из 4) для Mercury Mountaineer 1998 - Список элементов:

52

• (left side of dash) s237
• (right corner of dash) s239
• 4wabs control module
• A/c relay
• Accy delay relay
• Air bag diagnostic monitor
• Automatic ride control on/off switch
• Automatic ride control relay
• Auxiliary relay box no 1 (left side of engine compartment)
• Battery
• Blower motor relay
• Daytime running lamps module
• Dimmer relay
• Fog lamp relay
• From b fuse 3 (diagram 1 of 4)
• From fuse 1 (diagram 1 of 4)
• Fuel pump relay
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Generator/ voltage regulator
• Headlamp relay
• Headlamp switch
• Horn relay
• Ignition switch
• Maxi fuse 20a
• Maxi fuse 30a
• Maxi fuse 40a
• Maxi fuse 50a
• Mega fuse 175a
• Moonroof motor
• Multi- function switch
• Nca
• Park lamp relay
• Pcm power relay
• Power distribution box (left side of engine compartment)
• Powertrain control module
• Rear window defrost relay
• Rear wiper down relay
• Rear wiper up relay
• Red
• Relay module (behind center of dash)
• Remote anti-theft personality module
• S160 (near breakout to power distribution box)
• S236 (near breakout to headlamp switch)
• Starter motor
• Starter motor relay
• To fuse 10 (diagram 1 of 4)
• To fuse 5 (diagram 2 of 4)
• To fuse 8 (diagram 1 of 4)
• Transfer case shift relay

Электросхема блока предохранителей и реле (2 из 4) для Mercury Mountaineer 1998

Электросхема блока предохранителей и реле (2 из 4) для Mercury Mountaineer 1998 - Список элементов:

70

• (near breakout for instrument cluster) s209
• (near breakout to fuel injector 3)
• (near breakout to instrument cluster) s213
• (near breakout to power distribution box)
• (near breakout to radio) s242
• (not used)
• 4.0l
• 5.0l
• Acc
• Air bag diagnostic monitor
• Am/fm
• Auxiliary relay box no 1 (left side of engine compartment)
• Brake pedal position switch
• Brake pressure switch
• Central timer module/ generic electronic module
• Data link connector
• Day/night mirror/ autolamp sensor
• Dimmer relay
• From c fuse 8 (diagram 1 of 4)
• Front washer pump relay
• Fuse 10a
• Fuse 20a
• Fuse 25a
• Fuse 30a
• Fuse 7.5a
• Generic electronic module
• I/p fuse panel
• Ignition coil
• Ignition coil 1 & 2
• Ignition coil 3 & 4
• Ignition switch
• Instrument cluster
• Liftgate wiper/ washer switch
• Lock
• Lux
• Maxi fuse 50a
• Maxi fuse 60a
• Memory seat switch
• Mobile telephone transceiver
• Nca
• Off
• Passive anti-theft system module
• Pcm power diode
• Pcm power relay
• Power antenna module
• Power distribution box (left side of engine compartment)
• Power mirror switch
• Premium sound
• Radio
• Radio noise capacitor
• Radio or front control unit
• Red
• Relay module
• Remote anti-theft personality module
• Run
• S118
• S163
• S164 (near breakout for power distribution box)
• S245 (near breakout to instrument cluster)
• S265 (left side of dash)
• Sta
• Start
• Starter motor relay
• To fuse 10 (diagram 4 of 4)
• To fuse 21 (diagram 3 of 4)
• To fuse 24 (diagram 3 of 4)
• To fuse 27 (diagram 3 of 4)
• Wiper hi-lo relay
• Wiper motor
• Wiper run relay

Электросхема блока предохранителей и реле (3 из 4) для Mercury Mountaineer 1998

Электросхема блока предохранителей и реле (3 из 4) для Mercury Mountaineer 1998 - Список элементов:

56

• (in breakout to liftgate washer pump motor)
• (left rear of engine compartment) s120
• (near breakout to cd changer) s243
• (near breakout to headlamp switch) s207
• (near brekout to instrument cluster) s284
• 2dr
• 4dr
• A/t
• Amplifier (premium sound)
• Backup lamp switch
• Cd changer
• Cigar lighter
• Clutch pedal position switch
• Clutch pedal position switch jumper
• Daytime running lamps module
• Digital transmission range sensor
• Door lock relay
• Door unlock relay
• Driver's door unlock relay
• From d fuse 25 (diagram 2 of 4)
• From ignition switch a2 (diagram 2 of 4)
• From ignition switch sta (diagram 2 of 4)
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 7.5a
• G104 (left rear of engine compartment)
• Generic electronic module
• I/p fuse panel
• Left front power seat control switch
• Left power lumbar seat switch
• M/t
• Memory seat module
• Nca
• Pnk
• Power antenna module
• Premium sound radio
• Radio or front control unit
• Rear integrated control panel
• Rear window defrost relay
• Right front power seat control switch
• Right power lumbar seat switch
• S200
• S282 (near breakout to instrument cluster)
• S303
• Subwoofer amplifier
• To fuse 26 (diagram 4 of 4)
• Transmission control switch
• Turn/ hazard flasher
• W/ electronics group only
• W/ high series console
• W/ lux/jbl and radio
• W/ memory seat
• W/ premium sound
• W/o high series console
• W/o memory seat

Электросхема блока предохранителей и реле (4 из 4) для Mercury Mountaineer 1998

Электросхема блока предохранителей и реле (4 из 4) для Mercury Mountaineer 1998 - Список элементов:

46

• (near breakout to i/p fuse panel) s217
• (near breakout to instrument cluster) s209
• (near breakout to rear blower moter relay) s210
• (near breakout to relay module) s244
• 4wabs control module
• Air bag diagnostic monitor
• Automatic ride control module
• Auxiliary power
• Auxiliary relay box no 2 (right front of engine compartment)
• Battery saver relay
• Blend door actuator
• Blower motor relay
• Compass/ outside air temp module
• Day/ night mirror/ autolamp sensor
• Electronic automatic temperature control module
• From fuse 18 (diagram 3 of 4)
• From ignition switch a4 (diagram 2 of 4)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 7.5a
• Fuse 7.5a (w/ eatc)
• Fuse 7.5a (w/o eatc)
• Generic electronic module
• Heater/a/c control assembly
• I/p fuse panel
• Lamp out warning module
• Left front power seat control switch
• Memory seat module
• Message center
• Message center relay
• Mobile telephone tranceiver
• Nca
• Power distribution box (left side of engine compartment)
• Rear blower motor
• Rear blower motor relay
• Rear blower relay
• Rear integrated control panel
• Relay module (center of dash)
• Shift lock actuator
• Speed control servo/ amplifier assembly
• Steering rate sensor
• Trailer tow park lamp relay
• Turn/ hazard flasher
• W/ memory seat
• W/o memory seat
