Электросхемы Система Фар Mazda MPV 1994

Система Фар

Электросхема фар, С DRL для Mazda MPV 1994

Электросхема фар, С DRL для Mazda MPV 1994 - Список элементов:

22

• Beam ind
• Combination switch
• Cpu
• Drl fuse 10a
• Drl relay (relay box) (left rear corner of engine compartment)
• Drl resistor (front left corner of engine compartment)
• Flash
• G100 (center of front left fender)
• G202 (left side of i/p)
• Head
• Head fuse 30a
• Hot at all times
• Hot in run
• Instrument cluster
• Joint box (below left side of i/p)
• Left headlight
• Main fuse block (right rear corner of engine compartment)
• Off
• Park
• Red
• Right headlight
• Wiper fuse 20a

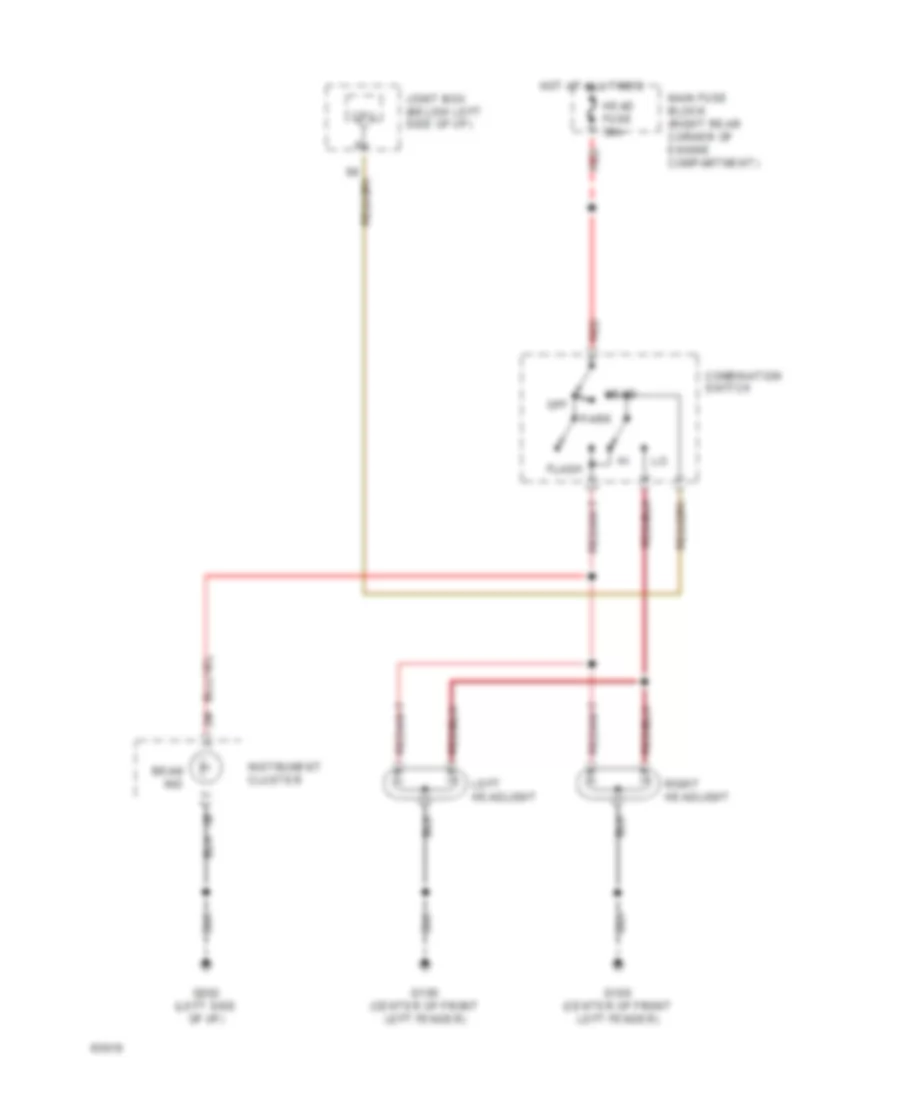

Электросхема фар, без DRL для Mazda MPV 1994

Электросхема фар, без DRL для Mazda MPV 1994 - Список элементов:

17

• Beam ind
• Combination switch
• Cpu
• Flash
• G100 (center of front left fender)
• G202 (left side of i/p)
• Head
• Head fuse 30a
• Hot at all times
• Instrument cluster
• Joint box (below left side of i/p)
• Left headlight
• Main fuse block (right rear corner of engine compartment)
• Off
• Park
• Red
• Right headlight
