Электросхемы СИСТЕМА КОНДИЦИОНЕРА Mazda MPV 1994

СИСТЕМА КОНДИЦИОНЕРА

Электросхема кондиционера A/C (1 из 2) для Mazda MPV 1994

Электросхема кондиционера A/C (1 из 2) для Mazda MPV 1994 - Список элементов:

40

• 1994 vftc c
• 2.6l
• 2.6l only
• 3.0l
• A/c relay (left rear side of engine compartment)
• A/c switch
• Air con fuse 15a
• Air cond2 fuse 15a
• B1-01
• B2-01
• Blower relay (behind right kick panel)
• Blower motor (behind right side of i/p)
• Condensor fan motor no.1 (center front of engine compartment)
• Condensor fan motor no.2 (center front of engine compartment)
• Condensor fan relay (right rear of engine compartment)
• Cpu (behind left side of i/p)
• Defog fuse 40a
• Fan switch
• G100 (front left fender)
• G101 (front right fender)
• G110 (3.0l) (left front of engine)
• G120 (2.6l) (right side of engine)
• G202 (left side of i/p)
• G206 (behind center of i/p)
• Heater fuse 40a
• Hot at all times
• Hot in run
• Jb-11
• Joint box
• Junction connector (left side of i/p)
• Junction connector (behind right side of i/p)
• Magnetic clutch (left front side of engine compartment)
• Main fuse block
• Nca
• Off
• Powertrain control module (engine) (behind right side of i/p)
• Red
• Refrigerant pressure switch (right front side of engine compartment)
• Resistor (behind right side of i/p)
• Thermoswitch (behind right side of i/p)

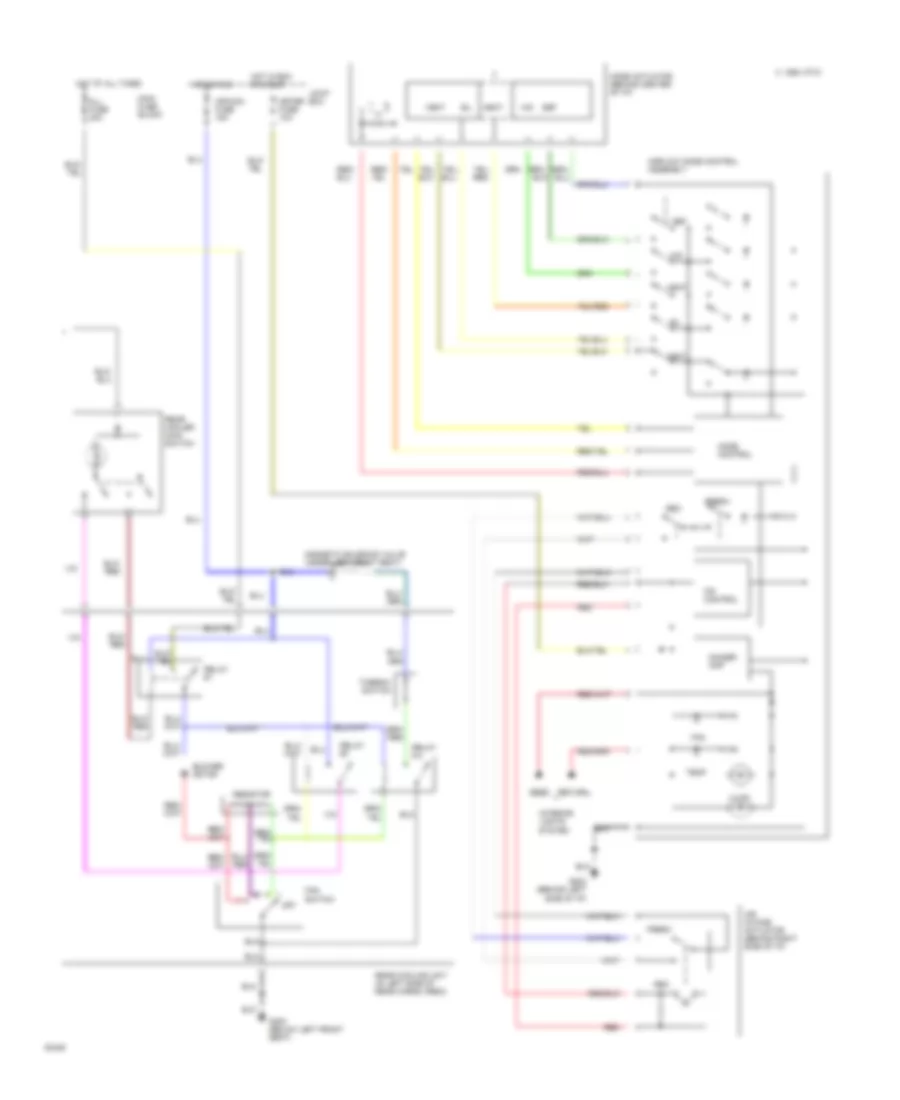

Электросхема кондиционера A/C (2 из 2) для Mazda MPV 1994

Электросхема кондиционера A/C (2 из 2) для Mazda MPV 1994 - Список элементов:

42

• 1994 vftc c
• Air intake actuator (behind right side of i/p)
• Air-con fuse 15a
• Airflow mode control assembly
• All fuse 40a
• B/l
• Blower motor
• Def
• Dimmer amp
• F/r control
• Fan
• Fan switch
• Feed
• Fresh
• G202 (behind left side of i/p)
• G300 (below left front seat)
• H/d
• Heat
• Hot at all times
• Hot in run
• Hot in run 0r start
• Illum
• Interior lights system
• Joint box
• Magnetic solenoid valve (under left front seat)
• Main fuse block
• Meter fuse 10a
• Mode actuator (behind center of i/p)
• Mode control
• Off
• Rear cooler main switch
• Rear cooling unit (in left side of rear cargo area)
• Rec
• Red
• Relay # 2
• Relay #1
• Relay #3
• Resistor
• Return
• Temp
• Thermo- switch
• Vent

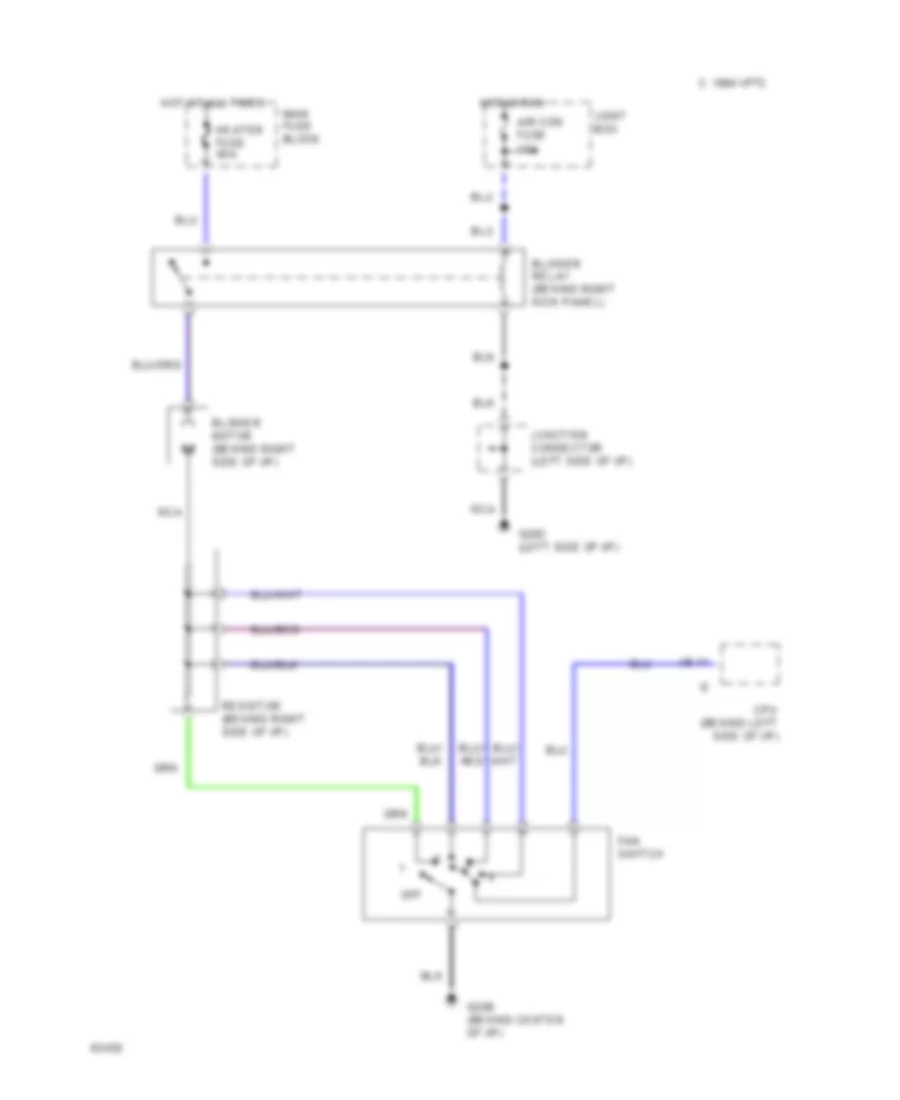

схема нагревателя для Mazda MPV 1994

схема нагревателя для Mazda MPV 1994 - Список элементов:

19

• 15a
• 1994 vftc c
• Air con fuse
• Blower motor (behind right side of i/p)
• Blower relay (behind right kick panel)
• Cpu (behind left side of i/p)
• Fan switch
• G202 (left side of i/p)
• G206 (behind center of i/p)
• Heater fuse 40a
• Hot at all times
• Hot in run
• Jb-11
• Joint box
• Junction connector (left side of i/p)
• Main fuse block
• Nca
• Off
• Resistor (behind right side of i/p)

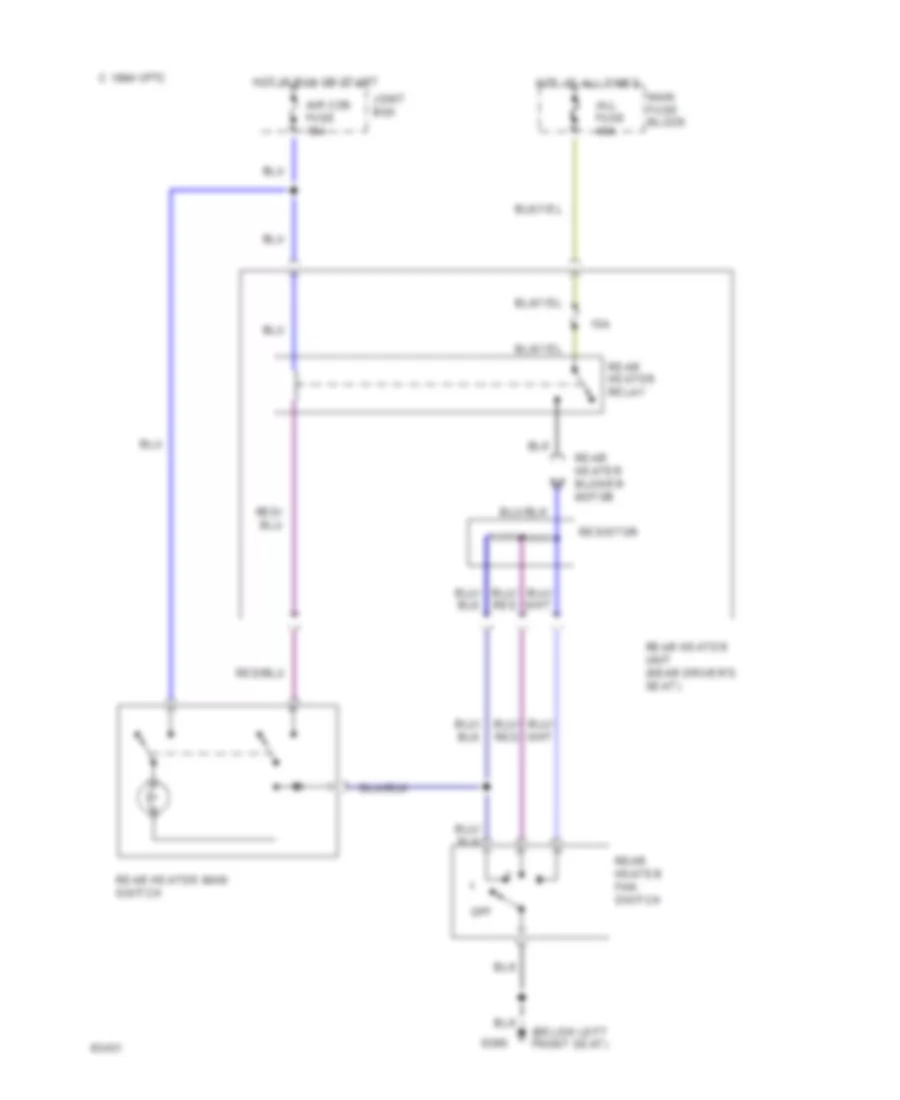

задняя схема нагревателя для Mazda MPV 1994

задняя схема нагревателя для Mazda MPV 1994 - Список элементов:

17

• (below left front seat)
• 15a
• 1994 vftc c
• Air con fuse 15a
• All fuse 40a
• G300
• Hot at all times
• Hot in run or start
• Joint box
• Main fuse block
• Off
• Rear heater blower motor
• Rear heater fan switch
• Rear heater main switch
• Rear heater relay
• Rear heater unit (near driver's seat)
• Resistor
