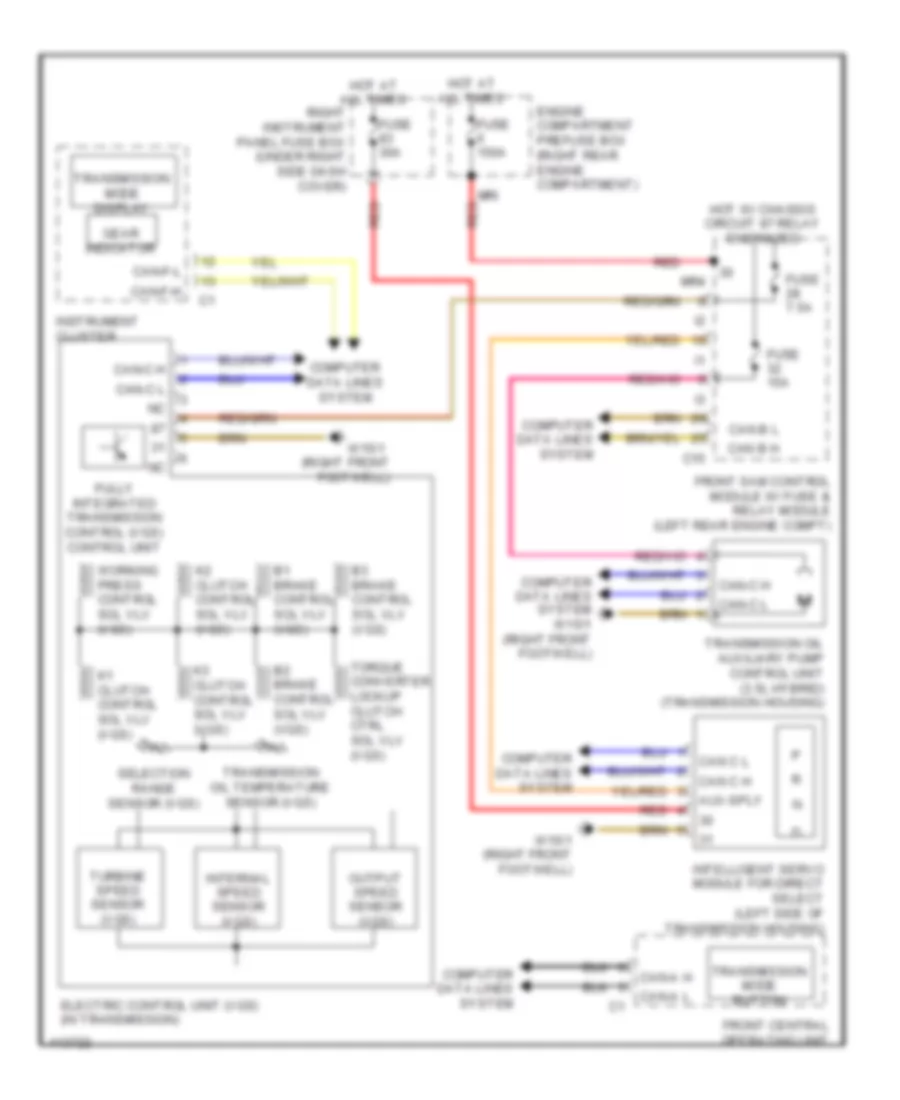

Электросхема коробки передач АКПП для Mercedes-Benz S400 2013

Электросхема коробки передач АКПП для Mercedes-Benz S400 2013 - Список элементов:

• (right front footwell)
• Aux-sply
• B1 brake control sol vlv (vgs)
• B2 brake control sol vlv (vgs)
• B3 brake control sol vlv (vgs)
• C15
• Can b h
• Can b l
• Can c h
• Can c l
• Can-a h
• Can-a l
• Can-c h
• Can-c l
• Can-f-h
• Can-f-l
• Computer data lines system
• Computer data lines system w15/1 (right front footwell)
• Electric control unit (vgs) (in transmission)
• Engine compartment prefuse box (right rear engine compartment)
• Front central operating unit
• Front sam control module w/ fuse & relay module (left rear engine compt)
• Fully integrated transmission control (vgs) control unit
• Fuse 150a
• Fuse 15a
• Fuse 30a
• Fuse 7.5a
• Gear indicator
• Hot at all times
• Hot w/ chassis circuit 87 relay energized
• Instrument cluster
• Intelligent servo module for direct select (left side of transmission housing)
• Internal speed sensor (vgs)
• K1 clutch control sol vlv (vgs)
• K2 clutch control sol vlv (vgs)
• K3 clutch control sol vlv (vgs)
• Mr4
• Mri
• Output speed sensor (vgs)
• Red
• Right instrument panel fuse box (under right side dash cover)
• Selection range sensor (vgs)
• Torque converter lockup clutch ctrl sol vlv (vgs)
• Transmission mode button
• Transmission mode display
• Transmission oil auxiliary pump control unit (3.5l hybrid) (transmission housing)
• Transmission oil temperature sensor (vgs)
• Turbine speed sensor (vgs)
• W15/1
• W15/1 (right front footwell)
• Working press control sol vlv (vgs)
