Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Chevrolet Suburban K2500 1997

СИСТЕМА ОХЛАЖДЕНИЯ

5.7L

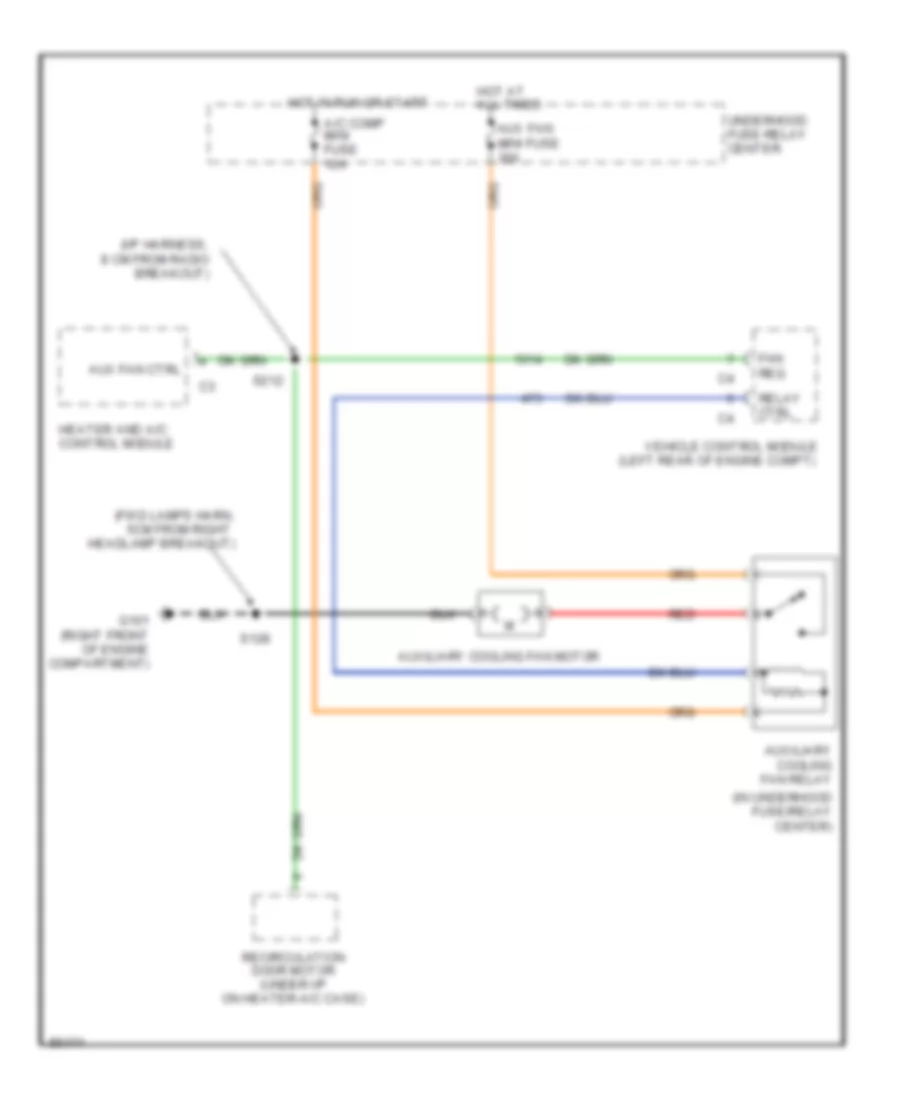

5.7L (VIN R), Электросхема системы охлаждения для Chevrolet Suburban K2500 1997

5.7L (VIN R), Электросхема системы охлаждения для Chevrolet Suburban K2500 1997 - Список элементов:

20

• (fwd lamps harn, 5cm from right headlamp breakout)
• (i/p harness, 8 cm from radio breakout)
• (in underhood fuse/relay center)
• A/c comp mini fuse 10a
• Aux fan ctrl
• Aux fan mini fuse 30a
• Auxiliary cooling fan motor
• Auxiliary cooling fan relay
• Fan req
• G101 (right front of engine compartment)
• Heater and a/c control module
• Hot at all times
• Hot in run or start
• Recirculation door motor (under i/p on heater-a/c case)
• Red
• Relay ctrl
• S128
• S212
• Underhood fuse-relay center
• Vehicle control module (left rear of engine compt)
