Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Toyota Tundra 2005

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

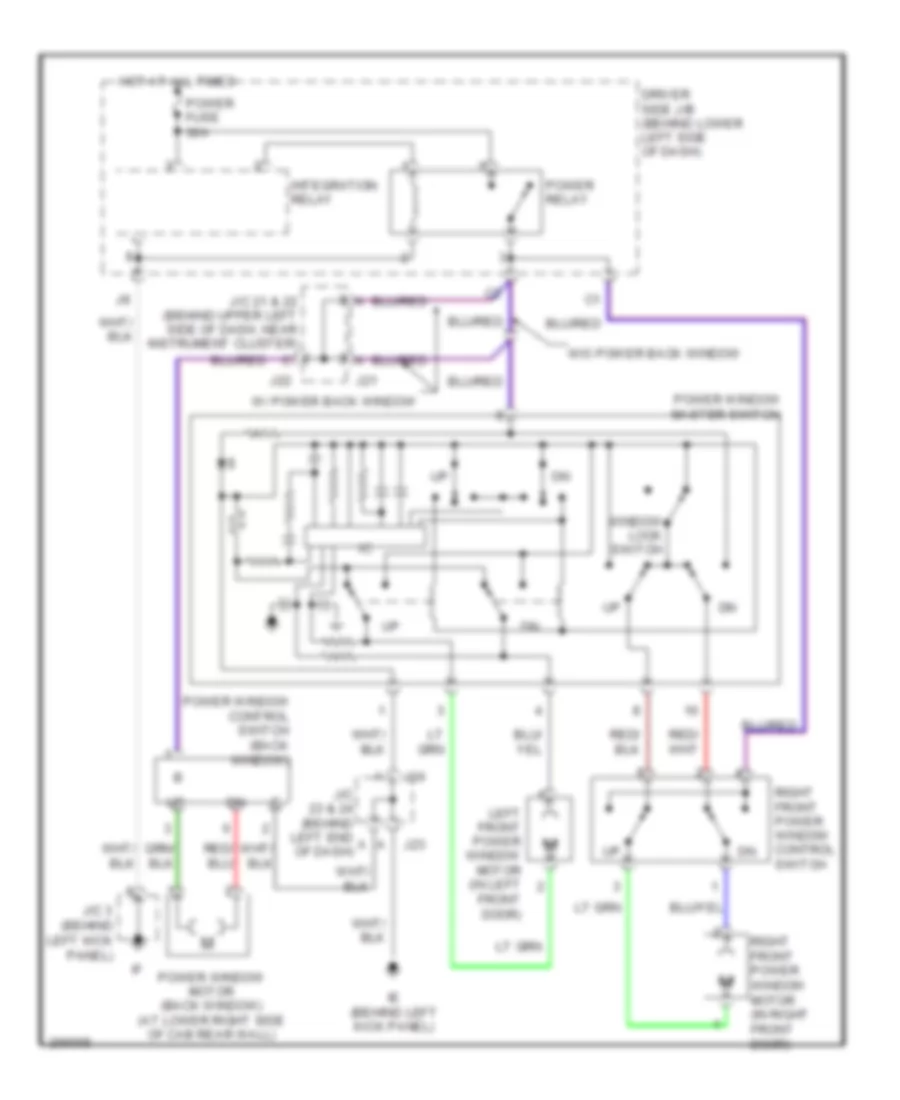

Электросхема стеклоподъемников, такси доступа/Стандарта для Toyota Tundra 2005

Электросхема стеклоподъемников, такси доступа/Стандарта для Toyota Tundra 2005 - Список элементов:

• Driver side j/b (behind lower left side of dash)
• Hot at all times
• Ie (behind left kick panel)
• Integration relay
• J/c 21 & 22 (behind upper left side of dash, near instrument cluster)
• J/c 23 & 24 (behind left end a of dash)
• J/c 3 (behind left kick panel)
• J21
• J22
• J23
• J24
• Left front power window motor (in left front door)
• Power fuse 30a
• Power relay
• Power window control switch (back window)
• Power window master switch
• Power window motor (back window) (at lower right side of cab rear wall)
• Right front power window control switch
• Right front power window motor (in right front door)
• W/ power back window
• W/o power back window
• Window lock switch

Электросхема стеклоподъемников, двойная кабина (1 из 2) для Toyota Tundra 2005

Электросхема стеклоподъемников, двойная кабина (1 из 2) для Toyota Tundra 2005 - Список элементов:

• (behind left kick panel) j/c 38 & 39
• A10
• A19
• B10
• B11
• Bdr
• Becu
• Body ecu (behind left side of dash)
• Bq (below left front seat)
• D10
• Dcty
• Door 2 fuse 30a
• Down
• Driver side j/b (under left end of dash)
• Dwn
• Ecu-b fuse 7.5a
• Ecu-ig fuse 10a
• Engine room j/b (on left side of engine compt)
• F16
• G11
• Gnd
• Hot at all times
• Hot in on or start
• J/c 38 & 39 (behind left kick panel)
• J/c 45 (behind left side of dash)
• J/c 50 (behind center of dash)
• J/c 58 (behind right side of dash)
• J38
• J38 c
• J39
• J39 j
• Left front door courtesy switch
• Left rear power window control switch
• Left rear power window motor (in left rear door)
• Mpx1
• Mpx2
• Pcty
• Power main relay
• Pwr 3 fuse 20a
• Pwr 4 fuse 20a
• Red
• Right front door courtesy switch
• Right rear power window control switch
• Right rear power window motor (in right rear door)
• Rld
• Rlu
• Rrd
• Rru
• Sub j/b 3 (behind center of dash)
• Sub j/b 4 (behind center of dash)

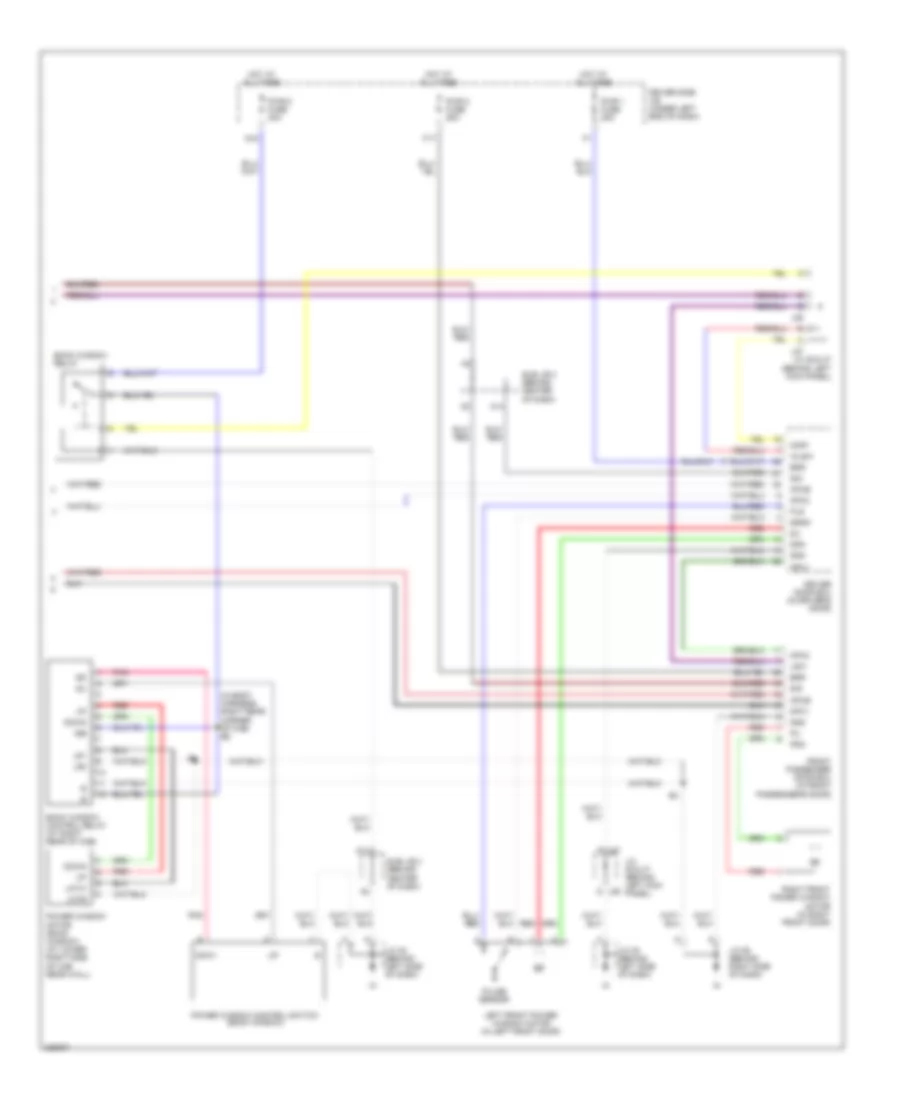

Электросхема стеклоподъемников, двойная кабина (2 из 2) для Toyota Tundra 2005

Электросхема стеклоподъемников, двойная кабина (2 из 2) для Toyota Tundra 2005 - Список элементов:

• (in body harness, right rear corner of cab) b5
• A11
• A14
• Back window control relay (at right rear of cab)
• Back window relay
• Bdr
• Cpub
• Ddn
• Dow1
• Down
• Driver door ecu (in driver's door)
• Driver side j/b (under left end of dash)
• F17
• Front passenger door ecu (in front passenger's door)
• G15
• Gnd
• Hot at all times
• Igb
• J/c 36 & 37 (behind left kick panel)
• J/c 45 (behind left side of dash)
• J/c 58 (behind right side of dash)
• J36
• J36 d
• J37
• J37 f
• Koff
• Left front power window motor (in left front door)
• Lmte
• Lmtw
• Ls1
• Ls2
• Lsw
• Mpx1
• Mpx2
• Pdn
• Pls
• Pnk
• Power window control switch (back window)
• Power window motor (back window) (at lower right side of cab rear wall)
• Pulse sensor
• Pwr 1 fuse 25a
• Pwr 2 fuse 25a
• Pwr 5 fuse 30a
• Red
• Right front power window motor (in right front door)
• Sgnd
• Sig
• Sub j/b 3 (behind center of dash)
• Wlsw
