Система Фар

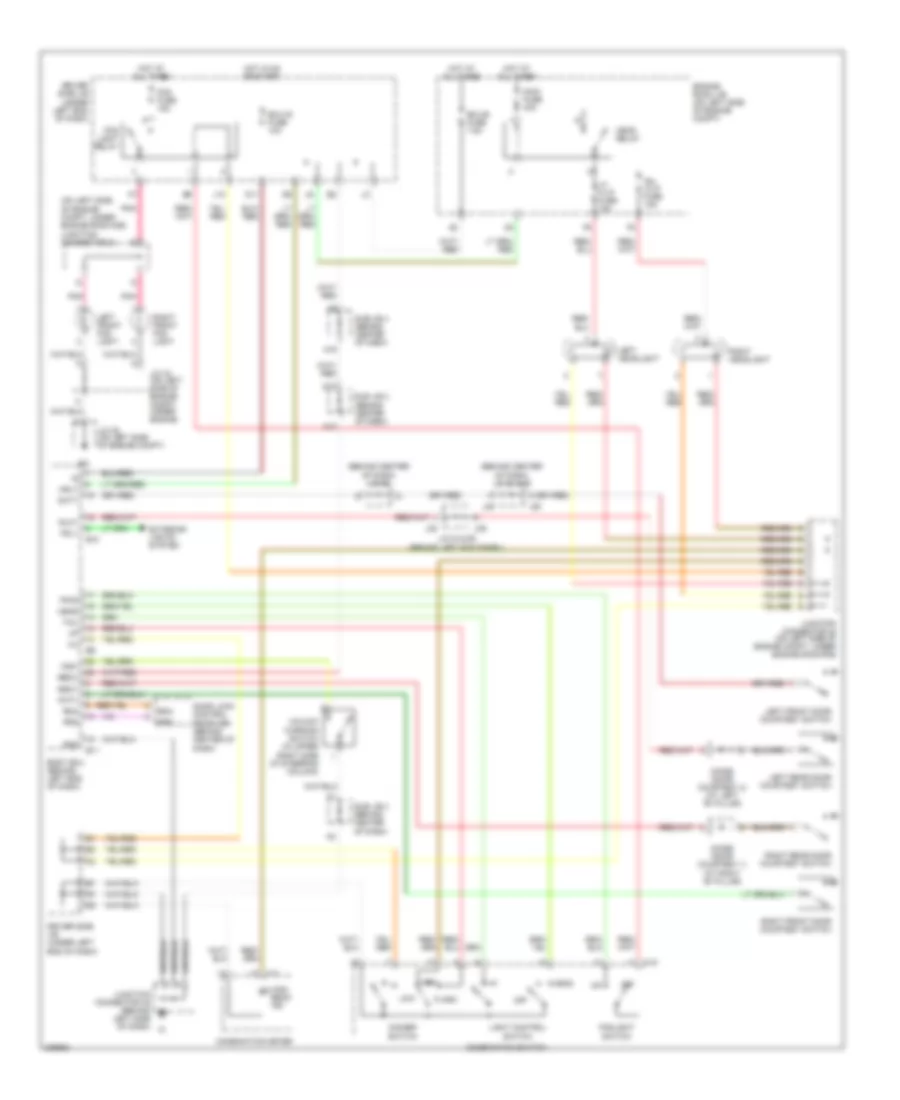

Электросхема фар, Такси Доступа/Стандарта withDRL для Toyota Tundra 2005
Электросхема фар, Такси Доступа/Стандарта withDRL для Toyota Tundra 2005 - Список элементов:
- (behind left kick panel) j/c 26 & 27
- (on left front fender)
- (on left side of engine compt, under engine room r/b) j/c 25
- A/t
- Brake fluid level warning switch (on brake fluid reservoir)
- C12
- C15
- Combination meter
- Combination switch
- Daytime running light resistor (on left side of engine compt, near battery)
- Dimmer relay
- Dimmer switch
- Driver's side j/b (behind lower left side of dash)
- Drl 4 relay
- Ecu ig fuse 5a
- Engine room r/b (on left side of engine compt)
- Flash
- Fog fuse 20a
- Fog light switch
- Fog relay
- H-lp relay
- Head
- High
- High beam ind
- Hot at all times
- Hot in on or start
- Ih (behind right kick panel)
- Integration relay
- J/c 1 (on left side of engine compt, under engine room r/b)
- J/c 18 (on left side of engine compt, under engine room r/b)
- J/c 2 (on left side
- J/c 2 (on left side of engine compt, under engine room r/b)
- J/c 26 & 27 (behind left j27 kick panel)
- J/c 3 (behind left kick panel)
- J/c 4 (behind left kick panel)
- J/c 5 (behind upper left side of dash, near instrument cluster)
- J/c 8 (behind upper left side of dash, near instrument cluster)
- J26
- Left front door courtesy switch
- Left front foglight
- Left head- light
- Left hi head fuse 10a
- Left lo head fuse 10a
- Light control switch
- Low
- M/t
- N13
- N15
- N24
- Of engine compt, under engine room r/b)
- Off
- Parking brake switch (on base of park brake pedal bracket, near kick panel)
- Pnk
- Red
- Right front foglight
- Right headlight
- Right hi head fuse 10a
- Right lo head fuse 10a
- Starting/ charging system
- Tail
- Tail fuse 15a

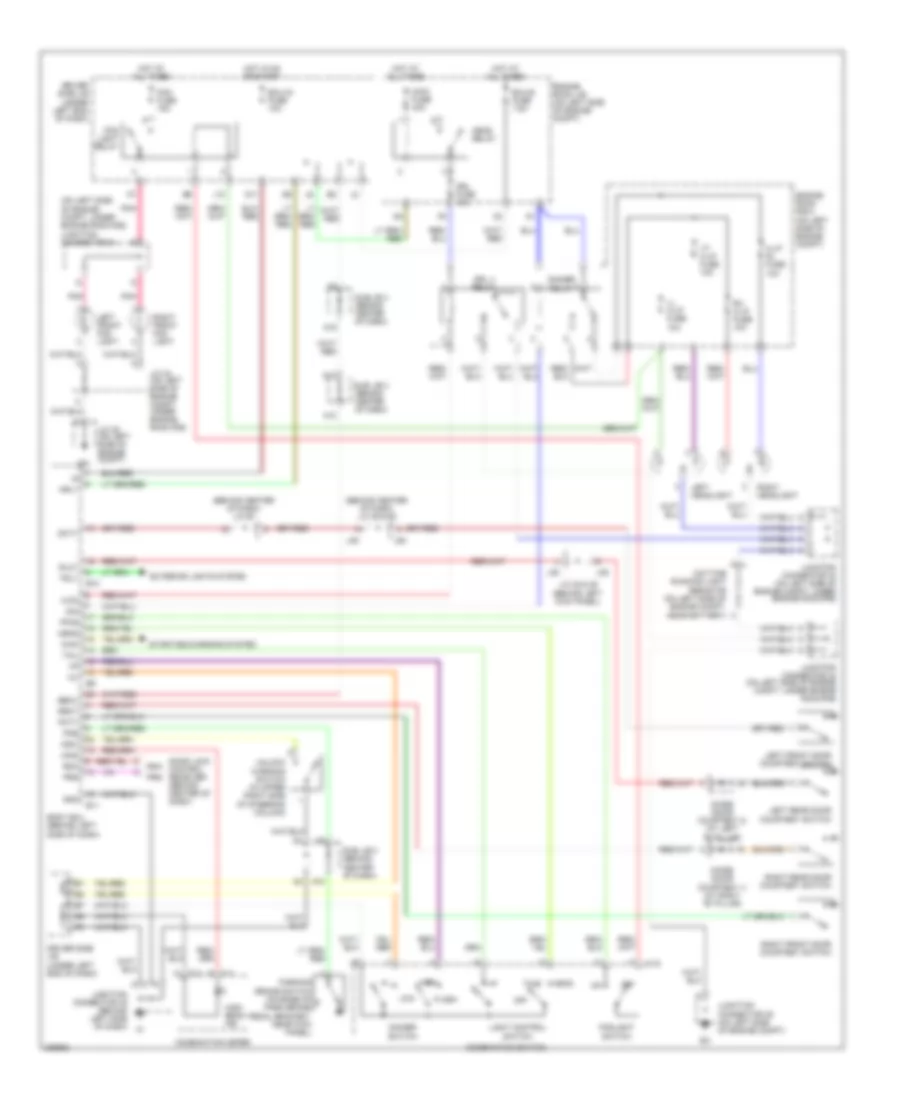

Электросхема фар, Такси Доступа/Стандарта без DRL для Toyota Tundra 2005
Электросхема фар, Такси Доступа/Стандарта без DRL для Toyota Tundra 2005 - Список элементов:
- C12
- Combination meter
- Combination switch
- Connector 23 & 24 (behind left end of dash)
- Dimmer switch
- Driver's side j/b (behind lower left side of dash)
- Ea (on left front fender)
- Ecu ig fuse 5a
- Engine room r/b (on left side of engine compt)
- Flash
- Fog fuse 15a
- Fog relay
- Foglight switch
- H-lp relay
- Head
- High
- High beam ind
- Hot at all times
- Hot in on or start
- Ih (behind right kick panel)
- Integration relay
- J26
- J27
- Junction
- Junction connector 18 (on left side of engine compt, under engine room r/b)
- Junction connector 2 (on left side of engine compt, under engine room r/b)
- Junction connector 21 & 22 (behind upper left side of dash, near instrument cluster)
- Junction connector 23 & 24 (behind left end of dash)
- Junction connector 26 & 27 (behind left kick panel)
- Junction connector 3 (behind left kick panel)
- Junction connector 4 (behind left kick panel)
- Junction connector 5 (behind upper left side of dash, near instrument cluster)
- L13
- Left front door courtesy switch
- Left front foglight
- Left head fuse 10a
- Left headlight
- Light control switch
- Low
- Off
- Pnk
- Right front foglight
- Right head fuse 10a
- Right headlight
- Tail
- Tail fuse 15a

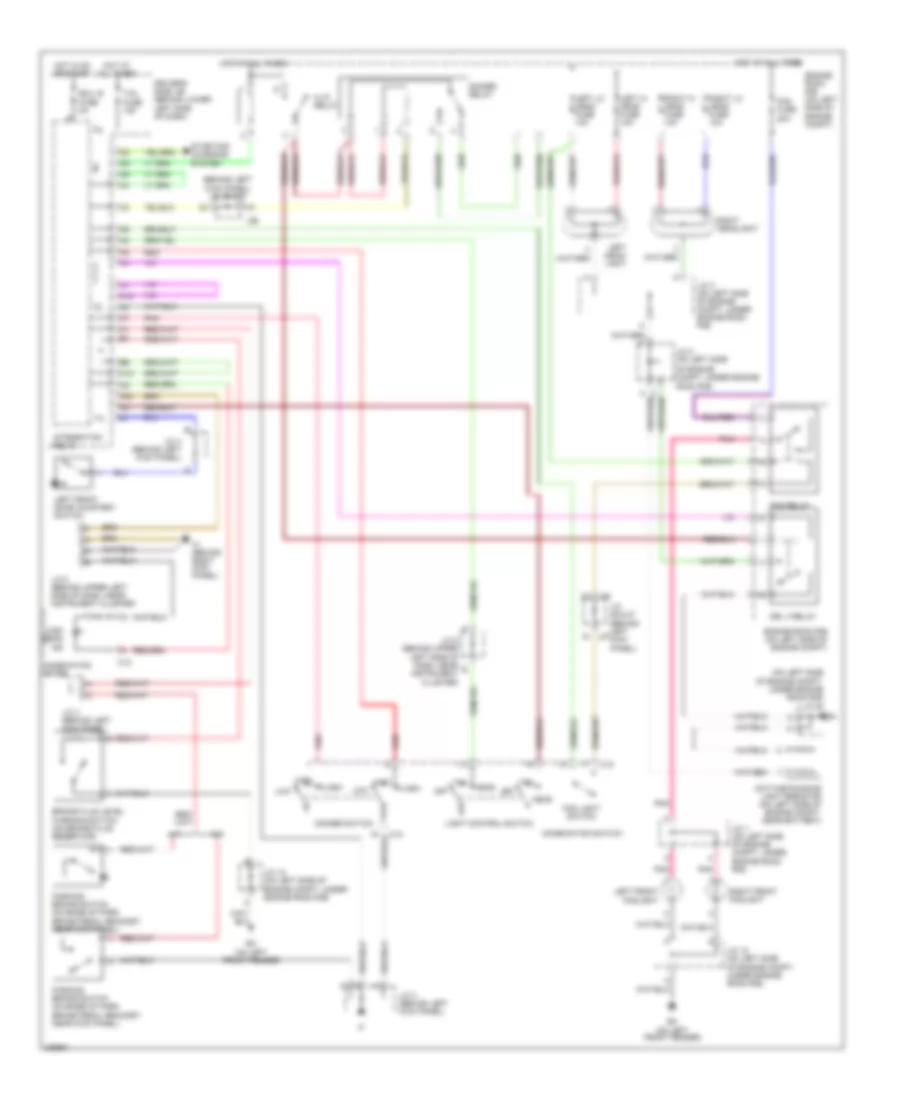

Электросхема фар, двойная кабина С DRL для Toyota Tundra 2005
Электросхема фар, двойная кабина С DRL для Toyota Tundra 2005 - Список элементов:
- (behind center of dash) j/c 49 & 50
- (behind center of dash) j/c 50
- (on left side of engine compt, under engine room r/b) junction connector 31
- A10
- A13
- A19
- B10
- B11
- Becu
- Body ecu (behind left side of dash)
- C11
- C12
- C15
- Chg-
- Combination meter
- Combination switch
- D10
- Daytime running light resistor (on left side of engine compt, near battery)
- Dcty
- Dim
- Dimmer relay
- Dimmer switch
- Diode (door courtesy 1) (at right "b" pillar)
- Diode (door courtesy 2) (at left "b" pillar)
- Door lock control receiver (behind center of dash)
- Driver side j/b (under left end of dash)
- Drl 4 relay
- Drl fuse 15a
- Ecu-b fuse 7.5a
- Ecu-ig fuse 10a
- Engine room j/b (on left side of engine compt)
- Engine room r/b 2 (on left side of engine compt)
- Exterior lights system
- Ffog
- Flash
- Fog fuse 15a
- Fog light relay
- Foglight switch
- G11
- Gnd
- H-lp rl fuse 10a
- H-on
- Head
- Head relay
- High
- High beam ind
- Hind
- Hot at all times
- Hot in on or start
- Hrly
- J/c 34 (on left side of engine compt, under engine room r/b)
- J/c 35 (on left side of engine compt)
- J/c 38 & 39 (behind left kick panel)
- J10
- J38
- J39
- J49
- J50
- Junction connector 32 (on left side of engine compt, under engine room r/b)
- Junction connector 34 (on left side of engine compt, under engine room r/b)
- Junction connector 35 (on left side of engine compt)
- Junction connector 45 (behind left side of dash)
- Ksw
- Left front door courtesy switch
- Left front fog light
- Left headlight
- Left rear door courtesy switch
- Lh h-lp fuse 10a
- Light control switch
- Ll h-lp fuse 10a
- Low
- Main fuse 40a
- Off
- Parking brake switch (on base of park brake pedal bracket, near kick panel)
- Pcty
- Pkb
- Pnk
- Prg
- Rda
- Rh h-lp fuse 10a
- Right front door courtesy switch
- Right front fog light
- Right headlight
- Right rear door courtesy switch
- Rlcy
- Rrcy
- Starting/charging system
- Sub j/b 3 (behind center of dash)
- Sub j/b 4 (behind center of dash)
- Tail
- Trly
- Unlock warning switch (in upper right side of steering column)

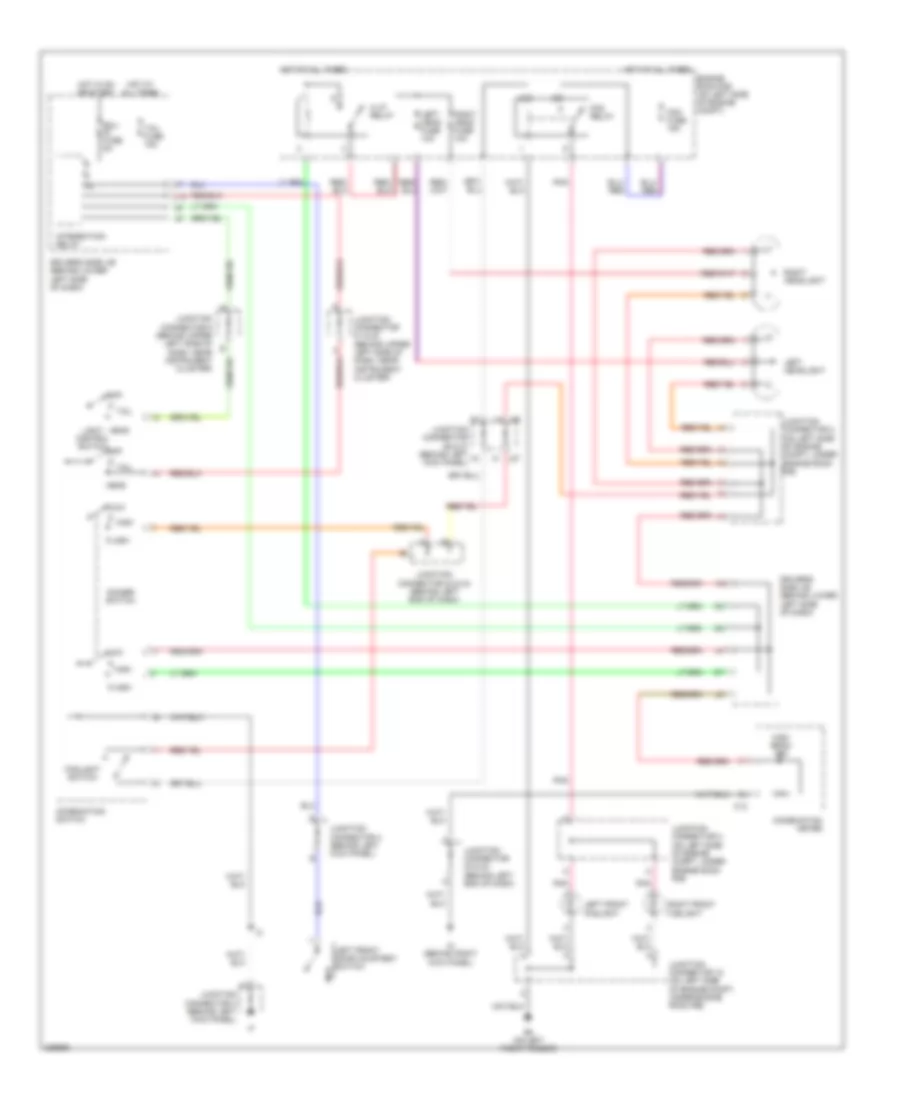

Электросхема фар, двойная кабина без DRL для Toyota Tundra 2005
Электросхема фар, двойная кабина без DRL для Toyota Tundra 2005 - Список элементов:
- (behind center of dash) j/c 49 & 50
- (behind center of dash) j/c 50
- (on left side of engine compt, under engine room r/b) junction connector 31
- A10
- A19
- B10
- B11
- Becu
- Body ecu (behind left end of dash)
- C12
- C15
- Combination meter
- Combination switch
- D10
- Dcty
- Dimmer switch
- Diode (door courtesy 1) (at right "b" pillar)
- Diode (door courtesy 2) (at left "b" pillar)
- Door lock control receiver (behind center of dash)
- Driver side j/b (under left end of dash)
- Ecu-b fuse 7.5a
- Ecu-ig fuse 10a
- Engine room j/b (on left side of engine compt)
- Exterior lights system
- Ffog
- Flash
- Fog fuse 15a
- Fog light relay
- Foglight switch
- G11
- Gnd
- Head
- Head relay
- High
- High beam ind
- Hot at all times
- Hot in on or start
- Hrly
- J/c 34 (on left side of engine compt, under engine
- J/c 35 (on left side of engine compt)
- J/c 38 & 39 (behind left kick panel)
- J10
- J38
- J39
- J49
- J50
- Junction connector 32 (on left side of engine compt, under engine room r/b)
- Junction connector 45 (behind left side of dash)
- Ksw
- Left front door courtesy switch
- Left front fog light
- Left headlight
- Left rear door courtesy switch
- Lh h-lp fuse 15a
- Light control switch
- Low
- Main fuse 40a
- Off
- Pcty
- Pnk
- Prg
- Rda
- Rh h-lp fuse 15a
- Right front door courtesy switch
- Right front fog light
- Right headlight
- Right rear door courtesy switch
- Rlcy
- Rrcy
- Sub j/b 3 (behind center of dash)
- Sub j/b 4 (behind center of dash)
- Tail
- Trly
- Unlock warning switch (in upper right side of steering column)
