Электросхема открывания авто, Такси Доступа/Стандарта С Вход Без ключа (1 из 2) для Toyota Tundra 2005
Электросхема открывания авто, Такси Доступа/Стандарта С Вход Без ключа (1 из 2) для Toyota Tundra 2005 - Список элементов:
- (ends in harness)
- (in body harness, in left front door) b3
- 4.7l
- Diode (w/o drl)
- Driver side j/b (behind lower left side of dash)
- Ecu ig fuse 5a
- G13
- Headlights system
- Horn fuse 10a
- Hot at all times
- Hot in on or start
- Instrument cluster)
- Integration relay
- J21
- J22
- Junction connector 10 (behind upper left side of dash, near instrument cluster)
- Junction connector 13 (behind right kick panel)
- Junction connector 21 & 22 (behind upper j22 left side of dash, near instrument cluster)
- Junction connector 21 & 22 (behind upper left side of dash, near instrument cluster)
- Junction connector 21 & 22 (behind upper left side of dash, near j22
- Junction connector 4 (behind left kick panel)
- Junction connector 5 (behind upper left side of dash, near instrument cluster)
- Junction connector 7 (behind upper left side of dash, near instrument cluster)
- Junction connector 9 (behind upper left side of dash, near instrument cluster)
- L12
- L13
- Left door key lock & unlock lock switch
- Left door lock control unlk switch (power window master switch)
- Left door lock motor & door unlock detection switch (at rear of left front door)
- Lock
- N12
- Power fuse 30a
- Right door key lock & unlock unlk switch
- Right door lock control unlk switch
- Right door lock motor & door unlock detection switch (at rear of right front door)
- Tail fuse 15a
- Unlk
- W/ drl
- W/o drl

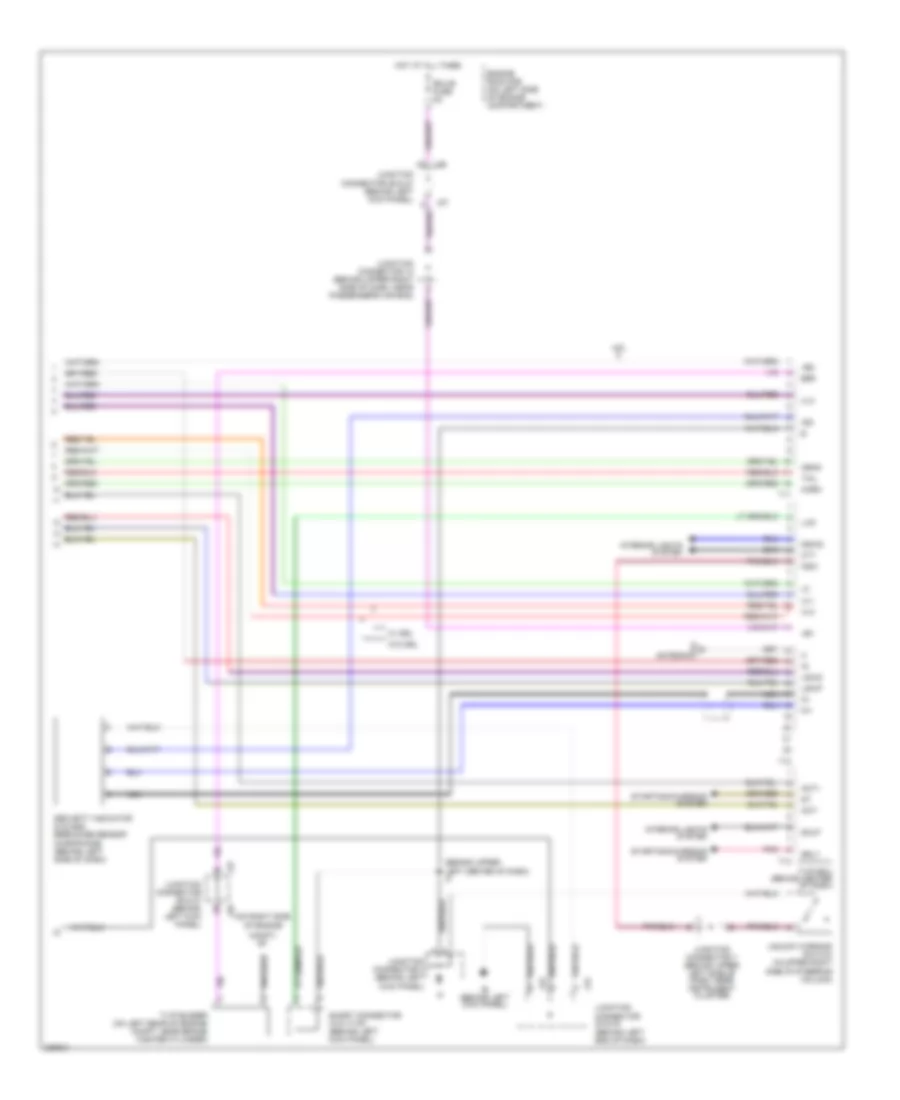

Электросхема открывания авто, Такси Доступа/Стандарта С Вход Без ключа (2 из 2) для Toyota Tundra 2005
Электросхема открывания авто, Такси Доступа/Стандарта С Вход Без ключа (2 из 2) для Toyota Tundra 2005 - Список элементов:
- (behind left end of dash)
- (behind upper left center of dash) i2
- (on right side of engine
- +b1
- +b2
- 4.7l
- Act+
- Act-
- Antenna
- Bzr
- Compt) et
- Cty
- Dmlp
- Dswd
- Ecu-b fuse 5a
- Engine room r/b (on left side of engine compartment)
- Head
- Horn
- Hot at all times
- Ie (behind left kick panel)
- Ind
- Interior lights system
- J23
- J24
- J26
- J27
- Junction connector 12 (behind upper right side of dash, near passenger's air bag)
- Junction connector 23 & 24
- Junction connector 26 & 27 (behind left kick panel)
- Junction connector 3 (behind left kick panel)
- Junction connector 7 (behind upper left side of dash, near instrument cluster)
- Ksw
- Lswd
- Lswp
- Lug
- Mi+
- Mi-
- Nca
- Pnk
- Security indicator & glass breakage sensor microphone (behind left side of dash)
- Short connector (w/o tvip) (behind left kick panel)
- Srly
- Starting/charging system
- T11
- T12
- T13
- Tail
- Tvip buzzer (on left rear of engine compt, near brake master cylinder)
- Tvip ecu (behind center of dash)
- Ul1
- Ul2
- Ul3
- Unlock warning switch (in upper right side of steering column)
- W/ drl
- W/o drl

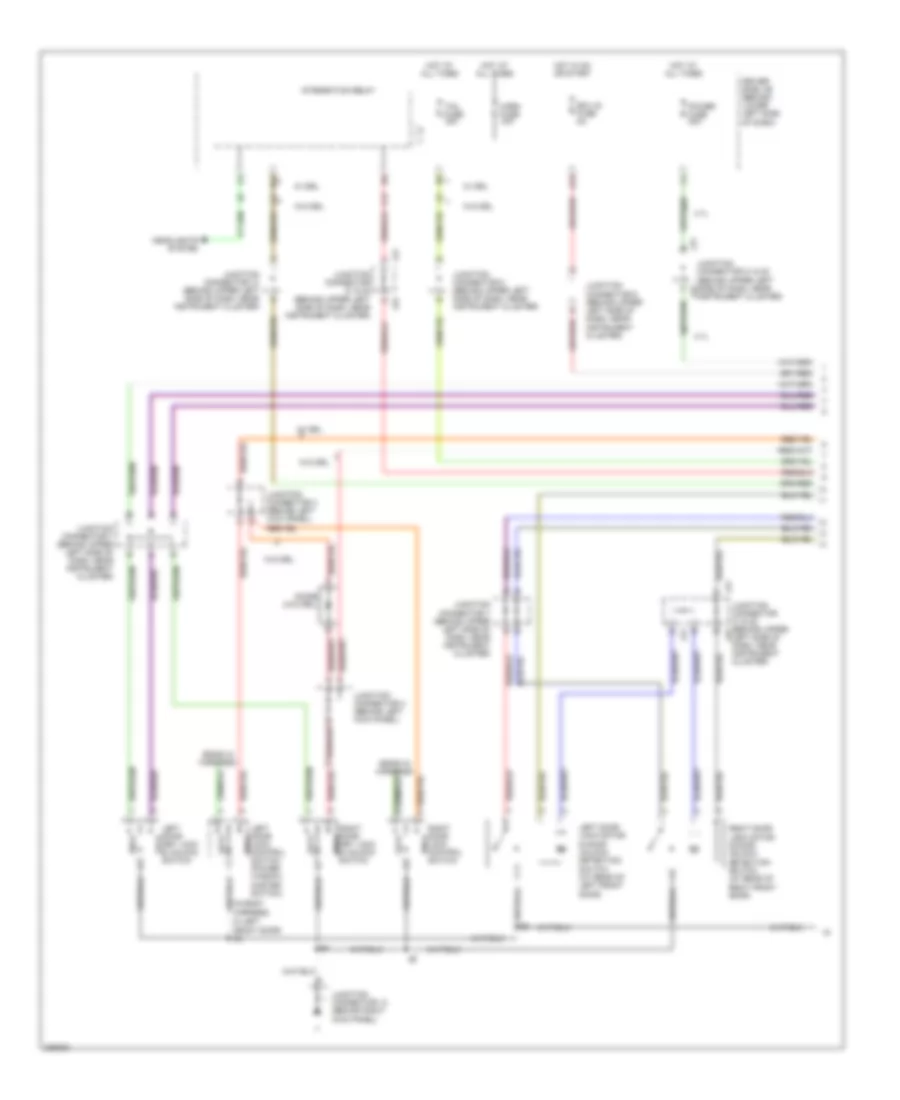

Электросхема открывания авто, двойная кабина (1 из 2) для Toyota Tundra 2005
Электросхема открывания авто, двойная кабина (1 из 2) для Toyota Tundra 2005 - Список элементов:
- (at left side of engine compt) theft deterrent horn
- A12
- Act+
- Act-
- Actd
- All times
- B10
- B11
- Bdr
- Becu
- Body ecu (behind left side of dash)
- Bq (below left front seat)
- Buzzer
- Bzr
- Dcty
- Door 2 fuse 30a
- Door lock control receiver (w/ keyless) (behind center of dash)
- Ecu b fuse 7.5a
- Engine hood courtesy switch (w/o keyless) (at left front of engine compt)
- Engine room j/b (on left side of engine compt)
- Exterior lights system
- Gnd
- Hcty
- Headlights system
- Horns system
- Hot at
- Hrly
- I25
- Ind
- Integration control & panel
- Interior lights
- Interior lights system
- J/c 34 (on left side of engine compt, under engine room r/b)
- J/c 36 & 37 (behind left kick panel)
- J/c 38 & 39 (behind left kick panel)
- J/c 45 (behind left side of dash)
- J/c 47 & 48 (behind left side of dash)
- J/c 58 (behind right side of dash)
- J36
- J37
- J38
- J39
- J47
- J48
- Ksw
- Left rear door lock motor & door unlock detection switch (at rear of left rear door)
- Lswl
- Lswr
- Mpx1
- Mpx2
- Pcty
- Prg
- Rda
- Right rear door lock motor & door unlock detection switch (at rear of right rear door)
- Rlcy
- Rrcy
- Seq
- Sub j/b 3 (behind center of dash)
- System
- Trly
- Unlock warning switch (in upper right side of steering column)
- Wireless door lock buzzer (w/ keyless) (at left front corner of engine compt)

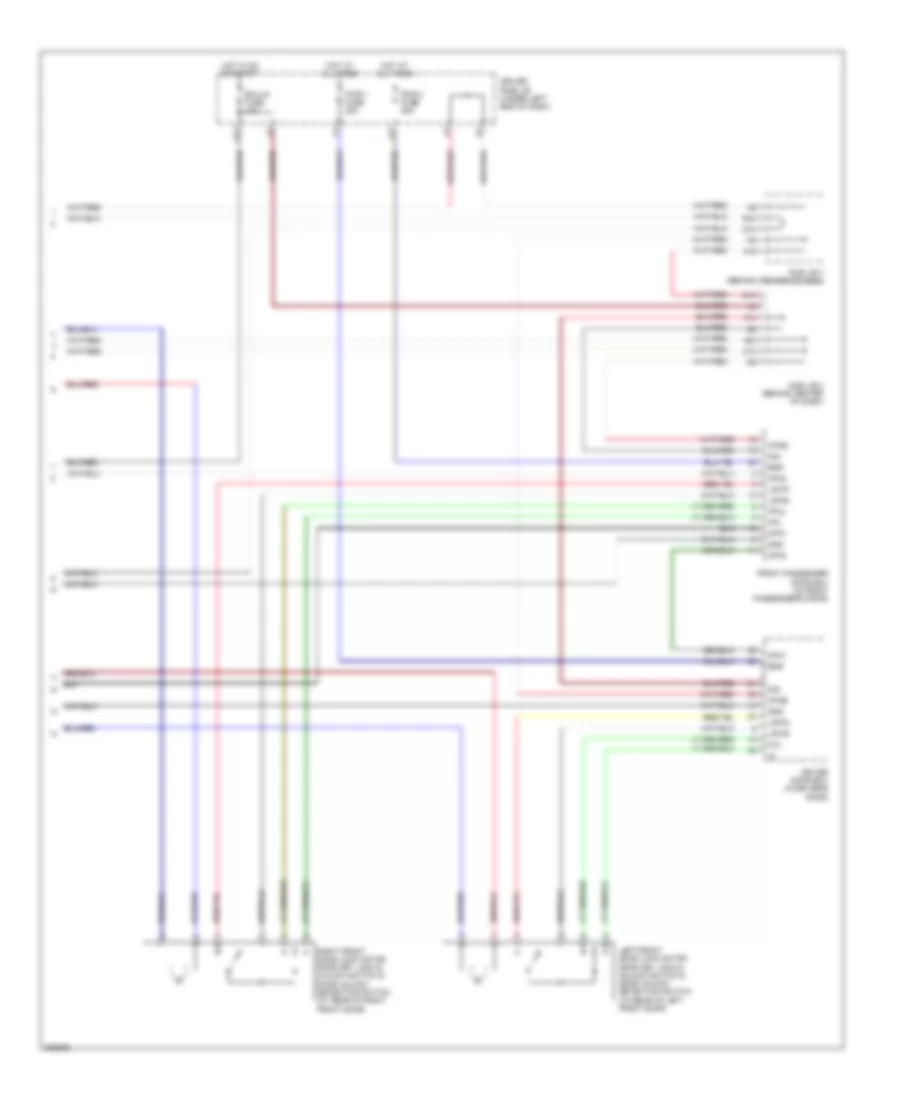

Электросхема открывания авто, двойная кабина (2 из 2) для Toyota Tundra 2005
Электросхема открывания авто, двойная кабина (2 из 2) для Toyota Tundra 2005 - Список элементов:
- A10
- A14
- A19
- A20
- B10
- Bdr
- Cpub
- D10
- Driver door ecu (in driver's door)
- Driver side j/b (under left end of dash)
- Ecu-ig fuse 10a
- F17
- Front passenger door ecu (in front passenger's door)
- G11
- Gnd
- Hot at all times
- Hot in on or start
- Kul
- Left front door lock motor, door key lock & unlock switch & door unlock detection switch (at rear of left front door)
- Lswd
- Lswe
- Lswp
- Mpx1
- Mpx2
- Pkl
- Pkul
- Pwr 1 fuse 25a
- Pwr 2 fuse 25a
- Right front door lock motor, door key lock & unlock switch & door unlock detection switch (at rear of right front door)
- Sig
- Sub j/b 3 (behind center of dash)
- Sub j/b 4 (behind center of dash)
