COMPUTER DATA LINES

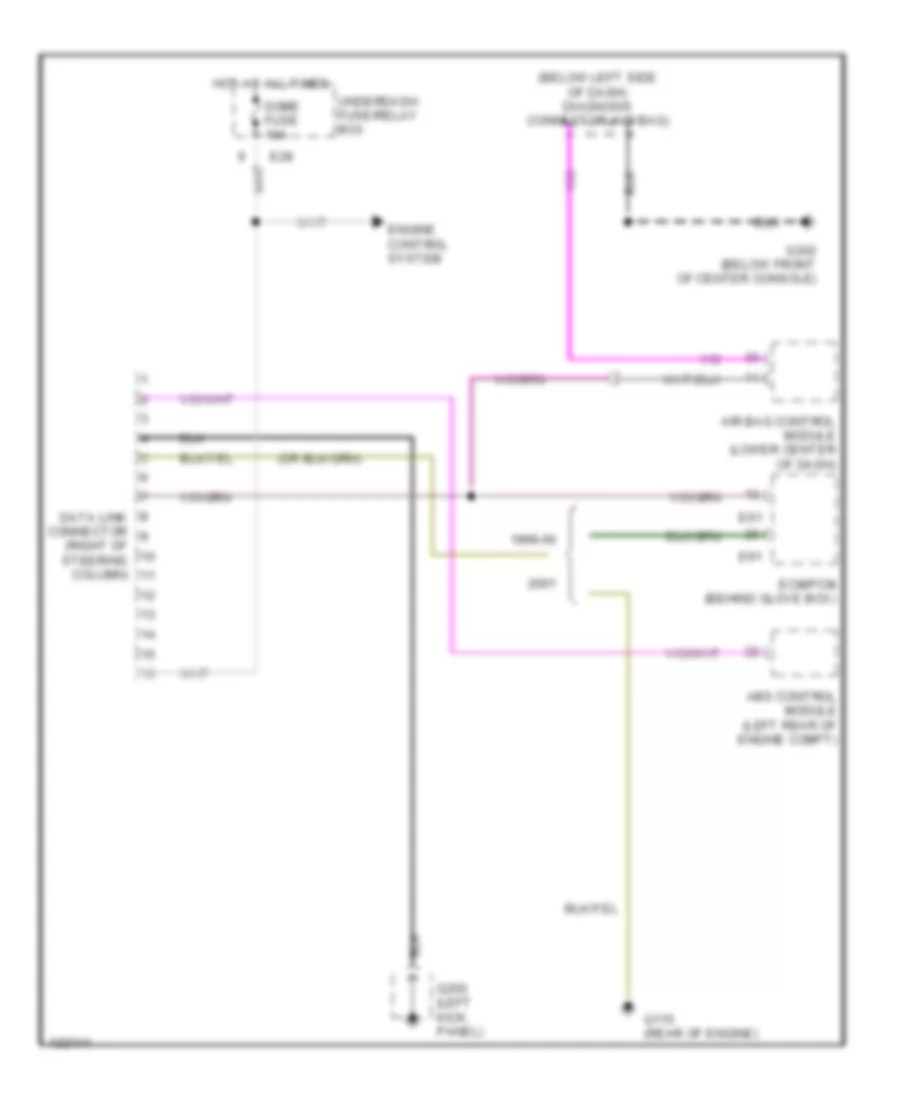

Computer Data Lines for Suzuki Vitara JS 1999

Computer Data Lines for Suzuki Vitara JS 1999Αποκτήστε πρόσβαση σε όλα τα διαγράμματα καλωδίωσης αυτοκινήτουDownload PDF file

List of elements for Computer Data Lines for Suzuki Vitara JS 1999:

  • (below left side of dash) diagnosis connector (air bag)
  • (right of steering column)
  • 1999-00
  • Abs control module (left rear of engine compt)
  • Air bag control module (lower center of dash)
  • Data link connector
  • Dome fuse 10a
  • E28
  • E61
  • Ecm/pcm (behind glove box)
  • Engine control system
  • G115 (rear of engine)
  • G200 (left kick panel)
  • G302 (below front of center console)
  • Hot at all times
  • Underdash fuse/relay box
