SHIFT INTERLOCKS

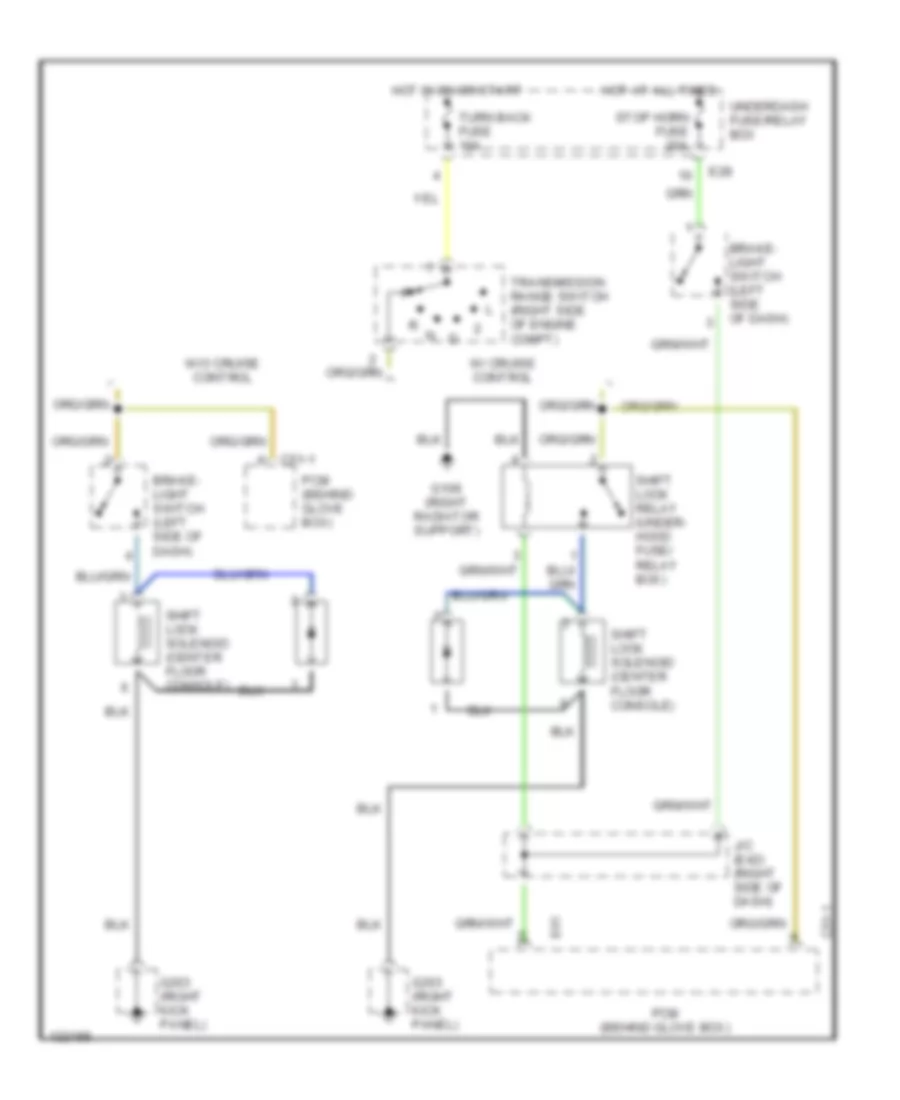

Shift Interlock Wiring Diagram for Suzuki Vitara JS 1999

Shift Interlock Wiring Diagram for Suzuki Vitara JS 1999 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Shift Interlock Wiring Diagram for Suzuki Vitara JS 1999:

  • Brake- light switch (left side of dash)
  • C51-1
  • E28
  • E61
  • G109 (right radiator support)
  • G203 (right kick panel)
  • Hot at all times
  • Hot in on or start
  • J/c (e42) (right side of dash)
  • Pcm (behind glove box)
  • Shift lock relay (under- hood fuse/ relay box)
  • Shift lock solenoid (center floor console)
  • Stop horn fuse 20a
  • Transmission range switch (right side of engine compt)
  • Turn back fuse 10a
  • Underdash fuse/relay box
  • W/ cruise control
  • W/o cruise control
