POWER WINDOWS

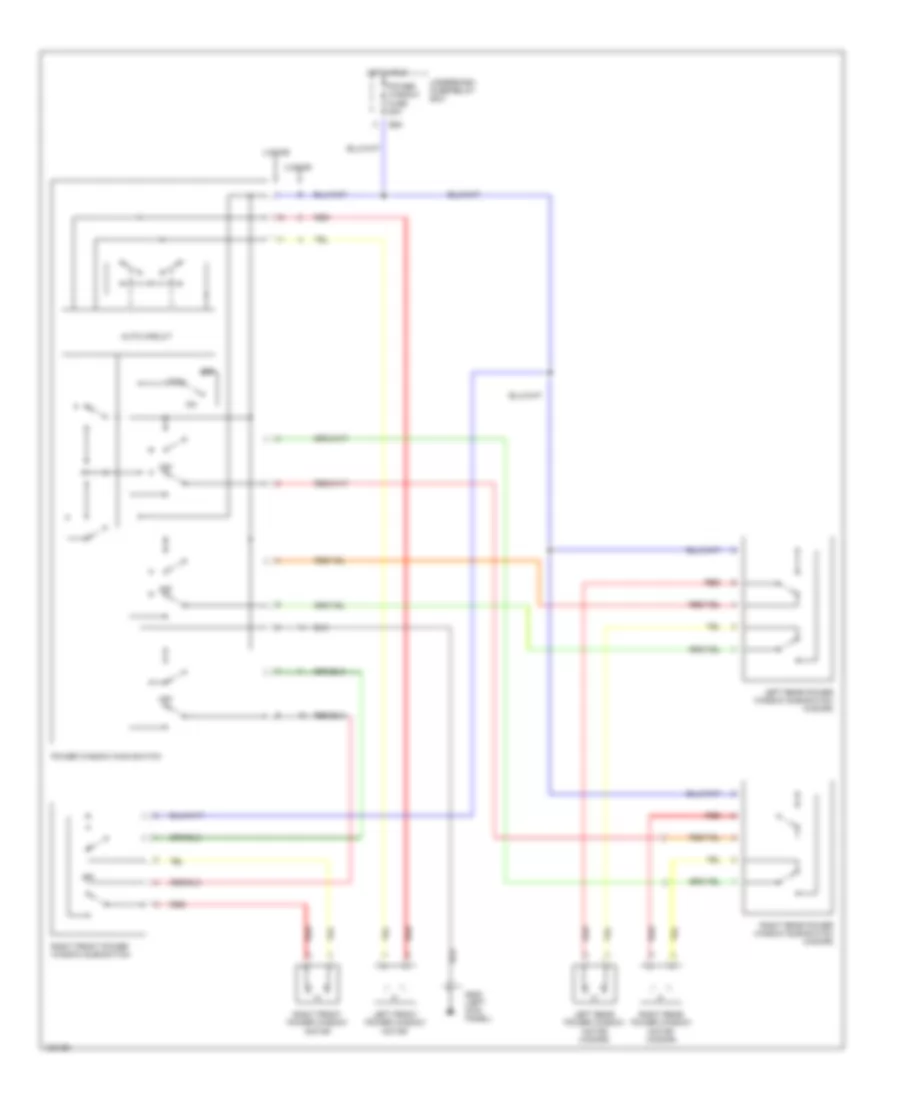

Power Window Wiring Diagram for Suzuki Vitara JS 1999

Power Window Wiring Diagram for Suzuki Vitara JS 1999Get access to all wiring diagrams of the carDownload PDF file

List of elements for Power Window Wiring Diagram for Suzuki Vitara JS 1999:

  • 2 door
  • 4 door
  • Auto circuit
  • E28
  • G200 (left kick panel)
  • Hot in run
  • Left front power window motor
  • Left rear power window motor (4-door)
  • Left rear power window sub-switch (4-door)
  • Lock
  • Off
  • Power window fuse 30a
  • Power window main switch
  • Red
  • Right front power window motor
  • Right front power window sub-switch
  • Right rear power window motor (4-door)
  • Right rear power window sub-switch (4-door)
  • Underdash fuse/relay box
