Air Conditioning — Jaguar XK8 2002 Wiring Diagram

AIR CONDITIONING

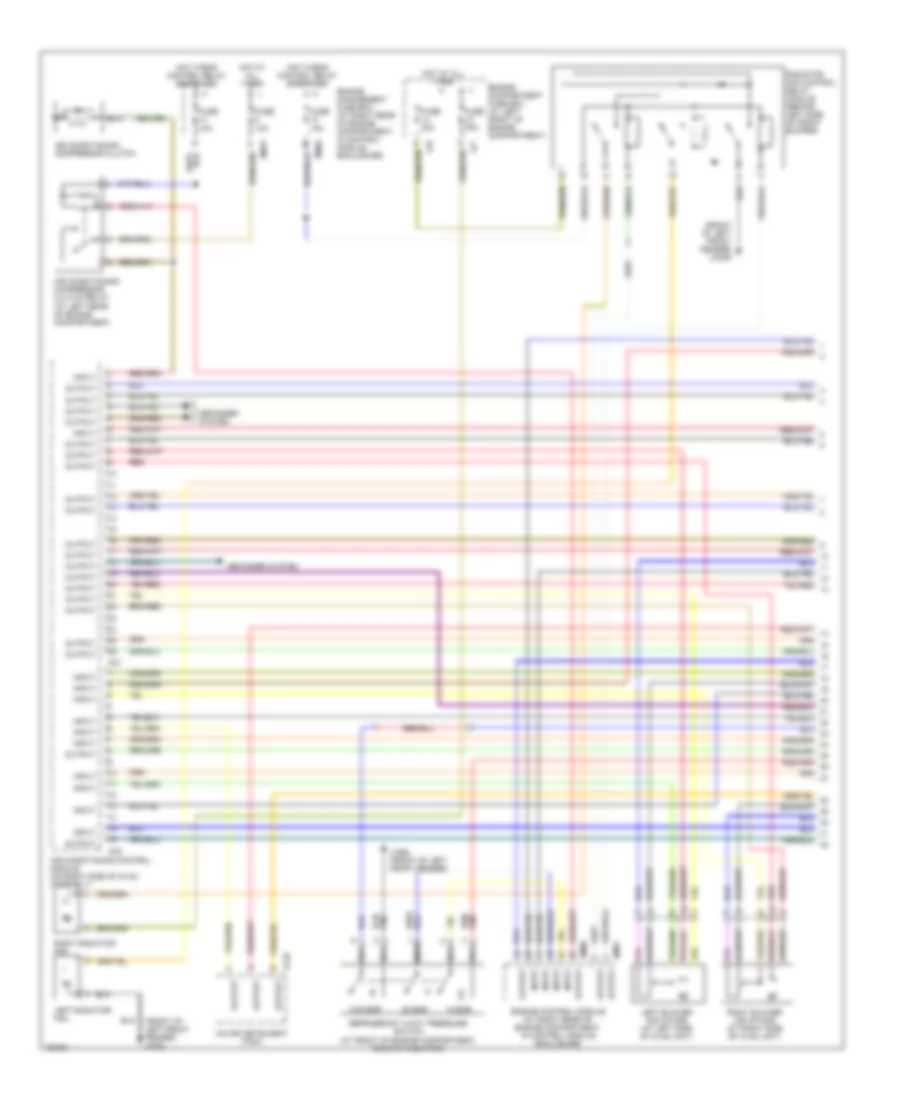

Automatic A/C Wiring Diagram (1 of 3) for Jaguar XK8 2002

List of elements for Automatic A/C Wiring Diagram (1 of 3) for Jaguar XK8 2002:

(front of left front fender) lf2al
(front of left front fender) lf2ar
12 bar
2-30 bar
20 bar
Ac1
Ac2
Air conditioning compressor clutch
Air conditioning compressor clutch relay (at left rear of engine compartment)
Air conditioning control module (on right side of hvac assembly)
Defogger system
Em19
Em20
Em80
Em81
Engine compartment fuse box (at left front of engine compartment)
Engine control module (at right rear of engine compartment, in control module enclosure)
Engine management fuse box (at right rear of engine compartment, in control module enclosure)
Fc26
Fuse 10a
Fuse 30a
Hot at all times
Hot w/ems control relay energized
Input
Left blower air intake (at left side of hvac unit)
Left radiator fan
Lf2bl (front of left front fender)
Lf7
Lf8
Major instrument pack
Nca
Output
Radiator fan control relay module (behind left side of front bumper)
Red
Refrigerant 4-way pressure switch (at front of engine compartment, rear of radiator)
Right blower air intake (at right side of hvac unit)
Right radiator fan

Automatic A/C Wiring Diagram (2 of 3) for Jaguar XK8 2002

List of elements for Automatic A/C Wiring Diagram (2 of 3) for Jaguar XK8 2002:

Acc
Driver side fuse box (behind left side of dash)
Em2ar (engine compartment left hand enclosure)
Em2ar (engine compartment, left hand enclosure)
Engine compartment fuse box (at left front of engine compartment)
Fc21
Fc2al (right "a" pillar)
Fc3bl (left side transmission tunnel)
Fc4al (left "a" pillar)
Fc6
Fuse 10a
Fuse 20a
Fuse 5a
Heater pump (on left side of firewall)
Heater pump relay
Heater valve (on left side of firewall)
Hot at all times
Hot in run or start
Ignition switch
Inertia switch (behind left side of dash, near driver side fuse box)
Left blower motor (on left side of hvac assembly)
Left blower motor relay (on left side of driveshaft tunnel)
Lf5
Lf7
Lf8
Nca
Off
Passenger side fuse box (behind right side of dash)
Right blower motor (on right side of hvac assembly)
Right blower motor relay (on left side of driveshaft tunnel)
Run
Start

Automatic A/C Wiring Diagram (3 of 3) for Jaguar XK8 2002

List of elements for Automatic A/C Wiring Diagram (3 of 3) for Jaguar XK8 2002:

(left side of transmission tunnel) fc3bl
(right "a" pillar) fc2br
Ac3
Ac4
Acc
Air conditioning control module (on right side of hvac assembly)
Air conditioning isolate relay (behind right side of dash)
Ambient temperature sensor (behind right front side of bumper)
Aspirator assembly (behind driver's knee bolster)
Control panel
Cool air bypass servo
Data
Data link connector (partial) (below driver side fuse box)
Defrost servo
Dimmer
Driver's side fuse box (behind left side of dash)
Evapor- ator temp sensor
Evaporator/heater matrix assembly (at left side of hvac assembly)
Fc20
Fc3cs (left side of transmission tunnel)
Fc4br (left "a" pillar)
Fc6
Foot well servo
Fuse 10a
Gnd
Heater matrix temp sensor
Hot at all times
Hot in run
Ignition switch
Input
Input red
Interior lights system
Nca
Off
Output
Passenger's side fuse box (behind right side of dash)
Red
Run
Solar sensor (on top left side of dash on defroster vent)
Start
Vent assembly (on top of hvac assembly)
Vent servo
Voltage
