AIR CONDITIONING – Chrysler Town & Country Limited 2007 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

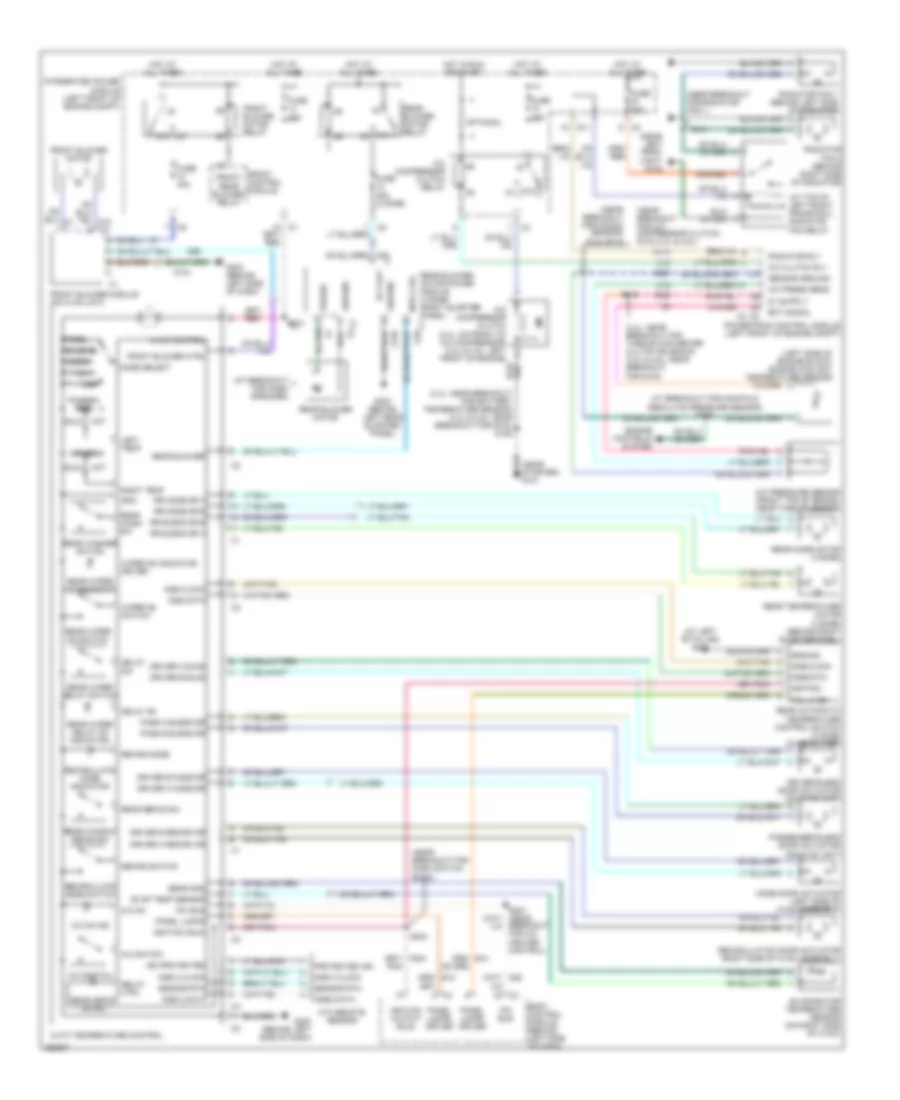

Automatic A/C Wiring Diagram for Chrysler Town & Country Limited 2007

Automatic AC Wiring Diagram for Chrysler Town  Country Limited 2007 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for Automatic A/C Wiring Diagram for Chrysler Town & Country Limited 2007:

  • (2.4l: near breakout for battery temperature sensor) (3.3l & 3.8l: near breakout for g103) s106
  • (2.4l: near breakout for torque converter clutch solenoid) (3.3l & 3.8l: near breakout for g103)
  • (at breakout for dash speaker)
  • (at breakout for manifold absolute pressure sensor) s125
  • (at left "b" pillar) g300
  • (at top of left front frame rail) radiator fan relay
  • (left side of engine block) engine coolant temperature sensor
  • (near breakout for a/c compressor clutch) s142 (3.3l & 3.8l)
  • (near breakout for dash switch bank)
  • (near breakout for knock sensor) (2.4l) s118
  • (near breakout for radiator fan 1)
  • (near left head- light) g102
  • (near starter) g101
  • 87a
  • A/c clutch rly
  • A/c compressor clutch relay
  • A/c on
  • A/c on ind
  • A/c press sens
  • A/c pressure sensor (front top of engine, near throttle body)
  • A/c switch
  • Atc remote sensor
  • Auto temperature control
  • Bi-level
  • Body control module (behind left side of dash)
  • Breakout for a/c heater control)
  • C13
  • C18
  • C51
  • C56
  • C59
  • Cold
  • D25
  • Def
  • Delay on
  • Delay sw
  • Driver
  • Driver a blnd
  • Driver a mode dr
  • Driver a recirc dr
  • Driver b blnd
  • Driver b mode dr
  • Driver b recirc dr
  • Driver blend door actuator (on hvac unit)
  • E10
  • E12
  • Ect signal
  • Engine controls system
  • Evap temp sensor
  • Evaporator temperature sensor (on right side of hvac)
  • F504
  • F855
  • Floor
  • Front blower ctrl
  • Front blower module (on hvac unit)
  • Front blower motor
  • Front blower motor relay
  • Front control module
  • Front/ rear blower relay
  • Fuse 15a
  • Fuse 20a
  • Fuse 25a (3 zone)
  • Fuse 40a
  • G200 (behind left side of dash)
  • G302 (behind left rear quarter- panel)
  • Gnd
  • Ground
  • Hot
  • Hot at all times
  • Hot in run or start
  • Hvac control
  • Ign protected
  • Ignition
  • Ignition (run)
  • Ignition output (run)
  • Integrated power module (left front of engine compt)
  • K173
  • K900
  • Kdb 2 clock
  • Kdb 2 data
  • Kdb clock
  • Kdb data
  • Kdb2 data
  • Left temp
  • Mix
  • Mode door actuator (left side of hvac assembly)
  • Mode select
  • Mtr ctrl
  • Optional
  • Panel
  • Panel lamps
  • Panel lamps driver
  • Pass a blend dr
  • Pass b blend dr
  • Passen- ger
  • Passenger blend door actuator (on hvac unit)
  • Pci bus
  • Pnl lp dr
  • Power
  • Powertrain control module (left front of engine compt)
  • Protected ign
  • Radiator fan 1 (behind left side of radiator)
  • Radiator fan 2 (behind right side of radiator)
  • Radiator rly
  • Rear automatic temperature control switch (3 zone) (in headliner)
  • Rear blower
  • Rear blower motor
  • Rear blower motor power module (3 zone) (right quarter- panel) c1
  • Rear blower motor relay
  • Rear defog on ind
  • Rear defog sw
  • Rear mode motor (3 zone)
  • Rear temperature motor (3 zone) (behind right quarterpanel)
  • Rear wash sw
  • Rear washer switch
  • Rear window defog sw
  • Rear wiper delay on indicator
  • Rear wiper delay switch
  • Rear wiper on indicator
  • Rear wiper on switch
  • Recirc mode
  • Recirc switch
  • Recirculate mode indicator
  • Recirculate mode switch
  • Recirculation door actuator (right side of hvac assembly)
  • Relay ctrl
  • Right temp
  • Rly out
  • Rr blend dr a
  • Rr blend dr b
  • Rr mode dr a
  • Rr mode dr b
  • S101
  • S116
  • S201
  • S202
  • Sens gnd
  • Sensor ground
  • Sensor rtn
  • Wiper on indicator driver
  • Wiper on switch
  • Z134
  • Z135

Manual A/C Wiring Diagram for Chrysler Town & Country Limited 2007

Manual AC Wiring Diagram for Chrysler Town  Country Limited 2007 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram for Chrysler Town & Country Limited 2007:

  • (2.4l) s118
  • (2.4l: near breakout for torque converter clutch solenoid) (3.3l & 3.8l: near breakout for g103)
  • (3.3l & 3.8l) s142
  • (at breakout for manifold absolute pressure sensor) s125
  • (at left "b" pillar) g300
  • (at right quarterpanel) (3 zone) rear a/c-heater unit
  • (at top of left front frame rail) radiator fan relay
  • (behind left side of dash) g200
  • (in floorpan track wiring)
  • (left side of engine block) engine coolant temperature sensor
  • (near breakout for a/c compr- essor clutch)
  • (near breakout for a/c heater control) s207
  • (near breakout for c201)
  • (near breakout for dash switch bank) s202
  • (near breakout for integrated power module)
  • (near breakout for knock sensor)
  • (near breakout for radiator fan 1)
  • (near left head- light) g102
  • (near starter) g101
  • (on right side of hvac assembly) blower motor resistor
  • 5 volts
  • 87a
  • A/c clutch rly
  • A/c compr- essor clutch relay
  • A/c compressor clutch (2.4l: on front of a/c compressor) (3.3l & 3.8l: left front of engine)
  • A/c heater control (center of dash)
  • A/c on
  • A/c on indicator
  • A/c press sens
  • A/c pressure sensor (front top of engine, near throttle body)
  • A/c switch
  • Body control module (behind left side of dash)
  • C13
  • C18
  • Cold
  • Common
  • Computer data lines system
  • Def- rost
  • Defog on
  • Driver
  • Driver blend
  • Driver blend door actuator (on hvac unit)
  • Ect signal
  • Engine controls system
  • Evap temp sens
  • Evaporator temperature sensor (on right side of hvac)
  • F blower
  • F855
  • Front blower motor
  • Front blower motor relay
  • Front control module
  • Front/ rear blower relay
  • Fuse 15a
  • Fuse 25a (3 zone)
  • Fuse 40a
  • G200 (behind left side of dash)
  • Ground
  • High
  • Hot
  • Hot at all times
  • Hot in run or start
  • Hvac control
  • Ign (run)
  • Ignition output (run)
  • Integrated power module (left front of engine compartment)
  • K173
  • K900
  • Left temp sensor
  • Low
  • Med
  • Mode
  • Mode door
  • Mode door actuator (left side of hvac assembly)
  • Mode select
  • Mode sense
  • Off
  • On/off sense
  • Optional
  • Panel
  • Panel lamps driver
  • Pass blend
  • Passen- ger
  • Passenger blend door actuator (on hvac unit)
  • Pci bus
  • Pnk c4
  • Powertrain control module (left front of engine compt)
  • Radiator fan 1 (behind left side of radiator)
  • Radiator fan 2 (behind right side of radiator)
  • Radiator rly
  • Rear blend
  • Rear blower front control switch
  • Rear blower motor relay
  • Rear blower rear control switch (3 zone)
  • Rear defog ind
  • Rear mode
  • Rear mode motor
  • Rear temp motor
  • Rear temp rtn
  • Rear temp sig
  • Rear window defogger switch
  • Rear wiper/ washer ind
  • Rear wiper/ washer switch
  • Recirc door
  • Recirculate
  • Recirculate mode ind
  • Recirculate mode switch
  • Recirculation door actuator (right side of hvac assembly)
  • Right temp sensor
  • S101
  • S106 (2.4l: near breakout for battery temperature sensor) (3.3l & 3.8l: near breakout for g103)
  • S107
  • S116
  • S205
  • S209 (near breakout for evaporator temperature sensor)
  • S311
  • S332
  • S333
  • Sens gnd
  • Sensor ground
  • Switch sense
  • Thermal fuse
