AIR CONDITIONING – Dodge Durango 2000 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

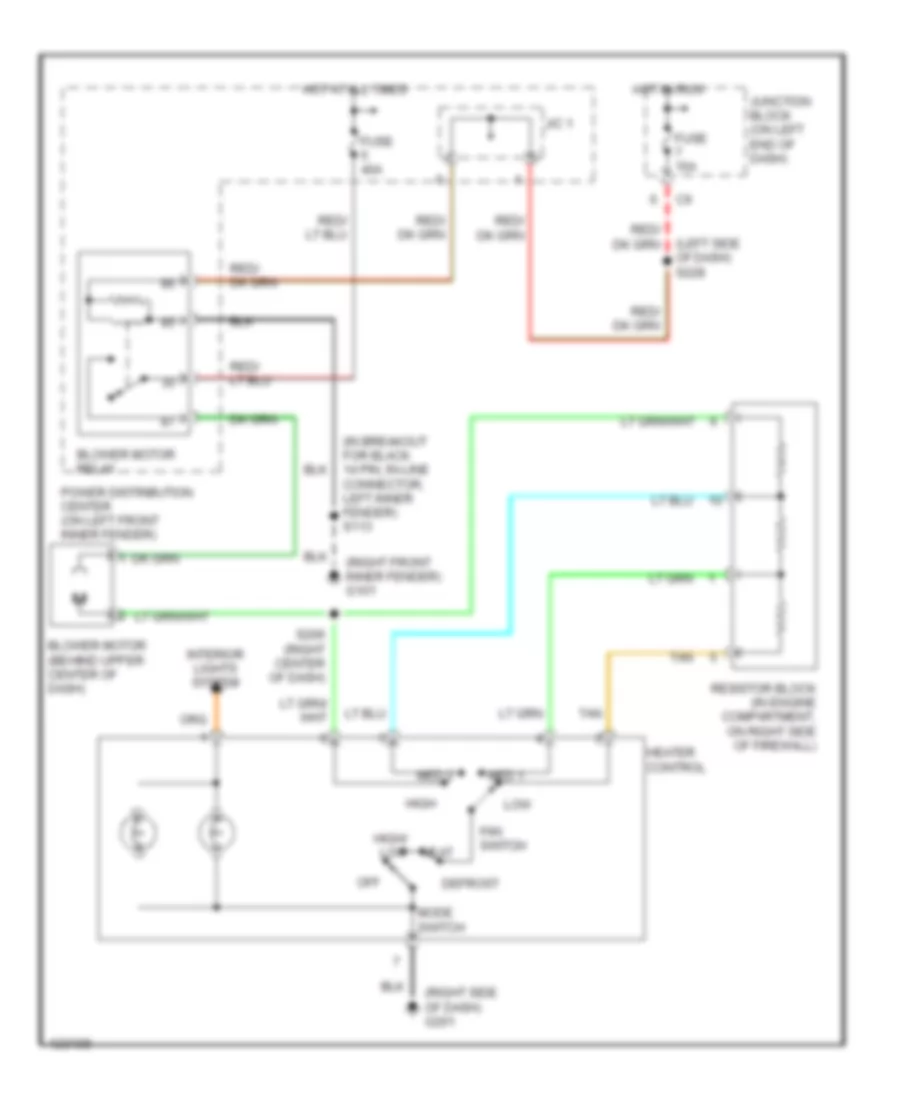

Heater Wiring Diagram for Dodge Durango 2000

List of elements for Heater Wiring Diagram for Dodge Durango 2000:

• (in breakout for black 14 pin, in-line connector, left inner fender) s113
• (left side of dash) s228
• (right front inner fender) g101
• (right side of dash) g201
• Blower motor (behind upper center of dash)
• Blower motor relay
• Defrost
• Fan switch
• Fuse 15a
• Fuse 40a
• Heat
• Heater control
• High
• High/ low
• Hot at all times
• Hot in run
• Interior lights system
• J/c 1
• Junction block (on left end of dash)
• Low
• Med 1
• Med 2
• Mode switch
• Off
• Power distribution center (on left front inner fender)
• Resistor block (in engine compartment, on right side of firewall)
• S206 (right center of dash)
• Tan

Manual A/C Wiring Diagram for Dodge Durango 2000

List of elements for Manual A/C Wiring Diagram for Dodge Durango 2000:

• (in breakout for black 14 pin in-line connector, left inner fender) s113
• (left inner fender, frame ground) g100
• (left side of dash) s228
• (near distributor breakout) s108
• (near power distribution center breakout) s114
• (on left front inner fender) power distribution center
• (right front inner fender) g101
• (right front of engine) g119
• (right side of dash) g201
• 4.7l
• 5.2l & 5.9l
• A/c
• A/c compressor clutch
• A/c compressor clutch relay
• A/c heater control
• A/c high pressure switch (near a/c compressor, on discharge line)
• A/c low pressure switch (near engine compartment dash panel, on suction line jumper)
• A/c low temperature cut-out switch (in engine compartment, mounted on outboard side of thermal expansion valve)
• A/c select input
• A/c select switch
• A/c switch sense
• Blower motor (behind upper center of dash)
• Blower motor relay
• C13
• C20
• C24
• C90
• Defrost
• Fan switch
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 40a
• Heat
• Hi/low
• High
• Hot at all times
• Hot in run
• Hot in run or start
• Ignition
• Interior lights system
• J/c 1
• J/c 2
• Junction block (on left end of dash)
• Low
• Max
• Med 1
• Med 2
• Mode switch
• Mode switch out
• Nca
• Off
• Power distribution center (on left front inner fender)
• Powertrain control module (on right front inner fender, forward of washer fluid reservoir)
• Radiator fan motor
• Radiator fan relay
• Relay ctrl
• Resistor block (in engine compartment, on right side of firewall)
• S206 (right center of dash)
• Tan

Rear A/C Wiring Diagram for Dodge Durango 2000

List of elements for Rear A/C Wiring Diagram for Dodge Durango 2000:

• (left rear body ground) g404
• Fuse c 5a
• High
• Hot in run
• Interior lights system
• Low
• Lt (near overhead a/c control) s336
• Med
• Nca
• Off
• Overhead a/c blower (at rear of roof, mounted to rear overhead a/c unit upper housing cover)
• Overhead a/c control
• Overhead a/c resistor block (at rear of roof, mounted to rear overhead a/c unit upper housing cover)
• Relay & fuse block (behind left side of dash, attached to junction block)
