AIR CONDITIONING

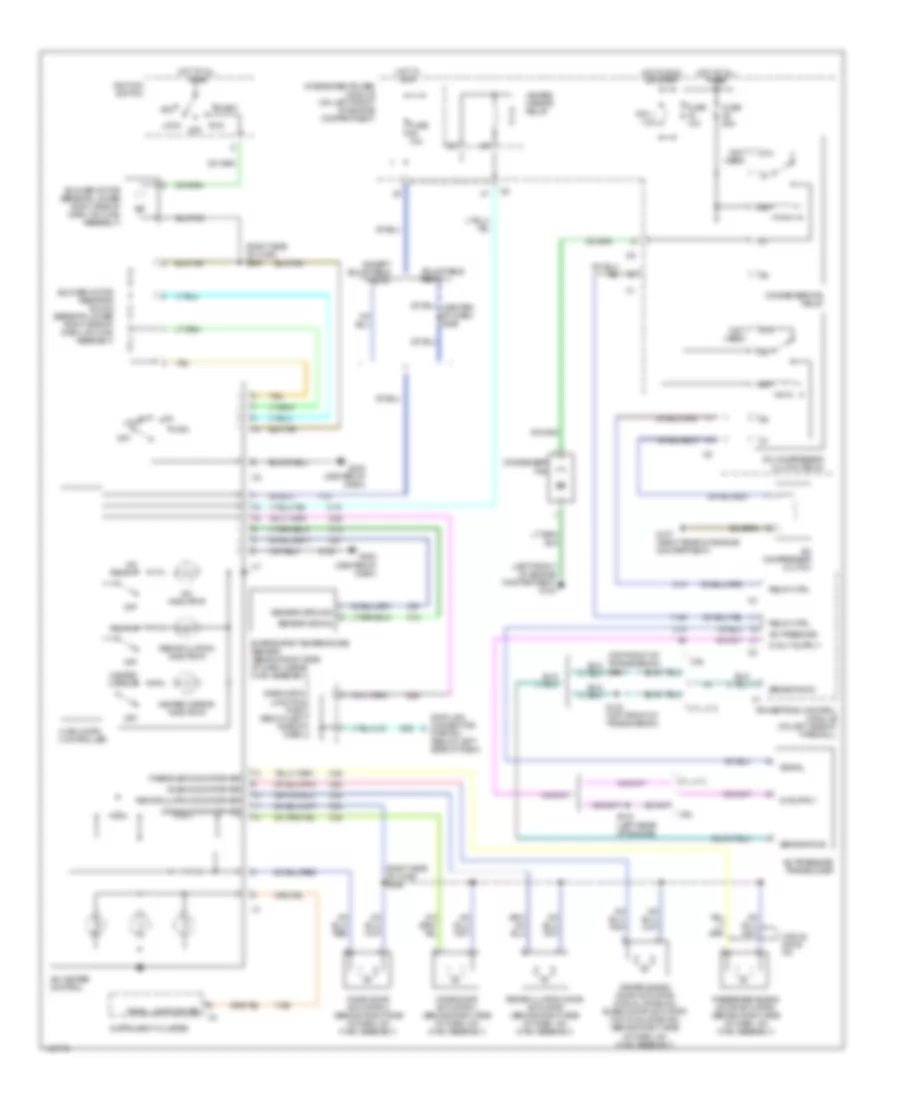

Manual A/C Wiring Diagram for Dodge Pickup R1500 2002
List of elements for Manual A/C Wiring Diagram for Dodge Pickup R1500 2002:
- (left front of engine compartment) g103
- (not used)
- (right side of hvac) s224
- (right side of hvac) s226
- 3.7l, 4.7l
- 5.9l
- 87a
- A/c compressor clutch
- A/c compressor clutch relay
- A/c heater control
- A/c indicator
- A/c press sig
- A/c pressure transducer
- A/c select
- Acc
- Adjustable pedal
- Blend door driver
- Blower motor (beneath lower right side of dash, on hvac assembly)
- Blower motor resistor block (beneath lower right side of dash, on hvac assembly)
- C12
- C13
- C16
- C18
- C32
- C34
- C35
- C46
- C57
- C62
- Common door driver
- Condenser fan
- Condenser fan relay
- D25
- Data link connector (partial) (below left side of dash)
- Diagnostic junction port (below left side of dash)
- Driver blend door actuator (w/dual zone a/c) blend door actuator (w/o dual zone a/c) (behind right side of dash, on hvac assembly)
- Evaporator temperature sensor (behind right side of dash, inside hvac assembly)
- Except adjustable pedal
- F15
- Fuse 10a
- Fuse 25a
- G107 (right rear of engine compartment)
- G202 (center of dash)
- G203 (center of dash)
- Heated mirror
- Heated mirror indicator
- Heated mirror relay
- High
- Hot at all times
- Hot in run
- Hot in run or start
- Hvac micro controller
- Ignition switch
- Instrument cluster
- Integrated power module (on left front of engine compartment)
- Lock
- Low
- Mode door actuator 1 (behind right side of dash, on hvac assembly)
- Mode door actuator 2 (behind right side of dash, on hvac assembly)
- Off
- Panel lamps driver
- Pass blend door driver
- Passenger blend door actuator (behind right side of dash, on hvac assembly)
- Powertrain control module (on left side of firewall)
- Ptc 1 7.5a
- Recirc
- Recirculation door actuator (behind right side of dash, on hvac assembly)
- Recirculation door driver
- Recirculation indicator
- Relay ctrl
- Run
- S130 (top front of transmission)
- S133 (left rear of engine)
- Sensor gnd
- Sensor ground
- Sensor signal
- Signal
- Start
- Tan
- W/dual zone a/c
- Y145
- Y165
- Z120
