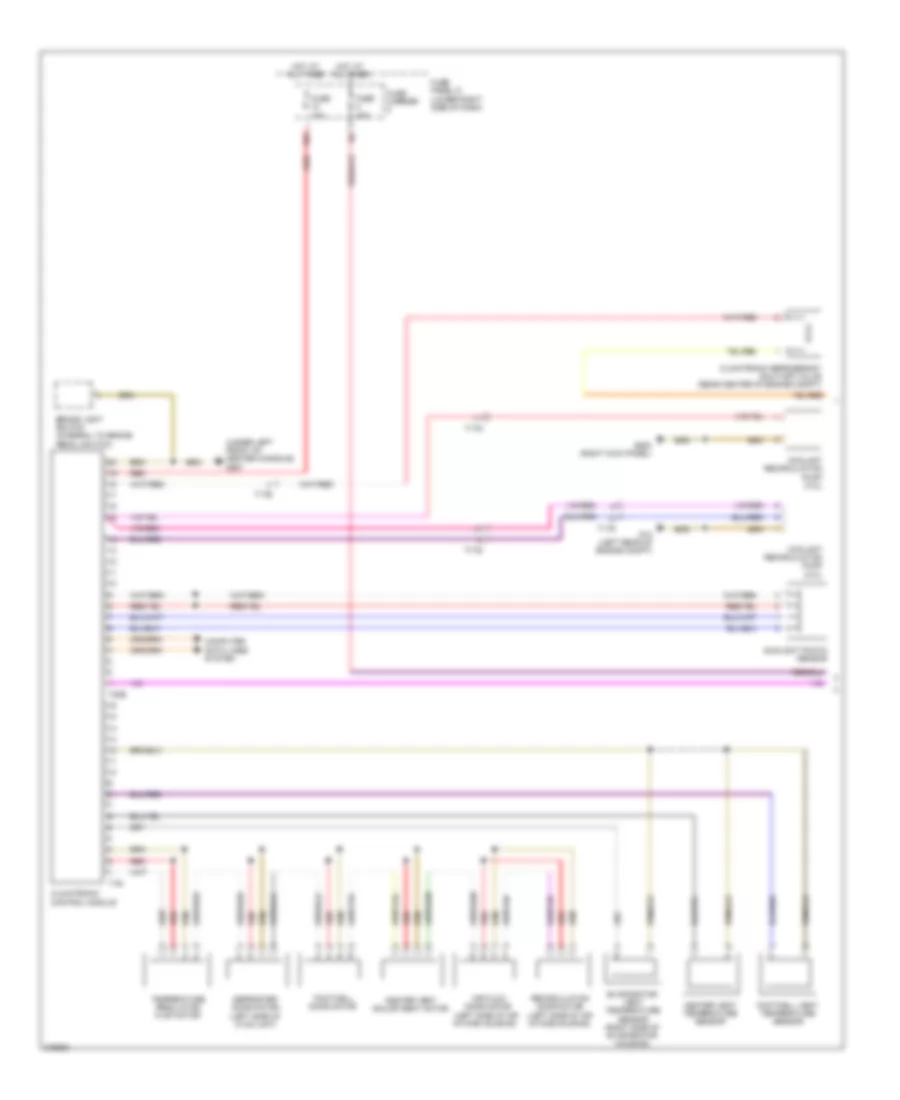

Automatic A/C Wiring Diagram, Basic (1 of 2) for Audi Q5 3.2 2012
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Automatic A/C Wiring Diagram, Basic (1 of 2) for Audi Q5 3.2 2012:
- (under left front of center console) g687
- 10a
- Air flow door motor (left side of air intake housing)
- Brake light switch (integral to brake pedal switch)
- Center vent adjustment motor
- Center vent temperature sensor
- Climatronic control module
- Climatronic refrigerant shut-off valve (rear center of engine compt)
- Computer data lines system
- Coolant recirculation pump (2.0l)
- Coolant recirculation pump (3.2l)
- Defroster door motor (left side of hvac unit)
- Evaporator vent temperature sensor (right side of evaporator housing)
- Footwell door motor
- Footwell vent temperature sensor
- Fuse 10a
- Fuse 40a
- Fuse carrier
- Fuse panel d (lower right side of dash)
- G12 (left rear of engine compt)
- G638 (right kick panel)
- Hot at all times
- Recirculation door motor (left side of air intake housing)
- Red
- Sunlight photo sensor
- T16i
- T17b
- T17g
- T17q
- T20e
- Temperature regulator flap motor
Automatic A/C Wiring Diagram, Basic (2 of 2) for Audi Q5 3.2 2012
List of elements for Automatic A/C Wiring Diagram, Basic (2 of 2) for Audi Q5 3.2 2012:
- (400w) (600w)
- (600w) coolant fan 2
- (or red)
- 11a
- 2.0l
- 3.2l
- A/c compressor regulator valve (rear of a/c compressor)
- A/c pressure/ temperature sensor (on left side of a/c condenser)
- After-run coolant pump
- Auxiliary engine coolant (ec) pump relay (w/ 8z4/8z6/8z9) (relay/fuse panel b)
- Battery jump start terminal (in center plenum chamber)
- Computer data lines system
- Coolant fan
- Coolant fan control (fc) module (on cooling fan assembly)
- Engine control module (ecm) (in left plenum chamber)
- Engine coolant temperature (ect) sensor (front of engine)
- Fresh air blower (bottom of air intake housing)
- Fresh air blower control module (below blower motor assembly)
- Fuse 1 40a 60a
- Fuse 15a
- Fuse 5a
- Fuse carrier
- Fuse panel b (driver's side plenum chamber on electronics box)
- Fuse panel c (lower left side of dash)
- G12 (left rear of engine compt)
- G639 (left kick panel)
- G685 (on right front long member)
- G687 (under left front of center console)
- Hot at all times
- Nca
- Outside air temperature sensor (behind front grille)
- Red
- T14f
- T16b
- T17i
- T17r
- T32b
- T5l
- T60
- T94
- Vehicle electrical system control module (left side of dash)
Automatic A/C Wiring Diagram, Comfort (1 of 3) for Audi Q5 3.2 2012
List of elements for Automatic A/C Wiring Diagram, Comfort (1 of 3) for Audi Q5 3.2 2012:
- (2.0l) coolant recircution pump
- (3.2l) coolant recircution pump
- 10a
- Air flow door motor (left side of air intake housing)
- Brake light switch (integral to brake pedal switch)
- Climatronic control module
- Computer data lines system
- Defroster door motor (left side of hvac unit)
- Fuse 10a
- Fuse 40a
- Fuse carrier
- Fuse panel d (lower right side of dash)
- G12 (left rear of engine compt)
- G638 (right kick panel)
- G687 (under left front of center console)
- Hot at all times
- Interior lights system
- Left center vent motor (top left of hvac unit)
- Left footwell door motor (left side of hvac unit)
- Left temperature door motor (top left of hvac unit)
- Rear temperature regulator door motor
- Recirculation door motor (left side of air intake housing)
- Red
- Right center vent motor (top right side of hvac unit)
- Right footwell door motor (lower right side of hvac unit)
- Right temperature door motor (top right side of hvac unit)
- Sunlight photo sensor
- T16i
- T17b
- T17d
- T17g
- T17q
- T20e
- Temperature control switch illumination bulb
Automatic A/C Wiring Diagram, Comfort (2 of 3) for Audi Q5 3.2 2012
List of elements for Automatic A/C Wiring Diagram, Comfort (2 of 3) for Audi Q5 3.2 2012:
- A/c compressor regulator valve (rear of a/c compressor)
- A/c pressure/ temperature sensor (on left side of a/c condenser)
- Air quality sensor (left rear of engine compt)
- Climatronic refrigerant shut-off valve (rear center of engine compt)
- Computer data lines system
- Evaporator vent temperature sensor (right side of evaporator housing)
- Fresh air blower (bottom of air intake housing)
- Fresh air blower control module (below blower motor assembly)
- Fuse 5a
- Fuse carrier
- Fuse panel c (lower left side of dash)
- G639 (left kick panel)
- G687 (under left front of center console)
- Left footwell vent temperature sensor (left side of evaporator housing)
- Left front upper body outlet temperature sensor (left side of dash)
- Nca
- Outside air temperature sensor (behind front grille)
- Right footwell vent temperature sensor (lower center of evaporator housing)
- Right front upper body outlet temperature sensor (right side of dash)
- T16b
- T17i
- T17q
- T17r
- T32b
- Vehicle electrical system control module (left side of dash)
Automatic A/C Wiring Diagram, Comfort (3 of 3) for Audi Q5 3.2 2012
List of elements for Automatic A/C Wiring Diagram, Comfort (3 of 3) for Audi Q5 3.2 2012:
- (400w) (600w)
- (600w) coolant fan 2
- (or red)
- (relay/fuse panel b)
- (w/ 8z4/8z6/8z9)
- 11a
- 2.0l
- 3.2l
- After-run coolant pump
- Auxiliary engine coolant (ec) pump relay
- Battery jump start terminal (in center plenum chamber)
- Computer data lines system
- Coolant fan
- Coolant fan control (fc) module (on cooling fan assembly)
- Engine control module (ecm) (in left plenum chamber)
- Engine coolant temperature (ect) sensor (front of engine)
- Fuse 1 40a 60a
- Fuse 15a
- Fuse 5a
- Fuse carrier
- Fuse panel b (driver's side plenum chamber on electronics box)
- G12 (left rear of engine compt)
- G671 (on lower left front long member)
- Hot at all times
- Red
- T14f
- T5l
- T60
- T94
Heated And Cooled Cup Holder Wiring Diagram for Audi Q5 3.2 2012
List of elements for Heated And Cooled Cup Holder Wiring Diagram for Audi Q5 3.2 2012:
- (under right front of center console) g688
- Cup holder cooling element button
- Cup holder heating element button
- Cup holder w/ heating & cooling element
- Fuse 10a
- Fuse carrier
- Fuse panel c (lower left side of dash)
- Power distribution system
- T32b
- T4av
- Vehicle electrical system control module (left side of dash)
