NAVIGATION – Land Rover Discovery 4 HSE 2014 – SYSTEM WIRING DIAGRAMS

NAVIGATION

Blind Spot Monitoring Wiring Diagram for Land Rover Discovery 4 HSE 2014

List of elements for Blind Spot Monitoring Wiring Diagram for Land Rover Discovery 4 HSE 2014:

• (base of left "d" pillar) c2700s
• (base of right "d" pillar) c1170s
• Alert
• C0397
• C0399 c0440
• C0440
• C0570l
• C1413 (right kick panel)
• C1536 (left kick panel)
• C2016
• C2017
• C2057 gnd
• C2058 gnd mirror
• C2244l c2242l
• Computer data lines system
• Driver side door mirror
• Driver's door module
• Engine junction box (right side of engine compt)
• Fuse 5a
• Gnd
• Hot w/ extended ignition relay energized
• Left blind spot monitoring module (behind left end of rear bumper)
• Mirr gnd
• Mirror
• Ms can h
• Ms can l
• Passenger side door mirror
• Passenger's door module
• Private can h
• Private can l
• Right blind spot monitoring module (behind right end of rear bumper)
• Status
• Status led
• System
• System alert led
• System status led
• Vbatt

Multi Camera Wiring Diagram for Land Rover Discovery 4 HSE 2014

List of elements for Multi Camera Wiring Diagram for Land Rover Discovery 4 HSE 2014:

• C0386 c0122s
• C0570l
• C1184
• C1185
• C1495d
• C1496d
• C1970 (right kick panel)
• C2626l (left kick panel)
• C2674l c2675l
• C2819l
• C2820
• C3338
• C3339
• C3340
• C3342
• C3343
• C3344
• C3346
• C3359l c3360l
• C3392l
• C3393l
• C3394
• C3395
• C3503 c0464
• C3504 c0460
• Computer data lines system
• Engine junction box (right side of engine compt)
• Fuse 5a
• Gnd
• Hot w/ extended ignition relay energized
• Ign
• Image processing module (under driver's seat)
• Left front proximity camera (behind left end of front bumper)
• Left mirror proximity camera (in left outside rearview mirror assembly)
• Lin
• Lvds +
• Lvds -
• Ms can h
• Ms can l
• Nca
• Rear view camera (left side of tailgate)
• Red
• Right front proximity camera (behind right end of front bumper)
• Right mirror proximity camera (in right outside rearview mirror assembly)
• Scr
• Shell
• Shield
• Shield gnd
• Touch screen
• Tv video
• Vid out

Navigation Wiring Diagram (1 of 4) for Land Rover Discovery 4 HSE 2014

List of elements for Navigation Wiring Diagram (1 of 4) for Land Rover Discovery 4 HSE 2014:

• (not used) c23u
• Am fm scrn
• Am fm sig
• Am/fm antenna amplifier (right rear of headliner, above window)
• Ant power
• Aux 1 l+
• Aux 1 r & l-
• Aux 1 r+
• Batt
• C22c
• C22d
• C23ac
• C23ad
• C23d c23c
• C23e
• C23f
• C23g
• C23h
• C23m
• C23n
• C23p
• C23r
• C23v
• C23w
• C23x
• C2mc02a
• C2mc02b
• C2mc02c
• C2mc02e
• C2mc02j
• C2me05a
• C2me05c
• C2me05d
• C2me05e
• C2me05f
• C2me05g
• C2me05h
• C4br02g
• C94e
• C94f
• C9me115a
• C9me115b
• Coax
• Computer data lines system
• Cvbs gnd
• Cvbs sig
• Cvbs video scn
• Cvbs video sig
• Diag gnd
• Ferrite core
• Fm antenna amplifier (left rear of headliner, above window)
• Fm2 scrn
• Fm2 sig
• Fuse d1 10a
• Fuse d10 5a
• Fuse d2 15a
• G2d114 (behind glove compt)
• G6d139 (behind glove compt)
• Global positioning system (gps) antenna
• Gnd
• Gps scr
• Gps sig
• Hot at all times
• Integrated audio module
• Integrated control panel
• Lhs
• Lvds data out +
• Lvds data out -
• Lvds pos
• Lvds scr
• Mic 1+
• Mic 1-
• Most in
• Most out
• Ms can h
• Ms can l
• Nca
• Rear junction box (rjb) (left front corner of luggage compt)
• Rearview camera (center right of tail door)
• Red
• Rhs
• Scr
• Scr gnd
• Sws
• Touch screen
• Usb data pos
• Usb gnd
• Usb pos
• Usb shield
• Vbatt
• Vid out

Navigation Wiring Diagram (2 of 4) for Land Rover Discovery 4 HSE 2014

List of elements for Navigation Wiring Diagram (2 of 4) for Land Rover Discovery 4 HSE 2014:

• (center rear of headliner) dab antenna amplifier
• Audio sw o/p
• Av input panel
• Band 3 scr
• Band 3 sig
• C23c
• C23d
• C23u
• C23v
• C2ls41c
• C2ls41d
• C2r115c
• C4br02g
• C4me24a
• C4me24b
• C4me24c
• C4me41a
• C4me41c
• Clock spring (in steering wheel)
• Computer data lines system
• Dab antenna
• Digital radio control module
• Front overhead console
• Fuse d3 10a
• G3d134 (under left side of dash)
• G4d102b (at left "d" pillar)
• Gnd
• Hot at all times
• Hs can h
• Hs can l
• Interior lights system
• L-band scr
• L-band sig
• Lh+
• Lh-
• Mic +
• Mic -
• Microphone
• Most in
• Most out
• Nca
• Pnk
• Rear junction box (rjb) (left front corner of luggage compt)
• Red
• Remote cruise controls
• Rf out
• Rh+
• Rh-
• Sat rf gnd
• Sat rf in
• Satellite radio control module
• Scr
• Sdars antenna (center rear of headliner)
• Sdars scr
• Sdars sig
• Steering wheel module
• Sws gnd
• Vbatt

Navigation Wiring Diagram (3 of 4) for Land Rover Discovery 4 HSE 2014

List of elements for Navigation Wiring Diagram (3 of 4) for Land Rover Discovery 4 HSE 2014:

• C23g
• C23h
• C25a
• C25b
• C25c
• C26a
• C26b
• C26c
• C4br02g
• Center speaker
• Fuse link 11 40a
• Hot at all times
• Ice remote switch
• Left front door bass speaker
• Left front tweeter
• Left rear surround sound speaker
• Mode switch
• Phone end switch
• Phone send switch
• Pnk
• Rear junction box (rjb) (left front corner of luggage compt)
• Red
• Right front door bass speaker
• Right front tweeter
• Right rear surround sound speaker
• Seek down switch
• Seek up switch
• Transmissions system
• Volume + switch
• Volume - switch

Navigation Wiring Diagram (4 of 4) for Land Rover Discovery 4 HSE 2014

List of elements for Navigation Wiring Diagram (4 of 4) for Land Rover Discovery 4 HSE 2014:

• Audio amplifier module (right side of luggage compt)
• C23g
• C23h
• C23u
• C23v
• C27a
• C27b
• C28a
• C28b
• C3me22a
• C3me22c
• C3me22d
• C3me22e
• C3me22f
• Center+
• Center-
• Computer data lines system
• G3d102 (at right "d" pillar)
• Gnd
• Left front mid range speaker
• Left rear door bass speaker
• Left rear tweeter
• Lf h+
• Lf h-
• Lf l+
• Lf l-
• Lf m+
• Lf m-
• Lr dr+
• Lr dr-
• Lr h+
• Lr h-
• Lr s+
• Lr s-
• Most in
• Most out
• Rbd gnd
• Rbd pwr
• Red
• Rf h+
• Rf h-
• Rf l+
• Rf l-
• Rf m+
• Rf m-
• Right front mid range speaker
• Right rear door bass speaker
• Right rear tweeter
• Rr dr+
• Rr dr-
• Rr h+
• Rr h-
• Rr s+
• Rr s-
• Spk 1+
• Spk 1-
• Spk 2+
• Spk 2-
• Sub woofer
• Vbatt

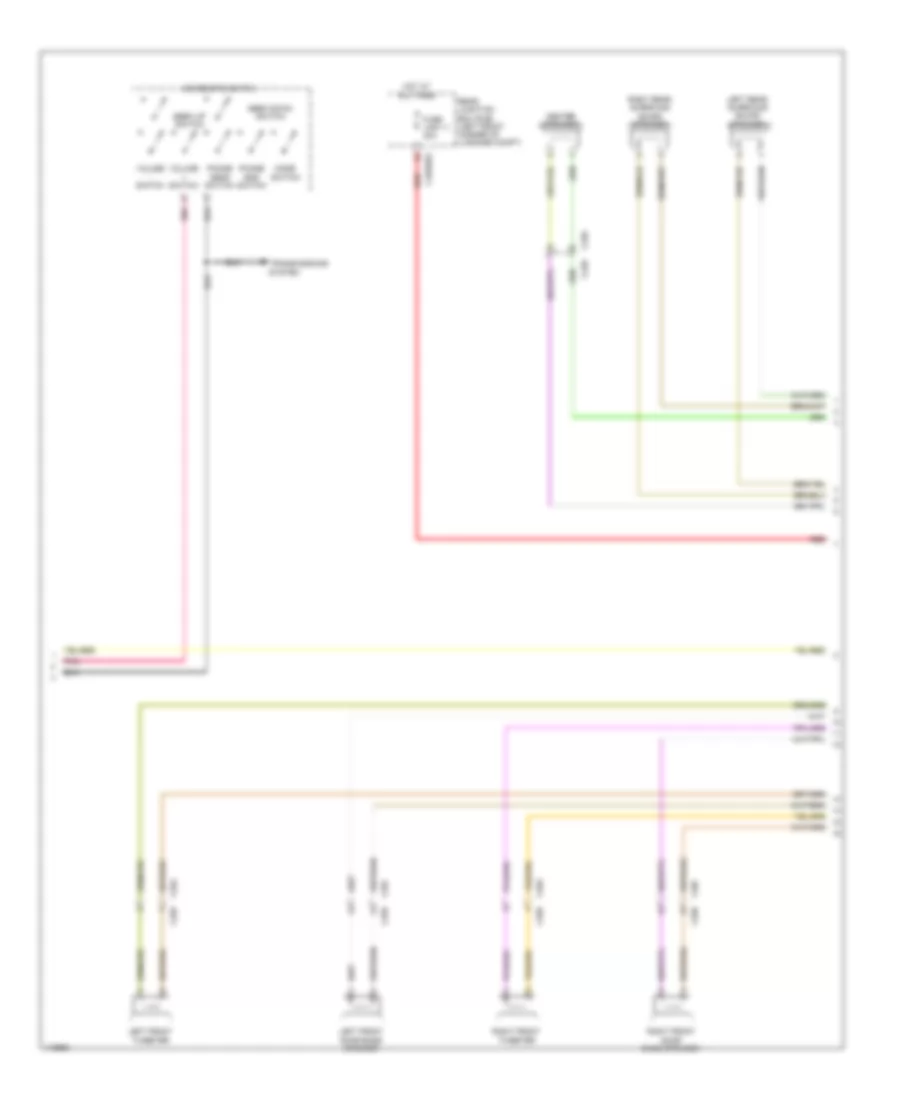

Parking Assistant Wiring Diagram for Land Rover Discovery 4 HSE 2014

List of elements for Parking Assistant Wiring Diagram for Land Rover Discovery 4 HSE 2014:

• (right kick panel) c2630l
• Body control module (bcm)
• C0570l
• C0581
• C0583l
• C0586l
• C0876s c2003
• C0957
• C0958
• C1166l c1168l
• C2242l c2244l
• C2277
• C2278
• C2928s (base of left "d" pillar)
• Center instrument panel switchpack
• Central junction box (right side of dash)
• Computer data lines system
• Dcm ign
• Engine junction box (right side of engine compt)
• Extended ignition fet
• Front pdc switch
• Fusible link 17 50a
• Gnd
• Gnd front
• Gnd rear
• Hot at all times
• Hs can h
• Hs can l
• Ign
• Ign front
• Ign rear
• Kl 30a
• Led-out
• Left front inner parking aid sensor (behind left side of front bumper)
• Left front outer parking aid sensor (behind left side of front bumper)
• Left rear inner parking aid sensor (behind left side of rear bumper)
• Left rear outer parking aid sensor (behind left end of rear bumper)
• Ms can h
• Ms can l
• Parking aid module (left front of luggage compt)
• Red
• Right front inner parking aid sensor (behind right side of front bumper)
• Right front outer parking aid sensor (behind right side of front bumper)
• Right rear inner parking aid sensor (behind right side of rear bumper)
• Right rear outer parking aid sensor (behind right end of rear bumper)
• Sig
• Sig fl inner
• Sig fl outer
• Sig fr inner
• Sig fr outer
• Sig rl inner
• Sig rl outer
• Sig rr inner
• Sig rr outer
• Switch pas
• Telltale ind

Rear View Camera Wiring Diagram for Land Rover Discovery 4 HSE 2014

List of elements for Rear View Camera Wiring Diagram for Land Rover Discovery 4 HSE 2014:

• C0109s
• C0144s
• C0385
• C0387
• C0570l
• C1184
• C1185
• C1495a
• C1495c
• C1496a
• C1496c
• C2568s (base of left "d" pillar)
• C2820
• Computer data lines system
• Door handle module
• Engine junction box (right side of engine compt)
• Fuse 15 5a
• Gnd
• Hot w/ extended ignition relay energized
• Lvds +
• Lvds -
• Ms can h
• Ms can l
• Nca
• Pwr
• Rear view camera
• Scr
• Touch screen display
• Tv video

Vehicle Proximity Notification Wiring Diagram for Land Rover Discovery 4 HSE 2014

List of elements for Vehicle Proximity Notification Wiring Diagram for Land Rover Discovery 4 HSE 2014:

• C0397
• C0399
• C0440
• C0556l (left kick panel)
• C0570l
• Computer data lines system
• Driver side door mirror
• Engine junction box (right side of engine compt)
• Ext ign
• Fuse 5a
• General proximity sensor module (left kick panel)
• Gnd
• Gnd left
• Gnd right
• Hot w/ extended ignition relay energized
• Hs can h
• Hs can l
• Ign left
• Ign right
• Passenger side door mirror
• Sig
• Sig left
• Sig right
• Supp
