Air Conditioning — Lincoln Mkt EcoBoost 2014 Wiring Diagram

AIR CONDITIONING

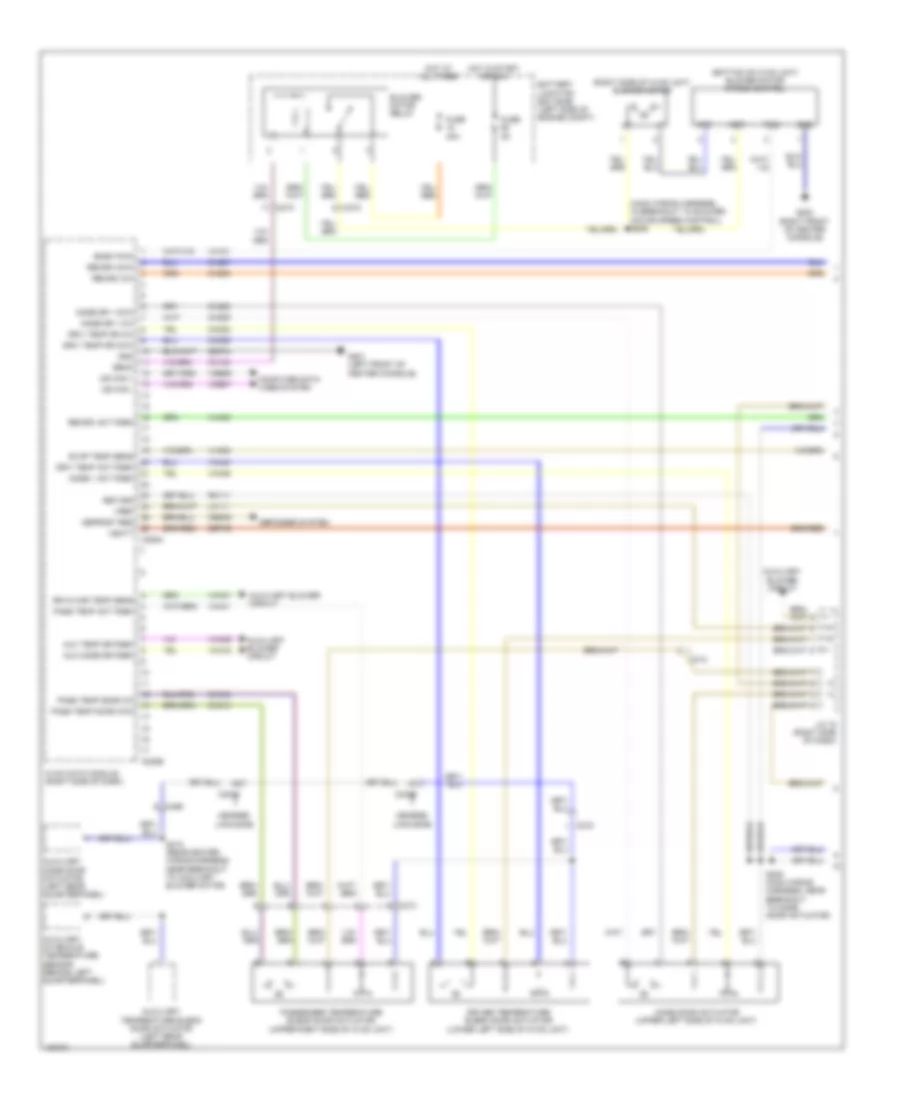

Automatic A/C Wiring Diagram (1 of 4) for Lincoln MKT EcoBoost 2014

List of elements for Automatic A/C Wiring Diagram (1 of 4) for Lincoln MKT EcoBoost 2014:

(bottom of hvac unit) blower motor speed control
(main wiring harness, in breakout to blower motor speed control) s206
(right side of hvac unit) blower motor
Aux mode dr fdbk
Aux temp dr fdbk
Auxiliary blower circuit
Auxiliary in-vehicle temperature sensor (behind left quarterpanel)
Auxiliary mode door actuator (left rear quarterpanel)
Auxiliary temperature blend door actuator (left rear quarterpanel)
Battery junction box (bjb) (left side of engine compt)
Blower motor relay
Bmsc pwm
Brmc
C210
C213
C215
C228a
C228b
C3309
C3519
C465
Ch123
Ch207
Ch208
Ch212
Ch213
Ch228
Ch229
Ch238
Ch239
Computer data lines system
Crd02
Defogger system
Defrost req
Driv temp act fdbk
Driv temp dr ccw
Driv temp dr cw
Driver temperature blend door actuator (lower left side of hvac unit)
Evap temp sens
Fuse 40a
Fuse 5a
G200 (right front of center console)
G201 (left front of center console)
Gd374
Gnd
Hearse/ limousine
Hot at all times
Hot in start or run
Hvac datc module (right side of dash)
J/c 18 (right side of dash)
Lh111
Mode 1 act fdbk
Mode door actuator (upper left side of hvac unit)
Mode dr 1 ccw
Mode dr 1 cw
Mot+
Mot-
Ms can +
Ms can -
Pass temp act fdbk
Pass temp door ccw
Pass temp door cw
Passenger temperature blend door actuator (upper right side of hvac unit)
Pwm
Recirc act fdbk
Recirc ccw
Recirc cw
Return
Rh111
Rr in car temp sens
S205 (main wiring harness, near breakout to mode door actuator)
S410 (rear heater wiring harness, near breakout to auxiliary blower motor)
Sbp46
Vbatt
Vdb06
Vdb07
Vh101
Vh406
Vh436
Vh438
Vh440
Vh441
Vha09
Vha18
Vha31
Vref

Automatic A/C Wiring Diagram (2 of 4) for Lincoln MKT EcoBoost 2014

List of elements for Automatic A/C Wiring Diagram (2 of 4) for Lincoln MKT EcoBoost 2014:

(right side of hvac unit) air inlet mode door actuator
(top center of dash) autolamp/sunload sensor
Abm pwm command
Abmrc
Aux mode door ccw
Aux mode door cw
Aux temp door ccw
Aux temp door cw
Auxiliary blower circuit
Body control module (bcm) (lower left end of dash)
C2280a
C2280b
C228b
C228c
Ch112
Ch242
Ch243
Ch244
Ch245
Dr sunload
Evaporative discharge air temperature sensor (left side of hvac unit)
Fuse 10a
Fuse 5a
G200 (right front of center console)
G201 (left front of center console)
Gd375
Green
Hot at all times
Hot in start or run
Humidity sense
Humidity sensor
Hvac datc module (right side of dash)
In vehicle temp sens
In-vehicle temperature/ humidity sensor (lower left center of dash)
Interior lights system
Led gnd
Led return
Pass sunload
Red
Rln44
S203 (except base)
S207
Sig
Vh413
Vh414
Vh416
Vh417
Vha25
Vln48
Vln49
Vln50
Vln58

Automatic A/C Wiring Diagram (3 of 4) for Lincoln MKT EcoBoost 2014

List of elements for Automatic A/C Wiring Diagram (3 of 4) for Lincoln MKT EcoBoost 2014:

(dash panel to headlamp junction wiring harness, near breakout to turbocharger boost pressure/charge air cooler temperature sensor)
(engine wiring harness, near breakout to coil on plug 2) s112
2.0l turbo
3.7l
A/c clutch relay
A/c compressor clutch field coil (left front of engine)
A/c pressure transducer (right front of engine compt)
Aat
Accr
Acpt
Ambient air temperature sensor (behind right side of front bumper)
Autolamp sens in
Battery junction box (bjb) (left side of engine compt)
Body control module (bcm) (lower left end of dash)
C1381b
C1381e
C144
C175b
C175e
C192
C2280b
C2280f
Cec01
Cec02
Ch302
Computer data lines system
Cylinder head temperature sensor (3.5l turbo: rear of right cylinder head) (3.7l: front of right cylinder head)
Ect (or cht)
Engine controls system
Engine coolant temperature sensor (right rear of cylinder head)
Evdc
Except 2.0l turbo
Except 3.7l
Externally controlled variable displacement compressor (left front of engine)
Fuse 10a
Fuse 15a
G101 (left side of engine compt)
Hfc
Hot at all times
Hot w/ pcm power relay energized
Hs can +
Hs can -
Hs can+
Hs can-
Le424
Lfc
Micro
Powertrain control module (pcm) (right rear of engine)
Re407
Re454 (or re405)
S124 (dash panel to headlamp wiring harness)
S137
S138
S148
Sigrtn
Vdb04
Vdb05
Ve462
Ve716 (or ve712)
Ve750
Vh433
Vlf14
Vref

Automatic A/C Wiring Diagram (4 of 4) for Lincoln MKT EcoBoost 2014

List of elements for Automatic A/C Wiring Diagram (4 of 4) for Lincoln MKT EcoBoost 2014:

(left side of engine compt) g101
Battery junction box (bjb) (left side of engine compt)
Engine cooling fan motor 1 (2.0l turbo) engine cooling fan motor 2 (except 2.0l turbo) (2.0l turbo: behind right side of radiator) (except 2.0l turbo: behind left side of radiator)
Engine cooling fan motor 2 (2.0l turbo) engine cooling fan motor 1 (except 2.0l turbo) (except 2.0l turbo: behind right side of radiator) (2.0l turbo: behind left side of radiator)
Fan control (fc) relay
Fuse 25a
Fuse 40a
G100 (right front of engine compt)
High fan control (hfc) relay
Hot at all times
Low fan control (lfc) relay
Red
S121 (dash panel to headlamp junction wiring harness, near breakout to battery junction box)

Auxiliary Blower Wiring Diagram for Lincoln MKT EcoBoost 2014

List of elements for Auxiliary Blower Wiring Diagram for Lincoln MKT EcoBoost 2014:

(+)
(-)
(left front of center console) g201
(left rear of cargo area) g401
(rear heater wiring harness, near breakout to auxiliary blower motor)
Abm pwm comand
Abmrc
Automatic a/c circuit
Aux mode door ccw
Aux mode door cw
Aux mode door fdbk
Aux temp door ccw
Aux temp door cw
Aux temp door fdbk
Auxiliary blower motor (left rear quarterpanel)
Auxiliary blower motor control (left rear quarterpanel)
Auxiliary blower motor relay
Auxiliary in-vehicle temperature sensor (behind left quarterpanel)
Auxiliary mode door actuator (left rear quarterpanel)
Auxiliary temperature blend door actuator (left rear quarterpanel)
Battery junction box (bjb) (left side of engine compt)
Body control module (bcm) (lower left end of dash)
C210
C214
C215
C2280a
C2280d
C228a
C228b
C3309
C3368
C3519
C465
Ch112
Ch242
Ch243
Ch244
Ch245
Chs47
Chs48
Chs49
Chs51
Chs52
Chs53
Computer data lines system
Fuse 10a
Fuse 30a
Fuse 5a
G201 (left front of center console)
Gd374
Gnd
Ground
Hearse/ limousine
Hot at all times
Hot in start or run
Hvac datc module (right side of dash)
J/c 18 (right side of dash)
Lh high led
Lh low led
Lh sys low/high/off
Lh111
Ms can +
Ms can -
Power distribution system
Pwm
Return
Rh high led
Rh low led
Rh sys low/high/off
Rh111
Rhvac module (under center console)
Rr in car temp sens
S142
S205 (main wiring harness, near breakout to mode door actuator)
S335 (livery w/ standard console)
S410
S411 (rear heater wiring harness, near breakout to auxiliary blower motor)
Sbp06
Sbp46
Seats system
Vbatt
Vdb06
Vdb07
Vha09
Vha18
Vha25
Vha31
Vref
W/ standard console

Cool Box Wiring Diagram for Lincoln MKT EcoBoost 2014

List of elements for Cool Box Wiring Diagram for Lincoln MKT EcoBoost 2014:

Body control module (bcm) (lower left end of dash)
C214
C2280b
C3049
C3415
Ch1
Ch2
Ch3
Compressor
Compressor run/stop speed sense
Condenser cooling fan
Driver compressor module
Error code
Fuse 10a
G200 (right front of center console)
Gnd
Hot in start or run
Red
Refrigerator
Refrigerator controller circuit board
Refrigerator switch
Refrigerator temperature sensor
S300
Signal gnd
Under voltage sense vref
Vpwr

AIR CONDITIONING – Lincoln MKT EcoBoost 2014 – SYSTEM WIRING DIAGRAMS
