ANTI-THEFT

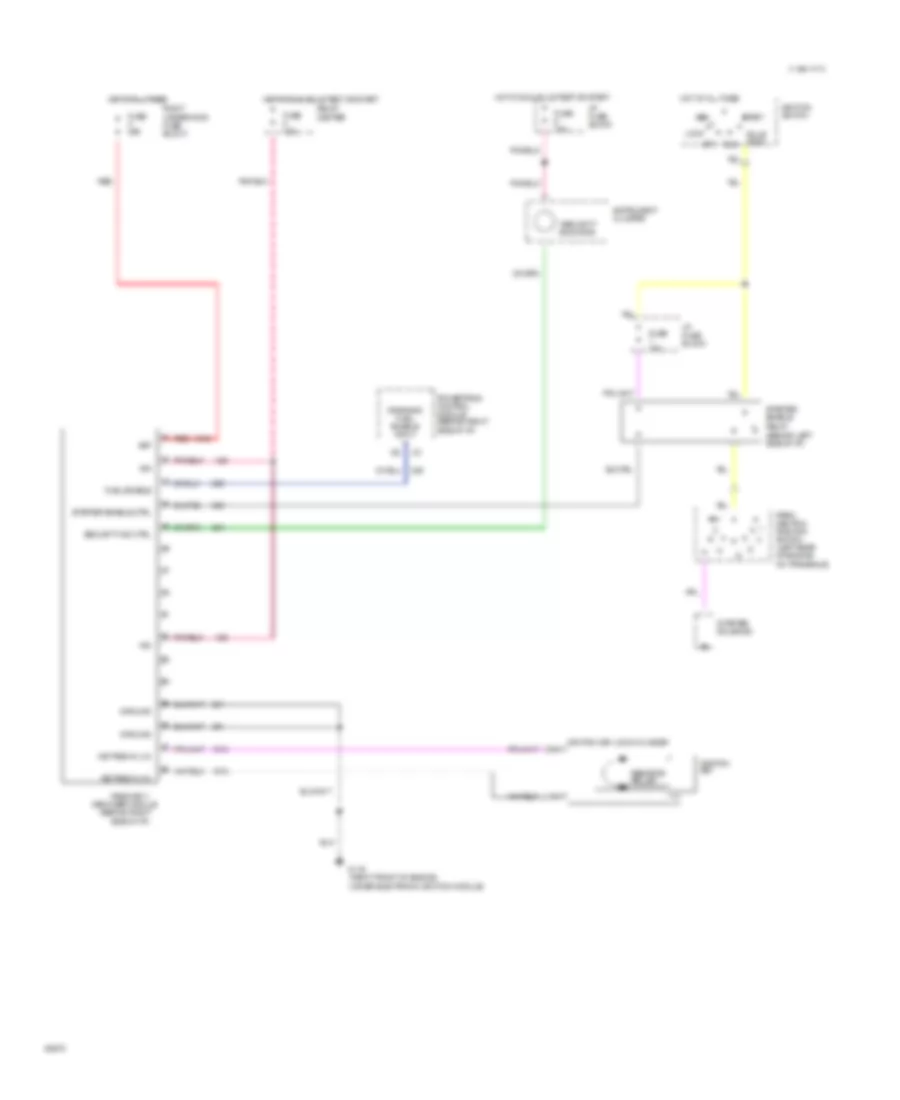

Pass-Key Wiring Diagram for Oldsmobile Ninety-Eight Regency Elite 1993
List of elements for Pass-Key Wiring Diagram for Oldsmobile Ninety-Eight Regency Elite 1993:
- "security" indicator
- (behind left side of i/p)
- (behind right side of i/p)
- Acc
- Bat
- Bulb test
- C 1994 vftc
- Cranking fuel enable input
- Decoder module
- Fuel enable
- Fuse 10a
- Fuse 15a
- Fuse 20a
- G119 (right front of engine,
- Ground
- Hot at all times
- Hot in run, bulb test or start
- I/p fuse block
- Ign
- Ignition key
- Ignition switch
- Instrument cluster
- Key res in (hi)
- Key res in (lo)
- Lock
- Off
- Park/ neutral position switch (left rear of engine on transaxle)
- Pass key ii
- Powertrain control module (behind right side of i/p)
- Red
- Relay center
- Resistor pellet
- Right underhood fuse block
- Run
- Security ind ctrl
- Start
- Starter enable ctrl
- Starter enable relay
- Starter solenoid
- Under electronic ignition module)
