AIR CONDITIONING – Suzuki SX4 Crossover 2008 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

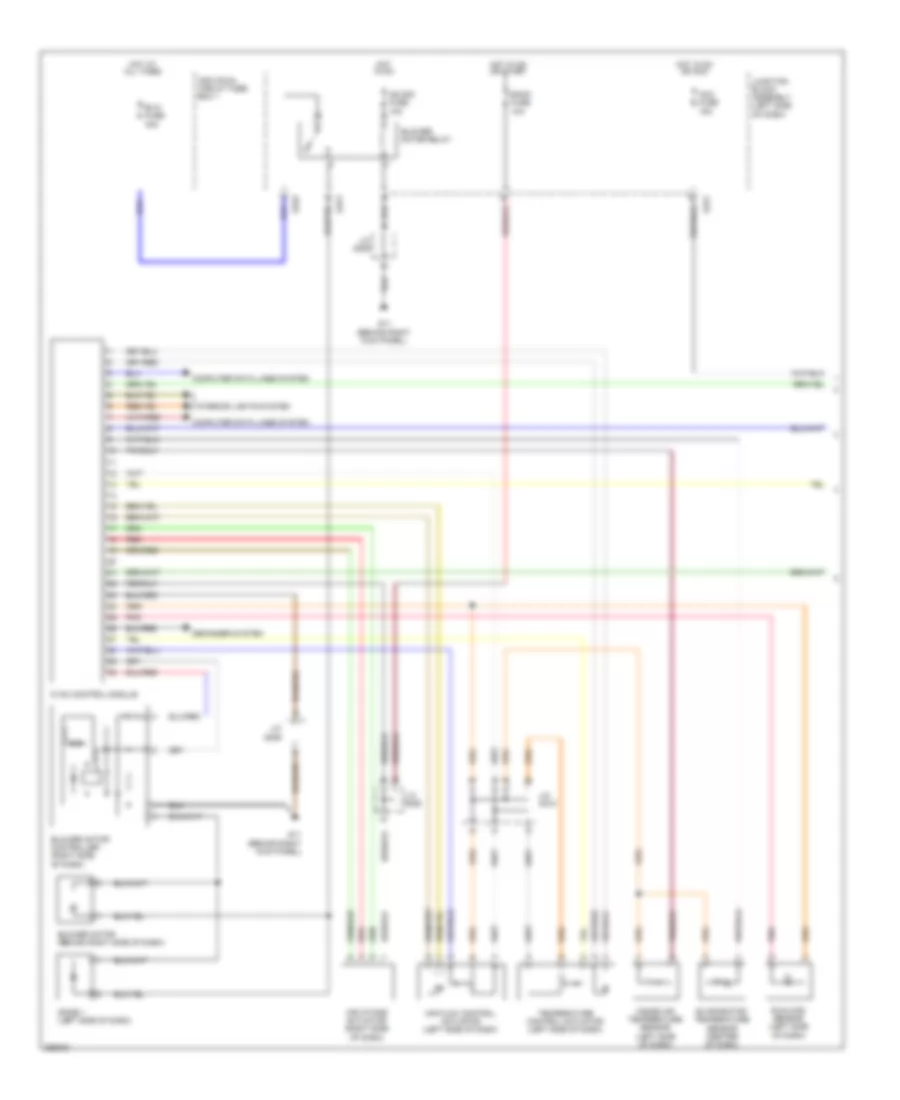

Automatic A/C Wiring Diagram (1 of 2) for Suzuki SX4 Crossover 2008

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Suzuki SX4 Crossover 2008:

33

• Acc fuse 15a
• Air flow control actuator (left side of dash)
• Air intake actuator (right side of dash)
• Back fuse 10a
• Blower motor (behind right side of dash)
• Blower motor controller (right side of dash)
• Blower motor relay
• Blw fuse 30a
• Computer data lines system
• Defogger system
• Diode 1 (left side of dash)
• E323
• Evaporator temperature sensor (center of dash)
• G11 (behind right kick panel)
• G272
• G273
• Hot at all times
• Hot in on
• Hot in on or acc
• Hot in on or start
• Hvac control module
• Ig2 sig fuse 10a
• Individual circuit fuse box 1
• Inside air temperature sensor (left side of dash)
• Interior lights system
• J/c g306
• J/c g309
• J/c g310
• Junction block assembly (left side of dash)
• Pnk
• Red
• Sunload sensor (left side of dash)
• Temperature control actuator (left side of dash)

Automatic A/C Wiring Diagram (2 of 2) for Suzuki SX4 Crossover 2008

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Suzuki SX4 Crossover 2008:

25

• A/c compressor (left front of engine)
• A/c compressor relay (left side of engine compartment)
• A/c fuse 20a
• A/c refrigerant pressure sensor (right rear of engine compt)
• Body control module (left side of dash)
• C01
• Condenser fan motor
• Condenser fan relay (left side of engine compartment)
• E01
• Ect sensor (rear of engine)
• Engine control module (at side of battery)
• Fi fuse 15a
• G04
• G05
• G9 (at right front strut tower)
• Hot at all times
• Individual circuit fuse box 1
• J/c g308
• Main relay (left side of engine compartment)
• Radiator fan motor (at radiator assembly)
• Radiator fan relay 1 (left side of engine compartment)
• Radiator fan relay 2 (left side of engine compartment)
• Radiator fan relay 3 (left side of engine compartment)
• Rdtr fuse 30a
• Red

Manual A/C Wiring Diagram (1 of 2) for Suzuki SX4 Crossover 2008

List of elements for Manual A/C Wiring Diagram (1 of 2) for Suzuki SX4 Crossover 2008:

36

• (behind left kick panel) g13
• (right side of dash) air intake actuator
• A/c compressor (left front of engine)
• A/c compressor relay (left side of engine compt)
• A/c fuse 20a
• A/c switch
• Back fuse 10a
• Bcm (left side of dash)
• Blower motor (behind right side of dash)
• Blower motor controller (right side of dash)
• Blower motor relay
• Blower speed selector
• Defogger system
• Dome fuse 15a
• E323
• Fre
• G05
• G11 (behind right kick panel)
• G271
• G272
• G273
• Harf rec circuit
• Hot at all times
• Hot in on
• Hot in on or start
• Hvac control unit (center of dash)
• Ig2 sig fuse 10a
• Individual circuit fuse box 1
• Interior lights system
• J/b assembly (left side of dash)
• J/c g306
• J/c g308
• J/c g309
• Rear defogger
• Rec
• Red

Manual A/C Wiring Diagram (2 of 2) for Suzuki SX4 Crossover 2008

List of elements for Manual A/C Wiring Diagram (2 of 2) for Suzuki SX4 Crossover 2008:

21

• A/c refrigerant pressure sensor (right rear of engine compat)
• Blw fuse 30a
• C01
• Condenser fan motor (at front of engine compt)
• Condenser fan relay (left side of engine compt)
• E01
• Ecm (at side of battery)
• Ect sensor (rear of engine)
• Engine controls system
• Evaporator temperature sensor (center of dash)
• Fi fuse 15a
• G9 (at right front strut tower)
• Hot at all times
• Individual circuit fuse box 1
• Main relay (left side of engine compt)
• Radiator fan motor (at radiator assembly)
• Radiator fan relay 1 (left side of engine compt)
• Radiator fan relay 2 (left side of engine compt)
• Radiator fan relay 3 (left side of engine compt)
• Rdtr fuse 30a
• Red
