EXTERIOR LIGHTS – Nissan 240SX SE 1997 – SYSTEM WIRING DIAGRAMS

EXTERIOR LIGHTS

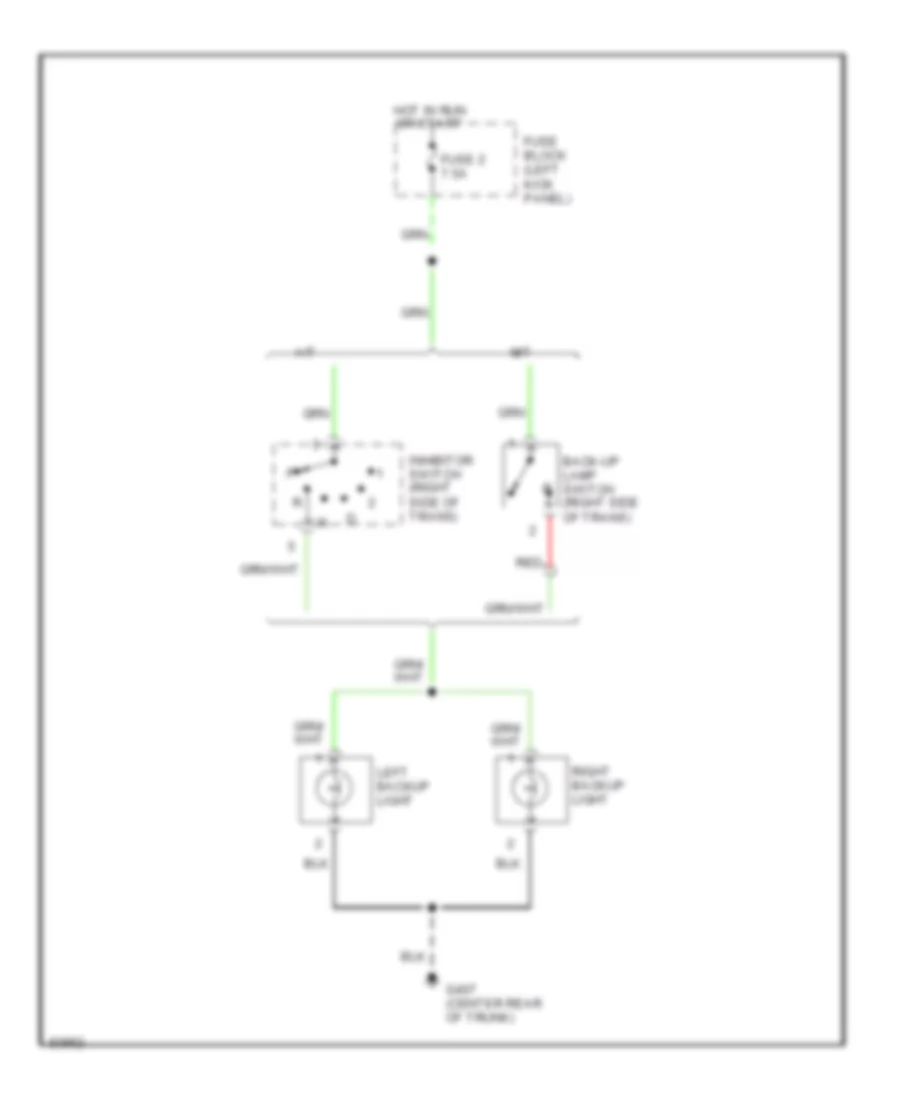

Back-up Lamps Wiring Diagram for Nissan 240SX SE 1997

List of elements for Back-up Lamps Wiring Diagram for Nissan 240SX SE 1997:

• A/t
• Back-up lamp switch (right side of trans)
• Fuse 2 7.5a
• Fuse block (left kick panel)
• G407 (center rear of trunk)
• Hot in run or start
• Inhibitor switch (right side of trans)
• Left backup light
• M/t
• Red
• Right backup light

Exterior Lamps Wiring Diagram for Nissan 240SX SE 1997

List of elements for Exterior Lamps Wiring Diagram for Nissan 240SX SE 1997:

• (behind left headlight)
• (behind right headlight)
• (center rear of trunk)
• 1st
• 2nd
• Combination flasher unit (left side of dash)
• Fuse 3 10a
• Fuse 4 10a
• Fuse 5 10a
• Fuse 7 10a
• Fuse block (left kick panel)
• G106
• G107
• G200 (left kick panel)
• G203 (right kick panel)
• G407
• Hazard
• Hazard switch
• High mounted stop
• Hot at all times
• Hot in on or start
• Instrument cluster
• Interior lights system
• Lamp
• Left front side marker lamp
• Left front turn lamp
• Left parking lamp
• Left rear com- bination lamp
• Left rear side marker lamp
• Left turn ind
• License lamp
• Lighting switch
• Multi- remote control relay 1 (below left rear window)
• Multi- remote control relay 2 (below left rear window)
• Off
• Right front side marker lamp
• Right front turn lamp
• Right parking lamp
• Right rear com- bination lamp
• Right rear side marker lamp
• Right turn ind
• Smart entrance control unit (left side of dash)
• Stop
• Stop lamp switch
• Tail
• Turn
• Turn signal switch
• W/ multi remote
• W/o multi remote
