AIR CONDITIONING
2.0L VIN P

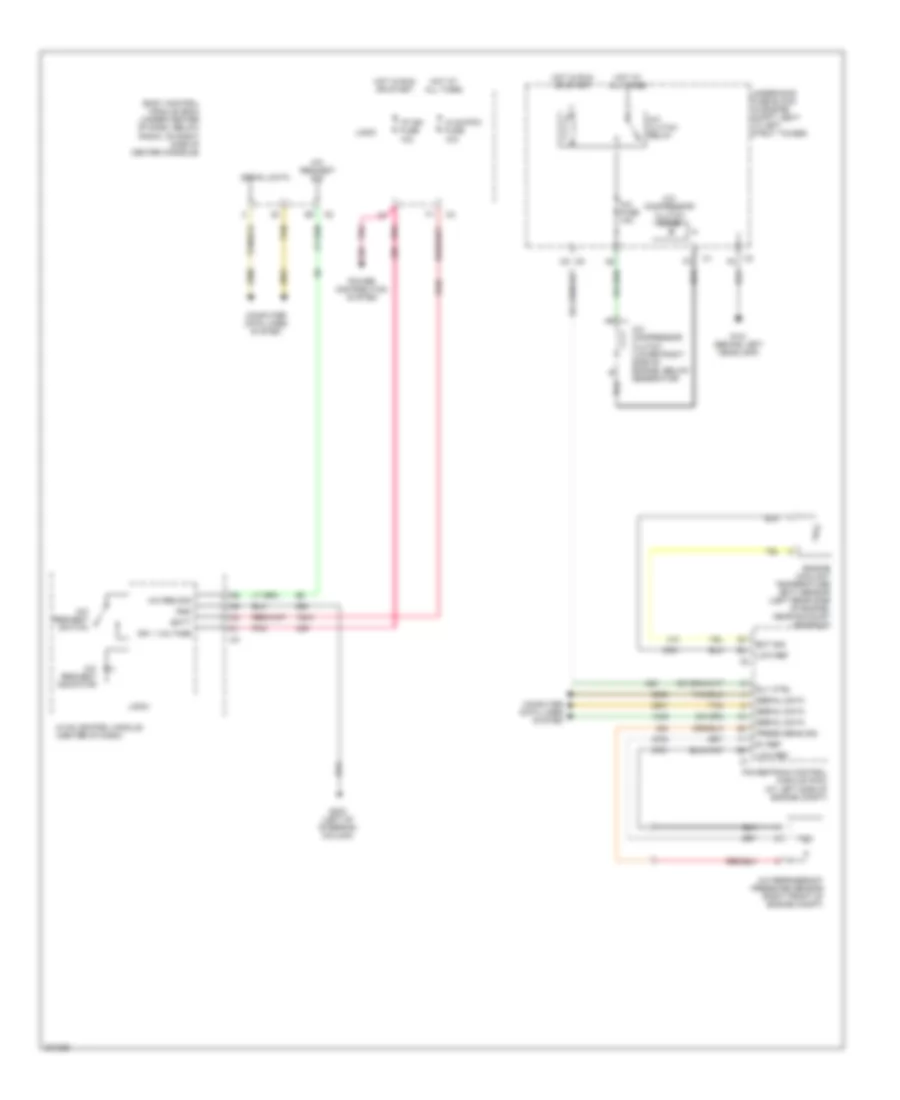

2.0L VIN P, Compressor Wiring Diagram for Chevrolet Cobalt 2005
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for 2.0L VIN P, Compressor Wiring Diagram for Chevrolet Cobalt 2005:
- 5v ref
- A/c clutch relay
- A/c compressor clutch (lower right side of engine, below generator)
- A/c compressor clutch diode
- A/c fuse 10a
- A/c refrigerant pressure sensor (right front of engine compt)
- A/c req sig
- A/c request indicator
- A/c request sig
- A/c request switch
- Batt
- Body control module (bcm) (under center of dash, below radio, on right side of center console)
- C3 f2
- C5 c5
- Computer data lines system
- Ect sig
- Engine coolant temperature (ect) sensor (left rear side of engine, near exhaust manifold)
- G101 (behind left headlamp)
- G203 (left of steering column)
- Gnd
- Hot at all times
- Hot in run or start
- Hvac control module (center of dash)
- Hvac/pk3 fuse 10a
- I/p ign fuse 10a
- Ign 1 voltage
- Logic
- Low ref
- Pnk
- Power distribution system
- Powertrain control module (pcm) (at left side of engine compt)
- Press sens sig
- Rly ctrl
- Serial data
- Tan
- Underhood fuse block (in engine compt, next to left strut tower)
2.0L VIN P, Manual A/C Wiring Diagram (1 of 2) for Chevrolet Cobalt 2005
List of elements for 2.0L VIN P, Manual A/C Wiring Diagram (1 of 2) for Chevrolet Cobalt 2005:
- (in hvac jumper harn, 4.9 cm from hvac contol assembly) s261
- 5 volt ref
- A/c req sig
- A/c request indicator
- A/c request sig
- A/c request switch
- Batt
- Bcm 3 fuse 30a
- Blower motor (under right side of dash)
- Blower motor resistor (under right side of dash, next to blower motor)
- Blower motor switch
- Body control module (bcm) (under center of dash, below radio, on right side of center console)
- C4 c2
- Close recir door
- Computer data lines system
- Culation indicator
- Fresh air indicator
- G203 (left of steering column)
- Gnd
- Ground
- High
- Hot at all times
- Hot in run or start
- Hvac control module (under center of dash)
- Hvac relay
- Hvac/pk3 fuse 10a
- I/p ign fuse 10a
- Ign 1 voltage
- Interior lights system
- Logic
- Low
- Mode 1 vlv
- Mode door cntrl
- Mode switch
- Off
- Open recir door
- Pass air temp dr cntrl
- Pass air temp dr pos
- Pnk
- Power distribution system
- Rear defogger system
- Recir-
- Recir- culation switch
- Rr defog relay cntrl
- Rr defog switch sig
- Run/ crank relay control
- Serial data
- Tan
- Temperature control switch
- Underhood fuse block (in engine compt, next to left strut tower)
2.0L VIN P, Manual A/C Wiring Diagram (2 of 2) for Chevrolet Cobalt 2005
List of elements for 2.0L VIN P, Manual A/C Wiring Diagram (2 of 2) for Chevrolet Cobalt 2005:
- 5v ref
- A/c clutch relay
- A/c compressor clutch (lower right side of engine, below generator)
- A/c compressor clutch diode
- A/c fuse 10a
- A/c refrigerant pressure sensor (right front of engine compt)
- A1 c5
- A11
- Air temperature actuator (center of dash, center left side of hvac module)
- C3 f2
- C5 c5
- Computer data lines system
- Cool sep/par relay
- Coolant temp ind
- Cooling fan 1 (in front eng compt, attached to left of radiator)
- Cooling fan 1 fuse 30a
- Cooling fan 1 relay
- Cooling fan 2 (in front eng compt, attached to right of radiator)
- Cooling fan 2 fuse 30a
- Cooling fan 2 relay
- E10
- Ect sig
- Engine coolant temperature (ect) sensor (left rear side of engine, near exhaust manifold)
- F10
- G101 (behind left headlamp)
- G109 (front of engine)
- Hot at all times
- Hot in run or start
- Ign
- Instrument panel cluster
- Logic
- Low ref
- Mode actuator (center of dash, center left side of hvac module)
- Pnk
- Powertrain control module (pcm) (at left side of engine compt)
- Press sens sig
- Recirculation actuator (right side of dash, above blower motor)
- Rly ctrl
- Serial data
- Tan
- Underhood fuse block (in engine compt, next to left strut tower)
2.2L VIN F
2.2L VIN F, Compressor Wiring Diagram for Chevrolet Cobalt 2005
List of elements for 2.2L VIN F, Compressor Wiring Diagram for Chevrolet Cobalt 2005:
- 5v ref
- A/c clutch relay
- A/c compressor clutch (lower right side of engine, below generator)
- A/c compressor clutch diode
- A/c fuse 10a
- A/c refrigerant pressure sensor (right front of engine compt)
- A/c req sig
- A/c request indicator
- A/c request sig
- A/c request switch
- Batt
- Body control module (bcm) (under center of dash, below radio, on right side of center console)
- C3 f2
- C5 c5
- Computer data lines system
- Ect sig
- Engine control module (pcm) (at left side of engine compt)
- Engine coolant temperature (ect) sensor (on top of engine)
- G101 (behind left headlamp)
- G203 (left of steering column)
- Gnd
- Hot at all times
- Hot in run or start
- Hvac control module (center of dash)
- Hvac/pk3 fuse 10a
- I/p ign fuse 10a
- Ign 1 voltage
- Logic
- Low ref
- Pnk
- Power distribution system
- Press sens sig
- Rly ctrl
- Serial data
- Tan
- Underhood fuse block (in engine compt, next to left strut tower)
2.2L VIN F, Manual A/C Wiring Diagram (1 of 2) for Chevrolet Cobalt 2005
List of elements for 2.2L VIN F, Manual A/C Wiring Diagram (1 of 2) for Chevrolet Cobalt 2005:
- (in hvac jumper harn, 4.9 cm from hvac contol assembly) s261
- 5 volt ref
- A/c req sig
- A/c request indicator
- A/c request sig
- A/c request switch
- Batt
- Bcm 3 fuse 30a
- Blower motor (under right side of dash)
- Blower motor resistor (under right side of dash, next to blower motor)
- Blower motor switch
- Body control module (bcm) (under center of dash, below radio, on right side of center console)
- C4 c2
- Close recir door
- Computer data lines system
- Culation
- Fresh air indicator
- G203 (left of steering column)
- Gnd
- Ground
- High
- Hot at all times
- Hot in run or start
- Hvac control module (under center of dash)
- Hvac relay
- Hvac/pk3 fuse 10a
- I/p ign fuse 10a
- Ign 1 voltage
- Indicator
- Interior lights system
- Logic
- Low
- Mode 1 vlv
- Mode door cntrl
- Mode switch
- Off
- Open recir door
- Pass air temp dr cntrl
- Pass air temp dr pos
- Pnk
- Power distribution system
- Rear defogger system
- Recir-
- Recirculation switch
- Rr defog relay cntrl
- Rr defog switch sig
- Run/ crank relay control
- Serial data
- Tan
- Temperature control switch
- Underhood fuse block (in engine compt, next to left strut tower)
2.2L VIN F, Manual A/C Wiring Diagram (2 of 2) for Chevrolet Cobalt 2005
List of elements for 2.2L VIN F, Manual A/C Wiring Diagram (2 of 2) for Chevrolet Cobalt 2005:
- 5v ref
- A/c clutch relay
- A/c compressor clutch (lower right side of engine, below generator)
- A/c compressor clutch diode
- A/c fuse 10a
- A/c refrigerant pressure sensor (right front of engine compt)
- A1 c5
- A11
- Air temperature actuator (center of dash, center left side of hvac module)
- C3 f2
- C5 c5
- Computer data lines system
- Coolant temp ind
- Cooling fan 1 fuse 30a
- Cooling fan 1 relay
- Cooling fan 2 fuse 30a
- Cooling fan 2 relay
- E10
- Ect sig
- Engine control module (pcm) (at left side of engine compt)
- Engine coolant temperature (ect) sensor (on top of engine)
- Engine cooling fan (in front of engine compt, attached to radiator)
- F10
- G101 (behind left headlamp)
- G109 (front of engine)
- Hot at all times
- Hot in run or start
- Ign
- Instrument panel cluster
- Logic
- Low ref
- Mode actuator (center of dash, center left side of hvac module)
- Pnk
- Press sens sig
- Recirculation actuator (right side of dash, above blower motor)
- Rly ctrl
- Serial data
- Tan
- Underhood fuse block (in engine compt, next to left strut tower)
