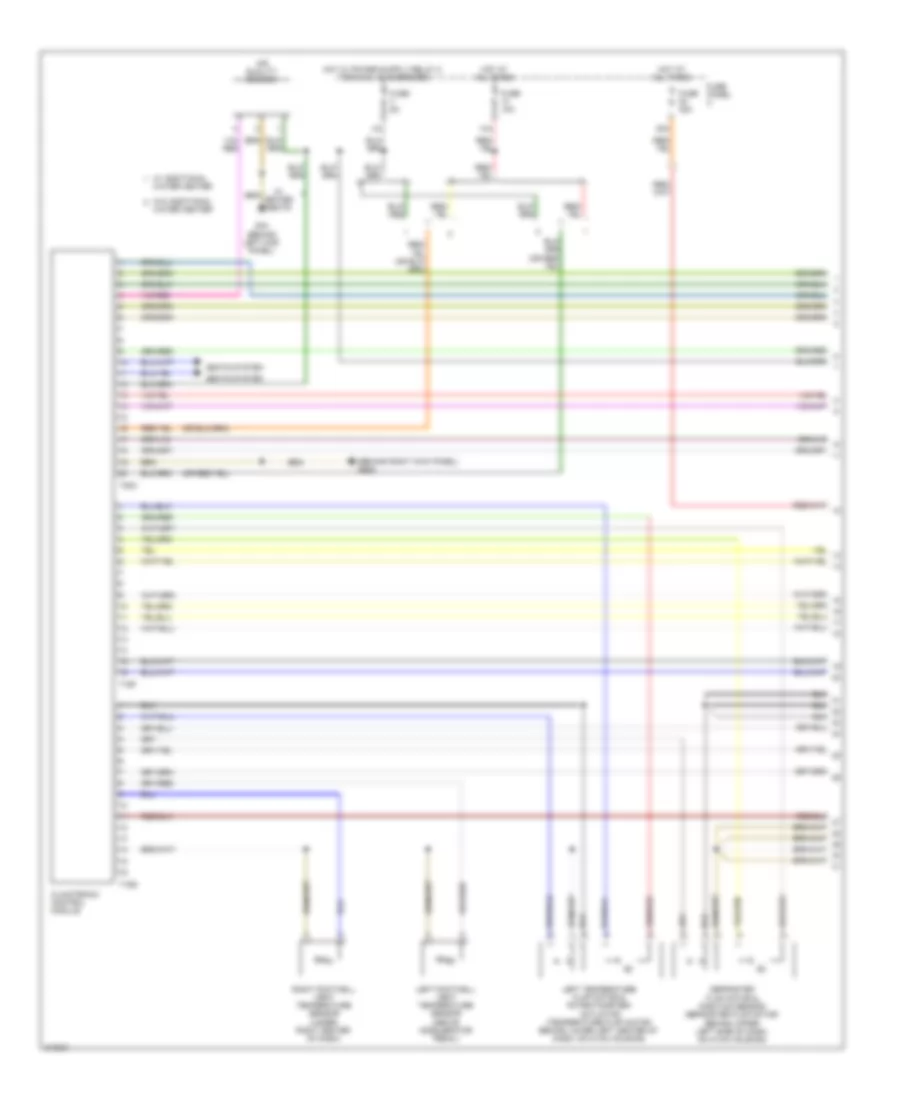

Automatic A/C Wiring Diagram (1 of 4) for Volkswagen Eos Komfort 2009
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Automatic A/C Wiring Diagram (1 of 4) for Volkswagen Eos Komfort 2009:
- (behind right kick panel) g638
- 14a
- 22a
- Air quality sensor
- Climatronic control module
- Defroster flap motor & position sensor (defroster flap motor: behind upper left side of dash, on hvac housing)
- Fuse 10a
- Fuse 40a
- Fuse 5a
- Fuse panel c
- G44 (behind left kick panel)
- Hot at all times
- Left footwell vent temperature sensor (above accelerator pedal)
- Left temperature flap motor & potentiometer/ actuator (temperature flap motor: behind lower left center of dash, on hvac housing)
- Right footwell vent temperature sensor (under right center of dash)
- Seats system
- T16f
- T16g
- T20c
- W/ additional
- W/ heated seats
- W/o additional
- Water heater
Automatic A/C Wiring Diagram (2 of 4) for Volkswagen Eos Komfort 2009
List of elements for Automatic A/C Wiring Diagram (2 of 4) for Volkswagen Eos Komfort 2009:
- (on left front bumper, behind grill) outside air temperature sensor
- Central air flap motor & position sensor (central air flap motor: behind upper center of dash, on hvac housing)
- Computer data lines system
- Early production
- Evaporator vent temperature sensor (behind center of dash, on hvac housing)
- Fresh air blower
- Fresh air blower control module (integral to fresh air blower, under right side of dash)
- Fresh air, recirculating air mode, back pressure flap motor position sensor (behind right side of dash, on hvac housing)
- G602 (behind left kick panel)
- Instrument cluster
- Instrument cluster control module
- Late production
- Mal- function ind
- Right temperature flap motor & potentiometer/actuator (temperature flap motor: (behind lower right center of dash, on hvac housing)
Automatic A/C Wiring Diagram (3 of 4) for Volkswagen Eos Komfort 2009
List of elements for Automatic A/C Wiring Diagram (3 of 4) for Volkswagen Eos Komfort 2009:
- A/c compressor regulator valve
- Coolant fan (fc) control module
- Coolant fan 2 (w/ high output radiator fan) (behind radiator)
- Coolant m
- Fan
- Fuse 10a
- Fuse 50a
- Fuse panel a
- Fuse panel b
- G12 (left side of engine compt)
- G638 (behind right kick panel)
- G640 (left side of engine compt)
- High pressure sensor (on high pressure refrigerant line)
- Hot at all times
- Left vent temperature sensor (behind left end of dash)
- Nca
- Red
- Right vent temperature sensor (behind right end of dash)
- Sunlight photo sensor & sunlight photo sensor 2 (sunlight photo sensor: under top center of dash)
- T40
Automatic A/C Wiring Diagram (4 of 4) for Volkswagen Eos Komfort 2009
List of elements for Automatic A/C Wiring Diagram (4 of 4) for Volkswagen Eos Komfort 2009:
- Coolant circulation pump relay
- Coolant pump (lower left side of engine)
- Engine control module (ecm) (center rear of engine compt)
- Engine controls system
- Engine coolant temperature (ect) sensor (on radiator)
- Engine coolant temperature (ect) sensor (rear of engine)
- Fuse 5a
- Fuse panel b
- G607 (in left plenum chamber)
- Hot at all times
- T40
- T60
- T94
Auxiliary A/C Wiring Diagram for Volkswagen Eos Komfort 2009
List of elements for Auxiliary A/C Wiring Diagram for Volkswagen Eos Komfort 2009:
- (behind right side panel) g663
- (right rear of engine compt) g614
- 14a
- Antenna splitter
- Auxiliary engine coolant heating rf receiver (right side of luggage compt)
- Auxiliary heater antenna
- Auxiliary heater control module (right front corner of engine compt)
- Climatronic control module
- Combustion air blower
- Computer data lines system
- Early production
- Engine coolant (ec) switch-off valve (heater) (if equipped)
- Fuse 10a
- Fuse 20a
- Fuse panel b
- Fuse panel c
- G614 (right rear of engine compt)
- Glow plug (w/ flame monitoring)
- Hot at all times
- Instrument cluster
- Instrument cluster control module
- Late production
- Metering pump
- Multi-function ind
- Nca
- Overheat sensor
- Recirculation pump
- Red
- T20c
- T2g
- T2k
- T3z
- T40
- T8c
- T8f
- Temperature sensor
- W/ additional water heater
- W/o additional water heater
