COOLING FAN

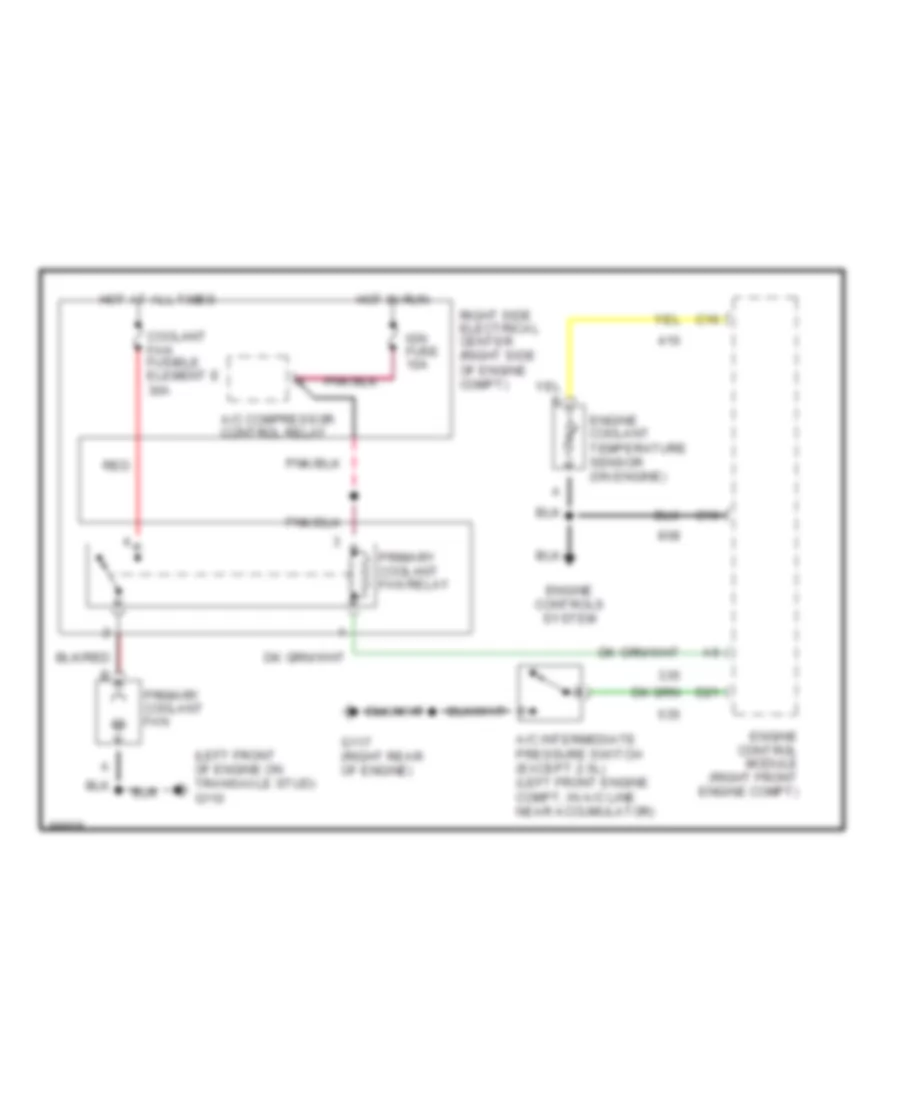

Cooling Fan Wiring Diagram for Chevrolet Lumina Euro 1990

Cooling Fan Wiring Diagram for Chevrolet Lumina Euro 1990 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Cooling Fan Wiring Diagram for Chevrolet Lumina Euro 1990:

  • (left front of engine on transaxle stud) g110
  • A/c compressor control relay
  • A/c intermediate pressure switch (except 2.5l) (left front engine compt, in a/c line near accumulator)
  • C10
  • C16
  • Coolant fan fusible element e 30a
  • D21
  • Engine control module (right front engine compt)
  • Engine controls system
  • Engine coolant temperature sensor (on engine)
  • G117 (right rear of engine)
  • Hot at all times
  • Hot in run
  • Ign fuse 10a
  • Primary coolant fan
  • Primary coolant fan relay
  • Red
  • Right side electrical center (right side of engine compt)
