DEFOGGERS

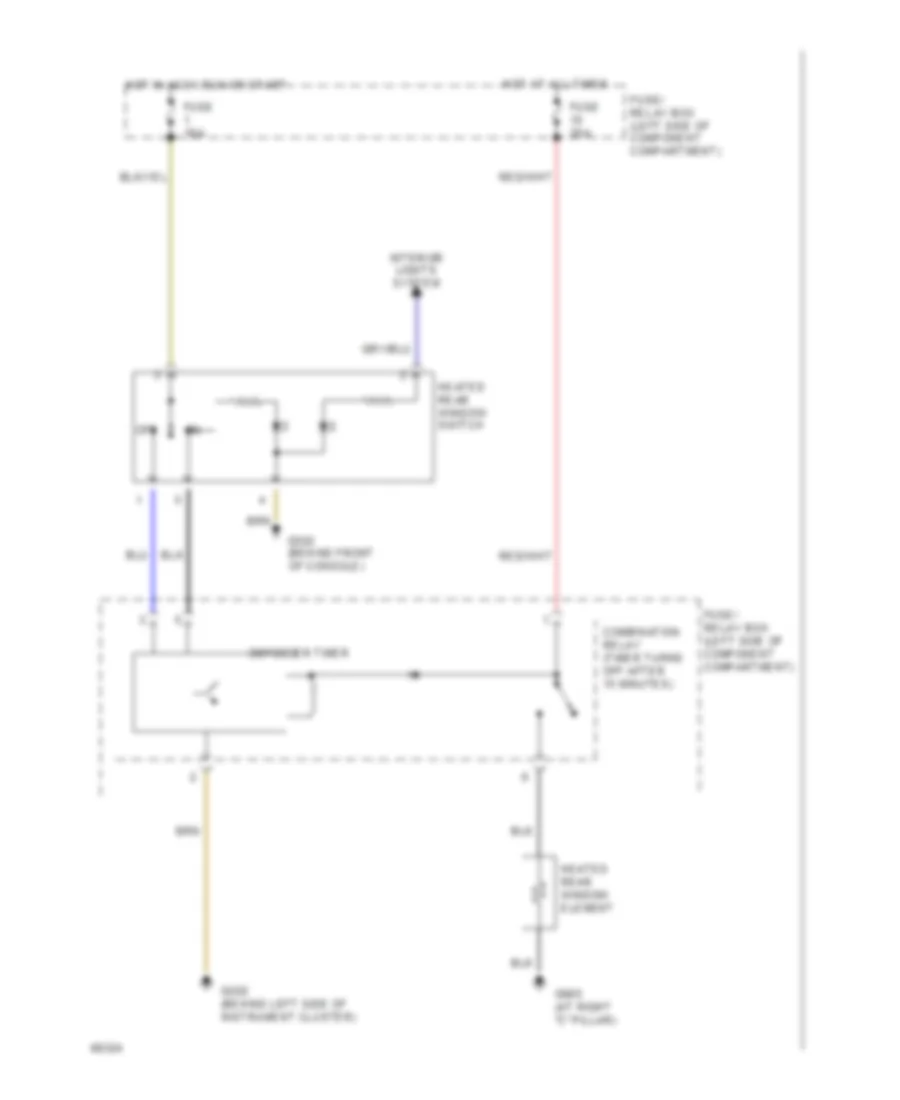

Defogger Wiring Diagram for Mercedes-Benz 300D 1993

Defogger Wiring Diagram for Mercedes-Benz 300D 1993 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Defogger Wiring Diagram for Mercedes-Benz 300D 1993:

  • Combination relay (timer turns off after 15 minutes)
  • Defogger timer
  • Fuse 16a
  • Fuse 25a
  • Fuse/ relay box (left side of component compartment)
  • G202 (behind left side of instrument cluster)
  • G302 (behind front of console)
  • G905 (at right "c" pillar)
  • Heated rear window element
  • Heated rear window switch
  • Hot at all times
  • Hot in accy,run or start
  • Interior lights system
  • Off
