AIR CONDITIONING – Toyota Land Cruiser 2011 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

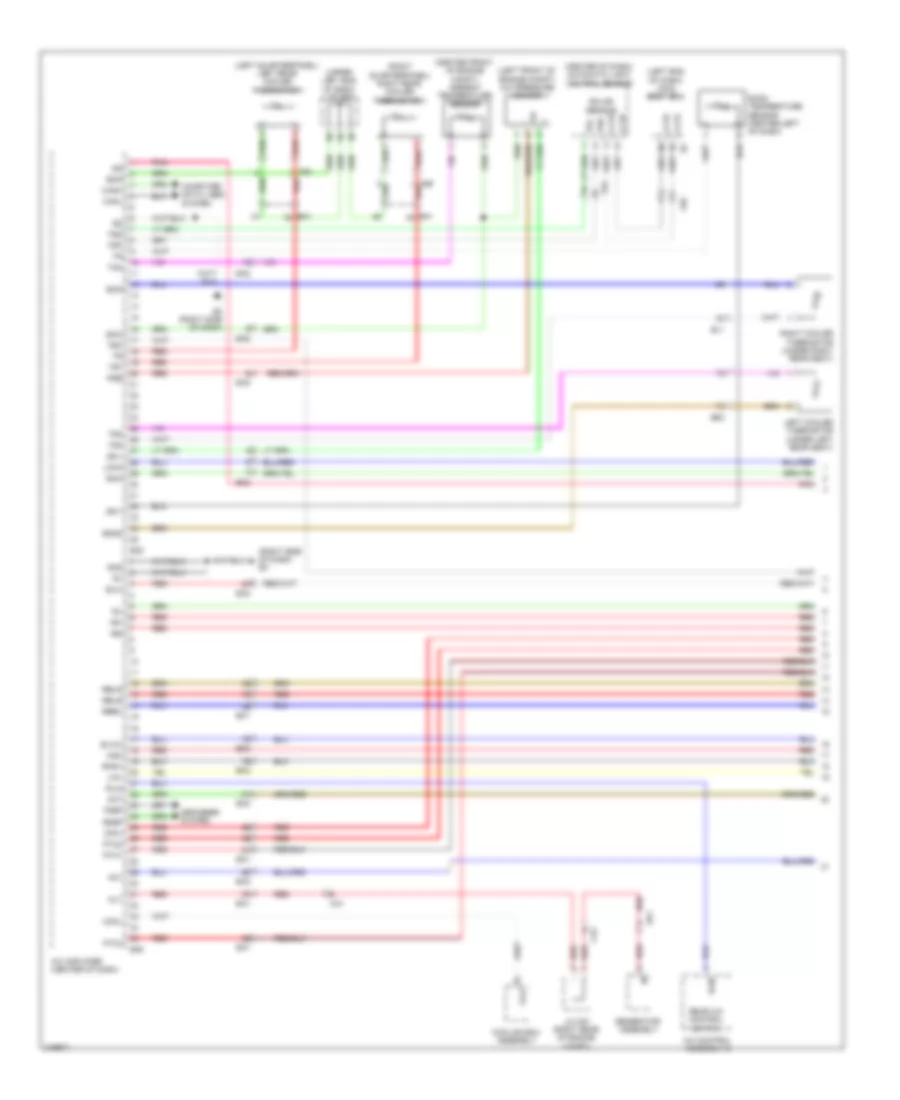

Automatic A/C Wiring Diagram (1 of 4) for Toyota Land Cruiser 2011

List of elements for Automatic A/C Wiring Diagram (1 of 4) for Toyota Land Cruiser 2011:

84

• (center front of engine compt) ambient temperature sensor
• (center of dash) automatic light control sensor
• (left end of dash) main body ecu
• (left front of engine compt) a/c pressure sensor
• (left quarterpanel) left rear cooler thermistor 1
• (right quarterpanel) right rear cooler thermistor 1
• (right side of dash) e3
• (upper left end of dash) j/c e58
• +b1
• +b2
• A/c amplifier (center of dash)
• A/c control assembly 2
• Ac1
• Act
• Ad1
• Alt
• Blw
• Blwh
• Ca1
• Ca2
• Canh
• Canl
• Cfn+
• Cltb
• Clte
• Coli
• Computer data lines system
• Cool
• Cooling box assembly
• Defogger system
• E3 (right side of dash)
• E35
• E36
• Ea1
• Ea2
• Ea3
• Ek1
• Ek2
• El1
• Fdef
• Fe4
• Fe6
• Generator assembly
• Gnd
• Ig+
• J/c c51 (right rear of engine compt)
• Kz2
• Kz5
• Left cooler thermistor (under left rear seat)
• Lin1
• Lock
• Mgc
• Pnk
• Pre
• Ptc1
• Ptc2
• Ptc3
• Rbbu
• Rbug
• Rbus
• Rdef
• Rear a/c control switch
• Red
• Right cooler thermistor (under right rear seat)
• Rlin
• Rmgv
• Room temperature sensor (center left of dash)
• S5-1
• Sg-1
• Sg-2
• Sg-5
• Sg-6
• Sg-9
• Sgnd
• Solar sensor
• Tam
• Tec
• Tr3
• Tr4
• Tr7
• Tsd
• Tsl
• Tsp
• Tsr

Automatic A/C Wiring Diagram (2 of 4) for Toyota Land Cruiser 2011

List of elements for Automatic A/C Wiring Diagram (2 of 4) for Toyota Land Cruiser 2011:

25

• A2 (left front of engine compt)
• A3 (right side of engine compt)
• Blower motor control
• Ca2
• Cds fan relay
• Clutch magnetic
• Condenser blower motor (front of engine compt)
• Cooler compressor assembly
• E3 (right side of dash)
• E33
• E34
• Ea2
• Engine room r/b
• Gnd
• K2 (left "d" pillar)
• Kz1
• Lock sensor
• Mg clt relay
• Pnk
• Ptc htr1 relay
• Ptc htr2 relay
• Ptc htr3 relay
• Quick heater assembly
• Rear blower w/ fan motor sub assembly
• Red

Automatic A/C Wiring Diagram (3 of 4) for Toyota Land Cruiser 2011

List of elements for Automatic A/C Wiring Diagram (3 of 4) for Toyota Land Cruiser 2011:

61

• A/c control assembly
• A/c fuse 7.5a
• A/c ig fuse 10a
• A3 (right side of engine compt)
• A38
• Ac1
• Act
• Agnd
• Ak3
• Bgnd
• C16
• C53
• Canh
• Canl
• Cds fan fuse 25a
• Computer data lines system
• D58
• D59
• Display & navigation module display
• Down
• Dtp+
• Dtp-
• Ecu-ig 2 fuse 10a
• Efi engine coolant temperature sensor (top left front of engine)
• Engine control module (right rear of engine compt)
• Engine room j/b (left inner fender panel)
• Engine room r/b
• Etha
• F1 (right side of dash)
• F46
• F47
• Fe4
• Front blower w/ fan motor sub-assembly
• Gnd
• Hot at all times
• Hot in on or start
• Htr fuse 50a
• Ig+
• Ill+
• Ill-
• Interior lights system
• J/c e60 (upper right end of dash)
• Kz1
• Left cowl side j/b (left end of dash)
• Left temperature control switch assembly
• Lin1
• Pnk
• Ptc 1 fuse 50a
• Ptc 2 fuse 50a
• Ptc 3 fuse 50a
• Ptp+
• Ptp-
• Rear cooling unit expansion valve (left side of luggage compt)
• Red
• Right temperature control switch assembly
• Rr auto a/c fuse 50a
• Tec+
• Tec-
• Tes+
• Tes-
• Thw

Automatic A/C Wiring Diagram (4 of 4) for Toyota Land Cruiser 2011

List of elements for Automatic A/C Wiring Diagram (4 of 4) for Toyota Land Cruiser 2011:

32

• A/c amplifier (center of dash)
• A/c blower (center of dash)
• A/c evaporator temperature sensor
• B bus
• Bus
• Bus g
• Color (black) connector housing
• Color (gray) connector housing
• Connector housing color (brown)
• Connector housing color (gray)
• Connector housing color (natural)
• Connector housing color (red)
• Damper servo motor (air inlet)
• Damper servo motor (cool air)
• Damper servo motor (left air mix)
• Damper servo motor (left front air mix)
• Damper servo motor (left mode control)
• Damper servo motor (left rear air mix)
• Damper servo motor (mode control)
• Damper servo motor (rear mode control)
• Damper servo motor (right air mix)
• Damper servo motor (right front air mix)
• Damper servo motor (right mode control)
• Damper servo motor (right rear air mix)
• Ek2
• Pnk
• Rear a/c blower assembly
• Red
• Sga
• Tea
• Thermistor
• Z34

Cool Box Wiring Diagram for Toyota Land Cruiser 2011

List of elements for Cool Box Wiring Diagram for Toyota Land Cruiser 2011:

27

• A/c amplifier (center of dash)
• A/c ig fuse 10a
• Air conditioning amplifier
• B13
• Blower fan cooler
• Coli
• Cool
• Cooler control switch
• Cooler thermistor
• Cooling box assembly
• D14
• Diode
• E2 (center of dash)
• E36
• Ecu b1 fuse 5a
• Engine room r/b
• Filter noise
• Fuse
• Hot at all times
• Ill+
• Interior lights system
• J/c e58 (upper left end of dash)
• J/c e59 (upper left end of dash)
• J/c e66 (center left of dash)
• Left cowl side j/b (left end of dash)
• Magnet valve cooler
• Red
