COOLING FAN
3.0L

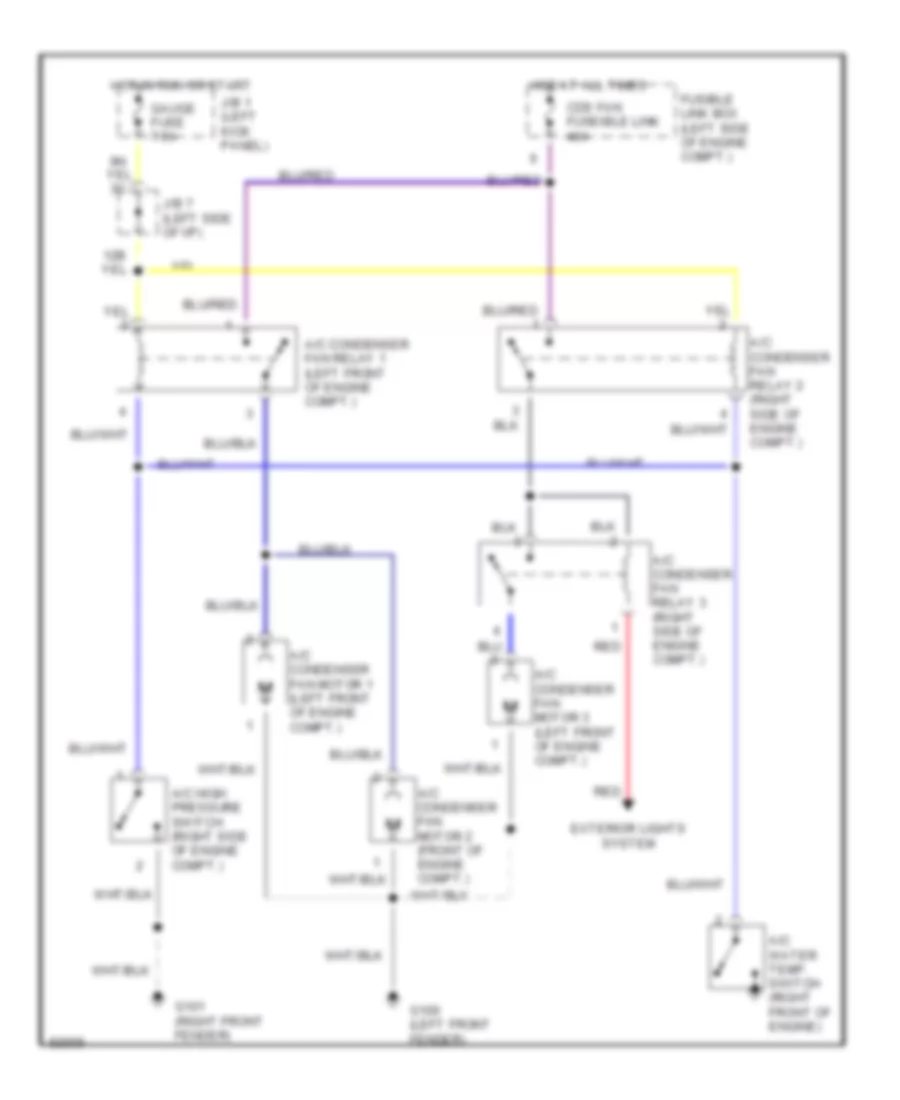

3.0L Turbo, Cooling Fan Wiring Diagram for Toyota Supra 1991
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for 3.0L Turbo, Cooling Fan Wiring Diagram for Toyota Supra 1991:
- A/c condenser fan motor 1 (left front of engine compt.)
- A/c condenser fan motor 2 (front of engine compt.)
- A/c condenser fan motor 3 (left front of engine compt.)
- A/c condenser fan relay 1 (left front of engine compt.)
- A/c condenser fan relay 2 (right side of engine compt.)
- A/c condenser fan relay 3 (right side of engine compt.)
- A/c high pressure switch (right side of engine compt.)
- A/c water temp. switch (right front of engine)
- Cds fan fuseible link 40a
- Exterior lights system
- Fusible link box (left side of engine compt.)
- G100 (left front fender)
- G101 (right front fender)
- Gauge fuse 7.5a
- Hot at all times
- Hot in run or start
- J/b 1 (left kick panel)
- J/b 7 (left side of i/p)
- Red
3.0L, Cooling Fan Wiring Diagram for Toyota Supra 1991
List of elements for 3.0L, Cooling Fan Wiring Diagram for Toyota Supra 1991:
- A/c condenser fan motor 1 (left front of engine compt.)
- A/c condenser fan motor 2 (front of engine compt.)
- A/c condenser fan relay 1 (left front of engine compt.)
- A/c high pressure switch (right side of engine compt.)
- A/c water temperature switch (right front of engine)
- Cds fan fuseible link 40a
- Fusible link box (left side of engine compt.)
- G100 (left front fender)
- G101 (right front fender)
- Gauge fuse 7.5a
- Hot at all times
- Hot in on or start
- J/b 1 (left kick panel)
- J/b 7 (left side of i/p)
