VW GOLF VARIANT 2009 – 1.6l petrol engine, CCSA . Wiring diagrams, Pin Connector, Location

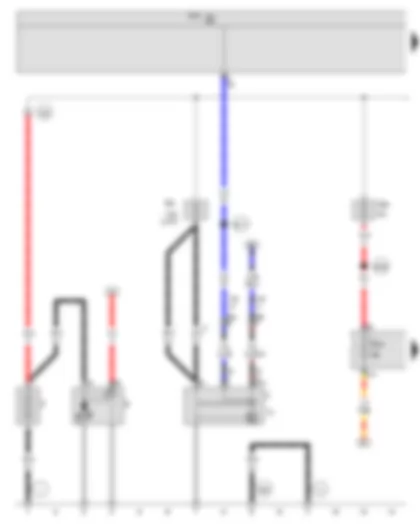

Wiring Diagram VW GOLF VARIANT 2009 - Battery - Starter - Alternator



Wiring Diagram  VW GOLF VARIANT 2009 - Battery - Starter - Alternator https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
A Battery
B Starter
C Alternator
C1 Voltage regulator
J519 Onboard supply control unit
SA1 Fuse 1 in fuse holder A
SA5 Fuse 5 in fuse holder A
SC27 Fuse 27 on fuse holder C
T2 2-pin connector
T2c 2-pin connector, near starter (only models with no air conditioning system)
T4t 4-pin connector, near starter (only models with air conditioning system)
  14 Earth point, on gearbox
  508 Threaded connection (30) on E-box
  B169 Positive connection 1 (30), in interior wiring harness
  B177 Connection (61), in interior wiring harness
*Only models with 140A alternator
*2Only models with 90 A/ 120 A alternator

Wiring Diagram VW GOLF VARIANT 2009 - Terminal 15 voltage supply relay



Wiring Diagram  VW GOLF VARIANT 2009 - Terminal 15 voltage supply relay https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J329 Terminal 15 voltage supply relay
J519 Onboard supply control unit
J682 Terminal 50 voltage supply relay
SC1 Fuse 1 on fuse holder C
SC2 Fuse 2 on fuse holder C
SC4 Fuse 4 on fuse holder C
SB6 Fuse 6 on fuse holder B
SB7 Fuse 7 on fuse holder B
SC31 Fuse 31 on fuse holder C
T40 40-pin connector
  A41 Positive connection (50), in dash panel wiring harness
  A192 Positive connection 3 (15a) in dash panel wiring harness
  A217 Positive connection 8 (15a) in dash panel wiring harness
  B163 Positive connection 1 (15), in interior wiring harness
  B273 Positive connection (15), in main wiring harness
  B278 Positive connection 2 (15a) in main wiring harness
  B504 Positive connection 8 (30a), in interior wiring harness
*Only models with dual clutch gearbox 0AM
*2Only models with no hydraulic brake servo (HBS)
*3Only models with crankcase breather heater element
*4Only models with flexible service interval display

Wiring Diagram VW GOLF VARIANT 2009 - Fuel gauge sender - Fuel pump relay - Secondary air pump relay - Secondary air pump motor



Wiring Diagram  VW GOLF VARIANT 2009 - Fuel gauge sender - Fuel pump relay - Secondary air pump relay - Secondary air pump motor https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G Fuel gauge sender
G6 Fuel system pressurisation pump
J17 Fuel pump relay
J299 Secondary air pump relay
J519 Onboard supply control unit
J643 Fuel supply relay
SB20 Fuse 20 on fuse holder B
SB23 Fuse 23 on fuse holder B
SB24 Fuse 24 on fuse holder B
SB27 Fuse 27 on fuse holder B
T1u Single connector
T5b 5-pin connector
T40 40-pin connector
U8 Exterior socket, 230 V, 110 V
V101 Secondary air pump motor
  209 Earth connection 6, in engine compartment wiring harness
  383 Earth connection 18, in main wiring harness
  682 Earth point 2, in rear right side panel
  A193 Connection (87a), in dash panel wiring harness
  B156 Positive connection (30a), in interior wiring harness
  B485 Connection 21, in main wiring harness
  D183 Connection 4 (87a), in engine compartment wiring harness

Wiring Diagram VW GOLF VARIANT 2009 - Terminal 30 voltage supply relay - Engine control unit



Wiring Diagram  VW GOLF VARIANT 2009 - Terminal 30 voltage supply relay - Engine control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J317 Terminal 30 voltage supply relay
J519 Onboard supply control unit
J623 Engine control unit
SB13 Fuse 13 on fuse holder B
SB14 Fuse 14 on fuse holder B
SB15 Fuse 15 on fuse holder B
SB21 Fuse 21 on fuse holder B
SB22 Fuse 22 on fuse holder B
T14a 14-pin connector, near battery
T40 40-pin connector
T121 121-pin connector
  376 Earth connection 11, in main wiring harness
  381 Earth connection 16, in main wiring harness
  B279 Positive connection 3 (15a) in main wiring harness
*Only models with flexible service interval display
*2Only models with manual gearbox

Wiring Diagram VW GOLF VARIANT 2009 - Engine control unit - Heater element for crankcase breather - Ignition transformer - Spark plug connector - Spark plugs



Wiring Diagram  VW GOLF VARIANT 2009 - Engine control unit - Heater element for crankcase breather - Ignition transformer - Spark plug connector - Spark plugs https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J623 Engine control unit
N79 Heater element for crankcase breather
N152 Ignition transformer
P Spark plug connector
Q Spark plugs
T4aa 4-pin connector
T14a 14-pin connector, near battery
T121 121-pin connector
  85 Earth connection 1, in engine compartment wiring harness
  131 Earth connection 2, in engine compartment wiring harness
  D208 Positive connection 5 (15a), in engine compartment wiring harness
*Only models with crankcase breather heater element
*2Only models with no crankcase breather heater element
*3Only models with dual clutch gearbox 0AM
*4Only models with no hydraulic brake servo (HBS)

Wiring Diagram VW GOLF VARIANT 2009 - Engine speed sender - Throttle valve drive angle sender 1 for electric throttle - Throttle valve module - Engine control unit



Wiring Diagram  VW GOLF VARIANT 2009 - Engine speed sender - Throttle valve drive angle sender 1 for electric throttle - Throttle valve module - Engine control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G28 Engine speed sender
G186 Throttle valve drive for electric throttle
G187 Throttle valve drive angle sender 1 for electric throttle
G188 Throttle valve drive angle sender 2 for electric throttle
J338 Throttle valve module
J527 Steering column electronics control unit
J623 Engine control unit
T3v 3-pin connector, on front of engine
T6x 6-pin connector
T20d 20-pin connector
T121 121-pin connector
  B441 Connection (CCS), in main wiring harness
  D103 Connection 3 in engine compartment wiring harness
  D110 Connection 8 in engine compartment wiring harness

Wiring Diagram VW GOLF VARIANT 2009 - Intake air temperature sender - Intake manifold pressure sender - Radiator outlet coolant temperature sender - Engine control unit - Activated charcoal filter solenoid valve 1 - Variable intake manifold changeover valve



Wiring Diagram  VW GOLF VARIANT 2009 - Intake air temperature sender - Intake manifold pressure sender - Radiator outlet coolant temperature sender - Engine control unit - Activated charcoal filter solenoid valve 1 - Variable intake manifold changeover valve https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G42 Intake air temperature sender
G71 Intake manifold pressure sender
G83 Radiator outlet coolant temperature sender
J623 Engine control unit
N80 Activated charcoal filter solenoid valve 1
N156 Variable intake manifold changeover valve
T121 121-pin connector
  D108 Connection 6 in engine compartment wiring harness
  D109 Connection 7 in engine compartment wiring harness
  D181 Connection 2 (87a), in engine compartment wiring harness

Wiring Diagram VW GOLF VARIANT 2009 - Hall sender - Knock sensor 1 - Coolant temperature sender - Engine control unit



Wiring Diagram  VW GOLF VARIANT 2009 - Hall sender - Knock sensor 1 - Coolant temperature sender - Engine control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G40 Hall sender
G61 Knock sensor 1
G62 Coolant temperature sender
J623 Engine control unit
T3d 3-pin connector
T4x 4-pin connector, on radiator fan, bottom left
T14a 14-pin connector, near battery
T121 121-pin connector
  220 Earth connection (sender earth), in engine wiring harness
  D111 Connection 9 in engine compartment wiring harness
  D180 Connection (87a), in engine compartment wiring harness
  D181 Connection 2 (87a), in engine compartment wiring harness
*Radiator fan connection

Wiring Diagram VW GOLF VARIANT 2009 - Lambda probe after catalytic converter - Engine control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4



Wiring Diagram  VW GOLF VARIANT 2009 - Lambda probe after catalytic converter - Engine control unit - Injector - cylinder 1 - Injector - cylinder 2 - Injector - cylinder 3 - Injector - cylinder 4 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G130 Lambda probe after catalytic converter
J623 Engine control unit
N30 Injector, cylinder 1
N31 Injector, cylinder 2
N32 Injector, cylinder 3
N33 Injector, cylinder 4
T4v 4-pin connector, in rear of engine compartment
T14a 14-pin connector, near battery
T121 121-pin connector
  D95 Connection (injectors), in engine compartment wiring harness
  E30 Connection (87a), in engine wiring harness

Wiring Diagram VW GOLF VARIANT 2009 - Lambda probe - Accelerator position sender - Accelerator position sender 2 - Engine control unit



Wiring Diagram  VW GOLF VARIANT 2009 - Lambda probe - Accelerator position sender - Accelerator position sender 2 - Engine control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G39 Lambda probe
G79 Accelerator position sender
G185 Accelerator position sender 2
J623 Engine control unit
T6h 6-pin connector
T6w 6-pin connector
T121 121-pin connector
  D124 Connection 22 in engine compartment wiring harness
  E30 Connection (87a), in engine wiring harness

Wiring Diagram VW GOLF VARIANT 2009 - Engine control unit - Vacuum pump for brakes



Wiring Diagram  VW GOLF VARIANT 2009 - Engine control unit - Vacuum pump for brakes https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F Brake light switch
J519 Onboard supply control unit
J623 Engine control unit
T4bc 4-pin connector
T6ab 6-pin connector
T121 121-pin connector
V192 Vacuum pump for brakes
  389 Earth connection 24, in main wiring harness
  B131 Connection (54), in interior wiring harness
  D121 Connection 19 in engine compartment wiring harness
*Only models with dual clutch gearbox 0AM
*2Only models with no hydraulic brake servo (HBS)

Wiring Diagram VW GOLF VARIANT 2009 - Clutch position sender - Engine control unit



Wiring Diagram  VW GOLF VARIANT 2009 - Clutch position sender - Engine control unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
G476 Clutch position sender
J104 ABS control unit
J519 Onboard supply control unit
J623 Engine control unit
J743 Mechatronic unit for dual clutch gearbox
T5m 5-pin connector
T25 25-pin connector
T26a 26-pin connector
T47c 47-pin connector
T121 121-pin connector
  44 Earth point, lower part of left A-pillar
  367 Earth connection 2, in main wiring harness
  389 Earth connection 24, in main wiring harness
  B383 Connection 1 (powertrain CAN bus, high), in main wiring harness
  B390 Connection 1 (powertrain CAN bus, low), in main wiring harness
  D107 Connection 5 in engine compartment wiring harness
*Only models with manual gearbox
*2Only models with dual clutch gearbox 0AM

Wiring Diagram VW GOLF VARIANT 2009 - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface



Wiring Diagram  VW GOLF VARIANT 2009 - Multifunction indicator - Control unit in dash panel insert - Data bus diagnostic interface https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J119 Multifunction indicator
J285 Control unit in dash panel insert
J519 Onboard supply control unit
J533 Data bus diagnostic interface
K132 Electronic power control fault lamp
T16 16-pin connector, on diagnostic connection
T20 20-pin connector
T32 32-pin connector
  A76 Connection (K-diagnosis wire), in dash panel wiring harness
  B383 Connection 1 (powertrain CAN bus, high), in main wiring harness
  B390 Connection 1 (powertrain CAN bus, low), in main wiring harness
  B397 Connection 1 (convenience CAN bus, high), in main wiring harness
  B398 Connection 2 (convenience CAN bus, high), in main wiring harness
  B406 Connection 1 (convenience CAN bus, low), in main wiring harness
  B407 Connection 2 (convenience CAN bus, low), in main wiring harness

Wiring Diagram VW GOLF VARIANT 2009 - Oil pressure switch - Fuel gauge - Coolant temperature gauge - Coolant shortage indicator sender - Oil level and oil temperature sender - Buzzer and gong - Control unit in dash panel insert - Oil pressure warning lamp - Exhaust emissions warning lamp



Wiring Diagram  VW GOLF VARIANT 2009 - Oil pressure switch - Fuel gauge - Coolant temperature gauge - Coolant shortage indicator sender - Oil level and oil temperature sender - Buzzer and gong - Control unit in dash panel insert - Oil pressure warning lamp - Exhaust emissions warning lamp https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F1 Oil pressure switch
G1 Fuel gauge
G3 Coolant temperature gauge
G32 Coolant shortage indicator sender
G266 Oil level and oil temperature sender
H3 Buzzer and gong
J285 Control unit in dash panel insert
K3 Oil pressure warning lamp
K31 Cruise control system warning lamp
K38 Oil level warning lamp
K83 Exhaust emissions warning lamp
K105 Reserve fuel warning lamp
T6z 6-pin connector, near left headlight
T14a 14-pin connector, near battery
T32 32-pin connector
  410 Earth connection 1 (sender earth) in main wiring harness
*Only models with flexible service interval display


VW GOLF VARIANT 2009 Overview of fuses

Overview of fuses
VW GOLF VARIANT 2009 Overview of fuses https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
q   Fuse assignment (SA)
q   Fuses (SA) on fuse holder A on E-box, from May 2007
q   Fuses (SA) on fuse holder A on E-box, from July 2008
q   Fuse assignment (SB) for E-box high, from May 2007
q   Fuse assignment (SB) for E-box low, from May 2007
q   Fuses (SB) on fuse holder B, on E-box high, from May 2007
q   Fuses (SB) on fuse holder B, on E-box low, from May 2007
q   Fuses (SB) on fuse holder B, on E-box low, from July 2008
3 -  Fuses (SC) on fuse holder C
q   Fitting location
q   Fuse assignment (SC) on fuse holder C, on dash panel on driver's side
q   Fuses (SC) on fuse holder C, from May 2007
q   Fuses (SC) on fuse holder C, from July 2008
4 -  Safety cutout under dash panel, driver side
q   Installation location: above relay carrier
q   Driver seat adjustment thermal fuse 1 -S44- 30A

Location of fuses (SA), on E-box

Fitting location:
On E-box in engine compartment on driver's side -A-

VW GOLF VARIANT 2009 Overview of fuses https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
Fuse assignment (SA), on E-box
VW GOLF VARIANT 2009 Overview of fuses https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
Specified tightening torques:
⇒ Electrical system, Repair Group 97, Removing and installing fuse holders
Fuse colours
200A - purple
150A - grey
125A - pink
100A - blue
80A - white
70A - brown
60A - yellow
50A - red
40A - green
30 A - orange




VW GOLF VARIANT 2009 Fuses (SA) on fuse holder A, on E-box, from May 2007

Fuses (SA) on fuse holder A, on E-box, from May 2007
No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder A -SA1- 150A
200A
- Alternator -C- (​90​A​/110A​), (140A) 30
2 - Fuse 2 on fuse holder A -SA2- 80A - Power steering control unit -J500- (T2l/2) 30
      Electromechanical power steering motor -V187- (T2l/2) 30
3 - Fuse 3 on fuse holder A -SA3- 50A - Radiator fan -V7- (1) 30
4 - Fuse 4 on fuse holder A -SA4- - - Vacant -
        Fuse 12 on fuse holder C -SC12-
        Fuse 13 on fuse holder C -SC13-
      Fuse 14 on fuse holder C -SC14-
    Fuse 15 on fuse holder C -SC15-
    Fuse 16 on fuse holder C -SC16-
    Fuse 17 on fuse holder C -SC17-
    Fuse 22 on fuse holder C -SC22-
5 - Fuse 5 on fuse holder A -SA5- 80A - Fuse 23 on fuse holder C -SC23- 30
    Fuse 24 on fuse holder C -SC24-
    Fuse 25 on fuse holder C -SC25-
    Fuse 26 on fuse holder C -SC26-
    Fuse 27 on fuse holder C -SC27-
    Fuse 43 on fuse holder C -SC43-
        Fuse 44 on fuse holder C -SC44-
        Fuse 45 on fuse holder C -SC45-
6 - Fuse 6 on fuse holder A -SA6- 100A - Auxiliary air heater heating element -Z35- 30
7 - Fuse 7 on fuse holder A -SA7- - - Vacant -




VW GOLF VARIANT 2009 Fuses (SA) on fuse holder A, on E-box, from July 2008

Fuses (SA) on fuse holder A, on E-box, from July 2008
No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder A -SA1- 150A
200A
- Alternator -C- (​90​A​/110A​), (140A) 30
2 - Fuse 2 on fuse holder A -SA2- 80A - Power steering control unit -J500- (T2l/2) 30
      Electromechanical power steering motor -V187- (T2l/2) 30
3 - Fuse 3 on fuse holder A -SA3- 50A - Radiator fan -V7- (1) 30
4 - Fuse 4 on fuse holder A -SA4- - - Vacant -
        Fuse 12 on fuse holder C -SC12-
        Fuse 13 on fuse holder C -SC13-
      Fuse 14 on fuse holder C -SC14-
    Fuse 15 on fuse holder C -SC15-
    Fuse 16 on fuse holder C -SC16-
    Fuse 17 on fuse holder C -SC17-
    Fuse 22 on fuse holder C -SC22-
5 - Fuse 5 on fuse holder A -SA5- 80A - Fuse 23 on fuse holder C -SC23- 30
    Fuse 24 on fuse holder C -SC24-
    Fuse 25 on fuse holder C -SC25-
    Fuse 26 on fuse holder C -SC26-
    Fuse 27 on fuse holder C -SC27-
    Fuse 43 on fuse holder C -SC43-
        Fuse 44 on fuse holder C -SC44-
        Fuse 45 on fuse holder C -SC45-
6 - Fuse 6 on fuse holder A -SA6- 100A - Heated steering wheel -Z36- 30
7 - Fuse 7 on fuse holder A -SA7- - - Vacant -



VW GOLF VARIANT 2009 Fuse assignment (SB) for E-box high, from May 2007

Fuse assignment (SB) for E-box high, from May 2007

VW GOLF VARIANT 2009 Fuse assignment (SB) for E-box high, from May 2007 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
Fuse colours
200A - purple
150A - grey
125A - pink
100A - blue
80A - white
70A - brown
60A - yellow
50A - red
40A - green
30 A - orange



VW GOLF VARIANT 2009 Fuses (SB) on fuse holder B, on E-box high, from May 2007

Fuses (SB) on fuse holder B, on E-box high, from May 2007

No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder B -SB1- 30A - ABS control unit -J104- (T47/1) 30
2 - Fuse 2 on fuse holder C -SC2- 30A - ABS control unit -J104- (T47/32) 30
3 - Fuse 3 on fuse holder B -SB3- 20A - Convenience​ system central control unit -J393- (T18c/2) 30
4 - Fuse 4 on fuse holder B -SB4- 5A - Onboard supply control unit -J519- (F/7) 30
5 - Fuse 5 on fuse holder B -SB5- 150A - Onboard supply control unit -J519- (J/3) 30
6 - Fuse 6 on fuse holder B -SB6- 15A - Fuel pressure regulating valve -N276- (1) 87
7 - Fuse 7 on fuse holder B -SB7- - - Vacant -
8 - Fuse 8 on fuse holder B -SB8- - - Vacant -
9 - Fuse 9 on fuse holder B -S9- 10A - Charge pressure control solenoid valve -N75- (1)
Activated charcoal filter system solenoid valve 1 -N80- (1)
Turbocharger air recirculation valve -N249- (1)
87
10 - Fuse 10 on fuse holder B -SB10- 10A - Fuel​ system​ diagnosis​ pump -V144- (T3d/3) 87
11 - Fuse 11 on fuse holder B -SB11- 10A - Lambda probe -G39- (T6w/4) 87
12 - Fuse 12 on fuse holder B -SB12- 10A - Lambda probe after catalytic converter -G130- (T4ao/1) 87
13 - Fuse 13 on fuse holder -SB13- 15A - Mechatronic unit for dual clutch gearbox -J743- (T20e/11),​·(T20e/18) 30
14 - Fuse 14 on fuse holder B -SB14- - - Vacant -
15 - Fuse 15 on fuse holder B -SB15- 10A - Circulation pump -V55- (1) 87
16 - Fuse 16 on fuse holder B -SB16- 5A - Steering column electronics control unit -J527- (T20d/19) 30
17 - Fuse 17 on fuse holder B -SB17- 5A - Control unit in dash panel insert -J285- , (T36/2) 30
18 - Fuse 18 on fuse holder B -SB18- 30A - Digital sound package control unit -J525- (T23/20), (T23/21), (T23/23) 30
19 - Fuse 19 on fuse holder B -SB19- 15A - Control​ unit​ with​ display​ for​ radio​ and​ navigation -J503- (T16b/15), (T16b/16)
Radio -R-
Satellite radio -R146- (T8f/2)
30
20 - Fuse 20 on fuse holder B -SB20- 5A - Mobile telephone operating electronics control unit -J412- (T54/1) 30
21 - Fuse 21 on fuse holder B -SB21- - - Vacant -
22 - Fuse 22 on fuse holder B -SB22- - - Vacant -
23 - Fuse 23 on fuse holder B -SB23- 10A - Motronic current supply relay -J271- (T40/15)
Engine control unit -J623- (T94/92)
30
24 - Fuse 24 on fuse holder B -SB24- 5A - Data bus diagnostic interface -J533- (T20/1) 30
25 - Fuse 25 on fuse holder B -SB25- - - Vacant -
26 - Fuse 26 on fuse holder B -SB26- - - Vacant -
27 - Fuse 27 on fuse holder B -SB27- - - Vacant -
28 - Fuse 28 on fuse holder B -SB28- 15A - Engine control unit -J623- (T94/3), (T94/5), (T94/6) 87
29 - Fuse 29 on fuse holder B -SB29- 5A - Continued coolant circulation relay -J151- (T40/8) 87
30 - Fuse 30 on fuse holder B -SB30- 20A - Auxiliary heater control unit -J364- (T2g/1) 30
31 - Fuse 31 on fuse holder B -SB31- 30A - Wiper motor control unit -J400- (T4p/1) 30
32 - Fuse 32 on fuse holder B -SB32- - - Vacant -
33 - Fuse 33 on fuse holder B -SB33- - - Vacant -
34 - Fuse 34 on fuse holder B -SB34- - - Vacant -
35 - Fuse 35 on fuse holder B -SB35- - - Vacant -
36 - Fuse 36 on fuse holder B -SB36- - - Vacant -
37 - Fuse 37 on fuse holder B -SB37- - - Vacant -
38 - Fuse 38 on fuse holder B -SB38- 10A - Camshaft​ control​ valve​ 1 -N205- (1)
Radiator fan -V7- (2)
87
39 - Fuse 39 on fuse holder B -SB39- 5A - Clutch position sender -G476- (T5m/5) 87
40 - Fuse 40 on fuse holder B -SB40- 20A - Ignition coil 1 with output stage -N70- (T4af/1)
Ignition coil 2 with output stage -N127- (T4ag/1)
Ignition coil 3 with output stage -N291- (T4ah/1)
Ignition coil 4 with output stage -N292- (T4ai/1)
87
41 - Fuse 41 on fuse holder B -SB41- - - Vacant -
42 - Fuse 42 on fuse holder B -SB42- 5A - Engine components current supply relay -J757- (T26/5) 15
43 - Fuse 43 on fuse holder B -SB43- - - Vacant -
44 - Fuse 44 on fuse holder B -SB44- - - Vacant -
45 - Fuse 45 on fuse holder B -SB45- - - Vacant -
46 - Fuse 46 on fuse holder B -SB46- - - Vacant -
47 - Fuse 47 on fuse holder B -SB47- 40A - Onboard supply control unit -J519- (D/1) 30
48 - Fuse 48 on fuse holder B -SB48- 40A - Onboard supply control unit -J519- (A/1) 30
49 - Fuse 49 on fuse holder B -SB49- 40A - Voltage supply relay 2, terminal 15 -J681- (L/1) 30
50   Fuse 50 on fuse holder B -SB50- - - Vacant -
51   Fuse 51 on fuse holder B -SB51- - - Vacant -
52   Fuse 52 on fuse holder B -SB52- 40A - X-contact relief relay -J59- (l/2) 30
53   Fuse 53 on fuse holder B -SB53- 50A - Driver seat adjustment thermal fuse 1 -S44-
Fuse 32 on fuse holder C -SC32-
Fuse 39 on fuse holder C -SC39-
30
54   Fuse 54 on fuse holder B -SB54- - - Vacant -



VW GOLF VARIANT 2009 Fuse assignment (SB) for E-box low, from May 2007

Fuse assignment (SB) for E-box low, from May 2007

VW GOLF VARIANT 2009 Fuse assignment (SB) for E-box low, from May 2007 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
Fuse colours
200A - purple
150A - grey
125A - pink
100A - blue
80A - white
70A - brown
60A - yellow
50A - red
40A - green
30 A - orange



VW GOLF VARIANT 2009 Fuses (SB) on fuse holder B, on E-box low, from May 2007

Fuses (SB) on fuse holder B, on E-box low, from May 2007

No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder B -SB1- - - Vacant -
2 - Fuse 2 fuse holder B -SB2- 5A - Steering column electronics control unit -J527- (T20d/19) 30
3 - Fuse 3 on fuse holder B -SB3- 5A - Onboard supply control unit -J519- (F/7) 30
4 - Fuse 4 on fuse holder B -SB4- 30A - ABS control unit -J104- (T26e/1), (T47/32) 30
5 - Fuse 5 on fuse holder B -SB5- 15A - Mechatronic unit for dual clutch gearbox -J743- (T20e/11),​·(T20e/18) 30
6 - Fuse 6 on fuse holder B -SB6- 5A - Control unit in dash panel insert -J285- , (T36/2) 30
7 - Fuse 7 on fuse holder B -SB7- - - Vacant -
8 - Fuse 8 on fuse holder B -SB8- 15A - Control​ unit​ with​ display​ for​ radio​ and​ navigation -J503- (T16b/15), (T16b/16)
Radio -R-
Satellite radio -R146- (T8f/2)
30
9 - Fuse 9 on fuse holder B -S9- 5A - Mobile telephone operating electronics control unit -J412- (T54/1) 30
10 - Fuse 10 on fuse holder B -SB10- 10A
5A
- Motronic current supply relay -J271- (T40/6) 1)
Engine control unit -J623- ,​·(T94/92) 1) (T121/62) 30)
Terminal 30 voltage supply relay -J317- (T40/15)2)
30
11 - Fuse 11 on fuse holder B -SB11- 20A - Auxiliary heater control unit -J364- (T2g/1) 30
12 - Fuse 12 on fuse holder B -SB12- 5A - Data bus diagnostic interface -J533- (T20/1) 30
13 - Fuse 13 on fuse holder -SB13- 15A
30A
- Engine control unit -J623- (T94/3)3) (T94/5)3) (T94/6)3) (T121/3)4) 87
14 - Fuse 14 on fuse holder B -SB14- 20A - Ignition coil 1 with output stage -N70- (3)1)
Ignition coil 2 with output stage -N127- (3) 1
Ignition transformer -N152- (T4aa/2)5)
Ignition coil 3 with output stage -N291- (3) 1)
87
15 - Fuse 15 on fuse holder B -SB15- 10A

5A
- Lambda probe -G39- (T4am/1)6)
Lambda probe after catalytic converter -G130- (T4ao/4)6)

Fuel pump relay -J17- (T10q/3)2)
Automatic glow period control unit -J179- (6)2)
87
16 - Fuse 16 on fuse holder B -SB16- 30A - ABS control unit -J104- (T26a/14), (T47/1) 30
17 - Fuse 17 on fuse holder B -SB17- 15A - Onboard supply control unit -J519- (J/3) 30
18 - Fuse 18 on fuse holder B -SB18- 30A - Digital sound package control unit -J525- (T23/20), (T23/21), (T23/23) 30
19 - Fuse 19 on fuse holder B -SB19- 30A - Wiper motor control unit -J400- (T4p/1) 30
20 - Fuse 20 on fuse holder B -SB20- - - Vacant -
21 - Fuse 21 on fuse holder B -SB21- 10A
15A
- Lambda probe -G39- (T6w/4)7

Lambda probe -G39- (T6w/3)4
Lambda probe after catalytic converter -G130- (T4ao/1)4)
Magnetic clutch for supercharger -N421- (1)5)
87
22 - Fuse 22 on fuse holder B -SB22- 5A - Clutch position sender -G476- (T5m/5) 87
23 - Fuse 23 on fuse holder B -SB23- 5A

10A


15A
- Secondary air pump relay -J299- (T40/8)(5)

Exhaust​ gas​ recirculation​ valve -N18- (T6ae/4)9)
Charge​ pressure​ control​ solenoid​ valve -N75- (T6ae/3)9) (1)7)
Exhaust gas recirculation cooler changeover valve -N345- (T6ae/1)9) (1)7)

Fuel pressure regulating valve -N276- (1)1)
87
24 - Fuse 24 on fuse holder B -SB24- 10A - Charge​ pressure​ control​ solenoid​ valve -N75- (1)6)
Activated charcoal filter system solenoid valve 1 -N80- (1) 10)
Variable intake manifold change-over valve -N156- (1)5)
Camshaft​ control​ valve​ 1 -N205- (1) 6)
Turbocharger air recirculation valve -N249- (1) 6)
Intake manifold flap valve -N316- (1)1)
Radiator fan -V7- (2)
Intake manifold flap motor -V157- (2)9)
87
25 - Fuse 25 on fuse holder B -SB25- 40A - Onboard supply control unit -J519- (A/1) 30
26 - Fuse 26 on fuse holder B -SB26- 40A - Onboard supply control unit -J519- (D/1) 30
27 - Fuse 27 on fuse holder B -SB27- 40A

50A
- Automatic glow period control unit -J179- (11)2)

Secondary air pump motor -V101- (2)5)
87
28 - Fuse 28 on fuse holder B -SB28- 40A - Voltage supply relay 2, terminal 15 -J681- (L/1) 30
29 - Fuse 29 on fuse holder B -SB29- 50A - Driver seat adjustment thermal fuse 1 -S44-
Fuse 32 on fuse holder C -SC32-
Fuse 33 on fuse holder C -SC33-
Fuse 34 on fuse holder C -SC34-
Fuse 35 on fuse holder C -SC35-
Fuse 36 on fuse holder C -SC36-
Fuse 37 on fuse holder C -SC37-
Fuse 39 on fuse holder C -SC39-
30
30 - Fuse 30 on fuse holder B -SB30- 40A - X-contact relief relay -J59- (l/1) 30
1) Engine codes BLG, BMY
2) Engine codes AZV, BLS, BMM, BXE
3) Engine codes BSE, BXE, CAXA
4) Engine code AZV
5) Engine code BSF
6) Engine codes BLG, BMY, CAXA
7) Engine codes BLS, BMM
9) Engine codes AZV, BXE
10) Engine codes BLG, BMY, BSF, CAXA
30) Engine codes CBUA, CBTA, CCCA



VW GOLF VARIANT 2009 Fuses (SB) on fuse holder B, on E-box low, from July 2008

Fuses (SB) on fuse holder B, on E-box low, from July 2008

No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder B -SB1- - - Vacant -
2 - Fuse 2 fuse holder B -SB2- 5A - Fuel pump relay -J17- (32)13)
Fuel supply relay -J643- (32)13)
30
3 - Fuse 3 on fuse holder B -SB3- 5A - Onboard supply control unit -J519- (F/7) 30
4 - Fuse 4 on fuse holder B -SB4- 30A - ABS control unit -J104- (T47/32) 30
5 - Fuse 5 on fuse holder B -SB5- 15A - Mechatronic unit for dual clutch gearbox -J743- (T20e/25)14) (T25/25)15) (T25/11)16) (T25/18)16) 30
6 - Fuse 6 on fuse holder B -SB6- 5A - Control unit in dash panel insert -J285- , (T36/2)
Steering column electronics control unit -J527- (T20d/19)
30
7 - Fuse 7 on fuse holder B -SB7- 30A - Onboard supply control unit -J519- (L/1)
Mechatronic unit for dual clutch gearbox -J743- (T20e/9)17)
30
8 - Fuse 8 on fuse holder B -SB8- 15A - Control​ unit​ with​ display​ for​ radio​ and​ navigation -J503- (T16b/15), (T16b/16)
Radio -R-
30
9 - Fuse 9 on fuse holder B -S9- 5A - Telephone transmitter and receiver unit -R36- (T54/1) 30
10 - Fuse 10 on fuse holder B -SB10- 10A - Motronic current supply relay -J271- (T40/15) 18)
Engine control unit -J623- (T94/92) 8)
30
11 - Fuse 11 on fuse holder B -SB11- 20A - Auxiliary heater control unit -J364- (T2g/1) 30
12 - Fuse 12 on fuse holder B -SB12- 5A - Data bus diagnostic interface -J533- (T20/1) 30
13 - Fuse 13 on fuse holder -SB13- 15A - Engine control unit -J623- (T94/3)19) (T94/5)19) (T94/6)16) (T121/3)15) 87
14 - Fuse 14 on fuse holder B -SB14- 20A - Ignition coil 1 with output stage -N70- (3) 20)
Ignition coil 2 with output stage -N127- (3)20)
Ignition transformer -N152- (T4aa/2)15)
Fuel pressure regulating valve -N276- (1)21)
Fuel metering valve -N290- (1)21)
Ignition coil 3 with output stage -N291- (3)20)
Ignition coil 4 with output stage -N292- (3)20)
87
15 - Fuse 15 on fuse holder B -SB15- 10A - Lambda probe -G39- (T4am/1)22)
Lambda probe after catalytic converter -G130- (T4ao/4)22)

Fuel pump relay -J17- (T10q/3)18)
Automatic glow period control unit -J179- (6)18)
Engine control unit -J623- (T94/92) 30)
87
16 - Fuse 16 on fuse holder B -SB16- 30A - ABS control unit -J104- (T47/1)
Onboard supply control unit -J519- (A/1)
30
17 - Fuse 17 on fuse holder B -SB17- 15A - Onboard supply control unit -J519- (J/3) 30
18 - Fuse 18 on fuse holder B -SB18- 30A - Digital sound package control unit -J525- (T23/20), (T23/21), (T23/23) 30
19 - Fuse 19 on fuse holder B -SB19- 30A - Wiper motor control unit -J400- (T4p/1) 30
20 - Fuse 20 on fuse holder B -SB20- 40A - Fuel pressure regulating valve -N276- (1)13)
Coolant circulation pump -V50- (1)34)
87
21 - Fuse 21 on fuse holder B -SB21- 10A - Lambda probe -G39- (T6w/4)13) (T6w/3)15)
Lambda probe after catalytic converter -G130- (T6af/4)31)
Magnetic clutch for supercharger -N421- (1)24)
Earth point on left headlight -655-18)
87
22 - Fuse 22 on fuse holder B -SB22- 5A - Clutch position sender -G476- (T5m/5) 87
23 - Fuse 23 on fuse holder B -SB23- 10A - Fuel pump relay -J17- (1)13) (3)13) (12)13)
Secondary air pump relay -J299- (T40/8)(15)
Fuel supply relay -J643- (1)13) (3)13) (12)13)
Exhaust​ gas​ recirculation​ valve -N18- (T6ae/4)25)
Charge​ pressure​ control​ solenoid​ valve -N75- (T6ae/3)25) (1)21)
Exhaust gas recirculation cooler changeover valve -N345- (T6ae/1)25) (1)21)
Fuel pressure regulating valve -N276- (1)26)
Fuel​ system​ diagnostic​ pump -V144- (1)30)
87
24 - Fuse 24 on fuse holder B -SB24- 10A - Fuel pump relay -J17-
Fuel supply relay -J643- (1)24) (3)24)
Charge​ pressure​ control​ solenoid​ valve -N75- (1)24)
Activated charcoal filter system solenoid valve 1 -N80- (1) 27)
Variable intake manifold change-over valve -N156- (1)15)
Camshaft​ control​ valve​ 1 -N205- (1) 27)
Turbocharger air recirculation valve -N249- (1) 24)
Intake manifold flap valve -N316- (1)24)
Radiator fan -V7- (2)
Intake manifold flap motor -V157- (2) 15)
87
25 - Fuse 25 on fuse holder B -SB25- 40A - ABS control unit -J104- (T26a/1), (T47/1) 30
26 - Fuse 26 on fuse holder B -SB26- 40A - Onboard supply control unit -J519- (D/1) 30
27 - Fuse 27 on fuse holder B -SB27- 50A - Automatic glow period control unit -J179- (11)18)

Secondary air pump motor -V101- (2)28)
87
28 - Fuse 28 on fuse holder B -SB28- - - Vacant -
29 - Fuse 29 on fuse holder B -SB29- 50A - Driver seat adjustment thermal fuse 1 -S44-
Fuse 32 on fuse holder C -SC32-
Fuse 33 on fuse holder C -SC33-
Fuse 34 on fuse holder C -SC34-
Fuse 35 on fuse holder C -SC35-
Fuse 36 on fuse holder C -SC36-
Fuse 37 on fuse holder C -SC37-
Fuse 39 on fuse holder C -SC39-
30
30 - Fuse 30 on fuse holder B -SB30- 40A - X-contact relief relay -J59- (l/1) 30
8) Engine codes CAVD, BWA, CAWB, CBFA, CCTA, CBTA, CBUA, CCCA, CAXA
13) Engine codes BWA, CAWB, CBFA, CCTA
14) Engine codes CAVD, BKC
15) Engine codes BSE, CCSA
16) Engine codes BWA, CAWB, CBFA, CCTA, BKC, BLS, CBDB, CBEA, CEGA
17) Engine codes CAVD, BSE, CCSA, CAXA, BKC
18) Engine codes BKC, BLS, CBDB, CBEA, CEGA
19) Engine codes CAVD, BWA, CAWB, CBFA, CCTA, CBUA, CBTA, CCCA, CAXA, BKC, BLS, CBDB, CBEA, CEGA
20) Engine codes CAVD, BWA, CAWB, CBFA, CCTA, CBUA, CBTA, CCCA, BLS, CBDB, CBEA, CEGA
21) Engine codes BLS, CBDB, CBEA, CEGA
22) Engine codes CAVD, BWA, CAWB, CBFA, CCTA, CAXA
24) Engine code CAVD
25) Engine code BKC
26) Engine codes CAVD, CAXA
27) Engine codes CAVD, CBUA, CBTA, CCCA
28) Engine codes BSE, CCSA, BWA, CAWB, CBFA, CCTA, CBUA, CBTA, CCCA
30) Engine codes CBUA, CBTA, CCCA
31) Engine codes BWA, CAWB, CBFA, CCTA, BLS, CBDB, CBEA, CEGA
34) Engine code CAXA



VW GOLF VARIANT 2009

Fuse assignment (SC) on fuse holder C on dash panel on driver's side

VW GOLF VARIANT 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
Fuse colours
30A - green
25A - white
20A - yellow
15A - blue
10A - red
7.5A - brown
5A - beige
3A - purple



VW GOLF VARIANT 2009 Fuses (SC) on fuse holder C, from May 2007

Fuses (SC) on fuse holder C, from May 2007

No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder C -SC1- 10A - Headlight range control regulator -E102- (T8e/1)
Intake air temperature sensor -G42- (T5d/2)
Air mass meter -G70- (T5d/2)
Current supply relay for Simos control unit -J363- (T40/7)33)
Auxiliary heater operation relay -J485- (T9a/4)
Engine control unit -J623- ,​·(T94/18)33) (T121/62)2)
16-pin connector, -T16- diagnosis connection on left under dash panel (T16/1)
Left headlight range control motor -V48- (T10i/1)
Right headlight range control motor -V49- (T10j/1)
15
2 - Fuse 2 on fuse holder C -SC2- 10A - Lighting switch -E1- (T10h/4)
Brake​ light​ switch -F- (T4y/4)
Tiptronic switch -F189- (T10s/9)
Fuel pump relay -J17- (T10q/3)
ABS control unit -J104- (T26a/20), (T47/4), (T47/29)
Control unit in dash panel insert -J285- , (T36/1)
Trailer detector control unit -J345- ,​·(T12h/2)
Power steering control unit -J500- (T5h/4)
Data bus diagnostic interface -J533- (T20/14)
Fuel pump control unit -J538- (T10v/3)
Engine control unit -J623- ,​·(T94/87)33) (T121/21)2)
Mechatronic unit for dual clutch gearbox -J743- (T20e/13)
15
3 - Fuse 3 on fuse holder C -SC3- 5A - Airbag control unit -J234- (T75/1), (T50/1), (T75/26), (T50/31)
Front passenger side airbag deactivated warning lamp -K145- (T4g/3)
15
4 - Fuse 4 on fuse holder C -SC4- 5A - TCS/ESP button -E256- (T6ad/4)
Tyre​ pressure​ monitor​ display​ button -E492- (T6aj/5)
Reversing light switch -F4- (1)
High-pressure sender -G65- (T3c/3)
Oil level and oil temperature sender -G266- (1)
Left front parking aid sensor -G255- (T20c/12), (T20c/16), (T20c/19), (T20c/20)
Air​ conditioning​ system​ control​ unit​ -J301- (T20c/15)
Garage door operation control unit -J530-
Seat occupied recognition control unit -J706- (9)
Automatic anti-dazzle interior mirror -Y7- (T6am/1)
Left​ washer​ jet​ heater​ element -Z20- (T2t/1)
Right washer​ jet​ heater​ element -Z21- (T2u/1)
15
5 - Fuse 5 on fuse holder C -SC5- - - Vacant -
6 - Fuse 6 on fuse holder C -SC6- - - Vacant -
7 - Fuse 7 on fuse holder C -SC7- - - Vacant -
8 - Fuse 8 on fuse holder C -SC8- - - Vacant -
9 - Fuse 9 on fuse holder C -SC9- - - Vacant -
10 - Fuse 10 on fuse holder C -SC10- - - Vacant -
11 - Fuse 11 on fuse holder C -SC11- - - Vacant -
12 - Fuse 12 on fuse holder C -SC12- 10A - Driver door control unit -J386- (T20a/18), (T20a/12)
Front passenger door control unit -J387- (T20b/18), (T20b/12)
30
13 - Fuse 13 on fuse holder C -SC13- 10A - Lighting switch -E1- (T10h/8)
Vehicle​ position​ recognition​ control​ unit -J603- (T8h/1)
16-pin connector, -T16- diagnosis connection on left under dash panel (T16/1)
30
14 - Fuse 14 on fuse holder C -SC14- 10A - Heater/heat output switch -E16- (T20c/18)
Tiptronic switch -F189- (T10s/10)
ABS control unit -J104- (T47/17)
Automatic​ gearbox​ control​ unit​ -J217- (T52/3)
Climatronic control unit -J255- (T20c/20), (T20c/16)
Air​ conditioning​ system​ control​ unit​ -J301- (T20c/19)
Parking aid control unit -J446- (T16c/3)
Selector lever sensors control unit -J587- (T10s/10)
Remote control receiver for auxiliary coolant heater -R149- (T6j/1)
30
15 - Fuse 15 on fuse holder C -SC15- 7.5A - Onboard supply control unit -J519- (K/5) 30
16 - Fuse 16 on fuse holder C -SC16- - - Vacant -
17 - Fuse 17 on fuse holder C -SC17- 5A - Interior monitoring sensor -G273- (T8d/3)
Alarm horn -H12- (T3f/3)
Convenience​ system central control unit -J393- (T18/1)
Alarm horn relay -J641- (T10d/1), (T10d/3)
30
18 - Fuse 18 on fuse holder C -SC18- - - Vacant -
19 - Fuse 19 on fuse holder C -SC19- - - Vacant -
20 - Fuse 20 on fuse holder C -SC20- - - Vacant -
21 - Fuse 21 on fuse holder C -SC21- - - Vacant -
22 - Fuse 22 on fuse holder C -SC22- 40A - Fresh air blower -V2- (T6t/4) 30
23 - Fuse 23 on fuse holder C -SC23- 30A - Driver door control unit -J386- (T20a/20)
Front passenger door control unit -J387- (T20b/20)
30
24 - Fuse 24 on fuse holder C -SC24- 20A
25A
- Rear left door control unit -J388- (T18b/11)
Rear right door control unit -J389- (T18c/11)
Convenience​ system central control unit -J393- (T18c/2)
30
25 - Fuse 25 on fuse holder C -SC25- 25A - Auxiliary heater operation relay -J485- (6)
Onboard supply control unit -J519- (K/6)
30
26 - Fuse 26 on fuse holder C -SC26- 20A
30A
- Rear left door control unit -J388- (T18b/10)
Rear right door control unit -J389- (T18c/10)
30
27 - Fuse 27 on fuse holder C -SC27- 15A - Fuel pump relay -J17- (T10q/1)11)
Electric fuel pump relay 2 -J49- (T10q/6)5) (T10q/8)5)
Fuel pump control unit -J538- (T10v/1)12)
Fuel supply relay -J643- (T10q/6), (T10q/8)
30
28 - Fuse 28 on fuse holder C -SC28- - - Vacant -
29 - Fuse 29 on fuse holder C -SC29- - - Vacant -
30 - Fuse 30 on fuse holder C -SC30- 10A
20A
- Multifunction switch -F125- (T10n/10)
Automatic gearbox control unit -J217- (T52/27), (T52/28)
Fuel pump control unit -J538- (T10n/10)
15
31 - Fuse 31 on fuse holder C -SC31- - - Vacant -
32 - Fuse 32 on fuse holder C -SC32- 30A - Interior socket, 230V, 110V -U11- (T3ba/2) 30
33 - Fuse 33 on fuse holder C -SC33- 15A - Sliding sunroof control unit -J245- (T6c/1), (T6g/4) 30
34 - Fuse 34 on fuse holder C -SC34- 15A - Driver seat lumbar support adjustment switch -E176- (T6ah/4)
Front passenger seat lumbar support adjustment switch -E177- (T6ai/4)
30
35 - Fuse 35 on fuse holder C -SC35- - - Vacant -
36 - Fuse 36 on fuse holder C -SC36- 20A - Headlight washer system relay -J39- (2), (4) 30
37 - Fuse 37 on fuse holder C -SC37- 30A - Heated front seats control unit -J774- (T8v/3), (T8v/6), (T8aa/3), (T8aa/6) 30
38 - Fuse 38 on fuse holder C -SC38- - - Vacant -
39 - Fuse 39 on fuse holder C -SC39- 20A - Sliding sunroof control unit -J245- (T6c/2), (T6g/2) 15
40 - Fuse 40 on fuse holder C -SC40- 30A
40A
- Air​ conditioning​ system​ control​ unit​ -J301- (T5/5)
Auxiliary heater operation relay -J485- (T9a/2)
75
41 - Fuse 41 on fuse holder C -SC41- 15A
20A
- Onboard supply control unit -J519- (J/1)
Rear window wiper motor -V12- (T4bv/4)
75
42 - Fuse 41 on fuse holder C -SC42- 15A
20A
- Blocking diode -J29-
Cigarette lighter -U1- (T3g/2)
12V socket -U5- (T3j/2)
75
43 - Fuse 43 on fuse holder C -SC43- 15A - Trailer detector control unit -J345- ,​·(T12h/9) 30
44 - Fuse 44 on fuse holder C -SC44- 20A - Trailer detector control unit -J345- ,​·(T12h/11) 30
45 - Fuse 45 on fuse holder C -SC45- 15A - Trailer detector control unit -J345- ,​·(T12h/12) 30
46 - Fuse 46 on fuse holder C -SC46- - - Vacant -
47 - Fuse 47 on fuse holder C -SC47- - - Vacant -
48 - Fuse 48 on fuse holder C -SC48- - - Vacant -
49 - Fuse 49 on fuse holder C -SC49- - - Vacant -
2) Engine codes AZV, BLS, BMM, BXE
5) Engine code BSF
11) Engine codes BLG, BMY, BSF
12) Engine codes AZV, BLS, BMM
33) Engine codes CBUA, CBTA, CCCA, BWA, CAXA, BSF, BMY, BLG



VW GOLF VARIANT 2009 Fuses (SC) on fuse holder C, from July 2008

Fuses (SC) on fuse holder C, from July 2008

No.   Current Flow Diagram designation Nominal value   Function/component Terminal
1 - Fuse 1 on fuse holder C -SC1- 10A - Headlight range control regulator -E102- (T8e/1)
Intake air temperature sensor -G42- (T5d/3)13)
Air mass meter -G70- (T5d/3)13) , (T5d/2)18)
Fresh air blower relay -J13- (T9/4)
Headlight range control unit -J431- (T25c/23)
Crankcase​ breather​ heater​ element -N79- (1) 21)
16-pin connector, -T16- diagnosis connection on left under dash panel (T16/1)
Left headlight range control motor -V48- (T10i/1)
Right headlight range control motor -V49- (T10j/1)
15
2 - Fuse 2 on fuse holder C -SC2- 10A - Lighting switch -E1- (T10h/4)
Brake​ light​ switch -F- (T4y/4)
Tiptronic switch -F189- (T10s/9)
Fuel pump relay -J17- (1)
ABS control unit -J104- (T47/8), (T26a/20)
Control unit in dash panel insert -J285- , (T36/1)
Current supply relay for Simos control unit -J363- (T40/7)15)
Trailer detector control unit -J345- ,​·(T12h/2)
Power steering control unit -J500- (T5h/4)
Data bus diagnostic interface -J533- (T20/14)
Fuel pump control unit -J538- (T10v/3)
Engine control unit -J623- (T94/87)29) , (T94/84)30) , (T94/18)25) , (T81/62)15)
Mechatronic unit for dual clutch gearbox -J743- (T20e/10)32) ,​·(T25/10)15) , (T25/13)31)
15
3 - Fuse 3 on fuse holder C -SC3- 5A - Airbag control unit -J234- (T75/1), (T50/1), (T75/26), (T50/31)
Front passenger side airbag deactivated warning lamp -K145- (T4g/3)
15
4 - Fuse 4 on fuse holder C -SC4- 5A - TCS/ESP button -E256- (T6ad/4)
Tyre​ pressure​ monitor​ display​ button -E492- (T6an/5)
Reversing light switch -F4- (1)
High-pressure sender -G65- (T3c/3)
Air quality sensor -G238- (T3an/1)
Oil level and oil temperature sender -G266- (1)
Climatronic control unit -J255- (T20c/12), (T20c/16), (T20c/19), (T20c/20)
Air​ conditioning​ system​ control​ unit​ -J301- (T20c/15), (T20c/19)
Garage door operation control unit -J530-
Seat occupied recognition control unit -J706- (1)
Automatic anti-dazzle interior mirror -Y7- (T6am/1)
Left​ washer​ jet​ heater​ element -Z20- (T2t/1)
Right washer​ jet​ heater​ element -Z21- (T2u/1)
15
5 - Fuse 5 on fuse holder C -SC5- - - Vacant -
6 - Fuse 6 on fuse holder C -SC6- - - Vacant -
7 - Fuse 7 on fuse holder C -SC7- - - Vacant -
8 - Fuse 8 on fuse holder C -SC8- - - Vacant -
9 - Fuse 9 on fuse holder C -SC9- - - Vacant -
10 - Fuse 10 on fuse holder C -SC10- - - Vacant -
11 - Fuse 11 on fuse holder C -SC11- - - Vacant -
12 - Fuse 12 on fuse holder C -SC12- 10A - Driver door control unit -J386- (T20a/18), (T20a/12)
Front passenger door control unit -J387- (T20b/18), (T20b/12)
30
13 - Fuse 13 on fuse holder C -SC13- 10A - Lighting switch -E1- (T10h/8)
Rain and light sensor -G397- (T3ae/1)
16-pin connector, -T16- diagnosis connection on left under dash panel (T16/1)
30
14 - Fuse 14 on fuse holder C -SC14- 10A - Tiptronic switch -F189- (T10s/10)
Automatic​ gearbox​ control​ unit​ -J217- (T52/3)
Climatronic control unit -J255- (T20c/20), (T20c/16)
Air​ conditioning​ system​ control​ unit​ -J301- (T20c/19), (T20c/18)
Remote control receiver for auxiliary coolant heater -R149- (T6j/1)
30
15 - Fuse 15 on fuse holder C -SC15- 7.5A - Onboard supply control unit -J519- (K/5) 30
16 - Fuse 16 on fuse holder C -SC16- - - Vacant -
17 - Fuse 17 on fuse holder C -SC17- 5A - Interior monitoring sensor -G273- (T8d/3)
Alarm horn -H12- (T3f/3)
Convenience​ system central control unit -J393- (T18/1)
Alarm horn relay -J641- (T10d/1), (T10d/3)
30
18 - Fuse 18 on fuse holder C -SC18- - - Vacant -
19 - Fuse 19 on fuse holder C -SC19- - - Vacant -
20 - Fuse 20 on fuse holder C -SC20- - - Vacant -
21 - Fuse 21 on fuse holder C -SC21- - - Vacant -
22 - Fuse 22 on fuse holder C -SC22- 40A - Fresh air blower -V2- (T6t/4) 30
23 - Fuse 23 on fuse holder C -SC23- 30A - Driver door control unit -J386- (T20a/20)
Front passenger door control unit -J387- (T20b/20)
30
24 - Fuse 24 on fuse holder C -SC24- 20A
25A
- Rear left door control unit -J388- (T18b/11)
Rear right door control unit -J389- (T18c/11)
Convenience​ system central control unit -J393- (T18c/2)
30
25 - Fuse 25 on fuse holder C -SC25- 25A - Auxiliary heater operation relay -J485- (2)
Onboard supply control unit -J519- (K/6)
30
26 - Fuse 26 on fuse holder C -SC26- 20A
30A
- Rear left door control unit -J388- (T18b/10)
Rear right door control unit -J389- (T18c/10)
30
27 - Fuse 27 on fuse holder C -SC27- 15A - Fuel pump relay -J17- (1), (3), (12), (32)
Fuel pump control unit -J538- (T10v/1)
Fuel supply relay -J643- (T10q/6), (T10q/8)
30
28 - Fuse 28 on fuse holder C -SC28- - - Vacant -
29 - Fuse 29 on fuse holder C -SC29- - - Vacant -
30 - Fuse 30 on fuse holder C -SC30- 20A - Multifunction switch -F125- (T10n/10)
Automatic gearbox control unit -J217- (T52/27), (T52/28)
15
31 - Fuse 31 on fuse holder C -SC31- 20A - Brake system vacuum pump -V192- (T6Aab/5) 15
32 - Fuse 32 on fuse holder C -SC32- 30A - Interior socket, 230V, 110V -U11- (T3ba/2) 30
33 - Fuse 33 on fuse holder C -SC33- 25A - Sliding sunroof control unit -J245- (T6c/1) 30
34 - Fuse 34 on fuse holder C -SC34- 15A - Driver seat lumbar support adjustment switch -E176- (T6ah/4)
Front passenger seat lumbar support adjustment switch -E177- (T6ai/4)
30
35 - Fuse 35 on fuse holder C -SC35- - - Vacant -
36 - Fuse 36 on fuse holder C -SC36- 20A - Headlight washer system relay -J39- (12), (32) 30
37 - Fuse 37 on fuse holder C -SC37- 30A - Heated front seats control unit -J774- (T8v/3), (T8v/6), (T8aa/3), (T8aa/6) 30
38 - Fuse 38 on fuse holder C -SC38- - - Vacant -
39 - Fuse 39 on fuse holder C -SC39- 20A - Sliding sunroof control unit -J245- (T6c/2) 15
40 - Fuse 40 on fuse holder C -SC40- 30A
40A
- Fresh air blower relay -J13- (T9/2)
Air​ conditioning​ system​ control​ unit​ -J301- (T5/5)
75
41 - Fuse 41 on fuse holder C -SC41- 15A
20A
- Onboard supply control unit -J519- (J/1)
Rear window wiper motor -V12- (T4bv/4)
75
42 - Fuse 41 on fuse holder C -SC42- 15A
20A
- Blocking diode -J29-
Cigarette lighter -U1- (T3g/2)
12V socket -U5- (T3j/2)
75
43 - Fuse 43 on fuse holder C -SC43- 15A - Trailer detector control unit -J345- ,​·(T12h/9) 30
44 - Fuse 44 on fuse holder C -SC44- 20A - Trailer detector control unit -J345- ,​·(T12h/11) 30
45 - Fuse 45 on fuse holder C -SC45- 15A - Trailer detector control unit -J345- ,​·(T12h/12) 30
46 - Fuse 46 on fuse holder C -SC46- - - Vacant -
47 - Fuse 47 on fuse holder C -SC47- - - Vacant -
48 - Fuse 48 on fuse holder C -SC48- - - Vacant -
49 - Fuse 49 on fuse holder C -SC49- - - Vacant -
13) Engine codes BWA, CAWB, CBFA, CCTA
15) Engine codes BSE, CCSA
18) Engine codes BKC, BLS, CBDB, CBEA, CEGA
21) Engine codes BLS, CBDB, CBEA, CEGA
25) Engine code BKC
29) Engine codes CAVD, BWA, CAWB, CBFA, CCTA, CAXA, BLS, CBDB, CEGA, CBEA
30) Engine codes CBUA, CBTA, CCCA
31) Engine codes BWA, CAWB, CBFA, CCTA, BLS, CBDB, CEGA, CBEA
32) Engine codes CAVD, CAXA, BKC



VW GOLF VARIANT 2009

Circuit breaker, under dash panel on driver's side

VW GOLF VARIANT 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
A -  Driver seat adjustment thermal fuse 1 -S44- , 30A




VW GOLF VARIANT 2009



VW GOLF VARIANT 2009 Overview of earth points

Overview of earth points
VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   1 Earth strap, battery - body
q   Fitting location
   12 Earth point on left in engine compartment
q   Fitting location
   15 Earth point on cylinder head
q   Fitting location
   43 Earth point, lower part of right A-pillar
q   Fitting location
   45 Earth​ point,​ behind​ centre​ of​ dash​ panel​
q   Fitting location
   51 Earth point, on right in luggage compartment
q   Fitting location
   602 Earth point in front left footwell
q   Fitting location
   605 Earth point on top end of steering column
q   Fitting location
   607 Earth point, on left in plenum chamber
q   Fitting location
   609 Earth point, on right in plenum chamber
q   Fitting location
   638 Earth point on right A-pillar
q   Fitting location
   640 Earth point 2 on left in engine compartment
q   Fitting location
   642 Earth point for electronically controlled fan
q   Fitting location
   652 Earth point, engine and gearbox earth
q   Fitting location
   655 Earth​ point​ on​ left​ headlight​
q   Fitting location
   656 Earth point on right headlight
q   Fitting location
   662 Earth point in rear left side panel
q   Fitting location

Earth points, in engine compartment

   1 Earth strap, battery - body -arrow A-
   12 Earth point on left in engine compartment -arrow B-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   15 Earth point on cylinder head -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   607 Earth point on left in plenum chamber -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   609 Earth point on right in plenum chamber -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   640 Earth point 2 on left in engine compartment -arrow A-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   652 Earth point for engine and gearbox earth -arrow D-
   655 Earth point on left headlight -arrow B-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   656 Earth point on right headlight -arrow-
Earth points in interior

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   43 Earth point on lower part of right A-pillar -arrow B-
   638 Earth point on right A-pillar -arrow A-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   45 Earth point, behind centre of dash panel -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   602 Earth point, in front left footwell -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   605 Earth point on top of steering column -arrow-
Earth points in luggage compartment

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   51 Earth point, on right in luggage compartment -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
   662 Earth point in rear left side panel -arrow-

VW GOLF VARIANT 2009 Overview of earth points https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009VW GOLF VARIANT 2009
