VW PASSAT 1999 – Interior monitoring (IM) . Wiring diagrams, Pin Connector, Location

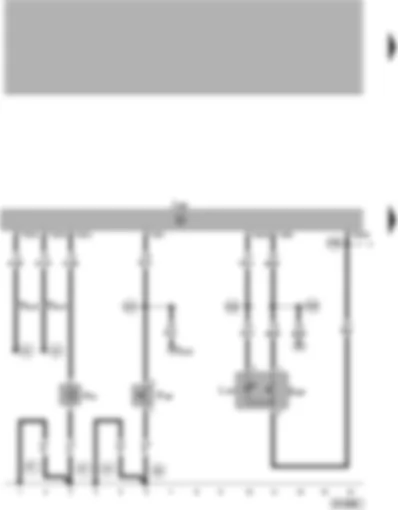

Wiring Diagram VW PASSAT 1999 - Convenience electrics central control unit - switch for anti-theft alarm system - alarm horn - switch for deactivating interior monitoring

E267	Interoir monitoring deactivation switch
F120	Anti-theft alarm/rodent repellent system contact switch
H12	Alarmhorn, am Federbeindom hinten links
J393	Convenience system central control unit
L118	Deactivation of interior monitoring system switch illumination
T10v	-10-pin connector, lilac, coupling station right A-pillar
T15	15-pin connector, on convenience electrics central control unit
T23	23-pin connector, on convenience electrics central control unit
44	Earth point, A-pillar left, bottom, lower
57	Earth point, left rear pillar
86	Earth connection -1-, in rear wiring harness
87	Earth connection -2-, in rear wiring harness
A5	Positive (+) connection (right turn signal), in dash panel wiring harness
A6	Positive (+) connection (left turn signal), in dash panel wiring harness
W36	Positive connection (30a), in floor wiring harness
W37	Connection (ATA), in floor wiring harness
W46	Connection -1- (interior monitoring), in floor wiring harness
W48	Connection -2- (interior monitoring), in floor wiring harness

G273	Interior monitoring sensor
G274	Interior monitoring sensor
J393	Convenience system central control unit, in front left footwell
S14	Fuse in relay plate fuse box
T4	4-pin connector
T6	6-pin connector
T10o	10-pin connector, light green, coupling station left A-pillar
T15	15-pin connector, on convenience system central control unit
T23	23-pin connector, on convenience system central control unit
W11	Reading lamp, rear left
W12	Reading lamp, rear right
44	Earth point, A-pillar left, bottom
128	Earth connection -1-, in interior light wiring harness
R4	Connection-1-, in interior light/door contact switch wiring harness
R6	Positive connection -1-, in interior light wiring harness
W47	Positive connection -2- (30a), in floor wiring harness
W48	Connection -2- (interior monitoring), in floor wiring harness
