VW PASSAT 1999 – Air conditioning system, 2.8 ltr./142 kW Motronic, engine code ALG . Wiring diagrams, Pin Connector, Location

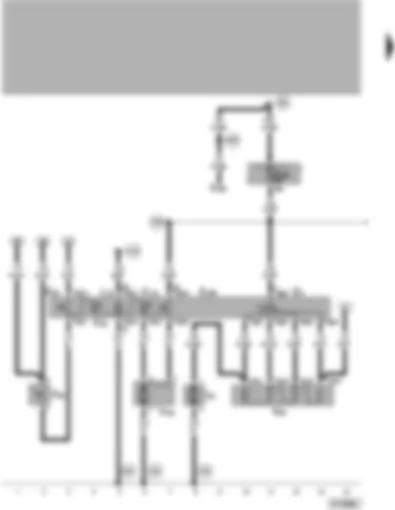

Wiring Diagram VW PASSAT 1999 - Fresh air blower - air conditioner system switch - ambient temperature switch - fresh air / air recirculation change-over



Wiring Diagram  VW PASSAT 1999 - Fresh air blower - air conditioner system switch - ambient temperature switch - fresh air / air recirculation change-over https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
E9Fresh air blower switch
E35Air conditioner switch
E159Fresh air and air recirculation switch
F38Ambient temperature switch (switching value ≤ 5°C)
K84Air conditioning system warning lamp
K114Fresh air/air recirculation warning lamp
L16Fresh air controls light bulb
N24Fresh air blower with overheating fuse series resistor
S225Fuse in fuse holder
S236Fuse in fuse holder
T4a4-pin connector, on series resistance
T6g6-pin connector, on fresh air blower switch
T8a8-pin connector, on fresh air blower and air recirculation switch
V2Fresh air blower
V154Fresh/recirculating air flap control motor
   135 Earth connection -2-, in dash panel wiring harness
   503 Screw connection (75x), on relay plate
   A19 Connection (58d), in dash panel wiring harness
   A36 Verbindung (75a), im Schalttafelleitungsstrang
   A80 Connection -1- (X), in dash panel wiring harness

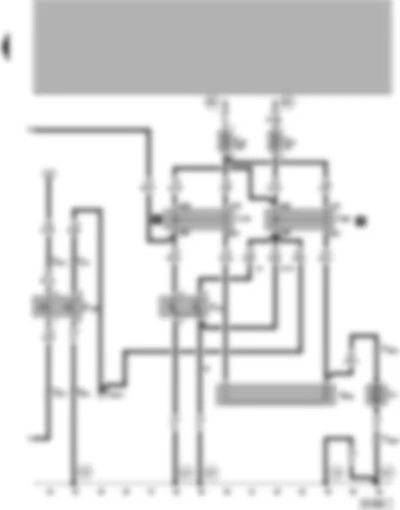

Wiring Diagram VW PASSAT 1999 - Air conditioning system control unit - air conditioner magnetic coupling



Wiring Diagram  VW PASSAT 1999 - Air conditioning system control unit - air conditioner magnetic coupling https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
J220Motronic control unit
J217Automatic gearbox control unit
J285Control unit with display in dash panel insert
J314Air conditioner cut-off control unit (384), on 13 position additional relay carrier
J361Simos control unit, in centre of plenum chamber
N25Air conditioning system magnetic coupling
T10i10-pin connector, blue, coupling station right A-pillar
T10k10-pin connector, grey, coupling station left A-pillar
T15s15-pin connector, red, in protective housing, left in engine compartment
T32b32-pin connector, green, on dash panel insert
T8080-pin connector, on engine control unit
T8888-pin connector, on automatic gearbox control unit
T121121-pin connector, on engine control unit
   135 Earth connection -2-, in dash panel wiring harness
   A36 Connection (75a), in dash panel wiring harness
   A79 Connection (hot light switch), in dash panel wiring harness
*For engine codes ACK and ALG only
**Not with engine codes ACK and ALG

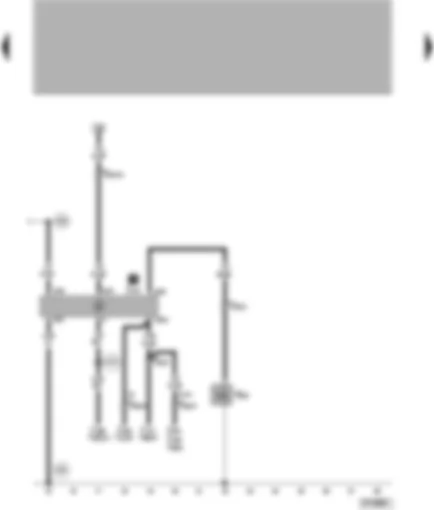

Wiring Diagram VW PASSAT 1999 - Blocking diode - radiator fan relay - ambient temperature sender



Wiring Diagram  VW PASSAT 1999 - Blocking diode - radiator fan relay - ambient temperature sender https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
E15Heated rear window switch
G17Ambient temperature sensor
J26Radiator fan relay (214), on 13 position additional relay carrier
J28Air conditioner/heater diode
J220Motronic control unit
J285Control unit with display in dash panel insert
J361Simos control unit, in centre of plenum chamber
T2a2-pin connector
T6h6-pin connector, black, on heated rear window switch
T10k10-pin connector, grey, coupling station left A-pillar
T15s15-pin connector, red, on protective housing, left in engine compartment
T24c24-pin connector, brown, on Motronic control unit
T32b32-pin connector, green, on dash panel insert
T8080-pin connector, on engine control unit
T121121-pin connector, on engine control unit
   30 Earth point -1-, next to relay plate
   81 Earth connection -1-, in dash panel wiring harness
   135 Earth connection -2-, in dash panel wiring harness
   A64 Connection (rpm boost), in dash panel wiring harness
   A73 Connection (ambient temperature display), in dash panel wiring harness

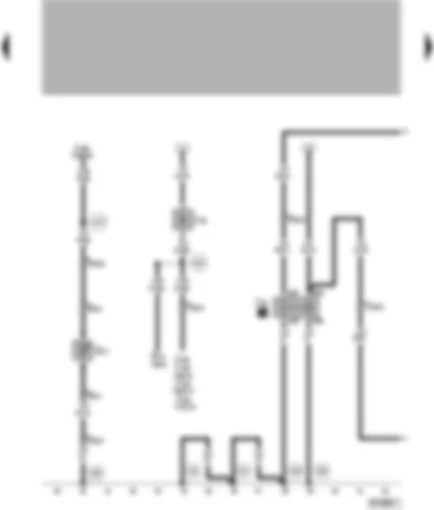

Wiring Diagram VW PASSAT 1999 - Air conditioning system pressure switch - radiator fan thermo switch - radiator fan relay - radiator fan



Wiring Diagram  VW PASSAT 1999 - Air conditioning system pressure switch - radiator fan thermo switch - radiator fan relay - radiator fan https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
F18Radiator fan thermo-switch, connections 1 & 3 are not internally connected with engine codes ACK & ALG
F129Air conditioner pressure switch
J279Radiator fan 1st speed relay (214), on 8 position additional relay carrier
J280Radiator fan 2nd speed relay (214), on 8 position additional relay carrier
N39Radiator fan series resistor, under left longitudinal member
S42Radiator fan single fuse, on 8 position additional relay carrier
S51Fuse for radiator fan relay, on 8 position additional relay carrier
T2b2-pin connector, front left in engine compartment
T44-pin connector, front left in engine compartment
T10k10-pin connector, grey, coupling station left A-pillar
V7Radiator fan
   30 Earth point -1-, next to relay plate
   127 Earth connection, -1-, in A.C. compressor wiring harness
   500 Screw connection -1- (30), on relay plate
   503 Screw connection (75x), on relay plate
*For engine codes ACK and ALG only
**Not with engine codes ACK and ALG
